Genesis G80 I (2016-2020) b/alarm horn relay control Wiring diagrams

This page contains all the electrical diagrams for the component. b/alarm horn relay control, in which he is found in the car Genesis G80 I (2016-2020). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

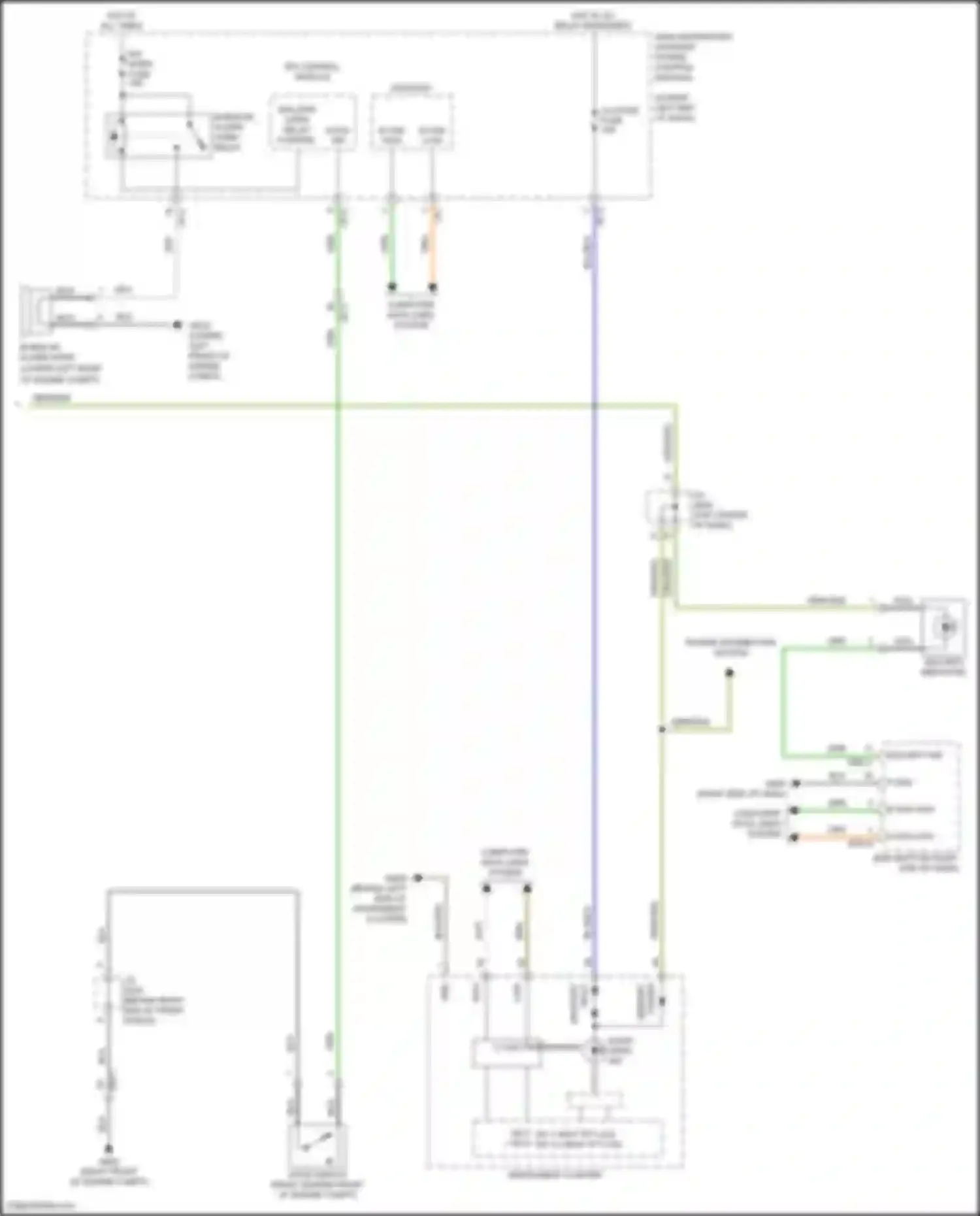

Wiring diagram b/alarm horn relay control (1 of 3)

Wiring diagram b/alarm horn relay control for Genesis G80 I (2016-2020) (1 of 3)

Get access

B-CAN B-CAN HIGH B-CAN LOW B-CAN LOW HIGH B/A HORN FUSE B/ALARM HORN RELAY CONTROL BCM (BOTTOM RIGHT END OF DASH) BLK WIRE BLK/ORG WIRE BLU/BLK WIRE BRN WIRE BURGLAR ALARM HORN BURGLAR ALARM HORN RELAY C-CAN TRANSCEIVER CLUSTER FUSE COMPUTER DATA LINES SYSTEM DOOR OPEN IND GATEWAY GRN WIRE GRN/ORG WIRE GRY WIRE HOOD SW HOOD SWITCH HOT AT ALL TIMES I/P-C I/P-D I/P-G I/P-I IGPM (INTEGRATED GATEWAY POWER CONTROL MODULE) INPUT INSTRUMENT CLUSTER IPS CONTROL MODULE MCU 1 MCU MEMORY NCA WIRE ON/START ORG/ WIRE P-GND POWER POWER DISTRIBUTION SYSTEM RELAY ENERGIZED SECURITY IND SECURITY INDICATOR WHT WIRE

Go to component -> Forced entry circuit (5 of 5) -> B/ALARM HORN RELAY CONTROL

Wiring diagram b/alarm horn relay control (2 of 3)

Wiring diagram b/alarm horn relay control for Genesis G80 I (2016-2020) (2 of 3)

Get access

ANTI-LOCK BRAKES SYSTEM B+1 FUSE B+3 FUSE B/A HORN FUSE B/ALARM HORN RELAY CONTROL BLK WIRE BLU WIRE BLU/ORG WIRE BRAKE FLUID LEVEL SENSOR BRAKE LAMP SIGNAL BRN WIRE BRN/BLK WIRE BRN/ORG WIRE BURGLAR ALARM HORN RELAY CONTROL DEFOGGER SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR SWITCH E/R JUNCTION BLOCK FRONT DEICER FUSE SWITCH GRY WIRE GRY/BLK WIRE HEADLIGHTS SYSTEM HOT AT ALL TIMES I/P-A I/P-B I/P-C I/P-D I/P-E I/P-H I/P-I IGPM (INTEGRATED GATEWAY POWER CONTROL MODULE) IPS 1 CONTROL IPS 5 IPS 7 CONTROL IPS CONTROL MODULE LEAK CURRENT AUTO CUT DEVICE LEAK CURRENT AUTO CUT RELAY LEAK CURRENT AUTO CUT RELAY CONTROL MCU GROUND MEMORY POWER MULTI FUSE OFF ORG/ WIRE ORG/BLK WIRE PASSENGER REAR LH POWER DISTRIBUTION SYSTEM POWER GROUND REAR DEFOGGER REAR RH (+) RED WIRE RED/BLK WIRE RED/ORG WIRE RELAY RELAY CONTROL SWITCH TRUNK LID RELAY CONTROL TRUNK ROOM LAMP TRUNK TRUNK LID LATCH HANDLE MOTOR SWITCH TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN LAMP FL ACT TURN LAMP FR ACT WHT WIRE YEL WIRE

Go to component -> Ips control module circuit (1 of 2) -> B/ALARM HORN RELAY CONTROL
