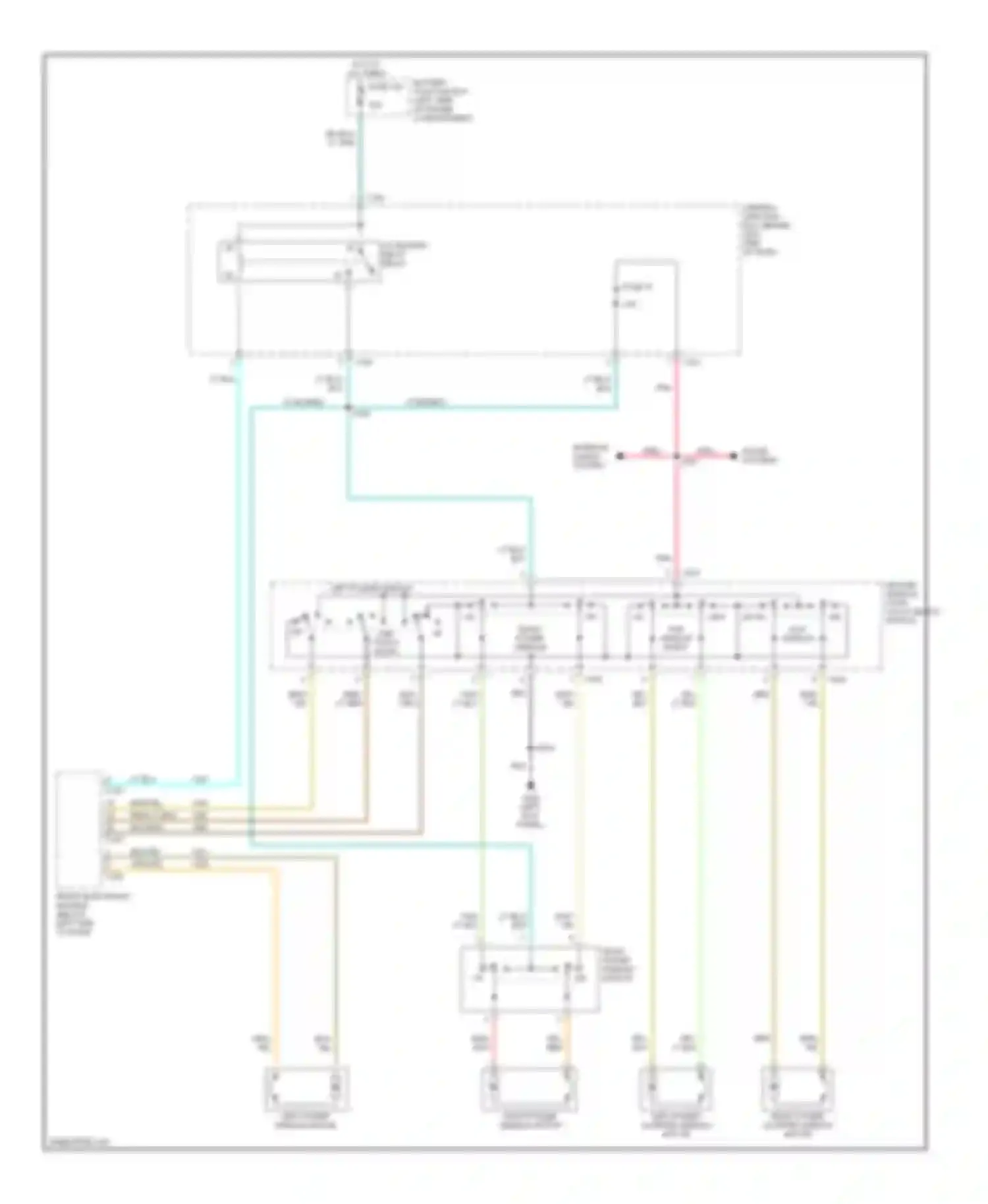

Power window circuit for Ford Windstar I (1994-2003)
Power window circuit
ACCESSORY DELAY RELAY
BATTERY JUNCTION BOX (LEFT SIDE OF ENGINE COMPARTMENT)
BLK WIRE
BLK/ORG WIRE
BLK/YEL WIRE
BRN WIRE
BRN/YEL WIRE
CENTRAL JUNCTION BOX (BEHIND LEFT SIDE OF DASH)
DK BLU WIRE
DN UP
FRONT ELECTRONIC MODULE (BELOW LEFT SIDE OF DASH)
FUSE 106
FUSE 18
HOT AT ALL TIMES
LEFT POWER QUARTER WINDOW MOTOR RIGHT POWER QUARTER WINDOW MOTOR
LEFT POWER WINDOW
LEFT POWER WINDOW MOTOR
LT BLU WIRE
LT BLU/BLK WIRE
LT GRN WIRE
MASTER WINDOW/ DOOR LOCK/ UNLOCK SWITCH
ONE- TOUCH DOWN
ORG/ WIRE
ORG/YEL WIRE
PNK SOUND SYSTEMS WIRE
PNK WIRE
RED WIRE
RED/LT GRN WIRE
RIGHT POWER WINDOW
RIGHT POWER WINDOW MOTOR
RIGHT POWER WINDOW SWITCH
TAN WIRE
UP DN LEFT FLIP WINDOW RIGHT FLIP WINDOW
WHT WIRE
YEL WIRE
