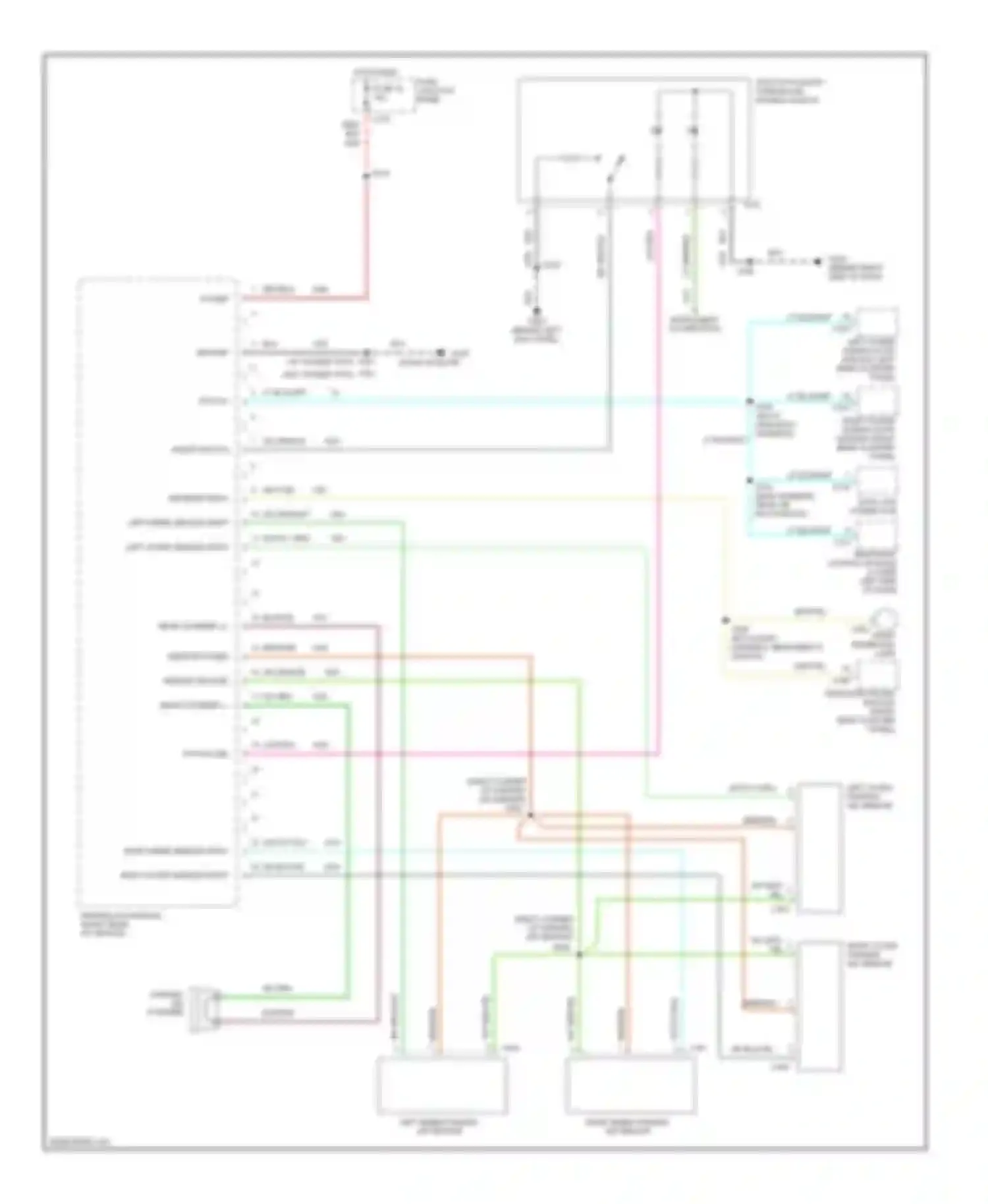

Car Wiring Diagrams for Parking assistant circuit for Ford Windstar I (1994-2003)

BLK WIRE BLK/PNK WIRE BRN/PNK WIRE DATA LINK CONNECTOR DK BLU/YEL WIRE DK GRN WIRE DK GRN/VIO WIRE DK GRN/WHT WIRE DK GRN/YEL WIRE FUSE 10 FUSE JUNCTION PANEL GROUND HOT IN RUN INSTRUMENT ILLUMINATION ISO 9141 LEFT INNER PARKING AID SENSOR LEFT INNER SENSOR INPUT LEFT OUTER PARKING AID SENSOR LEFT OUTER SENSOR INPUT LEFT POWER SLIDING DOOR MODULE (LEFT REAR QUARTER PANEL) LT BLU/WHT WIRE LT GRN/RED WIRE ON/OFF SWITCH PARKING AID MODULE (RIGHT REAR OF VEHICLE) PARKING AID SOUNDER POWER REAR ELECTRONIC MODULE (RIGHT REAR QUARTER PANEL) REAR SOUNDER - RED WIRE RED/BLK WIRE RESTRAINT CONTROL MODULE (LOWER LEFT SIDE OF DASH) REVERSE INPUT RIGHT INNER PARKING AID SENSOR RIGHT INNER SENSOR INPUT RIGHT OUTER PARKING AID SENSOR RIGHT OUTER SENSOR INPUT RIGHT POWER SLIDING DOOR MODULE (RIGHT REAR QUARTER PANEL) RIGHT REVERSING LAMP SENSOR GROUND SENSOR POWER STATUS LED TRACTION ASSIST/ PARKING AID DISABLE SWITCH VIO/ORG WIRE WHT/LT BLU WIRE WHT/LT GRN WIRE WHT/YEL WIRE YEL WIRE
