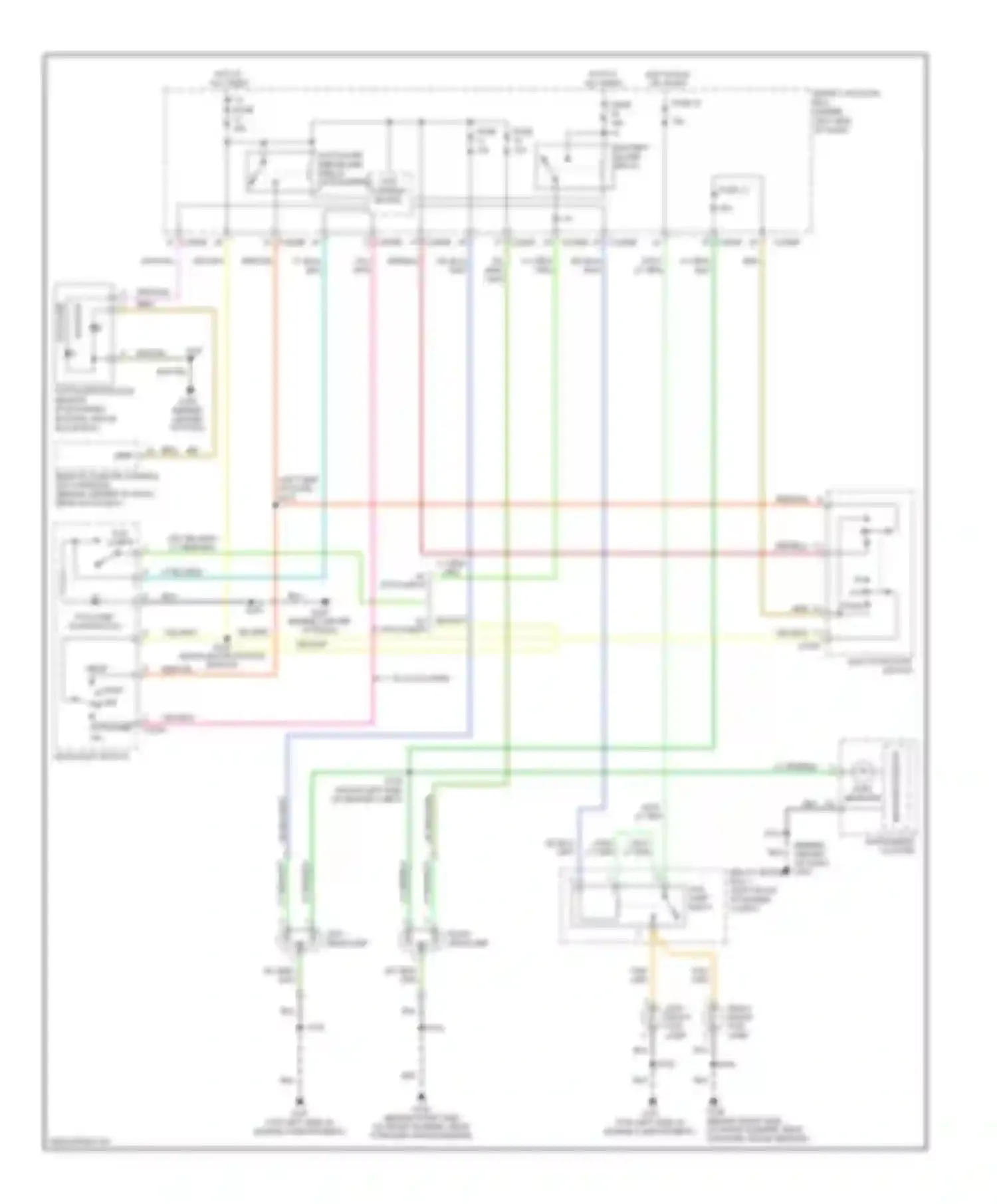

Car Wiring Diagrams for Headlights circuit, without drl for Ford Taurus IV facelift (2004-2006)

AUTOLAMP AUTOLAMP HEADLAMP RELAY (IF EQUIPPED) AUTOLAMP ON AUTOLAMP/SUNLOAD SENSOR (IF EQUIPPED) (IN DASH, ABOVE GLOVE BOX) BATTERY SAVER RELAY BLK WIRE BLK/YEL WIRE BRN WIRE DK BLU WIRE DK BLU/WHT WIRE DK GRN WIRE DK GRN/ORG WIRE FOG LAMP ILLUMINATION FOG LAMP RELAY FOG LAMPS FUSE FUSE 12 FUSE 16 FUSE FUSE GRN WIRE HEAD HI LO PASS HIGH BEAM IND HOT AT ALL TIMES HOT IN RUN OR START INSTRUMENT CLUSTER LEFT FRONT FOG LAMP LEFT HEADLAMP LOW CURRENT BOARD LT BLU WIRE LT BLU/BLK WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/ORG WIRE LT GRN/WHT WIRE MAIN LIGHT SWITCH MICROPROCESSOR MULTI- FUNCTION SWITCH ORG/ WIRE PARK OFF RED/BLK WIRE RED/YEL WIRE RELAY CENTER BOX 1 (LEFT FRONT OF ENGINE COMPT) REMOTE CLIMATE CONTROL (RCC) MODULE (BEHIND CENTER OF DASH, NEAR GLOVE BOX) RIGHT FRONT FOG LAMP RIGHT HEADLAMP SMART JUNCTION BOX (UNDER LEFT SIDE OF DASH) SUNLOAD TAN WIRE VIO WIRE VIO/ORG WIRE VREF W/O AUTOLAMPS WHT WIRE WHT/VIO WIRE YEL/WHT WIRE
