Ford Ranger T6 facelift 2 (2019-2022) ign out Wiring diagrams
This page contains all the electrical diagrams for the component. ign out, in which he is found in the car Ford Ranger T6 facelift 2 (2019-2022). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
ign out wiring diagram (1 of 7)
BATTERY JUNCTION BOX (BJB)
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BRN/GRN WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DIFF LOCK CTRL
DIFFERENTIAL LOCK RELAY
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
ELECTRONIC LOCKING DIFFERENTIAL (ELD) FIELD COIL
ENGINE CONTROLS SYSTEM
FUSE 23
FUSE 53
FUSE 66
GRN/ORG WIRE
GRN/VIO WIRE
GRY WIRE
GRY/BLU WIRE
GRY/ORG WIRE
GRY/VIO WIRE
HOT AT ALL TIMES
HOT W/ RUN/START RELAY ENERGIZED
IGN OUT
LOCKER MODE
LOCKER MODE SW
POWERTRAIN CONTROL MODULE (PCM)
SIG RTN
TRANSFER CASE)
UPPER MULTI-FUNCTION SWITCH
VIO/GRY WIRE
VIO/ORG WIRE
VPWR
VREF
WHT WIRE
WHT/GRN WIRE
YEL/BLU WIRE
Go to component -> 4wd circuit -> IGN OUT
ign out wiring diagram (2 of 7)
BATTERY JUNCTION BOX (BJB)
BLIS IND
BLIS VPWR
BLK WIRE
BLK/BLU WIRE
BLU WIRE
BLU/BRN WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
FUSE 23
HOT W/ RUN/START RELAY ENERGIZED
IGN OUT
LEFT EXTERIOR MIRROR
LEFT EXTERIOR MIRROR BLIND SPOT (BLIS)/ CROSS TRAFFIC ALERT (CTA) LED
LEFT REAR LAMP ASSEMBLY
MS CAN +
POWER DISTRIBUTION SYSTEM
RIGHT EXTERIOR MIRROR
RIGHT EXTERIOR MIRROR BLIND SPOT (BLIS)/ CROSS TRAFFIC ALERT (CTA) LED
RIGHT REAR LAMP ASSEMBLY
VPWR
WHT WIRE
WHT/BRN WIRE
YEL WIRE
YEL/GRN WIRE
Go to component -> Blind spot information system circuit -> IGN OUT
ign out wiring diagram (3 of 7)
AAT
AJAR
AMBIENT AIR TEMPERATURE (AAT) SENSOR
ANTI-LOCK BRAKES SYSTEM
BATTERY JUNCTION BOX (BJB)
BLK/GRY WIRE
BLK/VIO WIRE
BLU WIRE
BLU/WHT WIRE
BODY CONTROL MODULE (BCM)
BRK FLUID
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
ENGINE CONTROLS SYSTEM
ENGINE OIL PRESSURE (EOP) SENSOR
EOP
FUEL PUMP, SENDER UNIT
FUEL SENDER 1
FUEL SENDER 1 RTN
FUSE 13
FUSE 2
FUSE 23
GRN WIRE
GRN/BLU WIRE
GRN/ORG WIRE
GRN/VIO WIRE
GRN/WHT WIRE
GRY WIRE
GRY/BLU WIRE
GRY/RED WIRE
GRY/VIO WIRE
HEAD-UP DISPLAY (HUD) MODULE
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
HILL DESCENT
HOT AT ALL TIMES
HOT W/ RUN/START RELAY ENERGIZED
IGN OUT
INSTRUMENT PANEL CLUSTER (IPC)
LF DOOR
LOGIC GND
LOW WASHER
LR DOOR
MICRO -
NCA WIRE
PARK BRAKE
PARK DETECT
POWERTRAIN CONTROL MODULE (PCM)
RED WIRE
RF DOOR
RR DOOR
SHIFT INTERLOCK SYSTEM
SIG RTN
TCS ON/OFF
VBATT
VPWR
VREF
WHT WIRE
WHT/GRN WIRE
WHT/VIO WIRE
WINDSHIELD WASHER FLUID LEVEL SENSOR
YEL WIRE
YEL/VIO WIRE
Go to component -> Instrument cluster circuit (1 of 2) -> IGN OUT

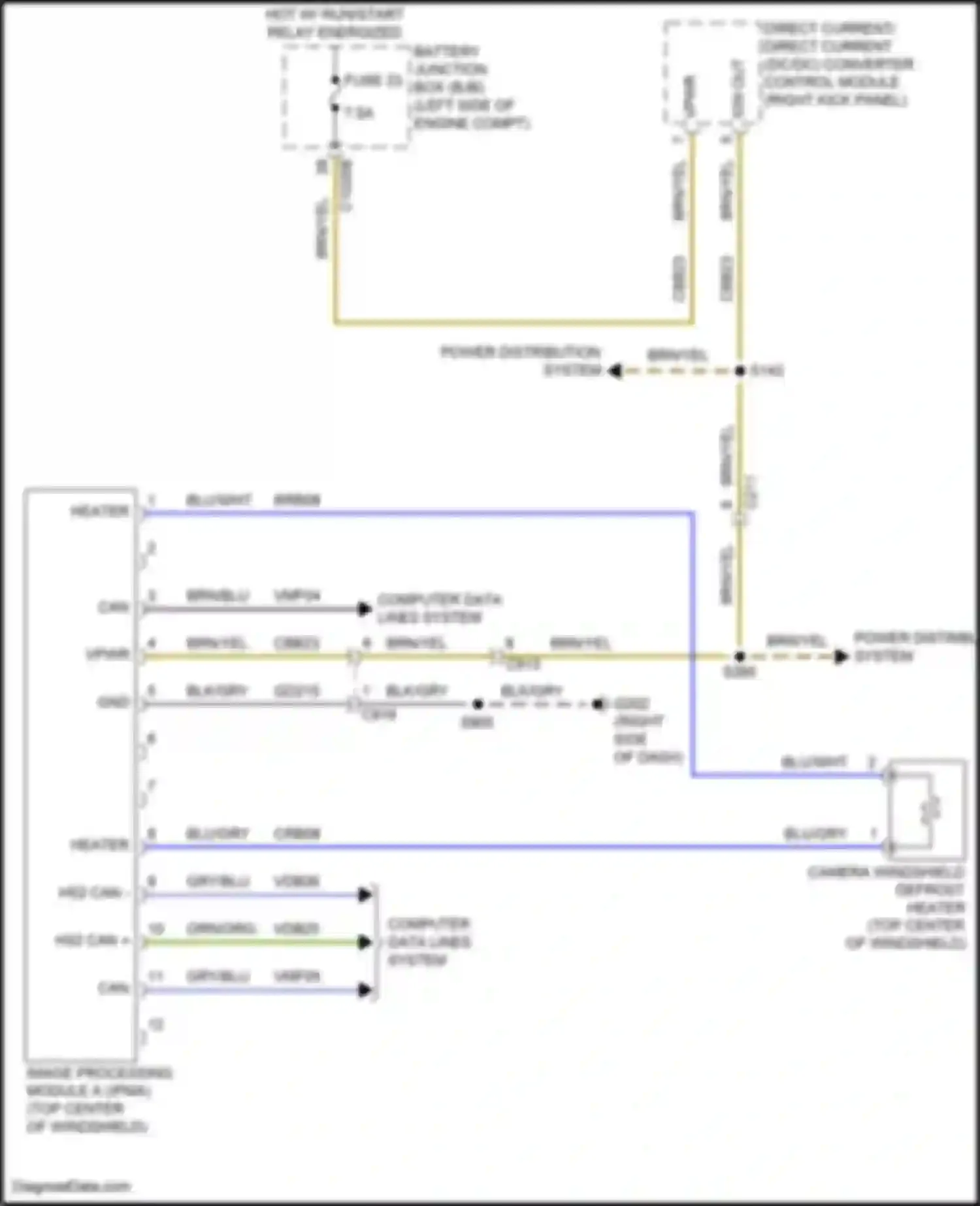

ign out wiring diagram (4 of 7)
BATTERY JUNCTION BOX (BJB)
BLK/GRY WIRE
BLU/GRY WIRE
BLU/WHT WIRE
BRN/BLU WIRE
BRN/YEL WIRE
CAMERA WINDSHIELD DEFROST HEATER
CAN (+)
COMPUTER DATA LINES SYSTEM
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
FUSE 23
GRN/ORG WIRE
GRY/BLU WIRE
HEATER
HOT W/ RUN/START RELAY ENERGIZED
IGN OUT
IMAGE PROCESSING MODULE A (IPMA)
POWER DISTRIBUTION SYSTEM
VPWR
Go to component -> Lane departure warning circuit -> IGN OUT
ign out wiring diagram (5 of 7)
AUDIO FRONT CONTROL MODULE (ACM)
BLK/BLU WIRE
BLU WIRE
BLU/BRN WIRE
BLU/RED WIRE
BODY CONTROL MODULE (BCM)
BRN WIRE
BRN/YEL WIRE
CHASSIS CAB
COMPUTER DATA LINES SYSTEM
CRUISE CONTROL MODULE (CCM)
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
ENG START SIG
FROM BATTERY JUNCTION BOX (BJB) (DIAGRAM 2 OF 7)
FROM HIGH CURRENT BATTERY JUNCTION BOX (BJB) (DIAGRAM 1 OF 7)
FRONT CONTROLS INTERFACE MODULE (FCIM)
FUSE 12
FUSE 13
FUSE 31
FUSE 32
FUSE 33
GATEWAY MODULE A (GWM)
GRN WIRE
GRY WIRE
HEAD-UP DISPLAY (HUD) MODULE
IGN OUT
IMAGE PROCESSING MODULE A (IPMA)
INSTRUMENT PANEL CLUSTER (IPC)
LEFT REAR LAMP ASSEMBLY
MICRO -
NCA WIRE
POWERTRAIN CONTROL MODULE (PCM)
PWR OUT
RADIO TRANSCEIVER MODULE (RTM)
REAR PARKING AID CAMERA
REAR PARKING AID CAMERA CONNECTOR
RED WIRE
RIGHT REAR LAMP ASSEMBLY
RUN/START (FET)
STEERING COLUMN CONTROL MODULE (SCCM)
SYNC MODULE (APIM)
TO BATTERY JUNCTION BOX (BJB) (DIAGRAM 2 OF 7)
VBATT
VIO WIRE
VPWR
W/ ADAPTIVE SPEED CONTROL
W/ SYNC W/O SYNC
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit (6 of 7) -> IGN OUT
ign out wiring diagram (6 of 7)
AUTO DIMMING INTERIOR MIRROR
BATTERY JUNCTION BOX (BJB)
BLK WIRE
BLK/GRY WIRE
BLK/VIO WIRE
BLU WIRE
BLU/GRY WIRE
BODY CONTROL MODULE (BCM)
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
FUSE 23
HOT W/ RUN/START RELAY ENERGIZED
IGN OUT
LIN 4
MICRO -
NCA WIRE
POWER DISTRIBUTION SYSTEM
REAR PARKING AID CAMERA CONNECTOR
REAR VIDEO -
SHIELD
SYNC MODULE (APIM) (CENTER OF DASH)
VIO/WHT WIRE
VPWR
W/O SYNC
WHT WIRE
WHT/GRN WIRE
Go to component -> Rear camera circuit, chassis cab -> IGN OUT
ign out wiring diagram (7 of 7)
AUTO DIMMING INTERIOR MIRROR
BATTERY JUNCTION BOX (BJB)
BLK WIRE
BLK/GRY WIRE
BLK/VIO WIRE
BLU WIRE
BLU/GRY WIRE
BODY CONTROL MODULE (BCM)
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE
FUSE 23
HOT W/ RUN/START RELAY ENERGIZED
IGN OUT
LIN 4
MICRO -
NCA WIRE
POWER DISTRIBUTION SYSTEM
REAR PARKING AID CAMERA
REAR VIDEO -
SHIELD
SYNC MODULE (APIM) (CENTER OF DASH)
VIO/WHT WIRE
VPWR
W/O SYNC
WHT WIRE
WHT/GRN WIRE
Go to component -> Rear camera circuit, super cab & super crew cab -> IGN OUT
