Ford Ranger II (2006-2009) off auto Wiring diagram
This page shows the only wiring diagram for the component.off auto, which is found in the car Ford Ranger II (2006-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

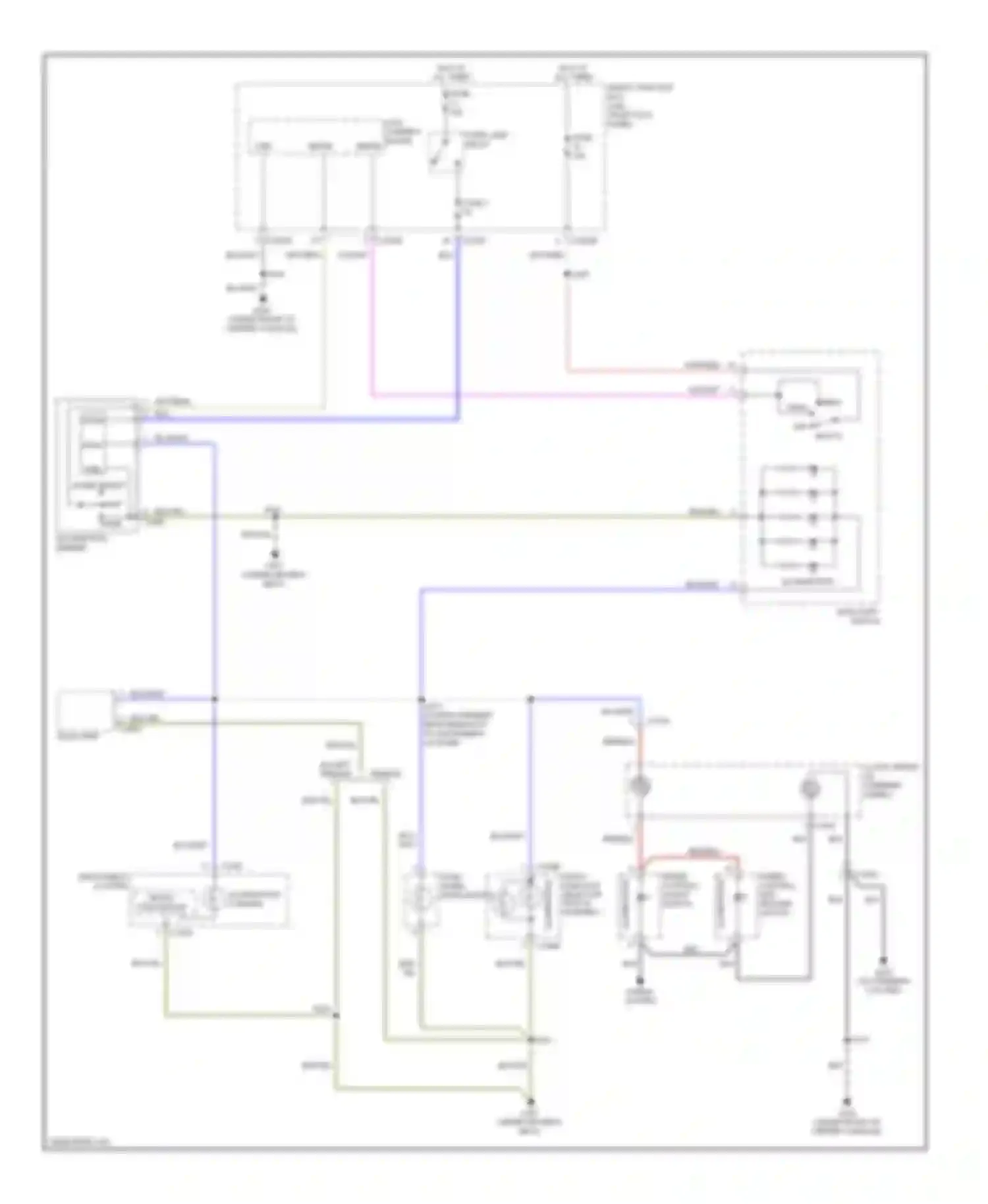

Wiring diagram off auto (1 of 1)
AUDIO UNIT
BLK WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/WHT WIRE
CLOCK- SPRING (IN STEERING WHEEL)
DOME
DOME DEFEAT
EXCEPT TREMOR TREMOR
FOUR WHEEL DRIVE SWITCH
FRONT FUNCTION SELECTOR SWITCH ASSEMBLY
FUSE
FUSE 1
HEAD PARK
HORNS SYSTEM
HOT AT ALL TIMES
ILLUMINATION
ILLUMINATION (6 BULBS)
ILLUMINATION DIMMER
INSTRUMENT CLUSTER
LOW CURRENT BOARD SENSE
MAIN LIGHT SWITCH
MICRO- PROCESSOR
OFF
OFF AUTO
PARK LAMP RELAY
PWM
RED/BLK WIRE
SENSE
SET/ RESUME SWITCH
SMART JUNCTION BOX (SJB) (RIGHT KICK PANEL) FUSE
SPEED CONTROL
SPEED CONTROL ON/OFF SWITCH
VIO/WHT WIRE
VPWR
WHT WIRE
WHT/BRN WIRE
WHT/RED WIRE
YEL WIRE
Go to component -> Instrument illumination circuit -> OFF AUTO
