Power door locks circuit, without remote/keyless entry except crew cab for Ford Pickup F350 Super Duty (1999-2012)

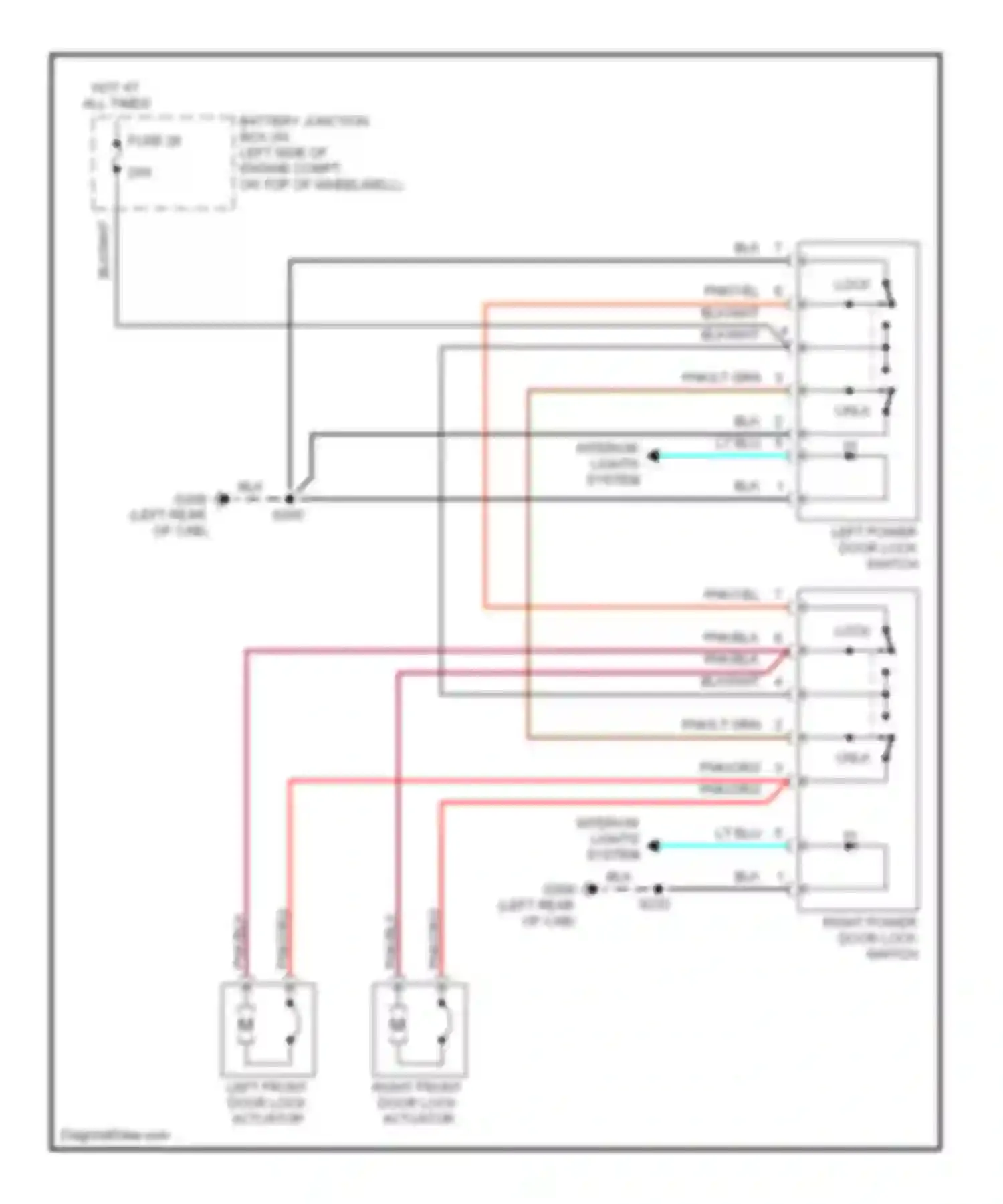

Power door locks circuit, without remote/keyless entry except crew cab
BATTERY JUNCTION BOX (IN LEFT SIDE OF ENGINE COMPT, ON TOP OF WHEELWELL)
BLK WIRE
BLK/WHT WIRE
FUSE 26
HOT AT ALL TIMES
LEFT FRONT DOOR LOCK ACTUATOR
LEFT POWER DOOR LOCK SWITCH
LOCK
LT BLU WIRE
PNK/BLK WIRE
PNK/LT GRN WIRE
PNK/ORG WIRE
PNK/YEL WIRE
RIGHT FRONT DOOR LOCK ACTUATOR
RIGHT POWER DOOR LOCK SWITCH
UNLK
