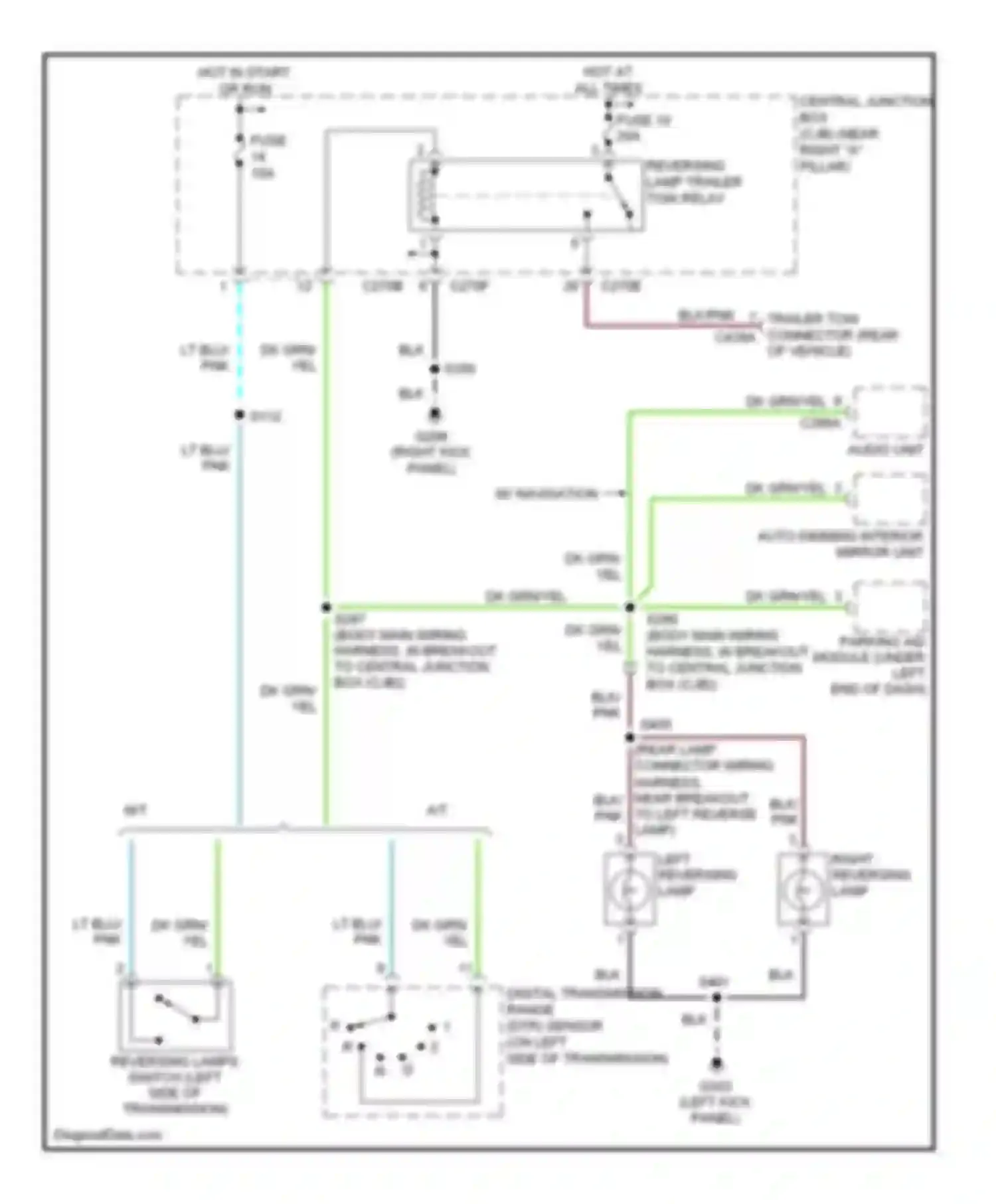

Back-up lamps circuit for Ford Pickup F150 (1996-2012)
Back-up lamps circuit
A/T
AUDIO UNIT
AUTO- DIMMING INTERIOR MIRROR UNIT
BLK WIRE
BLK/PNK WIRE
CENTRAL JUNCTION BOX (CJB) (NEAR RIGHT "A" PILLAR)
DIGITAL TRANSMISSION RANGE (DTR) SENSOR (ON LEFT SIDE OF TRANSMISSION)
DK GRN WIRE
DK GRN/YEL WIRE
FUSE
FUSE 10
HOT AT ALL TIMES
HOT IN START OR RUN
LEFT REVERSING LAMP
LT BLU WIRE
M/T
PARKING AID MODULE (UNDER LEFT END OF DASH)
PNK WIRE
REVERSING LAMP TRAILER TOW RELAY
REVERSING LAMPS SWITCH (LEFT SIDE OF TRANSMISSION)
RIGHT REVERSING LAMP
TRAILER TOW CONNECTOR (REAR OF VEHICLE)
W/ NAVIGATION
YEL WIRE
