Car Wiring Diagrams for Trunk release circuit for Ford Mustang V (2004-2009)

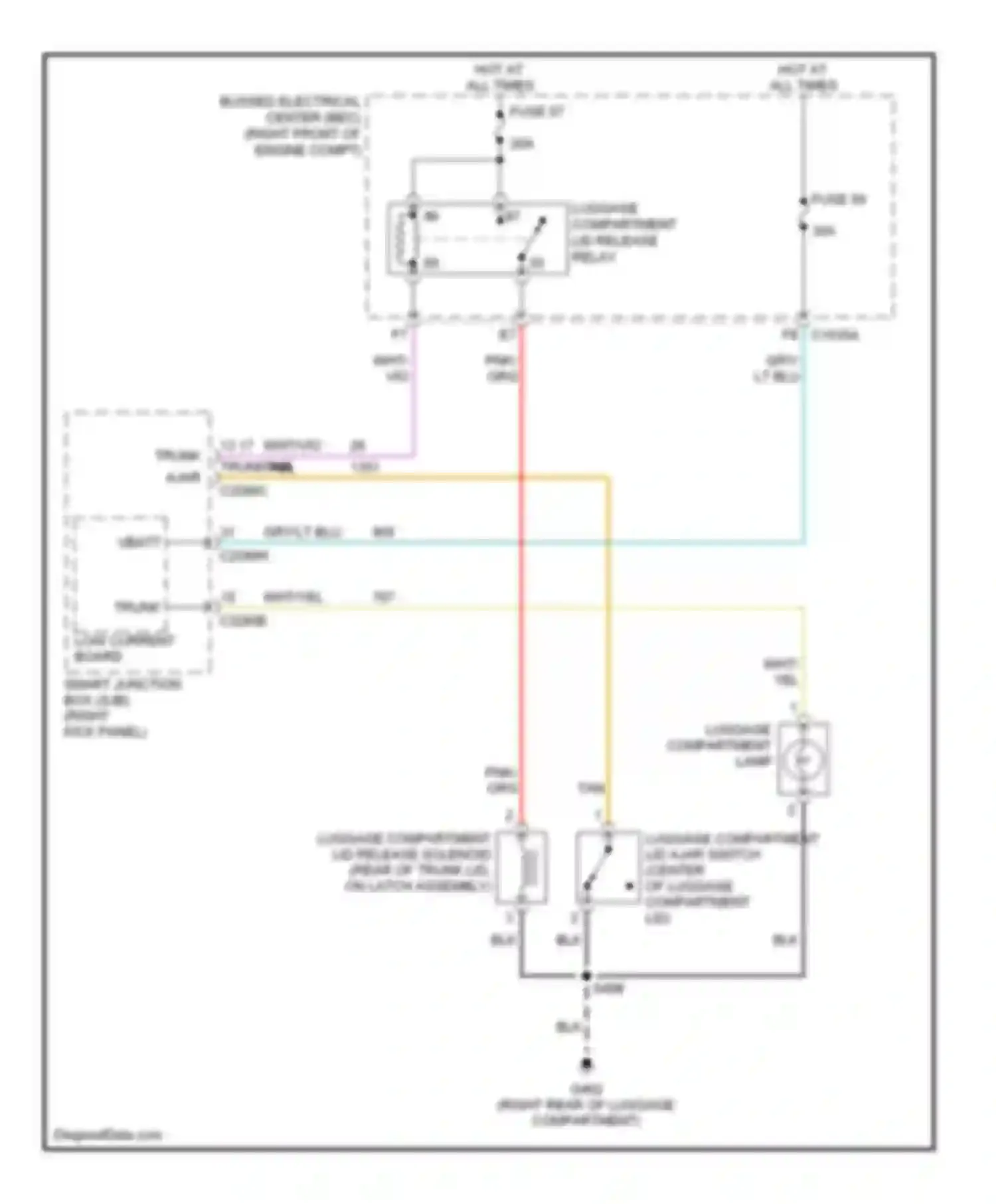

13 17 TRUNK REL TRUNK AJAR SW BLK WIRE BUSSED ELECTRICAL CENTER (BEC) (RIGHT FRONT OF ENGINE COMPT) FUSE 57 FUSE 59 GRY WIRE GRY/LT BLU WIRE HOT AT ALL TIMES LOW CURRENT BOARD LT BLU WIRE LUGGAGE COMPARTMENT LAMP LUGGAGE COMPARTMENT LID AJAR SWITCH (CENTER OF LUGGAGE COMPARTMENT LID) LUGGAGE COMPARTMENT LID RELEASE RELAY LUGGAGE COMPARTMENT LID RELEASE SOLENOID (REAR OF TRUNK LID, ON LATCH ASSEMBLY) ORG/ WIRE PNK WIRE SMART JUNCTION BOX (SJB) (RIGHT KICK PANEL) TAN WIRE TRUNK VBATT VIO WIRE WHT WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE
