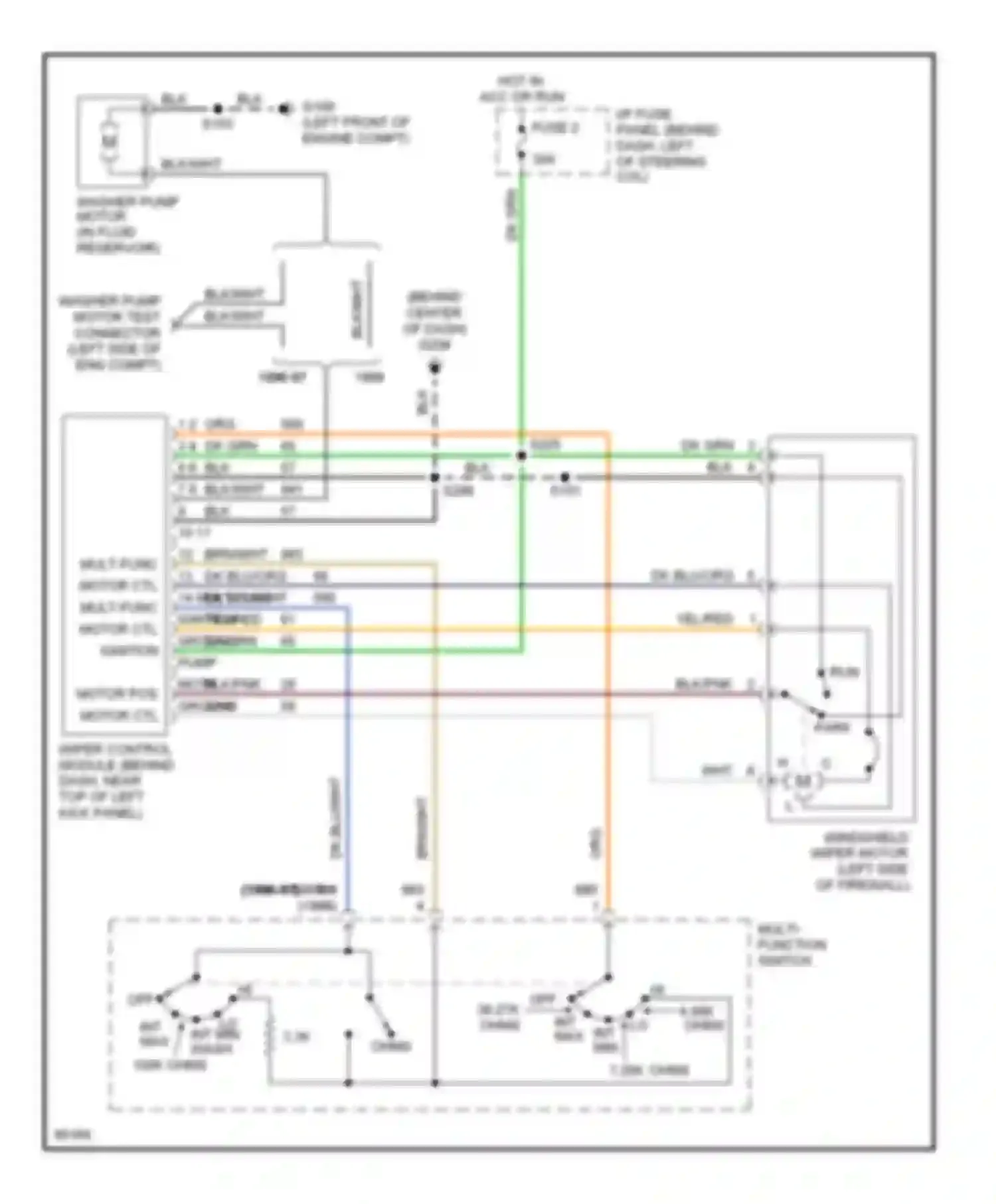

Car Wiring Diagrams for Wiper/washer circuit for Ford Mustang IV (1993-1998)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 MULT-FUNC IGNITION GROUND PUMP MOTR GROUND 1996-97 1996-97 590 590 6 6 (1998) (1998) (1996-97) (1996-97) BLK WIRE BLK/PNK WIRE BLK/WHT BLK/WHT WIRE BLK/WHT WIRE BRN/WHT WIRE DK BLU/ORG WIRE DK BLU/WHT WIRE DK GRN WIRE FUSE 2 HI OFF INT MAX LO OHMS INT MIN HOT IN ACC OR RUN I/P FUSE PANEL (BEHIND DASH, LEFT OF STEERING COL) INT MAX LO INT MIN WASH OHMS MOTOR POS MOTOR CTL MULT-FUNC MOTOR CTL MULT-FUNC MOTOR CTL IGNITION MULTI- FUNCTION SWITCH OFF OHMS ORG/ WIRE PARK RUN WIRE WASHER PUMP MOTOR (IN FLUID RESERVOIR) WHT WIRE WINDSHIELD WIPER MOTOR (LEFT SIDE OF FIREWALL) WIPER CONTROL MODULE (BEHIND DASH, NEAR TOP OF LEFT KICK PANEL) YEL/RED WIRE
