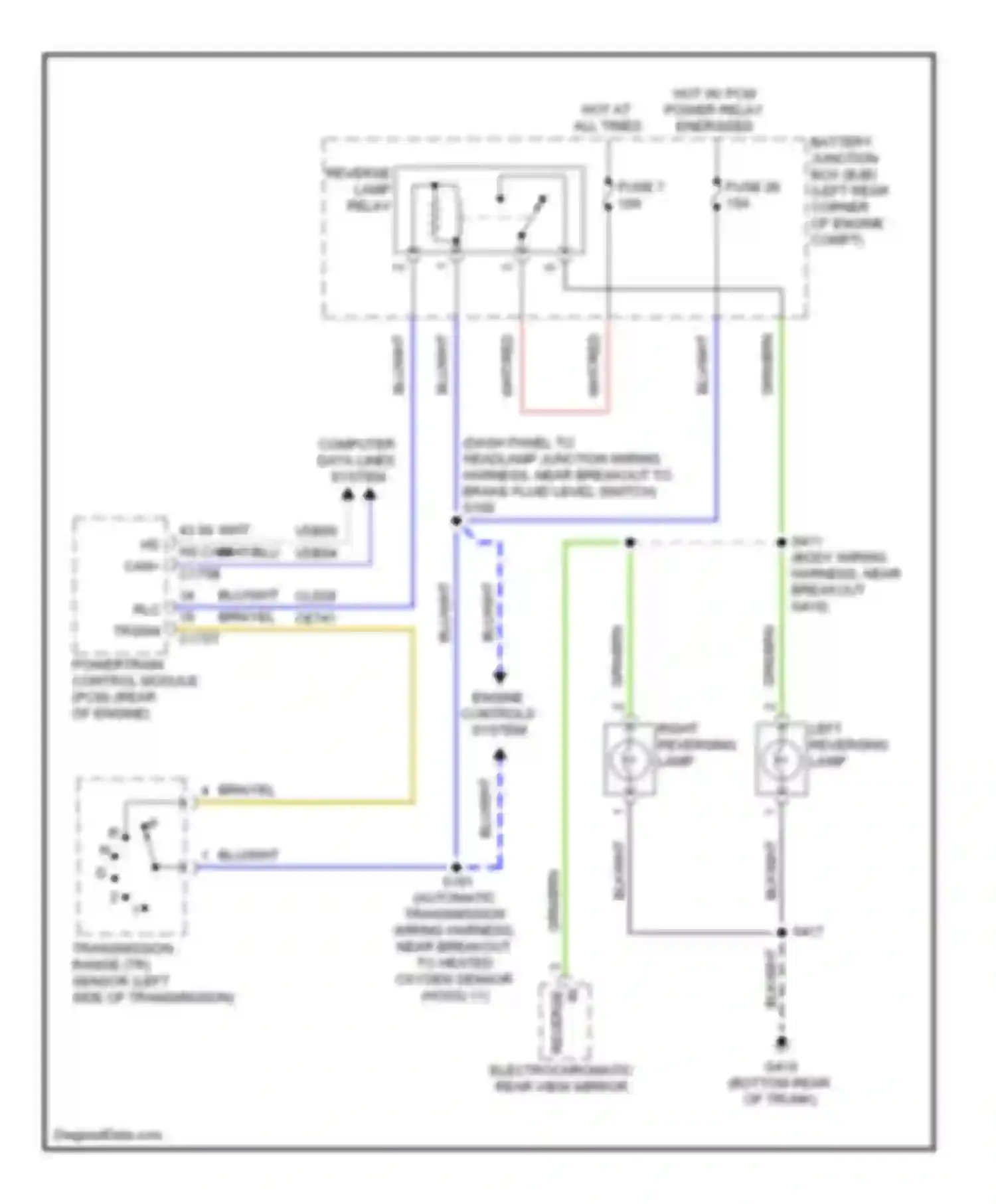

Backup lamps circuit, a/t for Ford Focus II facelift (2007-2011)
Backup lamps circuit, a/t
34 35 RLC
43 59 HS CAN- HS CAN+
BATTERY JUNCTION BOX (BJB) (LEFT REAR CORNER OF ENGINE COMPT)
BLK/WHT WIRE
BLU/WHT WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
ELECTROCHROMATIC REAR VIEW MIRROR
ENGINE CONTROLS SYSTEM
FUSE 26
FUSE 7
GRN/BRN WIRE
HOT AT ALL TIMES
HOT W/ PCM POWER RELAY ENERGIZED
LEFT REVERSING LAMP RIGHT REVERSING LAMP
POWERTRAIN CONTROL MODULE (PCM) (REAR OF ENGINE)
REVERSE IN
REVERSE LAMP RELAY
TRANSMISSION RANGE (TR) SENSOR (LEFT SIDE OF TRANSMISSION)
WHT WIRE
WHT/BLU WIRE
WHT/RED WIRE
