Starting circuit, a/t for Ford Focus II (2005-2008)

Starting circuit, a/t

Get access

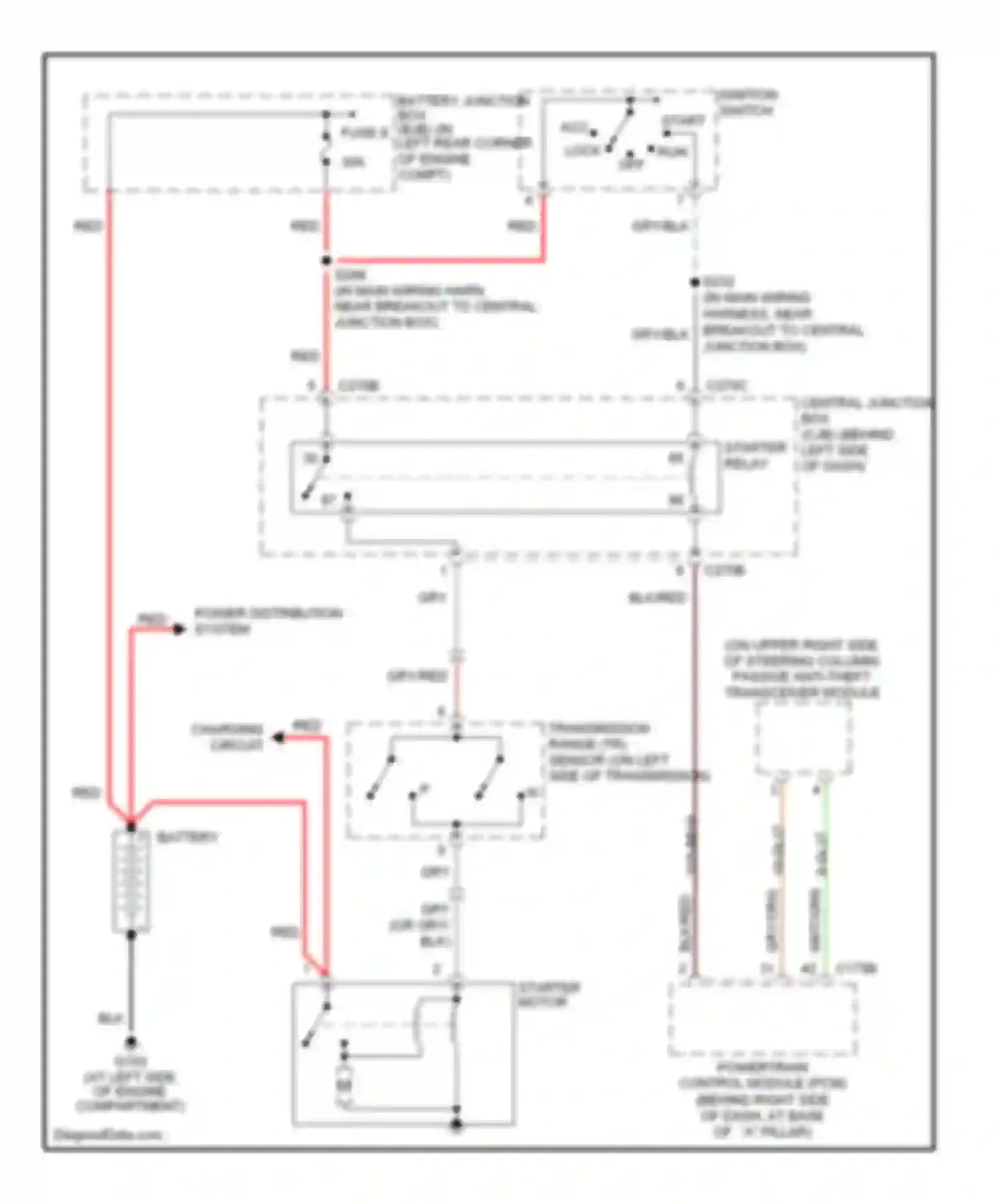

BATTERY BATTERY JUNCTION BOX (BJB) (IN LEFT REAR CORNER OF ENGINE COMPT) BLK WIRE BLK/RED WIRE CENTRAL JUNCTION BOX (CJB) (BEHIND LEFT SIDE OF DASH) CHARGING CIRCUIT FUSE 8 GRY WIRE GRY/BLK WIRE GRY/ORG WIRE GRY/RED WIRE IGNITION SWITCH LOCK OFF POWER DISTRIBUTION SYSTEM RED WIRE RUN WIRE STARTER MOTOR STARTER RELAY TRANSMISSION RANGE (TR) SENSOR (ON LEFT SIDE OF TRANSMISSION) WHT/GRN WIRE
