Ford Focus II (2005-2008) right front fog lamp Wiring diagrams
This page contains all the electrical diagrams for the component. right front fog lamp, in which he is found in the car Ford Focus II (2005-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
right front fog lamp wiring diagram (1 of 5)
Go to component -> Ground distribution circuit (1 of 4) -> RIGHT FRONT FOG LAMP

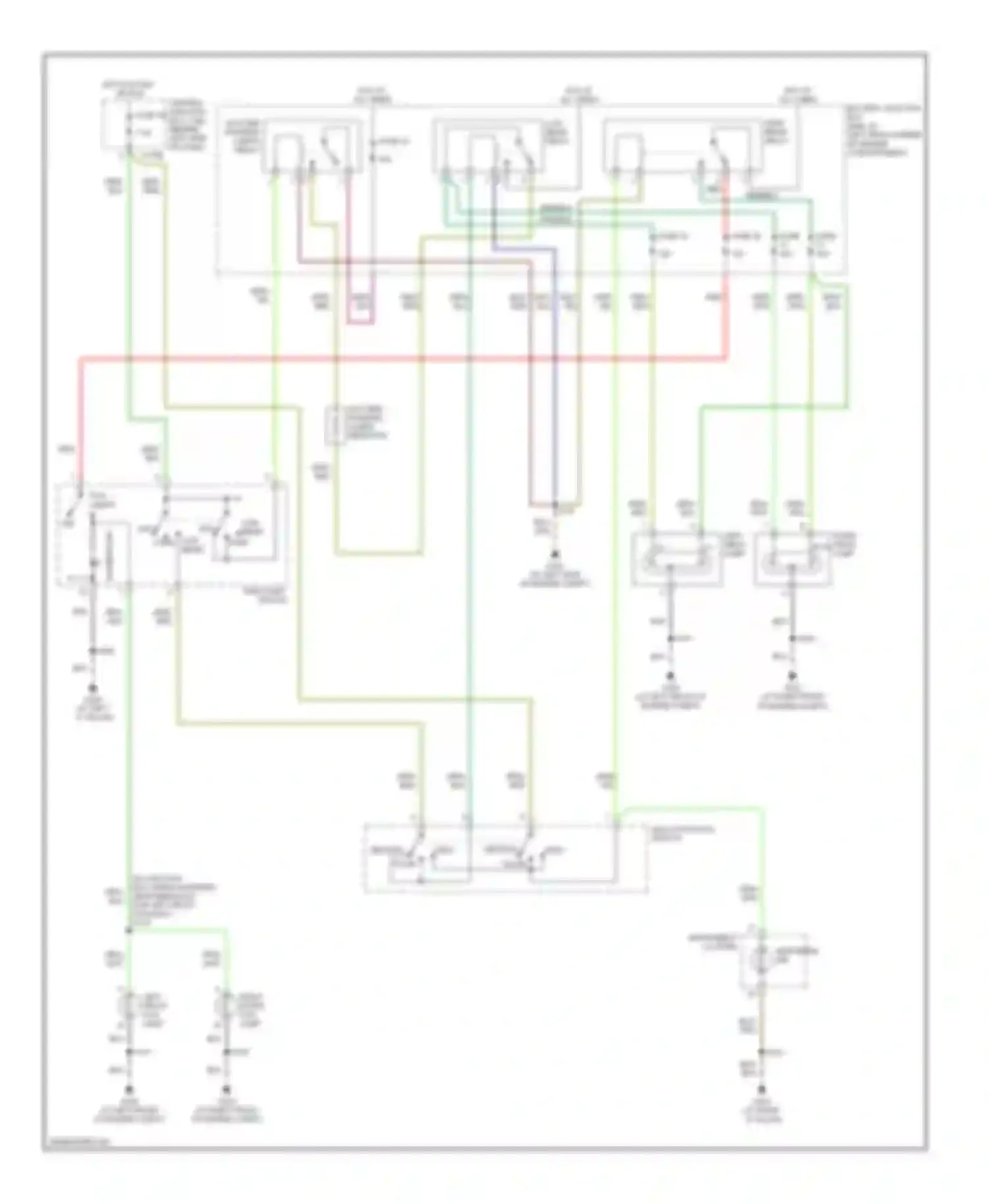

right front fog lamp wiring diagram (2 of 5)
Go to component -> Headlights circuit, early production with drl -> RIGHT FRONT FOG LAMP

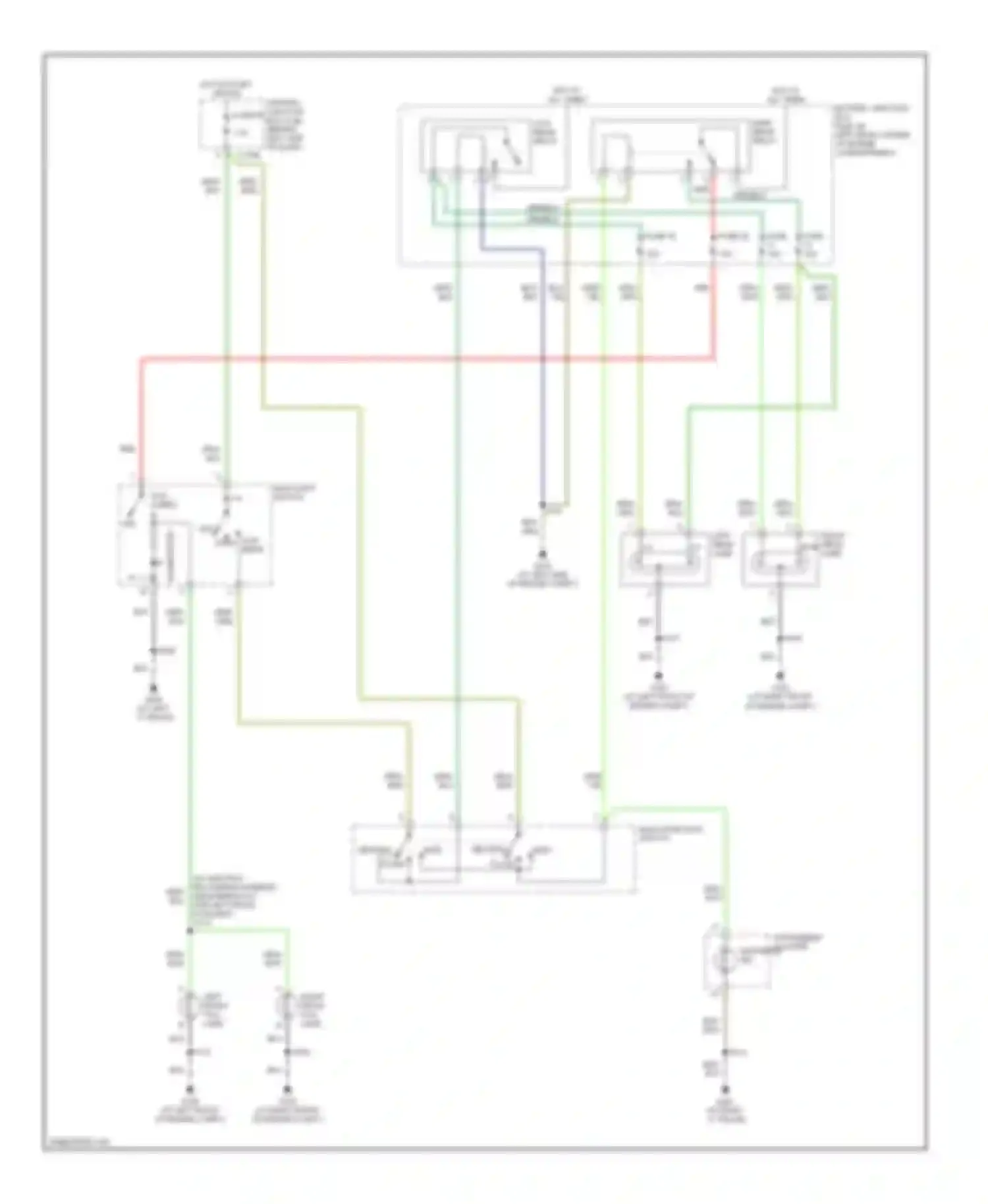

right front fog lamp wiring diagram (3 of 5)
Go to component -> Headlights circuit, early production without drl -> RIGHT FRONT FOG LAMP
right front fog lamp wiring diagram (4 of 5)
Go to component -> Headlights circuit, late production with drl -> RIGHT FRONT FOG LAMP
right front fog lamp wiring diagram (5 of 5)
Go to component -> Headlights circuit, late production without drl -> RIGHT FRONT FOG LAMP
