Headlight circuit, without drl for Ford Focus I (1998-2004)

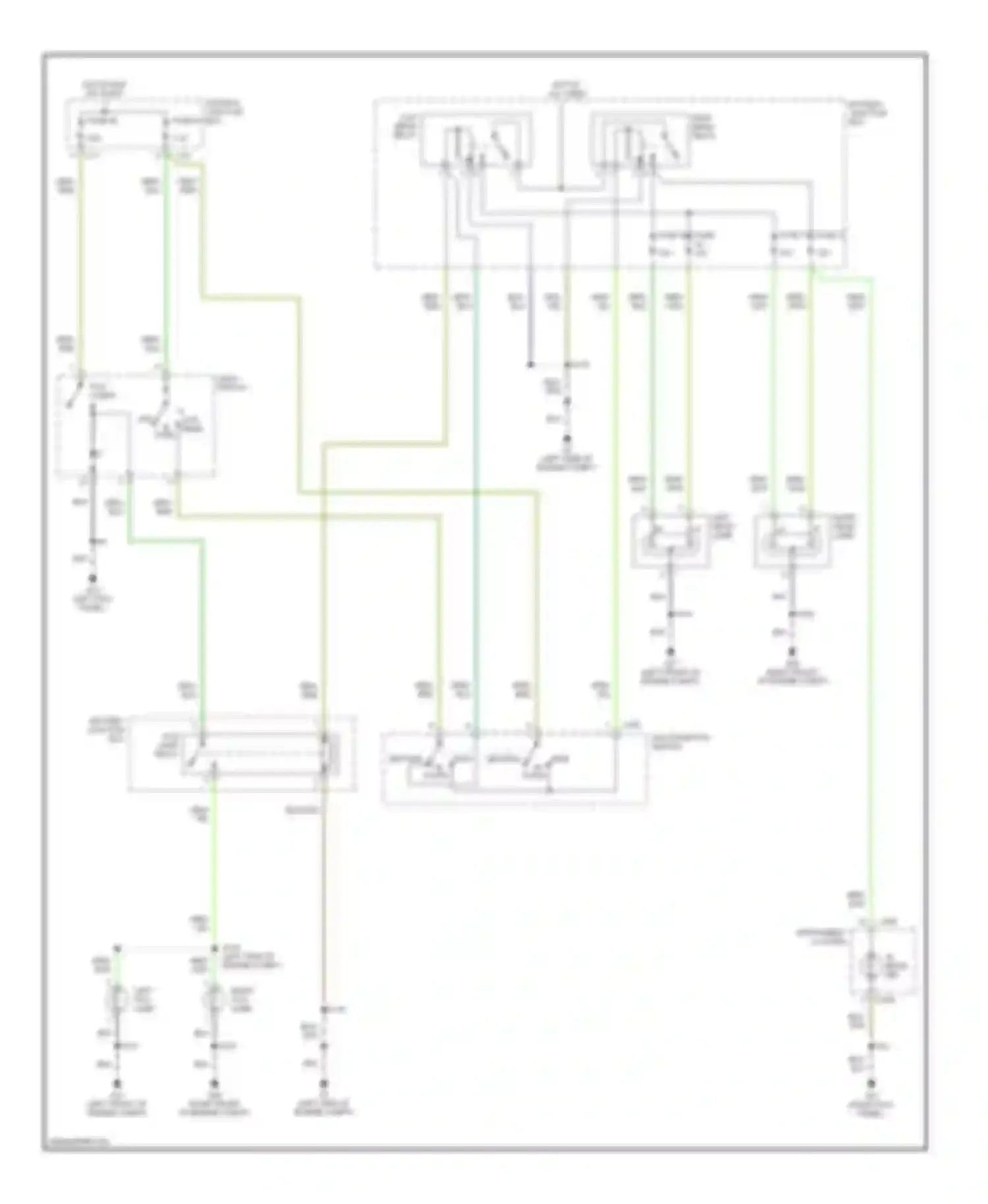

Headlight circuit, without drl
BATTERY JUNCTION BOX
BLK WIRE
BLK/ORG WIRE
BLU WIRE
CENTRAL JUNCTION BOX
FOG LAMP RELAY
FOG LAMPS
FUSE 16 FUSE 26
FUSE 17
FUSE 27
FUSE 44
FUSE 61
GRN WIRE
HI-BEAM IND
HIGH BEAM RELAY
HOT AT ALL TIMES
HOT IN RUN OR START
INSTRUMENT CLUSTER
LEFT FOG LAMP
LEFT HEAD- LAMP LO HI
LIGHT SWITCH
LOW BEAM
LOW BEAM RELAY
MULTIFUNCTON SWITCH
NEUTRAL
NEUTRAL HIGH
OFF
ORG/ WIRE
PARK
RED WIRE
RIGHT FOG LAMP
RIGHT HEAD- LAMP HI LO
WHT WIRE
YEL WIRE
