Ford Focus RS III (2016-2018) rir sens in Wiring diagram
This page shows the only wiring diagram for the component.rir sens in, which is found in the car Ford Focus RS III (2016-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

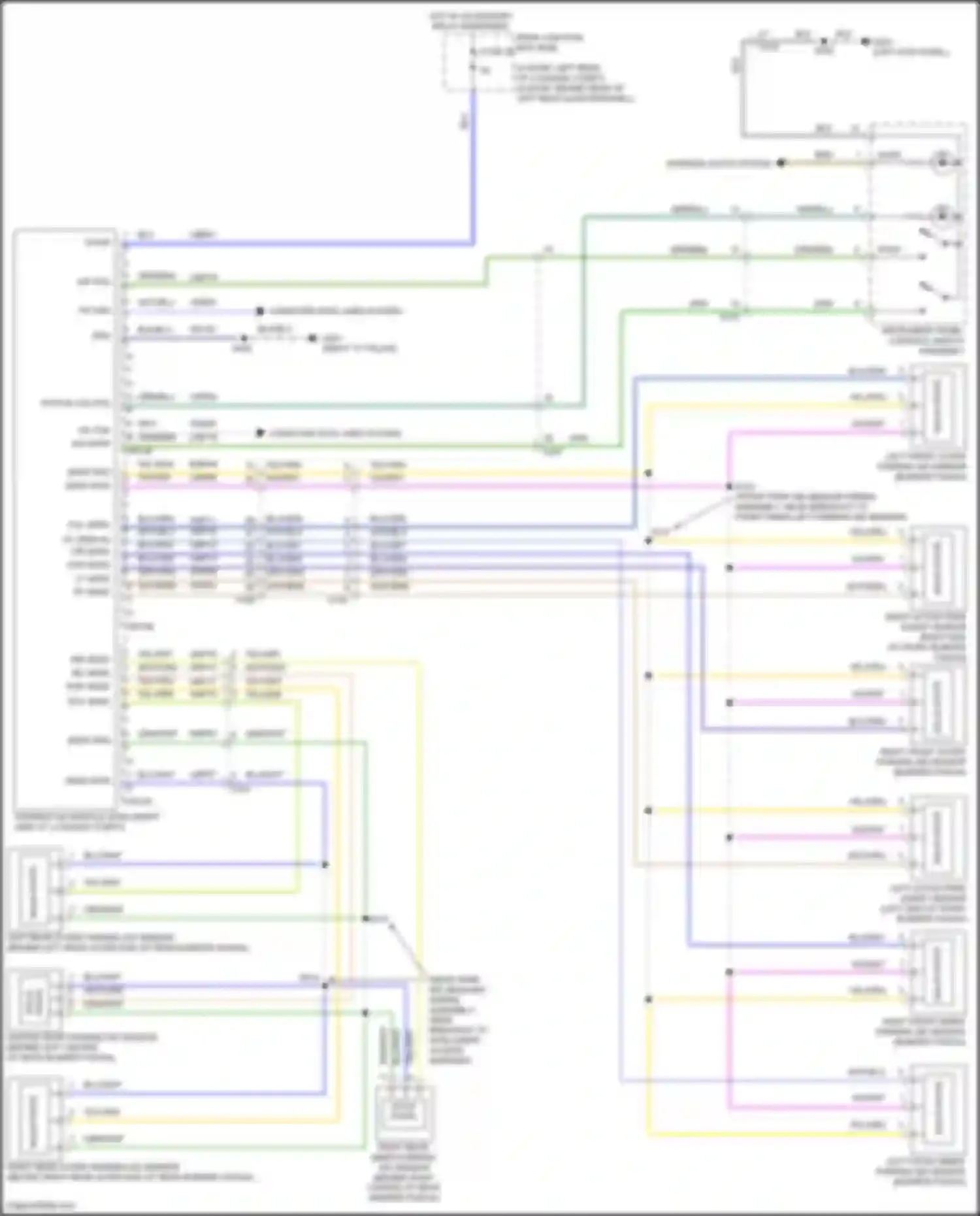

Wiring diagram rir sens in (1 of 1)
ASSD
BLK WIRE
BLK/BLU WIRE
BLU WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BRN WIRE
BUMPER FASCIA)
CENTER REAR PARKING AID SENSOR
COMPUTER DATA LINES SYSTEM
FIL SENS IN FIR SENS IN
FOL SENS IN
FOR SENS IN
FUSE 30
GRN WIRE
GRN/BLU WIRE
GRN/BRN WIRE
GRN/WHT WIRE
GRY/ORG WIRE
HOT W/ ACCESSORY RELAY ENERGIZED
HS CAN+
INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY
LEFT ACTIVE PARK ASSIST SENSOR
LEFT FRONT INNER PARKING AID SENSOR
LEFT FRONT OUTER PARKING AID SENSOR
LF SENS IN
PARKING AID MODULE (PAM) (RIGHT SIDE OF LUGGAGE COMPT)
PASS
REAR JUNCTION BOX (RJB)
RF SENS IN
RIGHT ACTIVE PARK ASSIST SENSOR
RIGHT FRONT INNER PARKING AID SENSOR
RIGHT FRONT OUTER PARKING AID SENSOR
RIGHT REAR INNER PARKING AID SENSOR
RIL SENS IN
RIR SENS IN
ROL SENS IN
ROR SENS IN
SENS GND
SENS PWR
SOLID
SOLID STATE
STATE
STATUS LED PAS
SW PAS
SW SAPP
VIO/GRY WIRE
VPWR
WHT WIRE
WHT/BLU WIRE
WHT/BRN WIRE
WHT/ORG WIRE
YEL/GRN WIRE
YEL/GRY WIRE
YEL/ORG WIRE
Go to component -> Parking assistant circuit, except electric -> RIR SENS IN
