Ford Focus RS III (2016-2018) reversing lamp switch Wiring diagrams
This page contains all the electrical diagrams for the component. reversing lamp switch, in which he is found in the car Ford Focus RS III (2016-2018). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
reversing lamp switch wiring diagram (1 of 3)
2.0L
2.0L 2.0L TURBO
2.0L TURBO
4 DOOR
5 DOOR
A/T
BLK/BLU WIRE
BLK/GRN WIRE
BLK/WHT WIRE
BLU WIRE
BODY CONTROL MODULE
CAN (+)
COMPUTER DATA LINES SYSTEM
FUSE 76
GRN/BRN WIRE
GRY/VIO WIRE
HOT AT ALL TIMES
HS CAN+
LEFT REAR LAMP ASSEMBLY
LEFT REAR PARK/STOP TURN LAMP
LEFT REVERSING LAMP
LIGHT
LR POS
M/T
MICRO -
NCA WIRE
POWERTRAIN CONTROL MODULE
REVERSE
REVERSED GEAR SW
REVERSING LAMP RELAY
REVERSING LAMP SWITCH
RIGHT REAR LAMP ASSEMBLY
RIGHT REAR PARK/STOP TURN LAMP
RIGHT REVERSING LAMP
RR POS
TRANSMISSION CONTROL MODULE
VIO/GRN WIRE
WHT WIRE
WHT/BLU WIRE
Go to component -> Backup lamps circuit, except electric & rs -> REVERSING LAMP SWITCH

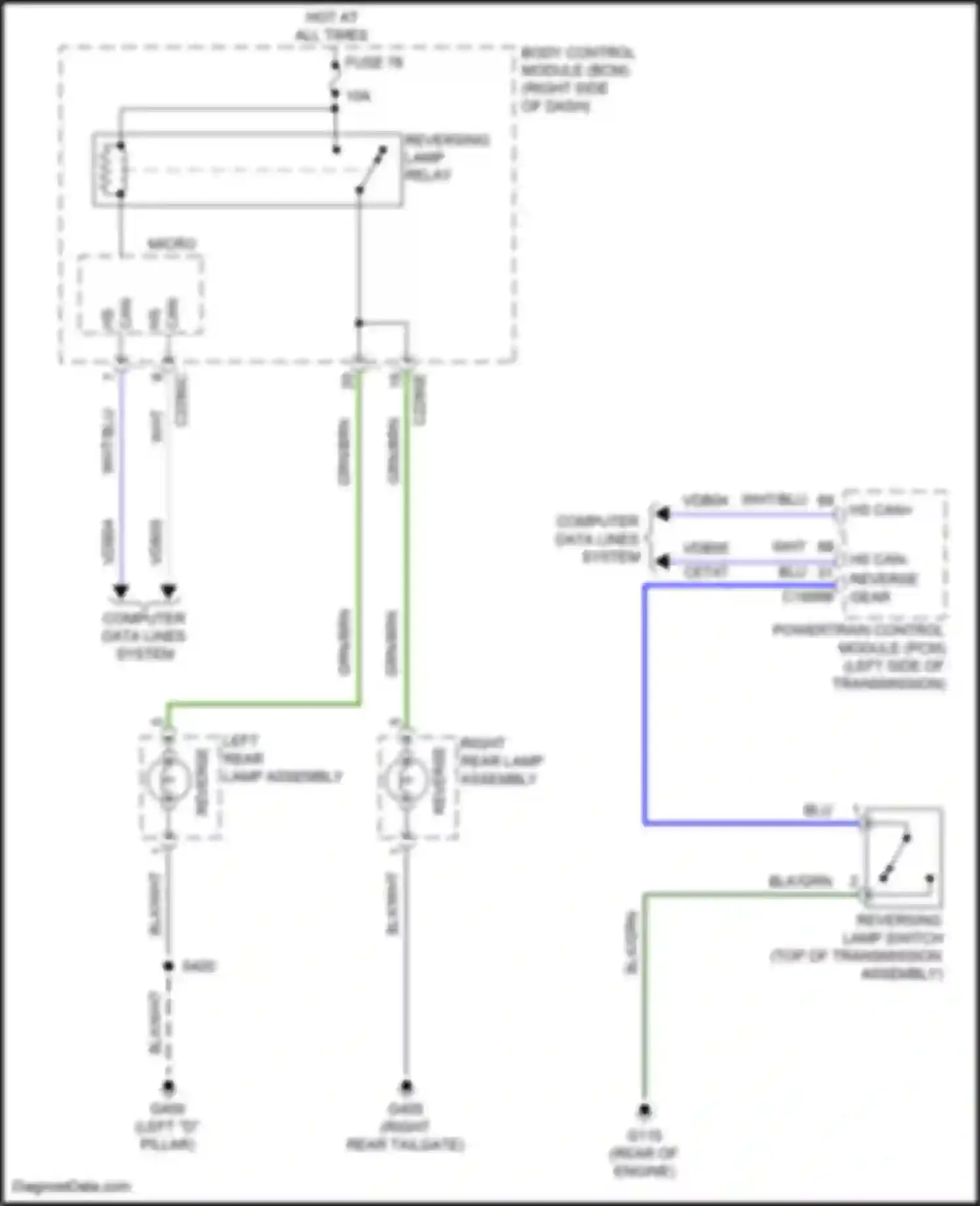

reversing lamp switch wiring diagram (2 of 3)
BLK/GRN WIRE
BLK/WHT WIRE
BLU WIRE
BODY CONTROL MODULE (BCM)
CAN (+)
COMPUTER DATA LINES SYSTEM
FUSE 76
GRN/BRN WIRE
HOT AT ALL TIMES
HS CAN+
HS CAN- REVERSE GEAR SW
LEFT REAR LAMP ASSEMBLY
MICRO -
POWERTRAIN CONTROL MODULE (PCM)
REVERSE
REVERSING LAMP RELAY
REVERSING LAMP SWITCH
RIGHT REAR LAMP ASSEMBLY
WHT WIRE
WHT/BLU WIRE
Go to component -> Backup lamps circuit, rs -> REVERSING LAMP SWITCH
reversing lamp switch wiring diagram (3 of 3)
A/C COMPRESSOR CLUTCH FIELD COIL
ACCESSORY PROTOCOL INTERFACE MODULE (APIM)
AUDIO CONTROL MODULE (ACM)
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE)
BATTERY
BATTERY MONITORING SENSOR
BLK WIRE
BLU WIRE
BRN WIRE
CLOCK- SPRING
DATA LINK CONNECTOR (DLC)
DATC HVAC MODULE
DIGITAL AUDIO CONTROL MODULE
EXHAUST VALVE
FRONT CONTROLS INTERFACE MODULE (FCIM)
FUEL PUMP (FP) MODULE SHIELD
FUEL PUMP CONTROL MODULE
FUEL PUMP CONTROL MODULE 2
FUEL, DAMPER CONTROL MODULE
GRN WIRE
GRY WIRE
HAZARD SWITCH
HEADLAMP SWITCH
HORN SWITCH
INFORMATION CENTER MODULE (ICM)
INSTRUMENT PANEL CLUSTER (IPC)
LEFT LOWER STEERING WHEEL SWITCH
LEFT REAR LAMP ASSEMBLY
LEFT UPPER STEERING WHEEL SWITCH
LOW VOLTAGE DIRECT CURRENT/ DIRECT CURRENT (DC/DC) CONVERTER
NCA WIRE
NULL RELAY
PARKING BRAKE SWITCH
PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR
POWER STEERING CONTROL MODULE (PSCM)
POWERTRAIN CONTROL MODULE (PCM)
REAR JUNCTION BOX (RJB)
REAR WIPER RELAY
REMOTE FUNCTION ACTUATOR (RFA) MODULE
REVERSING LAMP SWITCH
RIGHT UPPER STEERING WHEEL SWITCH
STEERING ANGLE SENSOR MODULE (SASM)
VIDEO CAMERA
VIO WIRE
W/ ENGINE START/ STOP)
W/ INTELLIGENT ACCESS
W/ SONY
WHT WIRE
YEL WIRE
Go to component -> Ground distribution circuit, rs (2 of 4) -> REVERSING LAMP SWITCH
