Wiring Diagrams for Ford Fiesta Mk6 facelift (2012-2019)

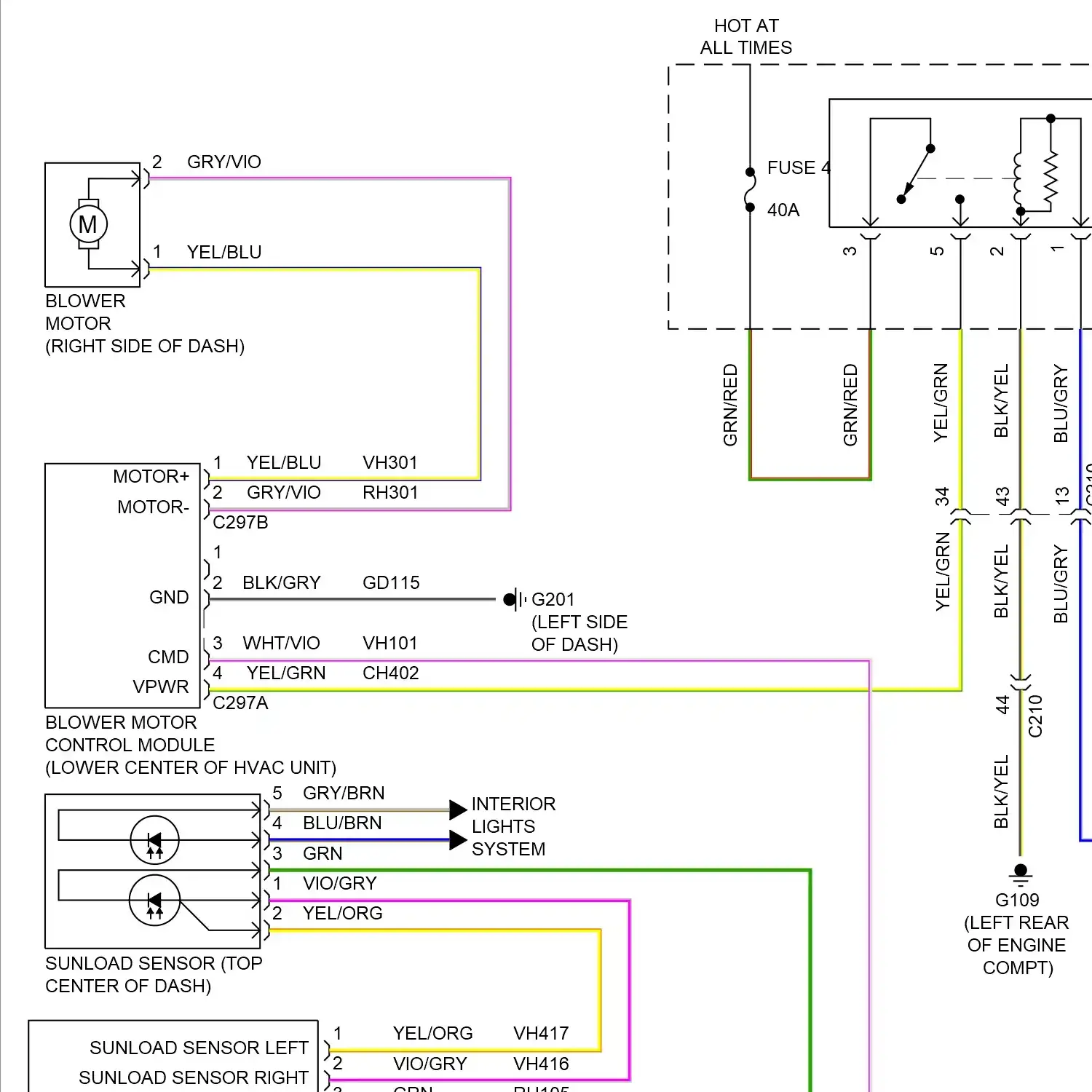

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit, w/ electronic stability program Anti-lock brakes circuit, w/o electronic stability program

Forced entry circuit, w/ keyless entry Forced entry circuit, w/o keyless entry Passive anti-theft circuit, w/ keyless entry Passive anti-theft circuit, w/o keyless entry

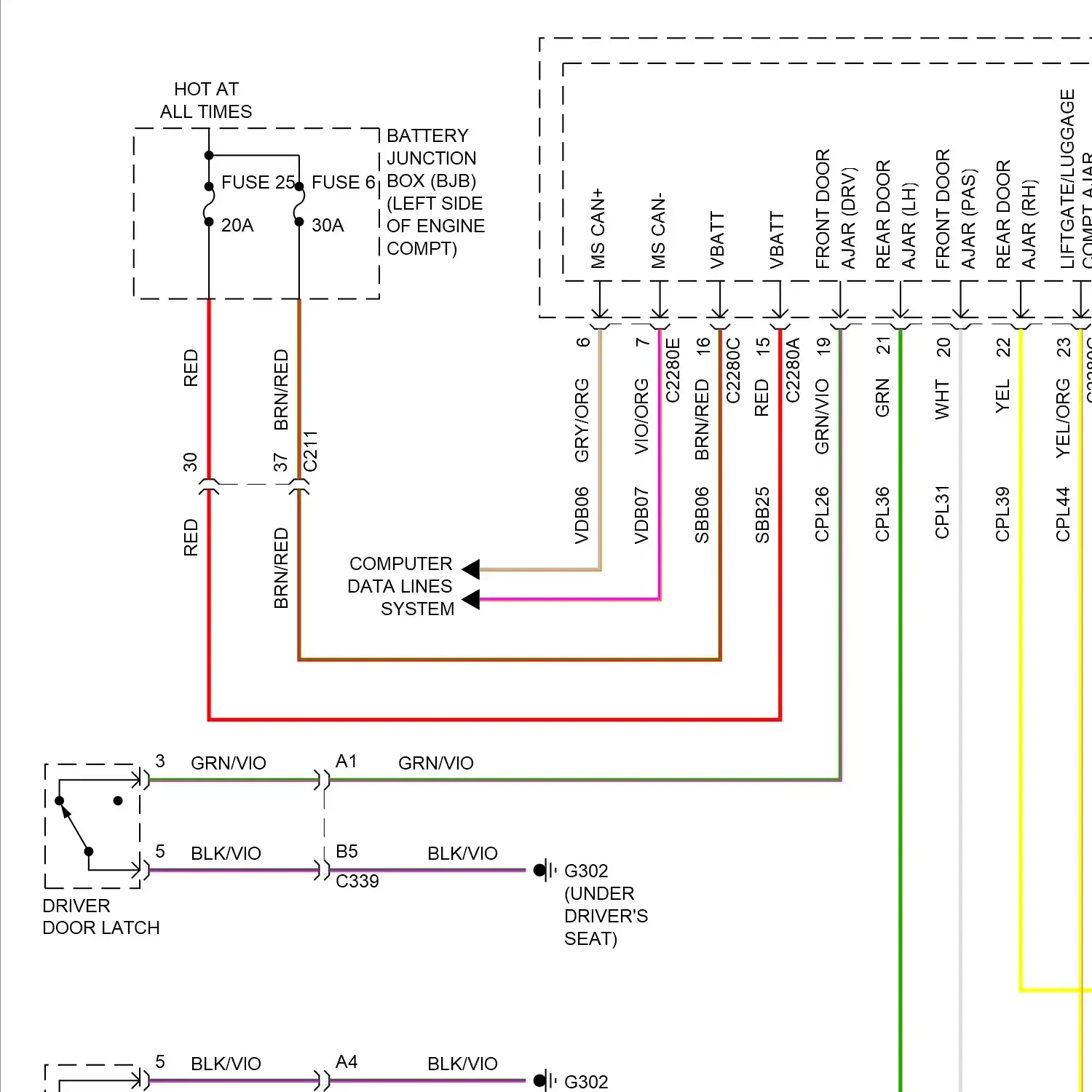

Body control modules circuit

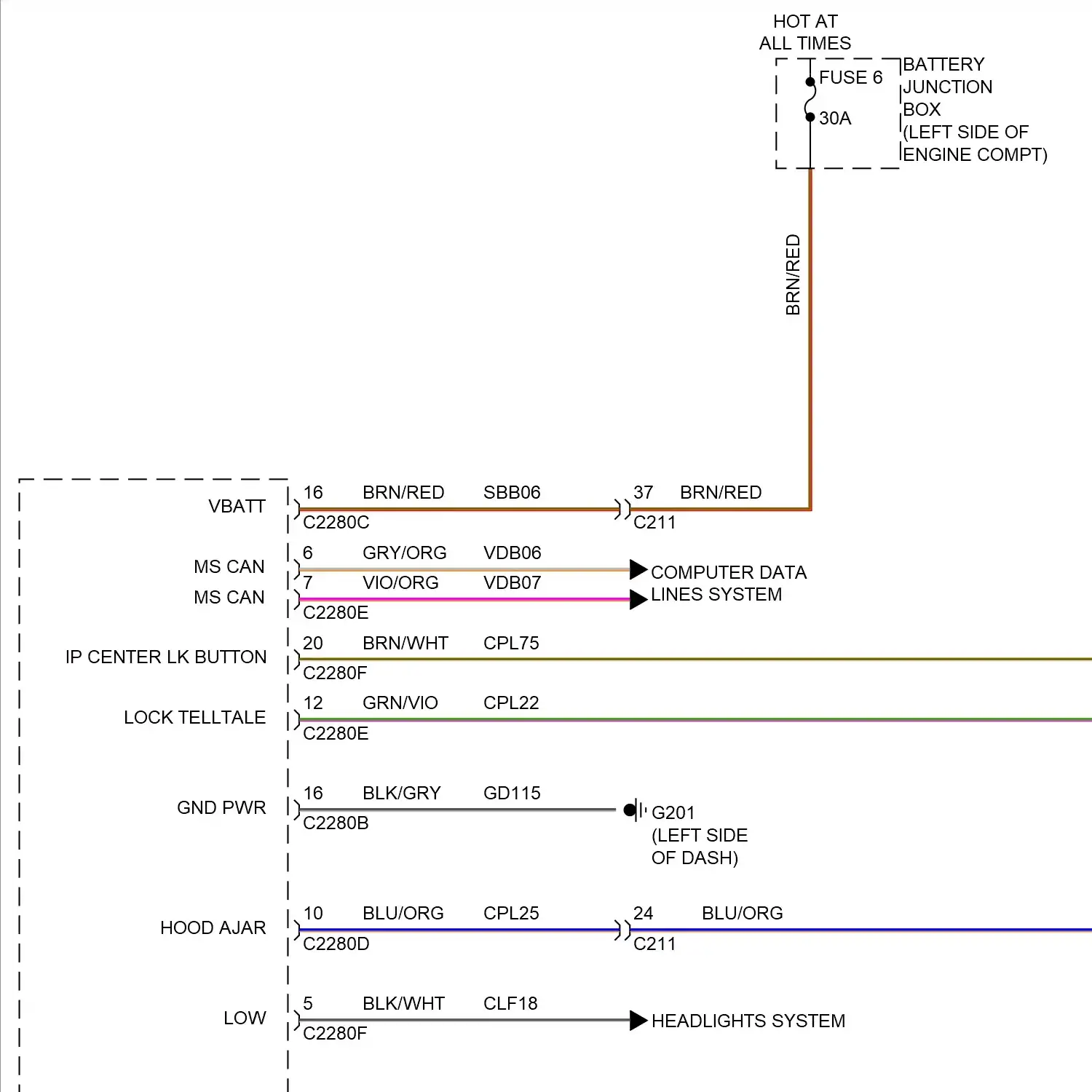

Computer data lines circuit

1.0l turbo, cooling fan circuit

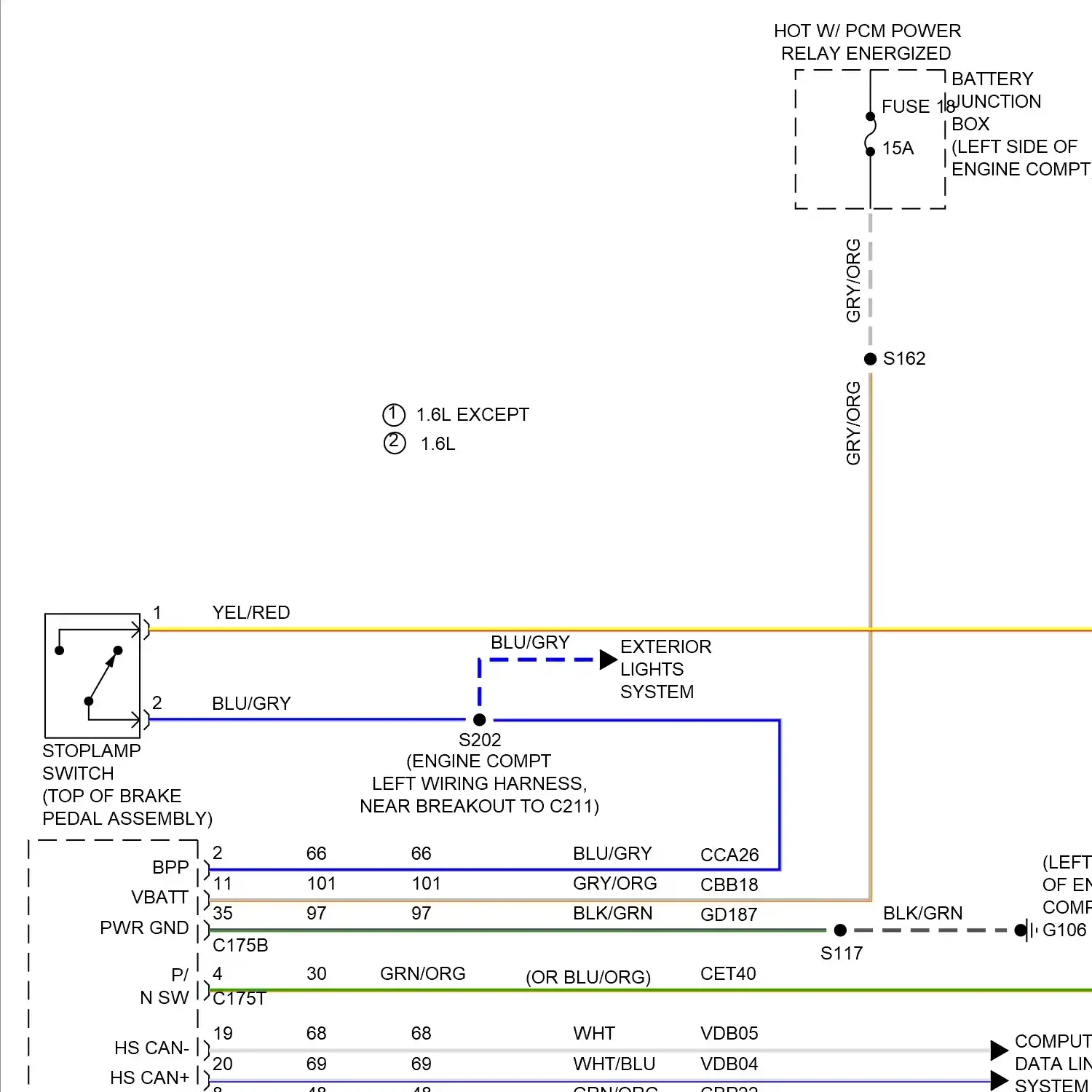

1.6l, cooling fan circuit

1.6l turbo, cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.0l turbo

Wiring diagram engine performance 1.6l

Wiring diagram engine performance 1.6l turbo

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Navigation circuit, w/ sync gen 1 Navigation circuit, w/ sync gen 2 Parking assistant circuit Rear camera circuit

Power distribution circuit

Power door locks circuit, w/ keyless entry Power door locks circuit, w/o keyless entry

Electrochromic mirror circuit, w/o rain sensor Electrochromic mirror circuit, w/ rain sensor Power mirrors circuit

Power seats circuit

Power top/sunroof circuit

Power windows circuit, w/ intelligent windows Power windows circuit, w/o intelligent windows

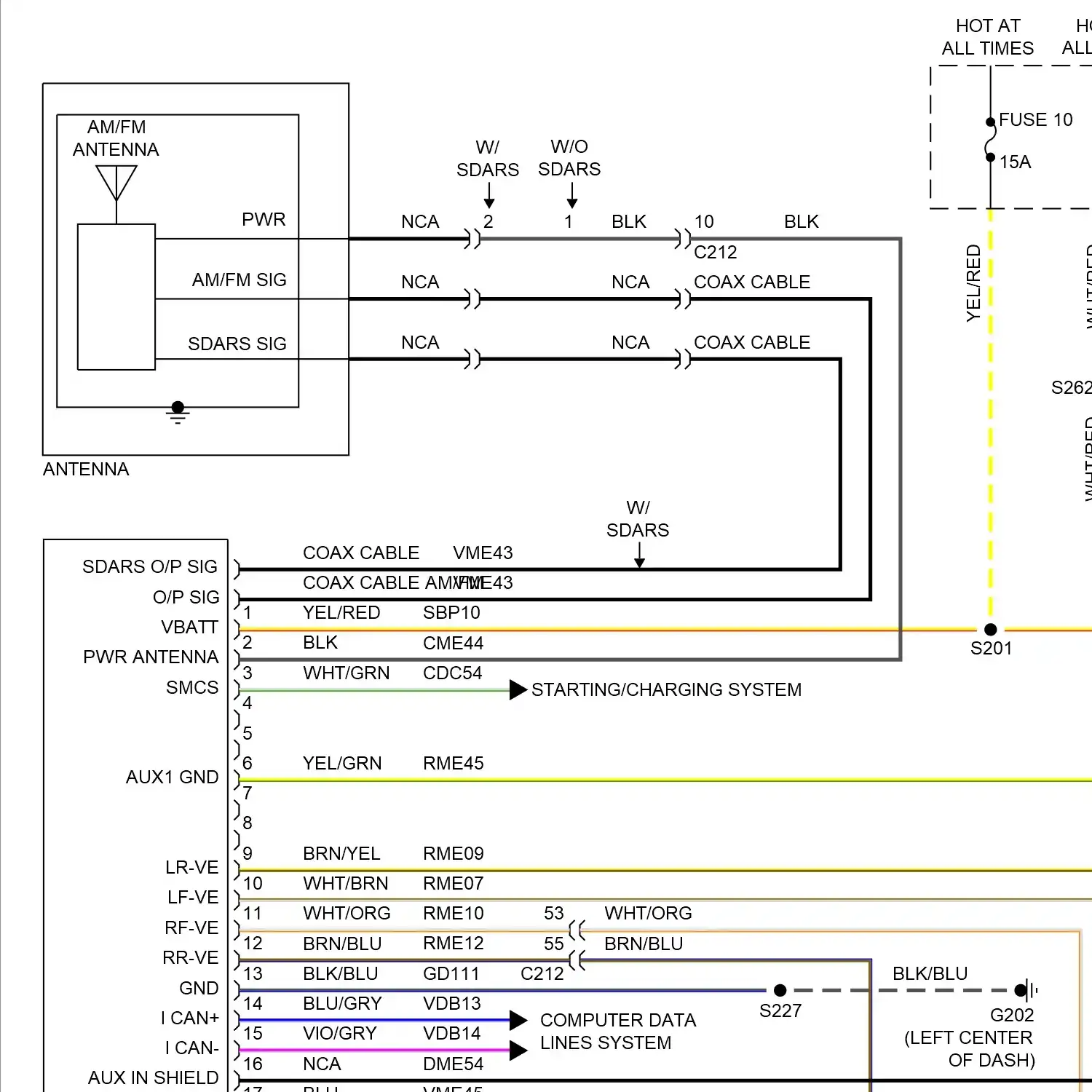

Base radio circuit Premium radio circuit, w/ sync gen 1 Premium radio circuit, w/ sync gen 2

Shift interlock circuit

Charging circuit Starting circuit, w/o push button start Starting circuit, w/ push button start

Supplemental restraints circuit

Transmission circuit

Trunk release circuit

Warning systems circuit

Wiper/washer circuit

ALARM HORN ANTI- THEFT HORN BATTERY JUNCTION BOX BATTERY SAVER COOLING FAN RESISTOR HIGH CURRENT BATTERY JUNCTION BOX IGNITION COIL IGNITION COIL ON PLUG 1 IGNITION COIL ON PLUG 2 IGNITION COIL ON PLUG 3 IGNITION COIL ON PLUG 4 LOCK ILLUM LOCK ILLUMINATION LOCK MTR LOCK MTRS LOCK OUT LOCK TELL TAIL LOCK TELLTALE PASSIVE ANTI-THEFT SYSTEM TRANSCEIVER PASSIVE ANTI-THEFT TRANSCEIVER VBATT BATT SAVER/ HORN VBATT SAVER/HORN VEHICLE HORN O/P VEHICLE HORN OUTPUT VEHICLE HORN SW

AIR DISTRIBUTION DOOR ACTUATOR AIR INLET DOOR ACTUATOR AIR INLET MODE DOOR ACTUATOR BLOWER MOTOR BLOWER MOTOR RESISTOR CLUTCH ACTUATOR MOTOR 1 CLUTCH ACTUATOR MOTOR 2 COOLING FAN MOTOR DEFROST/PANEL/FLOOR/ MODE DOOR ACTUATOR ENGINE CONTROLS SYSTEM LIFTGATE/ LUGGAGE COMPARTMENT LID RELEASE ACTUATOR LIFTGATE/LUGGAGE COMPARTMENT LID RELEASE ACTUATOR LOWER RIGHT FRONT OF ENGINE) MODE MOTOR PASSENGER DOOR POWER WINDOW MOTOR REAR WINDOW WIPER MOTOR REMOTE FUNCTION ACTUATOR MODULE STARTER MOTOR TEMP MOTOR+ TEMPERATURE BLEND DOOR ACTUATOR TEMPERATURE DOOR ACTUATOR TOP OF ENGINE) TRUNK MOTOR WINDSHIELD WIPER MOTOR

AM/FM ANTENNA KEYLESS ENTRY REAR ANTENNA PASSIVE ANTI-THEFT SYSTEM CENTER ANTENNA PASSIVE ANTI-THEFT SYSTEM FRONT ANTENNA PASSIVE ANTI-THEFT SYSTEM REAR ANTENNA PWR ANTENNA

DRIVER DOOR WINDOW REGULATOR MOTOR HTD BACKLITE BUTTON IGNITION SWITCH PUSH BUTTON START IP CENTER LK BUTTON IP CENTRAL LOCK BUTTON HZRD WARNING SW LEFT REAR DOOR WINDOW REGULATOR MOTOR PASSENGER DOOR WINDOW REGULATOR MOTOR PUSH BUTTON START IGNITION SWITCH RIGHT REAR DOOR WINDOW REGULATOR MOTOR

REAR CAMERA VIDEO + REAR PARKING AID CAMERA W/ REARVIEW CAMERA

DATA LINK CONNECTOR

ANTI-LOCK BRAKE SYSTEM CONTROL MODULE AUDIO FRONT CONTROL MODULE BLOWER MOTOR CONTROL MODULE BODY CONTROL MODULE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL MODULE FUEL INJECTOR HEATER CONTROL MODULE HVAC CONTROL MODULE POWER STEERING CONTROL MODULE POWERTRAIN CONTROL MODULE RESTRAINTS CONTROL MODULE TRANSMISSION CONTROL MODULE

AUTO- DIMMING INTERIOR MIRROR UNIT THROTTLE CONTROL UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 IN-LINE FUSE 1 MEGA 1 FUSE MEGA FUSE 1 MEGA FUSE 2 MEGA FUSE 3 MEGA FUSE 4 MEGA FUSE 5

ELECTRIC BOOSTER HEATER LEFT FRONT SEAT CUSHION HEATER RIGHT FRONT SEAT CUSHION HEATER

LOW BRAKE FLUID WARNING INDICATOR SWITCH PARKING BRAKE WARNING INDICATOR SWITCH

AUTO LAMP BACKUP LAMP CARGO LAMP EXTERIOR LIGHTS SYSTEM WIPER/WASHER SYSTEM FRONT INTERIOR LAMP GLOVE COMPARTMENT LAMP HIGH MOUNTED STOP LAMP LEFT CUPHOLDER LAMP LEFT FRONT FOG LAMP LEFT FRONT FOOTWELL LAMP LEFT FRT POSTN LAMP LEFT REAR FOOTWELL LAMP LEFT REAR LAMP ASSEMBLY LEFT REAR POSTN LAMP LEFT REVERSING LAMP ASSEMBLY LIGHTS OFF SW POWER DISTRIBUTION, INTERIOR LIGHTS SYSTEMS REAR INTERIOR LAMP RIGHT CUPHOLDER LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOOTWELL LAMP RIGHT FRT POSTN LAMP RIGHT INSTRUMENT PANEL LAMP RIGHT REAR FOOTWELL LAMP RIGHT REAR LAMP ASSEMBLY RIGHT REAR POSITION LAMP REAR SENS PWR RIGHT REVERSING LAMP ASSEMBLY

COOLANT PUMP FUEL PUMP DRIVE ASSEMBLY FUEL PUMP DRIVER MODULE WINDSHIELD WASHER PUMP

A/C CLUTCH RELAY ACCESSORY RELAY AUXILIARY RELAY BOX BATTERY SAVER RELAY BLOWER MOTOR RELAY COOLING FAN RELAY DRIVER HEATED SEAT RELAY ELECTRIC BOOSTER HEATER RELAY 1 ELECTRIC BOOSTER HEATER RELAY 2 FOG LAMP RELAY FUEL PUMP RELAY HBL RELAY OUT HIGH BEAM RELAY HOT W/ IGNITION RELAY ENERGIZED HOT W/ PCM POWER RELAY ENERGIZED IGNITION RELAY PASSENGER HEATED SEAT RELAY PCM POWER RELAY REVERSING LAMP RELAY REVERSING LAMPS RELAY SMART KEYLESS ENTRY ACCESSORY RELAY SMART KEYLESS ENTRY IGNITION RELAY STARTER INHIBIT RELAY

ACCELERATOR PEDAL POSITION SENSOR AMBIENT AIR TEMPERATURE SENSOR BATTERY MONITORING SENSOR CATALYST MONITOR SENSOR CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR CRANKSHAFT POSITION SENSOR DRIVER FRONT DOOR SIDE IMPACT SENSOR DRIVER SEAT POSITION SENSOR ENGINE COOLANT TEMPERATURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT POSITION SENSOR FLOOR SENSOR FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR FUEL SUPPLY LINE PRESSURE SENSOR FUEL TANK PRESSURE SENSOR HEATED OXYGEN SENSOR IN-VEHICLE TEMPERATURE SENSOR INPUT SHAFT SPEED SENSOR 1 INPUT SHAFT SPEED SENSOR 2 INTAKE CAMSHAFT POSITION SENSOR INTRUSION SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT C-PILLAR SIDE IMPACT SENSOR LEFT FRONT IMPACT SEVERITY SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR WHEEL SPEED SENSOR LF SENSOR HI LF SENSOR LO LR SENSOR HI LR SENSOR LO MANIFOLD ABSOLUTE PRESSURE, TEMPERATURE SENSOR MASS AIR FLOW, TEMPERATURE SENSOR OUTPUT SHAFT SPEED SENSOR PANEL SENSOR PASSENGER FRONT DOOR SIDE IMPACT SENSOR PASSENGER SAFETY BELT TENSION SENSOR PASSENGER SEAT POSITION SENSOR RAIN SENSOR MODULE REAR SENSOR GND REAR SENSOR PWR RF SENSOR HI RF SENSOR LO RIGHT C-PILLAR SIDE IMPACT SENSOR RIGHT FRONT IMPACT SEVERITY SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR WHEEL SPEED SENSOR RR SENSOR HI RR SENSOR LO SENSOR GND STEERING ANGLE SENSOR SUNLOAD SENSOR LEFT SUNLOAD SENSOR RIGHT TORQUE SENSOR TURBOCHARGER BOOST PRESSURE SENSOR W/ RAIN SENSOR W/O RAIN SENSOR W/O RAIN SENSOR W/ RAIN SENSOR

LEFT FRONT DOOR SPEAKER LEFT FRONT DOOR TWEETER SPEAKER LEFT REAR DOOR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT DOOR TWEETER SPEAKER RIGHT REAR DOOR SPEAKER

CLUTCH PEDAL CRUISE CONTROL DEACTIVATOR SWITCH CLUTCH PEDAL POSITION BOTTOM OF TRAVEL SWITCH CNG CHANGE OVER FUEL SWITCH CRUISE CONTROL DEACTIVATOR SWITCH DOOR LOCK CONTROL SWITCH DRIVER HEATED SEAT SWITCH DRIVER SAFETY BELT BUCKLE SWITCH ENGINE OIL PRESSURE SWITCH EXTERIOR MIRROR SWITCH EXTERIOR REAR VIEW MIRROR SWITCH HAZARD SWITCH HBL SWITCH HEADLAMP SWITCH HOOD AJAR SWITCH HORN SWITCH IGNITION SWITCH INSTRUMENT PANEL DIMMER SWITCH KEY-IN IGNITION SWITCH LEFT REAR DOOR WINDOW CONTROL SWITCH LEFT STEERING WHEEL SWITCH LIFTGATE/ DECKLID RELEASE SWITCH LIFTGATE/ LUGGAGE COMPARTMENT LID RELEASE SWITCH LIFTGATE/LUGGAGE COMPARTMENT LID RELEASE SWITCH MASTER WINDOW CONTROL SWITCH OVERHEAD CONSOLE SWITCH ASSEMBLY PARK DETECT SWITCH PASSENGER DOOR WINDOW CONTROL SWITCH PASSENGER HEATED SEAT/ AMBIENT LIGHTING SWITCH PASSENGER HEATED SEAT/AMBIENT LIGHTING SWITCH REDUNDANT AUDIO SWITCH REVERSING LAMP SWITCH RIGHT REAR DOOR WINDOW CONTROL SWITCH RIGHT STEERING WHEEL SWITCH STEERING COLUMN MULTI-FUNCTION SWITCH STEERING COLUMN MULTIFUNCTION SWITCH STOP LAMP SWITCH STOPLAMP SWITCH TRACTION CONTROL SWITCH TRIP COMPUTER SWITCH VEHICLE HORN SWITCH WINDSHIELD WIPER/ WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH

AIR CONDITIONING COMPRESSOR CONTROL SOLENOID DEGAS VALVE ELECTRONIC COMPRESSOR BYPASS VALVE EVAPORATIVE EMISSION CANISTER PURGE VALVE EVAPORATIVE EMISSION CANISTER VENT VALVE EXHAUST VARIABLE CAMSHAFT TIMING OIL CONTROL SOLENOID FUEL METERING VALVE INTAKE VARIABLE CAMSHAFT TIMING OIL CONTROL SOLENOID OIL PRESSURE CONTROL SOLENOID TURBOCHARGER BYPASS VALVE) WASTEGATE CONTROL SOLENOID

BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/YEL WIRE PNK WIRE PNK/GRN WIRE RED WIRE RUN WIRE VIO WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/PNK WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE

1) OFF 2) ON 3) LOW 4) INT 5) HIGH 1.0L TURBO 1.6L 1.0L TURBO 1.6L 1.6L TURBO 1.0L TURBO, 1.6L TURBO 1.6L 1.0L TURBO 1.6L TURBO 1.6L 1.6L 1.0L TURBO 1.6L 1.6L TURBO 1.6L 1.6L TURBO 1.0L TURBO 1.6L 1.6L TURBO 1.0L TURBO W/ ESP W/O ESP 1.6L 1.6L TURBO W/ AIR CONDITIONING W/O AIR CONDITIONING 1.6L A/T 1.6L EXCEPT 1.6L 4 DOOR 5 DOOR (CENTER A/C REQUEST A/T M/T ACTIVE GRILLE SHUTTER AIR CONDITIONING COMPRESSOR AIR CONDITIONING PRESSURE TRANSDUCER AIR CONDITIONING SYSTEM AM/FM SIG AMBIENT LIGHT SEN RTN AMBIENT LIGHT SEN SIG AMBIENT LIGHTING MODULE AMBIENT/MOON LTNG ANTI-THEFT SYSTEM APP PWM ASPIRATOR GND ASPIRATOR PWR AUDIO INPUT JACK AUTO DIMMING INTERIOR MIRROR AUTOMATIC A/C AUX GND AUX IN L AUX IN R + AUX IN SHIELD AUX L + AUX R + AUXILIARY POWER POINT BACKUP LAMPS CIRCUIT BATT SAVER O/P BLOWER CMD BLOWER RLY BRAKE PEDAL SW BRK FLUID LEVEL SW BRK FLUID LVL SW BRK PEDAL SW BTS OUT BTS VREF CENTRAL JUNCTION BOX CIGAR LIGHTER CLOCK- SPRING CLUTCH 2 CLUTCH PEDAL SW COAX CABLE COAX CABLE SDARS O/P SIG COAX CABLE AM/FM O/P SIG COMPT AJAR COMPUTER DATA LINES SYSTEM CONTROL RTN CONTROL+RES COOLING FAN MODULE COOLING FANS SYSTEM CRUISE CONTROL SYSTEM CTRL + RES CTRL RTN DEFOGGER SYSTEM DELAYED ACCSRY DIM DOWN DIM UP DIMMER DOWN DIMMER UP DN LEFT REAR DN SHIFT DN UP DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOWN UP DOWN UP SST BSI SHIFT SHIFT GND DRIV SIDE IMPCT SNSR FEED DRIV SIDE IMPCT SNSR RTN DRIVER AIR BAG DRIVER BUCKLE SW INPUT DRIVER DOOR LATCH DRIVER LOWER AIR BAG DRIVER SAFETY BELT BUCKLE DRIVER SAFETY BELT RETRACTOR PRETENSIONER DRIVER SEAT TRACK SNSR DRIVER SIDE AIR BAG DRIVER SIDE AIR CURTAIN DRIVER TEMP DOOR CCW DRIVER TEMP DOOR CW DRIVER TEMP DOOR FDBK DRV AIR BAG 1 FEED DRV AIR BAG 1 RTN DRV AIR BAG 2 FEED DRV AIR BAG 2 RTN DRV BUCKLE SW INPUT DRV DR UNLOCK MTR DRV FRONT DR AJAR DRV FRT DR AJAR DRV HTD SEAT TELLTALE DRV HTD SEATS SW DRV KNEE AIR FEED DRV KNEE AIR RTN DRV RESET SW DRV RETRAC PRETEN + DRV SET SW DRV UNLK SW DRVR CURTAIN FEED DRVR CURTAIN RTN DRVR FRT CR SNSR FEED DRVR FRT CR SNSR RTN DRVR SIDE AIR FEED DRVR SIDE AIR RTN EBHR 1 CONTROL EBHR 2 CONTROL ESP-SW ETC+/- ETCREF ETCRTN ETCRTN ETCREF EVCTOCS TSS/OSS/ EXCEPT 1.6L FAN SPEED CONTROL FD PW DOWN FD PW UP FD SW DOWN FD SW UP FLASHER SW FOG LAMPS FP PW DOWN FP PW UP FP SW DOWN FP SW UP FPRC FPC FRONT CONTROL DISPLAY INTERFACE MODULE FRONT CONTROLS INTERFACE MODULE FRONT DOOR) FRONT GND SIG FRONT WASHER FRONT WIPER FRT SIG GND FRT WPR HI RLY O/P FRT WPR HIGH SW FRT WPR INTRVL AUTO SW FRT WPR LOW RLY O/P FRT WPR LOW SW PASS HTD SEAT TELLTALE FRT WPR PARK SW FRT WPR RTN FRT WPR SW GND FRT WPR VRBL INTERVAL DATA FRT WPR WSHR PMP FRT WPR WSHR SW FT WIPER HI RLY O/P FT WIPER HIGH FT WIPER INT AUTO SW FT WIPER LO RLY O/P FT WIPER LOW FT WIPER PARK SW FT WIPER RTN FT WIPER VAR INT DAT FT WIPER WASHER PMP FT WIPER WASHER SW FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL LEVEL INPUT FUEL LEVEL RETURN FUEL LVL I/P FUEL LVL RTN FVRC- GLOBAL POSITIONING SYSTEM MODULE GND POWER GND PWR GND SIG GND SIG FRONT HBL RLY OUT HBL TELLTALE HEADLIGHTS SYSTEM HEATED SEAT HIGH BEAM SW HIGH MOUNTED STOPLAMP HOOD AJAR HORNS SYSTEM HOT AT ALL TIMES HOT IN RUN OR ACC HOT IN RUN OR START HOT IN START OR RUN HS CAN+ HS HS CAN+ CAN- HS POWER CAN- GND HTD BACKLITE TELLTALE DRV HTD SEAT TELLTALE HVAC MODULE I CAN - IGN FRT WPR IGN MONITOR IGN REAR WPR IGN SW IGN WIPER RR IGNITION SW IGNITION WIPER FRONT INCAR TEMP SENSORL INJ 1 INJ 2 INJ 3 INJ 4 INSTRUMENT CLUSTER SYSTEM INTERIOR LAMPS IP ILLUM IP ILLUMINATION IR- ISP-R K LINE K-LINE IRX KEY IGNITION KEY IN IGNITION KEY IN SW KEYLESS IGN SW ILLU KEYLESS/IGN SW ILL LED RTN LEFT "C" PILLAR) LEFT EXTERIOR MIRROR LEFT FRONT LEFT FRONT EXTERIOR DOOR HANDLE LEFT FRONT TURN LEFT HEADLAMP ASSEMBLY LEFT LOW BEAM LEFT REAR LEFT REAR DOOR AJAR LEFT REAR DOOR LATCH LEFT REAR TURN LEFT RIGHT LEFT TURN OFF LEFT TURN SW LF PARK LP LF TURN LP LF+VE LF-VE LH TURN LICENSE LAMPS LOGIC PWR LOW BEAM LOW BEAM SW LOW IND LR PARK LP LR STOP/TURN LP LR+VE LR-VE LT REAR DR AJAR MANUAL A/C MED HIGH MED LOW MEDIA GND MEDIA HUB MIC IN - MIC SIG MICRO - MIRROR SELECT MODE DOOR 1 CCW MODE DOOR 1 CW MODE DOOR 1 FDBK MODE SIG MONO - MONO OUT SHIELD MS CAN + MS CAN - I CAN - MS CAN + NAVIGATION SYSTEM NOT USED OCCUPANT CLASSIFICATION SYSTEM MODULE P/N SW P/N SW/ CLUTCH 2 P/N SW/CLUTCH 2 PAD IND PARK DETECT PARK DETECT SW PARK SW PARKING BRAKE SIG PARKING BRK SIG PAS FRONT DOOR AJAR PASS ADAPT LOAD LIMITER FEED PASS ADAPT LOAD LIMITER RTN PASS AIR BAG 1 FEED PASS AIR BAG 1 RTN PASS AIR BAG 2 FEED PASS AIR BAG 2 RTN PASS BUCKLE SW INPUT PASS CURTAIN FEED PASS CURTAIN RTN PASS FRT CR SNSR FEED PASS FRT CR SNSR RTN PASS FRT DR AJAR PASS HTD SEAT TELLTALE PASS HTD SEATS SW PASS RETRAC PRETEN - PASS SEAT TRACK SNSR PASS SIDE AIR FEED PASS SIDE AIR RTN PASS SIDE IMPCT SNSR FEED PASS SIDE IMPCT SNSR RTN PASSENGER DOOR LATCH PASSENGER SAFETY BELT BUCKLE PASSENGER SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER SAFETY BELT RETRACTOR PRETENSIONER PASSENGER SIDE AIR BAG PASSENGER SIDE AIR CURTAIN PATS PWR PATS RX PATS TX PCM WU PHASE U PHASE V PHASE W POWER DISTRIBUTION SYSTEM POWER WINDOW MODULE PRK DETECT SW PTC HEAT PTC HEAT REQUEST PTC REQUEST PWR GND PWR SW SUPPLY RADIO FREQUENCY RECEIVER REAR DOOR) REAR FOG REAR INNER LEFT SN REAR INNER LT SNSR REAR INNER RIGHT SN REAR INNER RT SNSR REAR OUTER LEFT SN REAR OUTER LT SNSR REAR OUTER RIGHT SN REAR OUTER RT SNSR REAR SENS GND REAR WASHER REAR WINDOW HEATED ELEMENT REAR WIPER REAR WPR RLY O/P REAR WPR SPLY REAR WPR WSHR SW RECIRC DOOR CCW RECIRC DOOR CW RELEASE SW RESET+ RF PARK LP RF TURN LP RF+VE RF-VE RH TURN RIGHT END OF DASH) RIGHT EXTERIOR MIRROR RIGHT FRONT RIGHT FRONT EXTERIOR DOOR HANDLE RIGHT FRONT TURN RIGHT HEADLAMP ASSEMBLY RIGHT LOW BEAM RIGHT REAR RIGHT REAR DOOR AJAR RIGHT REAR DOOR LATCH RIGHT REAR TURN RIGHT TURN RIGHT TURN SW RL PW DOWN RL PW UP RL SW DOWN RL SW UP ROOF OPENING PANEL MODULE RR PARK LP RR PW DOWN RR PW UP RR STOP/TURN LP RR SW DOWN RR SW UP RR WIPER INT SW RR WIPER RLY OUTPUT RR WIPER SPLY RR WIPER WASHER PMP RR WIPER WASHER SW RR WPR INTRVL SW RR WPR WSHR PMP RR+VE RR-VE RT REAR DR AJAR RT REAR FR AJAR RUN/ACC OUTPUT RVC VIDEO- SDARS SIG SDL - SEATS SYSTEM SELECTOR LEVER ASSEMBLY SET- SHIFT INTERLOCK SYSTEM SHORTING BAR SHORTING BAR SHORTING BAR SIG GND SIG GND 1 SIG GND 2 SIG GND TIP- TIP+ SP-R SSB 1 SSB 2 SST RTN STAGE 1 STAGE 2 STAR INPUT START INPUT START/RUN OUT START/RUN OUTPUT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN) STEERING WHEEL) STOP LAMPS STPS/SBBS RETURN STPS/SBBS RTN SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW INPUT SW LEFT SW RIGHT SYNC B+ SYNC MODULE TACM+ TAILGATE RELEASE SW TEMP SIG TILT DWN TILT UP TIP+ TRIP COMPUTER SW TRUNK AJAR TRUNK MTRS TRUNK REL SW TRUNK RELEASE SW TRUNK, TAILGATE, FUEL DOORS SYSTEM UN COMM UNLOCK DRV DR MTR UNLOCK MTR UNLOCK MTRS UNLOCK SW UP DN UP DN UP UP DOWN UP SHIFT USB PORT V BATT VBATT EXTERIOR VBATT EXTR LIGHTING VBATT EXTR LTNG LH VBATT EXTR LTNG RH VBATT HEATED BACKLITE VBATT HEATED BKLT VBATT LOCKING VBATT TURN SIG VOLUME- W/ A/C W/ AIR CONDITIONING W/O AIR CONDITIONING W/ ANTI- THEFT W/ ESP W/ FPDM W/O FPDM W/ INTELLIGENT ACCESS W/ KEYLESS ENTRY W/ LED W/ MAP LAMPS W/O MAP LAMPS W/ OVERHEAD CONSOLE W/ ROOF OPENING PANEL W/ ROOF OPENING PANEL W/O OVERHEAD CONSOLE W/ ANTI-THEFT W/ OVERHEAD CONSOLE W/O A/C W/O ESP W/O KEYLESS ENTRY W/O LED W/O MAP LAMPS W/ MAP LAMPS W/O OVERHEAD CONSOLE W/O SDARS W/O SYNC WASHER FLUID RESERVOIR) WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM
