Ford F-350 XIV (2017-2020) lane keeping system/ camera selection switch Wiring diagrams
This page contains all the electrical diagrams for the component. lane keeping system/ camera selection switch, in which he is found in the car Ford F-350 XIV (2017-2020). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram lane keeping system/ camera selection switch (1 of 5)
BATTERY JUNCTION BOX (BJB)
BLK/VIO WIRE
BLU/BRN WIRE
BLU/ORG WIRE
BODY CONTROL MODULE (BCM)
CHMSL VIDEO -
COAX
COMPUTER DATA LINES SYSTEM
FRONT PARKING AID CAMERA
FUSE 34
FUSE 36
FVC PWR/LVD OUT
GRN/BLU WIRE
GRN/ORG WIRE
GRY/BLU WIRE
HIGH MOUNTED STOPLAMP/ CAMERA/LED
HOT W/ IGNITION RELAY ENERGIZED
HOT W/ RUN/START RELAY ENERGIZED
IMAGE PROCESSING MODULE B (IPMB)
IPMB VIDEO IN -
IPMB VIDEO OUT -
LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
LEFT CAMERA EXTERIOR MIRROR
NCA WIRE
POWER DISTRIBUTION SYSTEM
PWR/LVD OUT
PWR/LVD OUT LH
PWR/LVD OUT RH
REAR PARKING AID CAMERA
REAR VIDEO + FRONT/360 CAMERA ENABLE
REAR VIDEO -
REAR VIDEO - SHIELD SHIELD
REMOTE TRAILER CAMERA
RIGHT CAMERA EXTERIOR MIRROR
RVC PWR/LVD OUT
SHIELD
SHIELD SHIELD
SYNC MODULE (APIM) (CENTER OF DASH)
TRAILER CAMERA/ TRAILER TPMS CONNECTOR
TRAILER TIRE PRESSURE MONITOR SYSTEM (TPMS)
VIDEO+
VIO WIRE
VIO/BRN WIRE
VIO/GRY WIRE
VPWR
WHT WIRE
Go to component -> All around vision camera circuit, w/ 360 view -> LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
Wiring diagram lane keeping system/ camera selection switch (2 of 5)
BLK/VIO WIRE
BLU/ORG WIRE
GRN/BLU WIRE
HIGH MOUNTED STOPLAMP/ CAMERA/LED
LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
NCA WIRE
REAR PARKING AID CAMERA
REAR VIDEO -
REAR VIDEO - SHIELD SHIELD
REMOTE TRAILER CAMERA
SHIELD
SHIELD SHIELD
TRAILER CAMERA/ TRAILER TPMS CONNECTOR
TRAILER TIRE PRESSURE MONITOR SYSTEM (TPMS)
VIDEO+
VIO WIRE
VIO/BRN WIRE
VIO/GRY WIRE
VPWR
W/ 2 CAMERA SHIELD
W/ 3 CAMERA SHIELD
WHT WIRE
WHT/GRN WIRE
Go to component -> All around vision camera circuit, w/o 360 view (2 of 2) -> LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
Wiring diagram lane keeping system/ camera selection switch (3 of 5)
ADJUSTABLE PEDAL SWITCH
AUXILIARY LAMP MODULE
BLK WIRE
BLK/BLU WIRE
BLK/VIO WIRE
BLU WIRE
BRAKE SHIFT INTERLOCK ACTUATOR
CONSOLE 1 POWER POINT
CONSOLE AMBIENT LED
DATA LINK CONNECTOR (DLC)
FLOOR CONSOLE CUP HOLDER AMBIENT LIGHTING LAMP
FRONT CONTROL/ DISPLAY INTERFACE MODULE (FCDIM)
FRONT CONTROLS INTERFACE MODULE (FCIM)
GATEWAY MODULE
GLOVE BOX LAMP)
HAZARD/ HILL DESCENT SWITCH
HEAD-UP DISPLAY (HUD) MODULE
HEADLAMP SWITCH
HEATED STEERING WHEEL MODULE (HSWM)
IGNITION SWITCH PUSH BUTTON START
IMAGE PROCESSING MODULE B (IPMB)
INSTRUMENT PANEL CLUSTER (IPC)
INSTRUMENT PANEL POWER POINT 2
LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
LEFT FRONT FOOTWELL LAMP
MEDIA BIN AMBIENT LED
MODE SELECT SWITCH (MSS)
NCA WIRE
PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER
POWER POINT 1
POWER POINT 2
REAR HEATED SEAT SWITCH
REAR PARKING AID CAMERA SHIELD
REAR POWER POINT
RIGHT FRONT FOOTWELL LAMP
STABILITY ASSIST/ENGINE BRAKE SWITCH
STOP LAMP MODULE (SLM)
STOP LAMP SWITCH
TRAILER BRAKE CONTROL (TBC) MODULE
W/ 4 INCH DISPLAY
W/ AMBIENT LIGHTING
W/ CONSOLE
W/O 360 CAMERA
W/O CONSOLE
WASHER FLUID LEVEL SWITCH
Go to component -> Ground distribution circuit (4 of 8) -> LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
Wiring diagram lane keeping system/ camera selection switch (4 of 5)
ADJUSTABLE PEDAL SWITCH
AUTOLAMP
AUTOLAMP ON
BACK LTG (FET)
BATTERY JUNCTION BOX (BJB)
BLK WIRE
BLK/BLU WIRE
BLK/GRY WIRE
BLK/VIO WIRE
BLK/YEL WIRE
BODY CONTROL MODULE (BCM)
BRN/VIO WIRE
COMPUTER DATA LINES SYSTEM
DIM +
DOME LAMP (W/O OVERHEAD CONSOLE)
FUSE 13
FUSE 50
GRN/ORG WIRE
GRY WIRE
GRY/BLU WIRE
GRY/RED WIRE
H/L ON
HAZARD/HILL DESCENT SWITCH
HEAD/PARK
HEADLAMP SWITCH
HOT AT ALL TIMES
ILLUM
LAMPS OFF
LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
LOGIC GND
LOW BEAM REQ
MICRO -
MODE SELECT SWITCH
MULTI- FUNCTION SWITCH
OFF
OVERHEAD CONSOLE
PARK
PARK LAMPS ON
PUSH BUTTON START IGNITION SWITCH
REAR HEATED SEAT SWITCH
SPOT LAMP SWITCH
STABILITY ASSIST/ ENGINE BRAKE SWITCH
STEERING COLUMN CONTROL MODULE (SCCM)
TAILGATE RELEASE SWITCH
UPFITTER SWITCH
VBATT
VIO WIRE
VIO/GRN WIRE
VIO/GRY WIRE
VIO/WHT WIRE
WHT/VIO WIRE
YEL/BLU WIRE
YEL/RED WIRE
YEL/VIO WIRE
Go to component -> Instrument illumination circuit (1 of 2) -> LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH

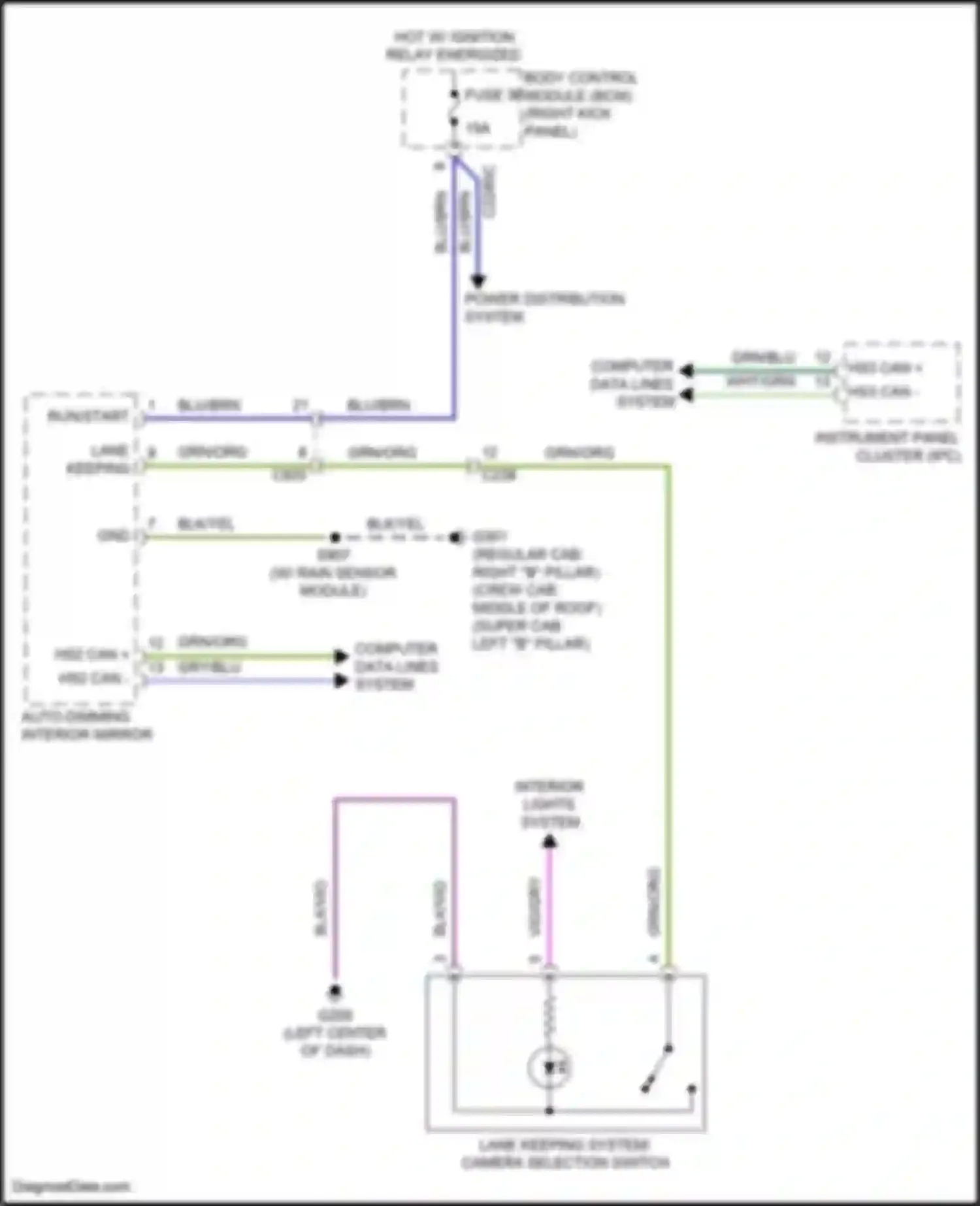

Wiring diagram lane keeping system/ camera selection switch (5 of 5)
AUTO DIMMING INTERIOR MIRROR
BLK/VIO WIRE
BLK/YEL WIRE
BLU/BRN WIRE
BODY CONTROL MODULE (BCM)
COMPUTER DATA LINES SYSTEM
FUSE 36
GRN/BLU WIRE
GRN/ORG WIRE
GRY/BLU WIRE
HOT W/ IGNITION RELAY ENERGIZED
INSTRUMENT PANEL CLUSTER (IPC)
LANE KEEPING
LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
POWER DISTRIBUTION SYSTEM
RUN/START
VIO/GRY WIRE
WHT/GRN WIRE
Go to component -> Lane departure warning circuit -> LANE KEEPING SYSTEM/ CAMERA SELECTION SWITCH
