Ford F-350 XIV (2017-2020) fuse 34 Wiring diagrams
This page contains all the electrical diagrams for the component. fuse 34, in which he is found in the car Ford F-350 XIV (2017-2020). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
fuse 34 wiring diagram (1 of 19)
BATTERY JUNCTION BOX (BJB)
BLK/VIO WIRE
BLU/BRN WIRE
BLU/ORG WIRE
BODY CONTROL MODULE (BCM)
CHMSL/REMOTE VIDEO +
CHMSL/REMOTE VIDEO + IPMB VIDEO OUT + REAR VIDEO + IPMB VIDEO OUT -
COAX
COAX RVC PWR/LVD OUT
COMPUTER DATA LINES SYSTEM
FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)
FUSE 34
FUSE 36
GND FRT/360 CAMERA ENABLE
GRN/BLU WIRE
GRN/ORG WIRE
GRY/BLU WIRE
HOT W/ IGNITION RELAY ENERGIZED
HOT W/ RUN/START RELAY ENERGIZED
IMAGE PROCESSING MODULE B (IPMB)
IPMB VIDEO IN -
POWER DISTRIBUTION SYSTEM
PWR/LVD OUT
REAR PARKING AID CAMERA
REAR VIDEO -
REAR VIDEO - SHIELD SHIELD
SHIELD
SHIELD SHIELD
SHIELD SHIELD SHIELD SHIELD
SYNC MODULE (APIM) (CENTER OF DASH)
VIO WIRE
VIO/BRN WIRE
VIO/GRY WIRE
VPWR
W/ 2 OR 3 CAMERA
W/ 8 INCH DISPLAY
W/O 8 INCH DISPLAY
WHT WIRE
Go to component -> All around vision camera circuit, w/o 360 view (1 of 2) -> FUSE 34
fuse 34 wiring diagram (2 of 19)
6.7L TURBO DIESEL
6.8L, 6.2L FLEX FUEL
AUTO DIMMING INTERIOR MIRROR
BACKUP
BATTERY JUNCTION BOX (BJB)
BLIS GND
BLIS PWR
BLK/GRY WIRE
BLU WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BODY CONTROL MODULE (BCM)
BRN WIRE
BRN/BLU WIRE
CAN (+)
COMPUTER DATA LINES SYSTEM
CREW CAB, SUPER CAB
FUSE 34
FUSE 48
FUSE 84
GRN/BRN WIRE
GRY WIRE
GRY/BRN WIRE
GRY/ORG WIRE
HOT AT ALL TIMES
HOT W/ RUN/START RELAY ENERGIZED
LEFT REAR LAMP
LEFT REAR LAMP ASSEMBLY
LEFT REVERSING LAMP
MICRO -
MS CAN +
NARROW FRAME WIDE FRAME W/O CAMERA W/ CAMERA
POWERTRAIN CONTROL MODULE (PCM)
REV LP (FET)
REV LPS (FET)
REVERSING
RIGHT REAR LAMP
RIGHT REAR LAMP ASSEMBLY
RIGHT REVERSING LAMP (W/ BLIS)
RIGHT REVERSING LAMP (W/O BLIS)
TORQSHIFT 6 TRANSMISSION
TRAILER TOW CONNECTOR
TRAILER TOW CONNECTOR (FIFTH WHEEL)
TRANSMISSION CONTROL MODULE (TCM)
TRGND
TRP
TRS/TR-P
TT BACKUP LAMPS RELAY
VBPWR
VIO WIRE
VIO/BRN WIRE
VIO/GRN WIRE
VIO/ORG WIRE
VIO/RED WIRE
W/O BLIS
WHT WIRE
WHT/BLU WIRE
Go to component -> Backup lamps circuit -> FUSE 34
fuse 34 wiring diagram (3 of 19)
BATTERY JUNCTION BOX (BJB)
BLIS GND
BLIS IND
BLIS IND MIRR SENS/ BLIS GND
BLIS VPWR
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/GRY WIRE
BODY CONTROL MODULE (BCM)
BRN/VIO WIRE
COMPUTER DATA LINES SYSTEM
DRIVER DOOR MODULE (DDM)
FUSE 25
FUSE 26
FUSE 34
GRN/WHT WIRE
GRY/ORG WIRE
GRY/VIO WIRE
HOT AT ALL TIMES
HOT W/ RUN/START RELAY ENERGIZED
LEFT EXTERIOR MIRROR
LEFT EXTERIOR MIRROR BLIND SPOT (BLIS)/ CROSS TRAFFIC ALERT (CTA) LED
LEFT REAR LAMP ASSEMBLY
LEFT REVERSING LAMP
MIRR SENS/ BLIS GND
MS CAN +
PASSENGER DOOR MODULE (PDM)
RED WIRE
RIGHT EXTERIOR MIRROR
RIGHT EXTERIOR MIRROR BLIND SPOT (BLIS)/ CROSS TRAFFIC ALERT (CTA) LED
RIGHT REAR LAMP ASSEMBLY
RIGHT REVERSING LAMP
VBATT
VIO/BRN WIRE
VIO/ORG WIRE
YEL/RED WIRE
YEL/VIO WIRE
Go to component -> Blind spot information system circuit -> FUSE 34
fuse 34 wiring diagram (4 of 19)
6.7L TURBO DIESEL
6.8L, 6.2L FLEX FUEL
AUTO
AUTOLAMP
BLK/BLU WIRE
BLK/GRY WIRE
BLK/VIO WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU/GRY WIRE
BODY CONTROL MODULE (BCM)
BPP
BPS
BRAKE PEDAL POSITION (BPP) SWITCH
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
FUSE 34
FUSE 4
FUSE 9
GRN/BLU WIRE
GRY WIRE
GRY/ORG WIRE
GRY/VIO WIRE
H/L ON
HAZARD
HAZARD/HILL DESCENT SWITCH
HEAD/PARK
HEADLAMP SWITCH
HILL DESCENT
HOT AT ALL TIMES
INSTRUMENT CLUSTER PANEL (IPC)
LAMP
LAMPS OFF
LEFT CENTER ROOF MARKER LAMP
LEFT ROOF MARKER LAMP
LOW BEAM
MICRO -
OFF
PARK
PARK LAMPS
POWERTRAIN CONTROL MODULE (PCM)
RED WIRE
REQ+
RIGHT EXTERIOR MIRROR
SPOT
TRAILER BRAKE CONTROL (TBC) MODULE
VIO WIRE
VIO/BRN WIRE
VIO/GRN WIRE
VIO/GRY WIRE
VIO/ORG WIRE
VIO/WHT WIRE
W/ TRAILER BRAKE CONTROL MODULE W/O TRAILER BRAKE CONTROL MODULE
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/VIO WIRE
YEL/BLU WIRE
Go to component -> Exterior lamps circuit, w/ halogen headlamps (4 of 4) -> FUSE 34
fuse 34 wiring diagram (5 of 19)
BACKUP
BACKUP LAMPS CIRCUIT
BATTERY JUNCTION BOX (BJB)
BLIS GND
BLK/GRY WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BODY CONTROL MODULE (BCM)
BODY CONTROL MODULE (BCM) (RIGHT KICK PANEL)
BRN WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
FUSE 13
FUSE 34
FUSE 48
FUSE 50
GRN/BLU WIRE
GRN/BRN WIRE
GRN/ORG WIRE
GRN/VIO WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/ORG WIRE
GRY/RED WIRE
GRY/VIO WIRE
GRY/YEL WIRE
HAZARD
HOT AT ALL TIMES
HS CAN+
LEFT HEADLAMP
LF TURN LAMPS (FET)
LF TURN OUTAGE
LR STOP POS LP (FET)
LR TURN LPS (FET)
LR TURN OUTAGE
MICRO -
MS CAN +
MULTI- FUNCTION SWITCH
NARROW FRAME W/ EXTENSION HARNESS WIDE FRAME W/O PICKUP BOX
PARK
PARK LPS (FET)
PUDDLE LAMP (FET)
RF TURN LPS (FET)
RF TURN OUTAGE
RIGHT HEADLAMP
RIGHT REAR LAMP ASSEMBLY
RR STOP POS LP (FET)
RR TURN LPS (FET)
RR TURN OUTAGE
STEERING COLUMN CONTROL MODULE (SCCM)
STOP/CHMSL (FET)
STOP/TURN
TURN
TURN OUTAGE
VBATT
VIO/BRN WIRE
VIO/ORG WIRE
VIO/RED WIRE
VIO/WHT WIRE
VPWR
WHT WIRE
YEL/GRN WIRE
YEL/RED WIRE
YEL/VIO WIRE
Go to component -> Exterior lamps circuit, w/o halogen headlamps (1 of 4) -> FUSE 34
fuse 34 wiring diagram (6 of 19)
BACKUP
BACKUP LAMPS CIRCUIT
BATTERY JUNCTION BOX (BJB)
BLIS GND
BLK/VIO WIRE
BLU WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BRN WIRE
BRN/GRN WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
ENABLE
FUSE 34
FUSE 90
GRN WIRE
GRN/BLU WIRE
GRN/BRN WIRE
GRN/ORG WIRE
GRN/VIO WIRE
GRY WIRE
GRY/BRN WIRE
GRY/ORG WIRE
GRY/VIO WIRE
HOT AT ALL TIMES
HOT W/ RUN/START RELAY ENERGIZED
L SPOT
L SPOT IND
L SPOT ON/OFF
LEFT
LEFT REAR LAMP
LEFT REAR LAMP ASSEMBLY
MS CAN +
NARROW FRAME W/ EXTENSION HARNESS WIDE FRAME W/O PICKUP BOX
PARK
R SPOT
R SPOT IND
R SPOT ON/OFF
REVERSING
RIGHT
RIGHT REAR LAMP
SIGNAL
SPOT LAMP SWITCH
STOP/TURN
STOP/TURN PARK SIGNAL
TURN OUTAGE
VBATT
VIO/BRN WIRE
VIO/GRY WIRE
VIO/ORG WIRE
VIO/WHT WIRE
VPWR
WHT WIRE
WHT/GRN WIRE
YEL/RED WIRE
Go to component -> Exterior lamps circuit, w/o halogen headlamps (2 of 4) -> FUSE 34
fuse 34 wiring diagram (7 of 19)
AUTO DIMMING INTERIOR MIRROR
BATTERY JUNCTION BOX (BJB)
BLK/VIO WIRE
BODY CONTROL MODULE (BCM)
FRONT CONTROL/ DISPLAY INTERFACE MODULE (FCDIM)
FUSE 34
GRN/BLU WIRE
HOT W/ RUN/START RELAY ENERGIZED
NCA WIRE
REAR PARKING AID CAMERA
SHIELD
SHIELD SHIELD
SYNC MODULE (APIM) (CENTER OF DASH)
VIDEO+
VIO/BRN WIRE
VIO/GRY WIRE
VPWR
W/ 4 INCH DISPLAY
W/ 4 OR 8 INCH DISPLAY
W/ 8 INCH DISPLAY
W/O 4 OR 8 INCH DISPLAY
WHT WIRE
WHT/GRN WIRE
Go to component -> Rear camera circuit, w/ fixed camera -> FUSE 34
fuse 34 wiring diagram (8 of 19)
AUTO DIMMING INTERIOR MIRROR
BATTERY JUNCTION BOX (BJB)
BLK/VIO WIRE
BODY CONTROL MODULE (BCM)
FRONT CONTROL/ DISPLAY INTERFACE MODULE (FCDIM)
FUSE 34
GRN/BLU WIRE
HOT W/ RUN/START RELAY ENERGIZED
NCA WIRE
REAR PARKING AID CAMERA
SHIELD
SHIELD SHIELD
SYNC MODULE (APIM) (CENTER OF DASH)
VIDEO+
VIO/BRN WIRE
VIO/GRY WIRE
VPWR
W/ 4 INCH DISPLAY
W/ 4 OR 8 INCH DISPLAY
W/ 8 INCH DISPLAY
W/O 4 OR 8 INCH DISPLAY
WHT WIRE
WHT/GRN WIRE
WIDE FRAME
Go to component -> Rear camera circuit, w/ loose camera -> FUSE 34

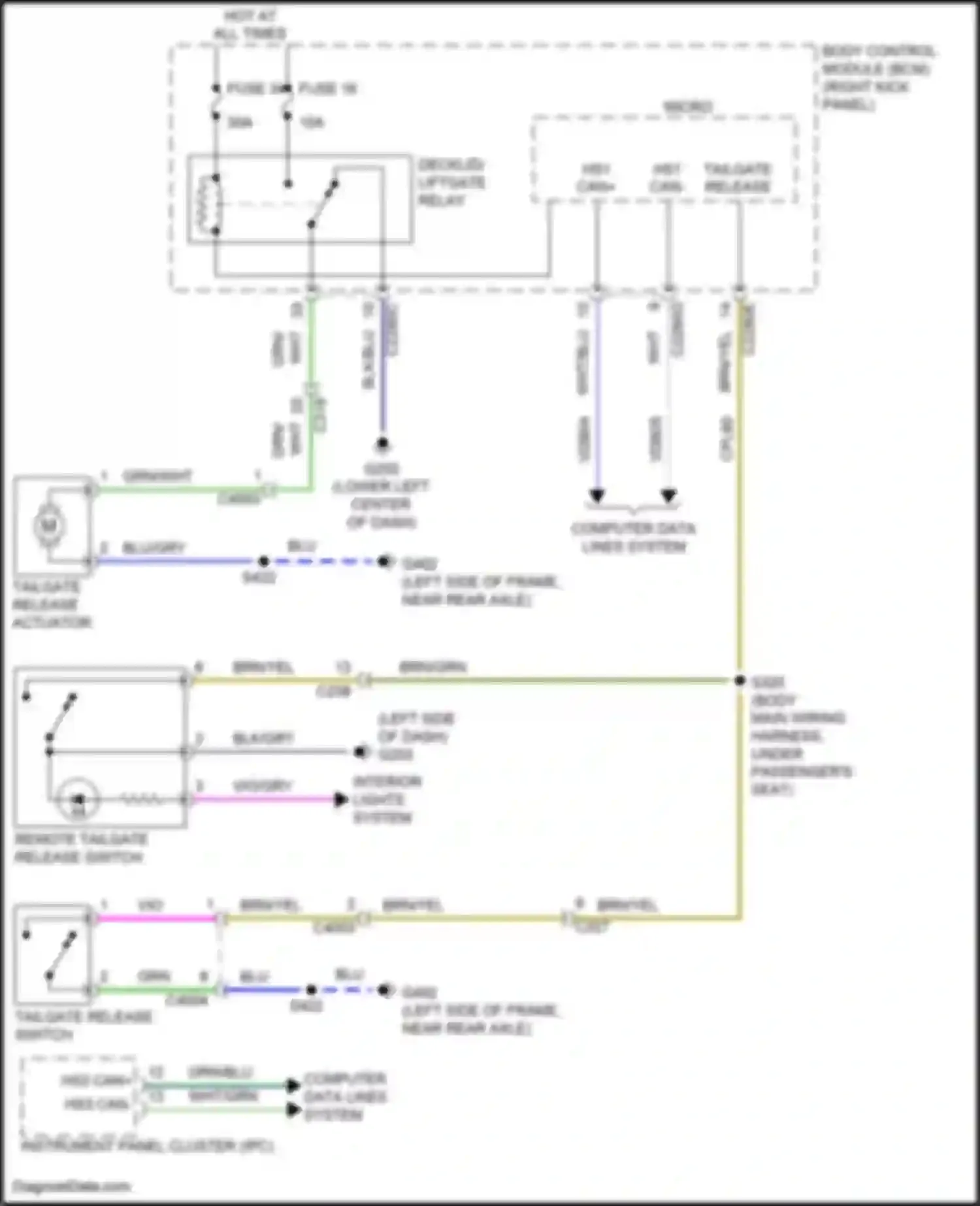

fuse 34 wiring diagram (9 of 19)
BLK/BLU WIRE
BLK/GRY WIRE
BLU WIRE
BLU/GRY WIRE
BODY CONTROL MODULE (BCM)
BRN/GRN WIRE
BRN/YEL WIRE
CAN (+)
COMPUTER DATA LINES SYSTEM
DECKLID/ LIFTGATE RELAY
FUSE 16
FUSE 34
GRN WIRE
GRN/BLU WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
INSTRUMENT PANEL CLUSTER (IPC)
MICRO -
REMOTE TAILGATE RELEASE SWITCH
TAILGATE CAN- RELEASE
TAILGATE RELEASE ACTUATOR
TAILGATE RELEASE SWITCH
VIO WIRE
VIO/GRY WIRE
WHT WIRE
WHT/BLU WIRE
WHT/GRN WIRE
Go to component -> Tailgate release circuit -> FUSE 34
fuse 34 wiring diagram (10 of 19)
BACKUP LAMPS CIRCUIT
BATT CHARGE
BATTERY JUNCTION BOX (BJB)
BLK WIRE
BLK/BLU WIRE
BLU WIRE
BPP
BRN WIRE
BRN/RED WIRE
CHARGING
COMPUTER DATA LINES SYSTEM
EXTERIOR LAMPS CIRCUIT
FUSE 34
GRN WIRE
GRN/BLU WIRE
GRN/ORG WIRE
GRY/BLU WIRE
GRY/ORG WIRE
GRY/VIO WIRE
HOT W/ RUN/START RELAY ENERGIZED
LH TURN/STOP
NAVIGATION SYSTEM
ORG/ WIRE
PARK
RED WIRE
REMOTE TRAILER CAMERA
RH TURN/STOP
SHIELD
TRAILER BRAKE
TRAILER BRAKE CONTROL (TBC) MODULE
TRAILER CAMERA/ TRAILER TPMS CONNECTOR
TRAILER TIRE PRESSURE MONITOR SYSTEM (TPMS) MODULE
TRAILER TOW MODULE (LEFT CENTER OF DASH)
VBATT
VIO WIRE
VIO/BRN WIRE
VIO/GRN WIRE
VIO/GRY WIRE
VIO/ORG WIRE
VPWR
VPWR/TRAILER
W/ TRAILER BRAKE CONTROL W/O TRAILER BRAKE CONTROL
WHT WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Trailer/camper adapter circuit (1 of 2) -> FUSE 34
