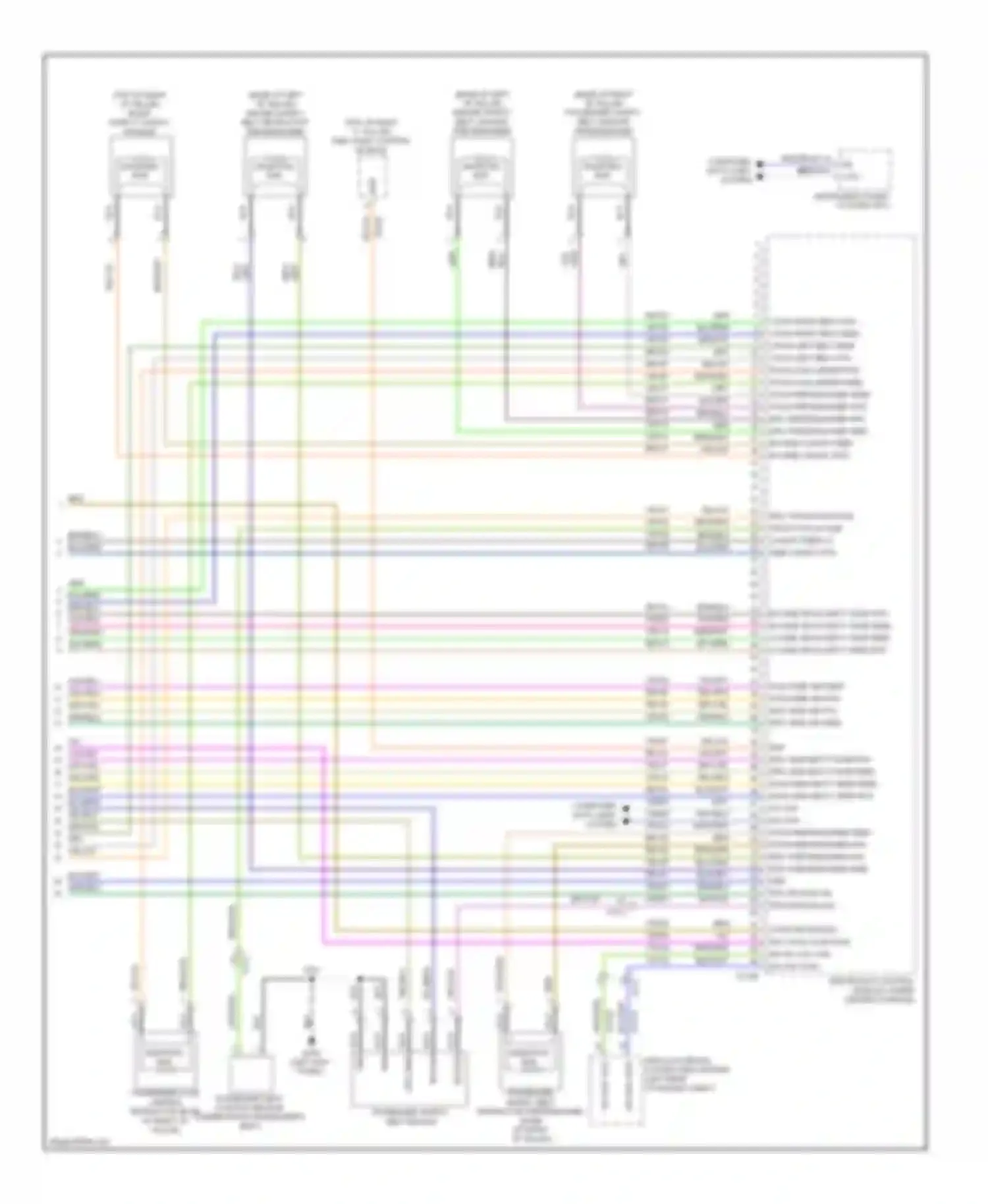

Ford Explorer V (2010-2015) bts vref wiring diagram

12 13 HS CAN + HS CAN - 2 ROW RH BUCKLE SW 2 ROW LH BUCKLE SW HS CAN YAW- HS CAN YAW+ ANTI-LOCK BRAKE SYSTEM (ABS) MODULE (LEFT REAR OF ENGINE COMPT) BLK WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/WHT WIRE BTS SIG BTS VREF BUCKLE SW COMPUTER DATA LINES SYSTEM DRIV TRACK POS PASS TRACK POS LH SIDE CANOPY FEED LH SIDE CANOPY RTN ENS GRN BRN/ WIRE GRN VIO/ WIRE GRN WIRE GRN/BLU WIRE GRN/ORG WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE GRY/BRN WIRE GRY/VIO WIRE GRY/YEL WIRE HS CAN YAW+ INSTRUMENT PANEL CLUSTER (IPC) NCA WIRE ORG/ BLU WIRE PASS SIDE AIR FEED PASS SIDE AIR RTN DRIV SIDE AIR RTN DRIV SIDE AIR FEED PASSENGER LOAD LIMITING RETRACTOR (BASE OF RIGHT "B" PILLAR) PASSENGER SAFETY BELT BUCKLE PASSENGER SAFETY BELT RETRACTOR PRETENSIONER (BASE OF RIGHT "B" PILLAR) PASSENGER SEAT POSITION SENSOR (UNDER FRONT PASSENGER'S SEAT) RESTRAINTS CONTROL MODULE (UNDER CENTER CONSOLE) SHORTING BAR VIO WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE WHT WIRE WHT/BLU WIRE WHT/ORG WIRE YEL/BLU WIRE YEL/ORG WIRE YEL/VIO WIRE
