Power seats circuit for Ford Explorer III (2001-2006)

Power seats circuit

Get access

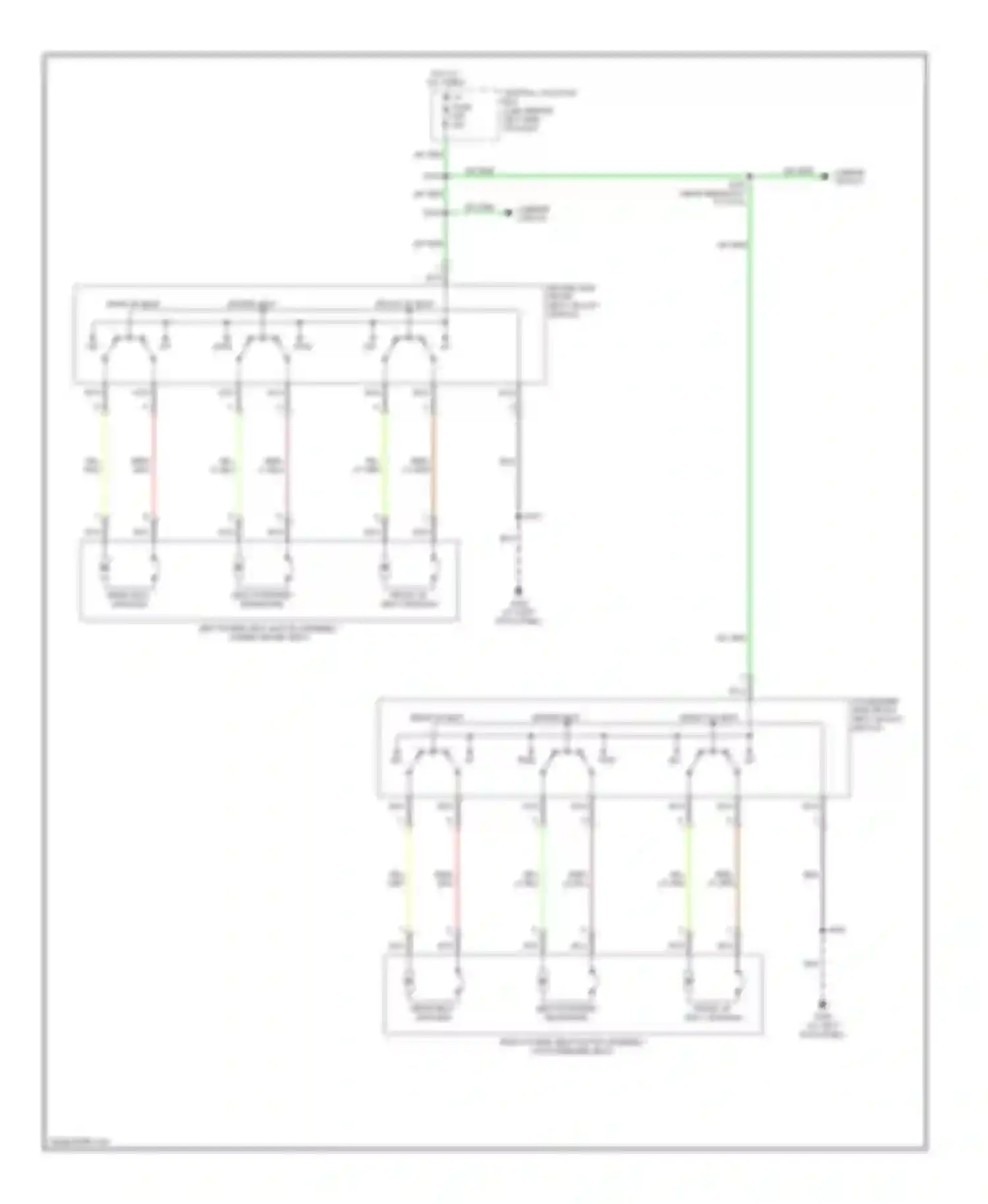

BLK WIRE CENTRAL JUNCTION BOX (CJB) (BEHIND LEFT SIDE OF DASH) DK GRN WIRE DN UP DRIVER SIDE FRONT SEAT ADJUST SWITCH ENTIRE SEAT FRONT OF SEAT FRONT OF SEAT UP/DOWN FUSE HOT AT ALL TIMES LEFT POWER SEAT MOTOR ASSEMBLY (UNDER DRIVER SEAT) LT BLU WIRE LT GRN WIRE LUMBAR CIRCUIT NCA WIRE PASSENGER SIDE FRONT SEAT ADJUST SWITCH REAR OF SEAT REAR SEAT UP/DOWN RED WIRE RIGHT POWER SEAT MOTOR ASSEMBLY (IN PASSENGER SEAT) RWD SEAT FORWARD/ REARWARD WHT WIRE YEL WIRE
