Defoggers circuit for Ford Explorer III (2001-2006)

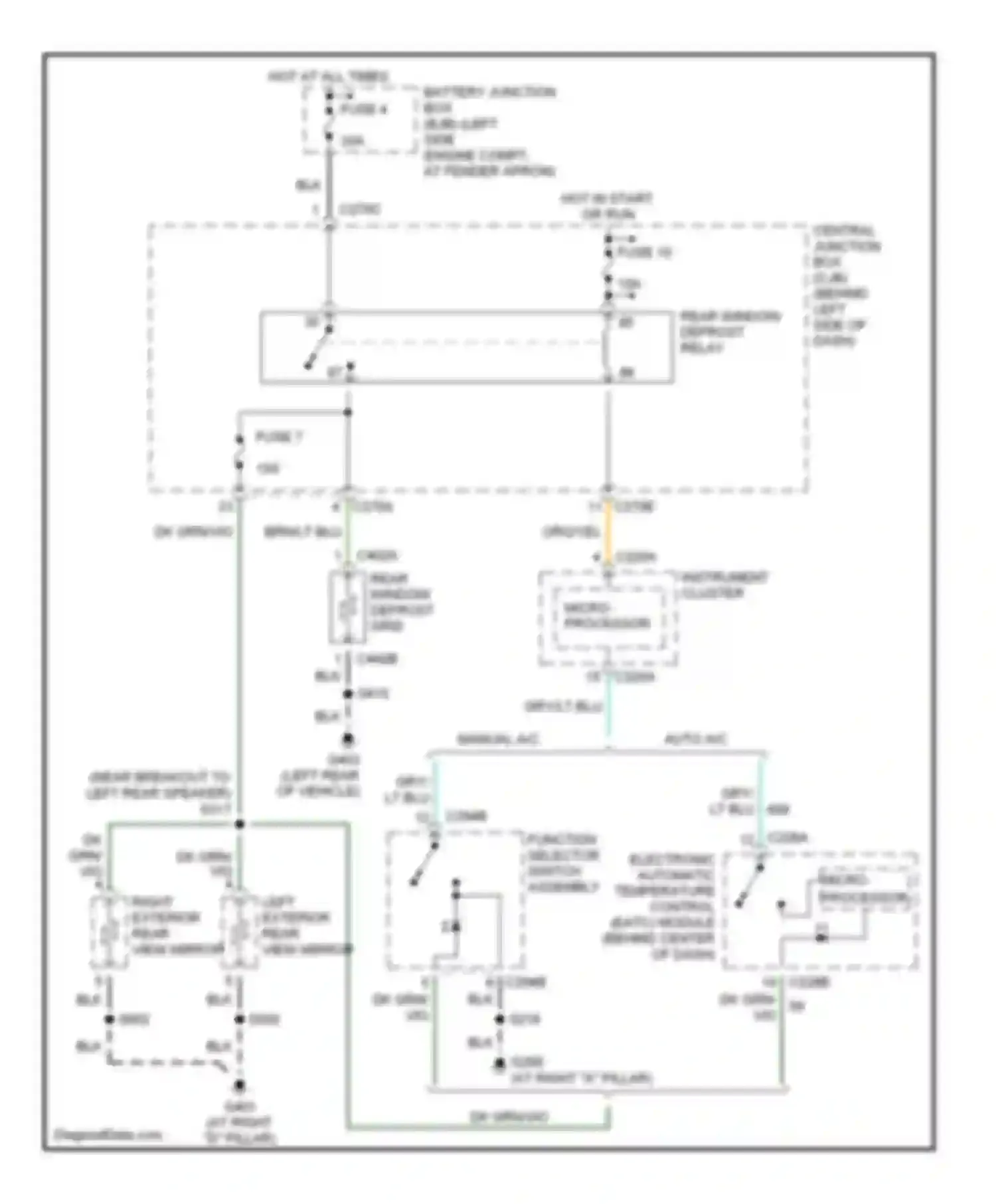

Defoggers circuit
BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF
BLK WIRE
BRN/LT BLU WIRE
CENTRAL JUNCTION BOX (CJB) (BEHIND LEFT SIDE OF DASH)
DK GRN WIRE
DK GRN/VIO WIRE
ENGINE COMPT, AT FENDER APRON)
FUSE 10
FUSE 4
FUSE 7
GRN WIRE
GRY WIRE
GRY/LT BLU WIRE
HOT AT ALL TIMES
HOT IN START OR RUN
INSTRUMENT CLUSTER
LEFT EXTERIOR REAR VIEW MIRROR
LT BLU WIRE
MANUAL A/C AUTO A/C
MICRO- PROCESSOR
ORG/YEL WIRE
REAR WINDOW DEFROST GRID
REAR WINDOW DEFROST RELAY
RIGHT EXTERIOR REAR VIEW MIRROR
VIO WIRE
