Car Wiring Diagrams for Power window circuit for Ford Explorer II (1994-2003)

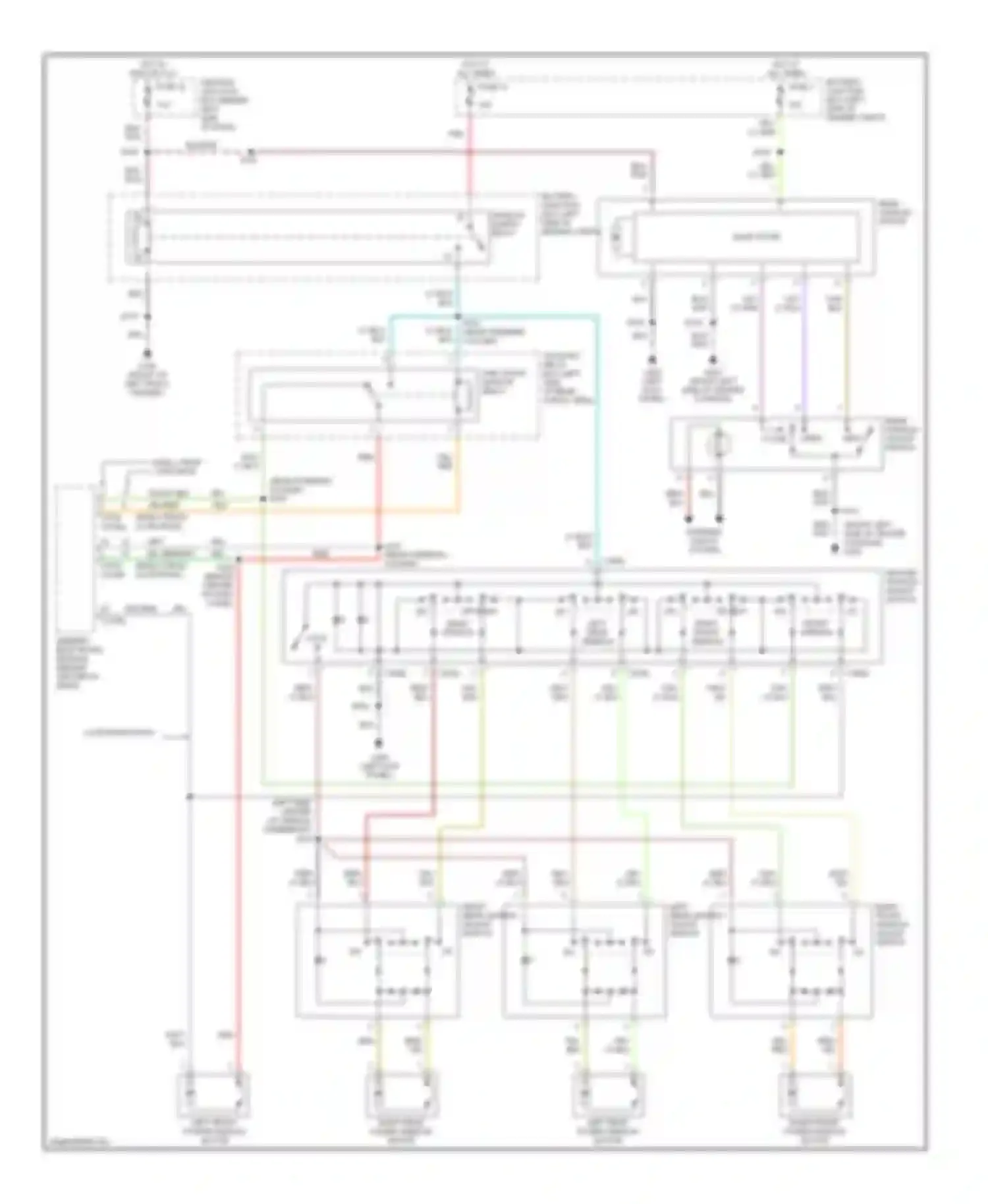

AUXILIARY RELAY BOX (LEFT SIDE OF REAR CARGO AREA) BATTERY JUNCTION BOX (LEFT SIDE OF ENGINE COMPT) BLK WIRE BLK/PNK WIRE BRN WIRE CENTRAL JUNCTION BOX (BEHIND LEFT SIDE OF DASH) DK GRN/WHT WIRE DN UP DN UP LEFT FRONT WINDOW FUSE 12 FUSE 20 FUSE 3 GENERIC ELECTRONIC MODULE (BEHIND CENTER OF DASH) GRY WIRE HOT AT ALL TIMES HOT IN RUN OR ACC LATE PRODUCTION LEFT FRONT POWER WINDOW MOTOR LEFT REAR POWER WINDOW MOTOR LEFT REAR WINDOW LEFT REAR WINDOW ADJUST SWITCH LOCK LT BLU WIRE LT GRN WIRE MASTER WINDOW ADJUST SWITCH ONE-TOUCH WINDOW RELAY OPEN CLOSE ORG/ WIRE PNK WIRE REAR WINDOW ADJUST SWITCH REAR WINDOW MOTOR RED WIRE RIGHT FRONT POWER WINDOW MOTOR RIGHT FRONT WINDOW RIGHT FRONT WINDOW ADJUST SWITCH RIGHT REAR POWER WINDOW MOTOR RIGHT REAR WINDOW ADJUST SWITCH SOLID STATE TAN WIRE TAN/LT BLU WIRE UP RIGHT REAR WINDOW VENT VIO WIRE WHT WIRE WHT/BLK WIRE WINDOW SAFETY RELAY YEL WIRE YEL/RED WIRE
