Ford Expedition II (2002-2006) (near breakout Wiring diagrams
This page contains all the electrical diagrams for the component. (near breakout, in which he is found in the car Ford Expedition II (2002-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram (near breakout (1 of 13)
Go to component -> Adjustable pedal circuit -> (NEAR BREAKOUT
Wiring diagram (near breakout (2 of 13)
Go to component -> Computer data lines circuit -> (NEAR BREAKOUT
Wiring diagram (near breakout (3 of 13)
Go to component -> Driver"s memory seat circuit -> (NEAR BREAKOUT
Wiring diagram (near breakout (4 of 13)
Go to component -> Exterior lamps circuit -> (NEAR BREAKOUT
Wiring diagram (near breakout (5 of 13)
Go to component -> Forced entry circuit -> (NEAR BREAKOUT
Wiring diagram (near breakout (6 of 13)
Go to component -> Memory mirrors circuit, without power folding mirrors -> (NEAR BREAKOUT
Wiring diagram (near breakout (7 of 13)
Go to component -> Memory mirrors circuit, with power folding mirrors -> (NEAR BREAKOUT
Wiring diagram (near breakout (8 of 13)
Go to component -> Navigation circuit (2 of 2) -> (NEAR BREAKOUT
Wiring diagram (near breakout (9 of 13)
Go to component -> Power door locks circuit -> (NEAR BREAKOUT

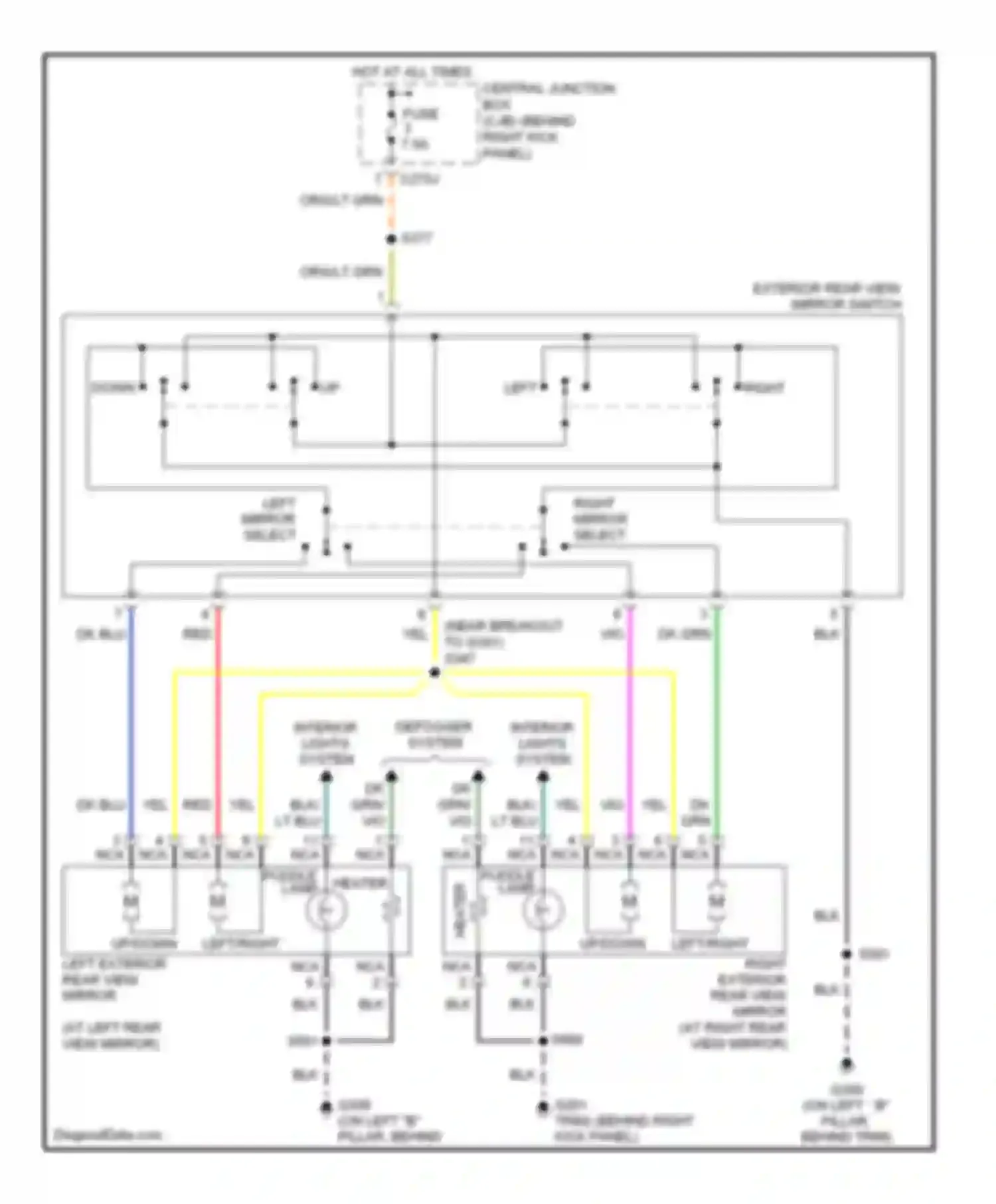

Wiring diagram (near breakout (10 of 13)
Go to component -> Power mirrors circuit -> (NEAR BREAKOUT
