Ford Excursion I (1999-2005) near break- Wiring diagrams
This page contains all the electrical diagrams for the component. near break-, in which he is found in the car Ford Excursion I (1999-2005). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

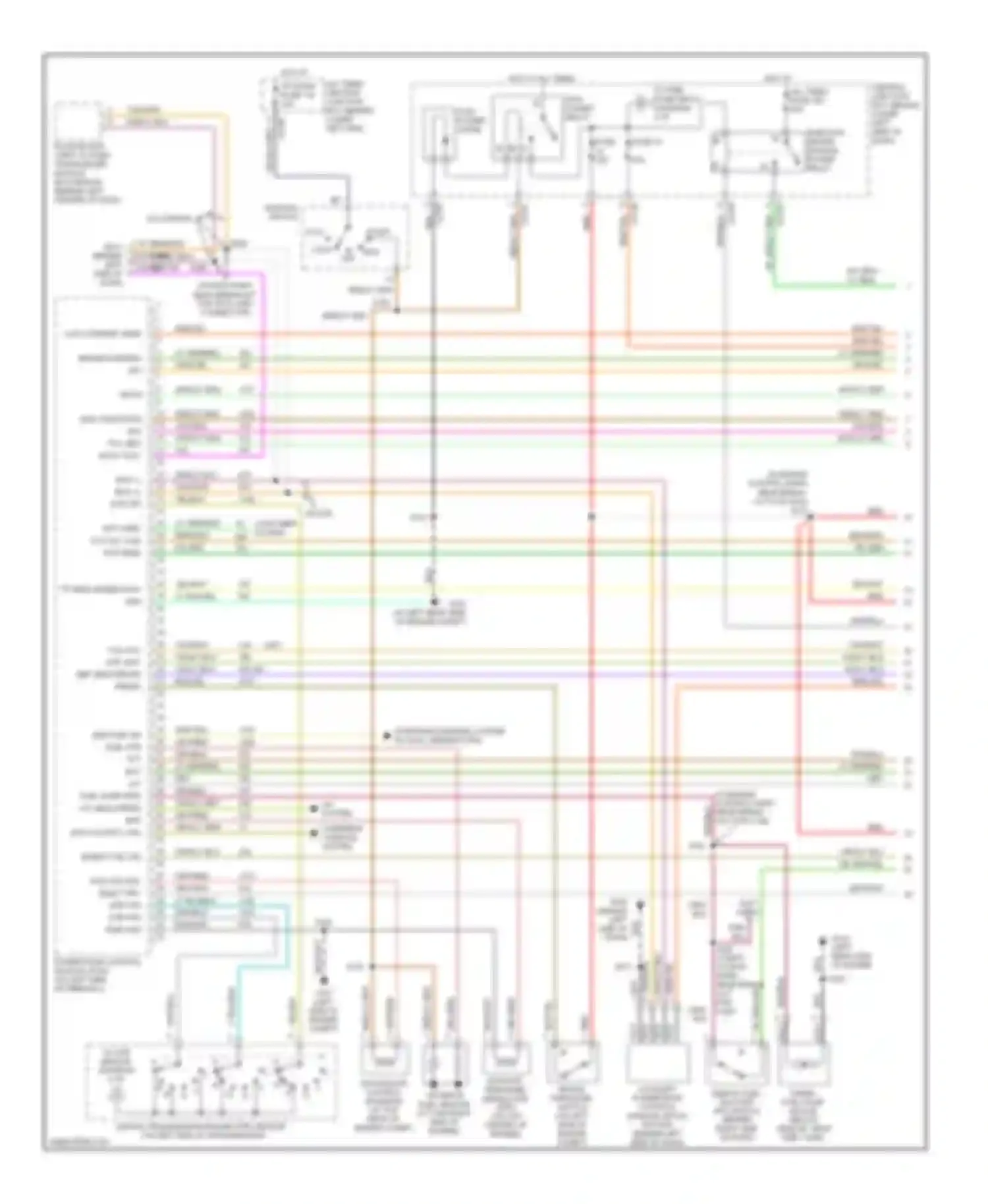

Wiring diagram near break- (1 of 2)
2 10 13 DATA LINK CONNECTOR (DLC) (BEHIND LEFT SIDE OF DASH)
224 306 553 307 (A/T) (M/T)
A/C SYSTEM
BLK WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BRAKE WARNING
BRN/ORG WIRE
BUS (-) BUS (+)
CENTRAL JUNCTION BOX (BEHIND LOWER LEFT SIDE OF DASH)
DIGITAL TRANSMISSION RANGE (DTR) SENSOR (ON LEFT SIDE OF TRANSMISSION)
DK BLU/ORG WIRE
DK GRN WIRE
DK GRN/LT GRN WIRE
DK GRN/YEL WIRE
EXCURSION
FUSE 22 FUSE 23
GPCM
GRY WIRE
GRY/RED WIRE
GRY/WHT WIRE
HOT AT ALL TIMES
HOT AT ALL TIMES CENTRAL JUNCTION BOX (BEHIND LOWER LEFT SIDE OF DASH) FUSE 116
HOT AT ALL TIMES FUSE 105
IDLE VALIDATION
IGNITION SWITCH
INJECTOR DRIVER MODULE POWER RELAY
LOCK OFF
LOW CURRENT SENS
LT BLU/BLK WIRE
LT BLU/YEL WIRE
LT GRN WIRE
LT GRN/RED WIRE
LT GRN/WHT WIRE
NCA WIRE
NEAR BREAK-
NOT USED CCS SOL CAM POS SENS
ORG/BLK WIRE
ORG/LT BLU WIRE
ORG/LT GRN WIRE
ORG/YEL WIRE
OVERHEAD CONSOLE SYSTEM
PCM POWER DIODE
PCM POWER RELAY
PICKUP CUSTOMER ACCESS
PNK WIRE
PNK/BLK WIRE
PNK/LT BLU WIRE
POWERTRAIN CONTROL MODULE (PCM) (ON LEFT SIDE OF FIREWALL)
PWR GND
RED WIRE
RED/LT GRN WIRE
RED/YEL WIRE
RUN WIRE
SPEED CTRL IND
STARTING/CHARGING SYSTEM (W/ DUAL GENERATORS)
TAN/LT BLU WIRE
TAN/LT GRN WIRE
TAN/ORG WIRE
TAN/WHT WIRE
TCIL GEN SCAN TOOL IN
TCS (A/T) CPP (M/T) EBP SENS BRAKE PRESS SW
TO DTR SENSOR (DIAGRAM 4 OF 4)
TO FUEL PUMP RELAY (DIAGRAM 2 OF 4)
TP SENS SPEED/TACH GND
VIO WIRE
VIO/LT BLU WIRE
VIO/ORG WIRE
WASTEGATE CONTROL SOLENOID (AT TOP REAR OF ENGINE COMPT)
WATER IN FUEL SENSOR (AT TOP RIGHT SIDE OF ENGINE)
WCS SOL DSL ELECT DRV
WHT/BLK WIRE
WHT/LT GRN WIRE
WHT/RED WIRE
WHT/YEL WIRE
YEL/BLK WIRE
YEL/WHT WIRE
Go to component -> Wiring diagram engine performance 7.3l di turbo diesel, california (1 of 4) -> NEAR BREAK-
