Ford Escape III (2012-2015) mega mega of engine fuse fuse compt) Wiring diagram
This page shows the only wiring diagram for the component.mega mega of engine fuse fuse compt), which is found in the car Ford Escape III (2012-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

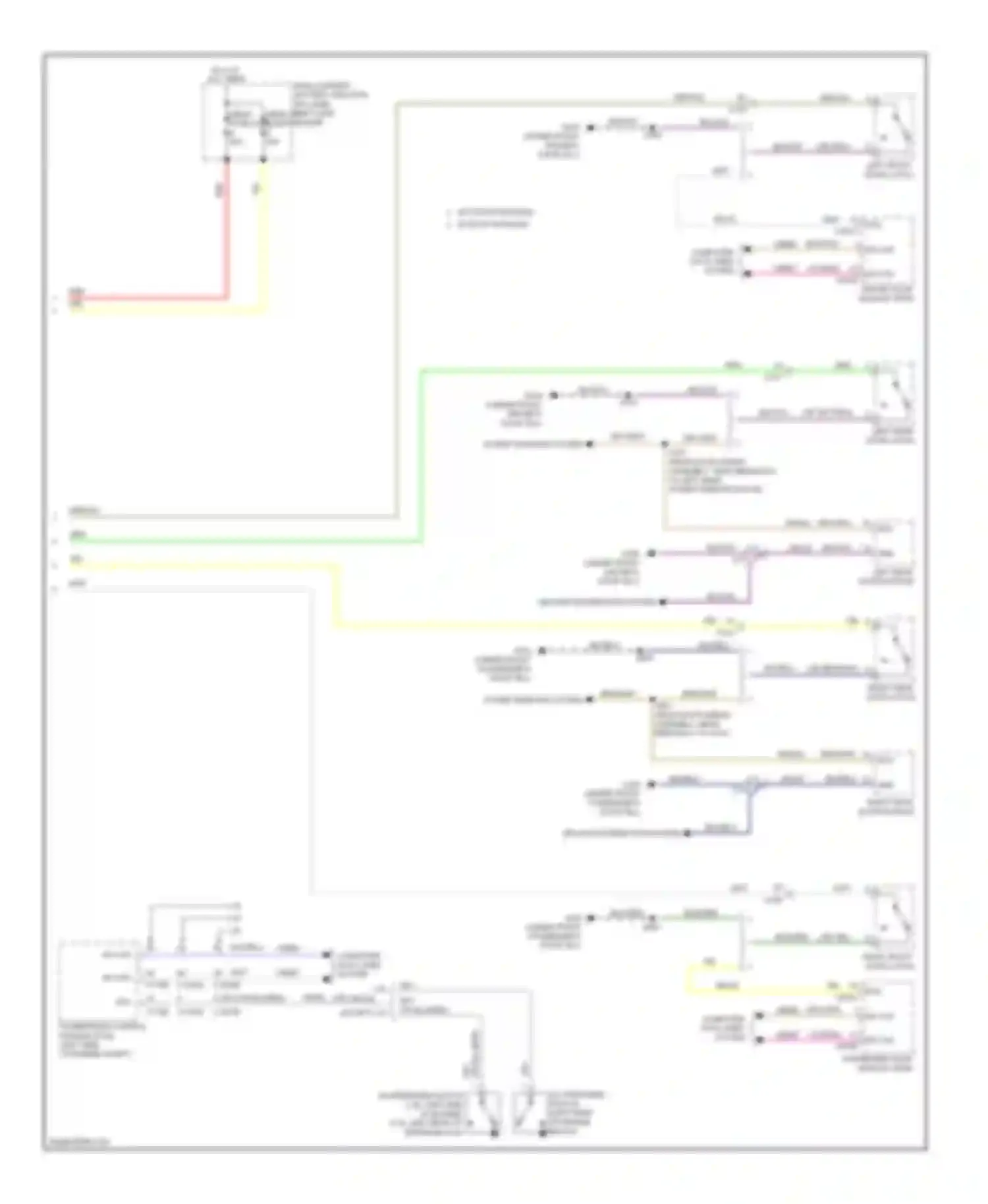

Wiring diagram mega mega of engine fuse fuse compt) (1 of 1)
2.5L
2.5L 2.0L 1.6L
BLK/BLU WIRE
BLK/GRN WIRE
BLK/VIO WIRE
BRN/WHT WIRE
COMPUTER DATA LINES SYSTEM
DRIVER DOOR MODULE (DDM)
EXCEPT 2.5L
GRN WIRE
GRN/VIO WIRE
GROUND DISTRIBUTION SYSTEM
GRY WIRE
GRY/ORG WIRE
HIGH CURRENT BATTERY JUNCTION BOX (BJB) (LEFT SIDE
HOT AT ALL TIMES
HS CAN+
LEFT FRONT DOOR LATCH
LEFT REAR DOOR LATCH
LEFT REAR DOOR MODULE
MEGA MEGA OF ENGINE FUSE FUSE COMPT)
MS CAN +
OIL PRESSURE SWITCH (LEFT REAR OF ENGINE BLOCK)
OPS
PASSENGER DOOR MODULE (DDM)
POWER WINDOWS SYSTEM
POWERTRAIN CONTROL MODULE (PCM) (LEFT SIDE OF ENGINE COMPT)
RED WIRE
RIGHT FRONT DOOR LATCH
RIGHT REAR DOOR LATCH
RIGHT REAR DOOR MODULE
RTN
VIO/ORG WIRE
W/O DOOR MODULES W/ DOOR MODULES
WHT WIRE
WHT/BLU WIRE
YEL WIRE
Go to component -> Instrument cluster circuit (2 of 2) -> MEGA MEGA OF ENGINE FUSE FUSE COMPT)
