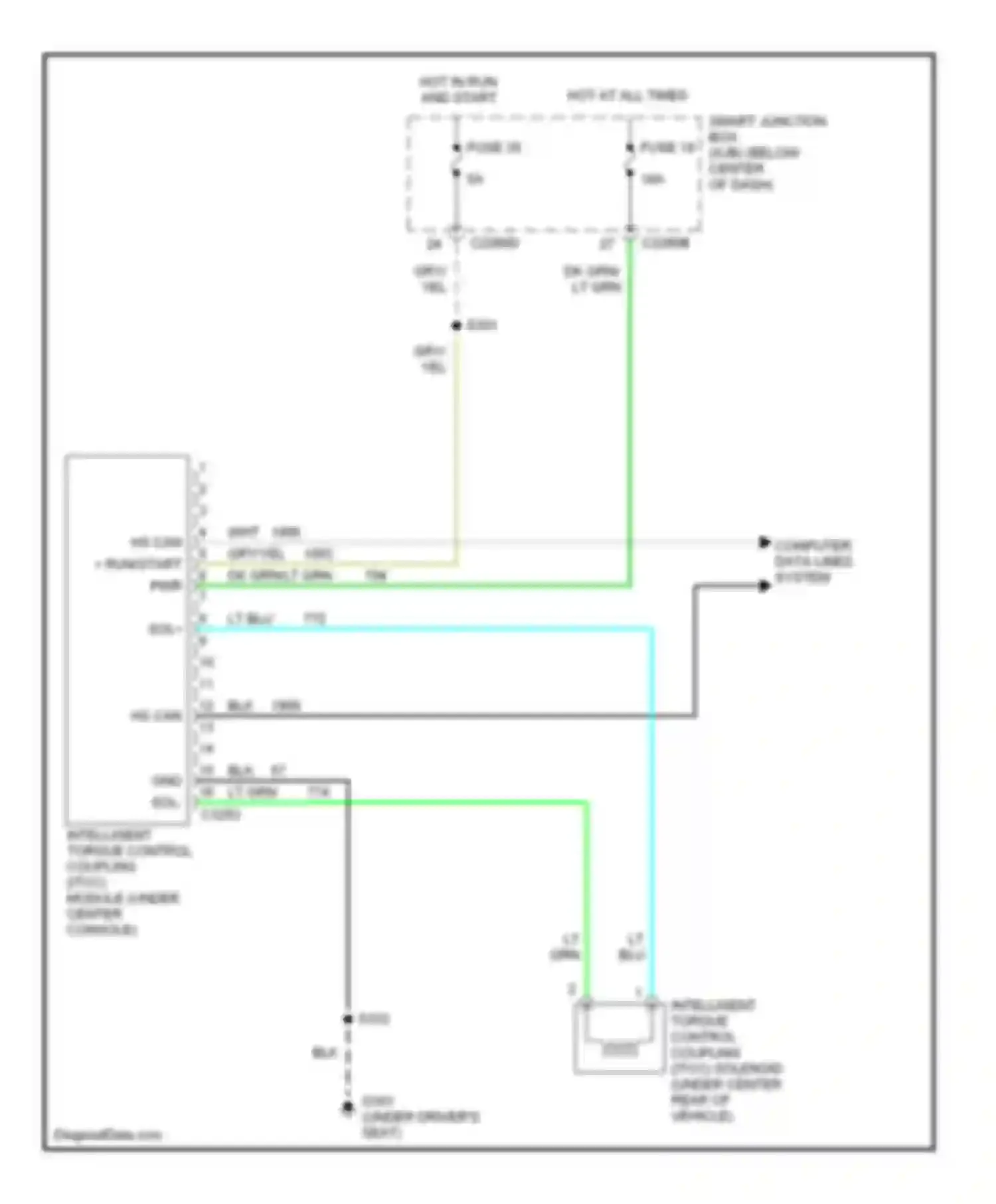

4wd circuit, except hybrid for Ford Escape I facelift (2004-2007)
4wd circuit, except hybrid
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
DK GRN/LT GRN WIRE
FUSE 18
FUSE 35
GND SOL -
GRN WIRE
GRY WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN AND START
HS CAN + RUN/START PWR
HS CAN+
INTELLIGENT TORQUE CONTROL COUPLING (ITCC) MODULE (UNDER CENTER CONSOLE)
LT BLU WIRE
LT GRN WIRE
LT LT
SMART JUNCTION BOX (SJB) (BELOW CENTER OF DASH)
SOL +
WHT WIRE
YEL WIRE
