Ford Escape I facelift (2004-2007) wiper on Wiring diagrams
This page contains all the electrical diagrams for the component. wiper on, in which he is found in the car Ford Escape I facelift (2004-2007). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

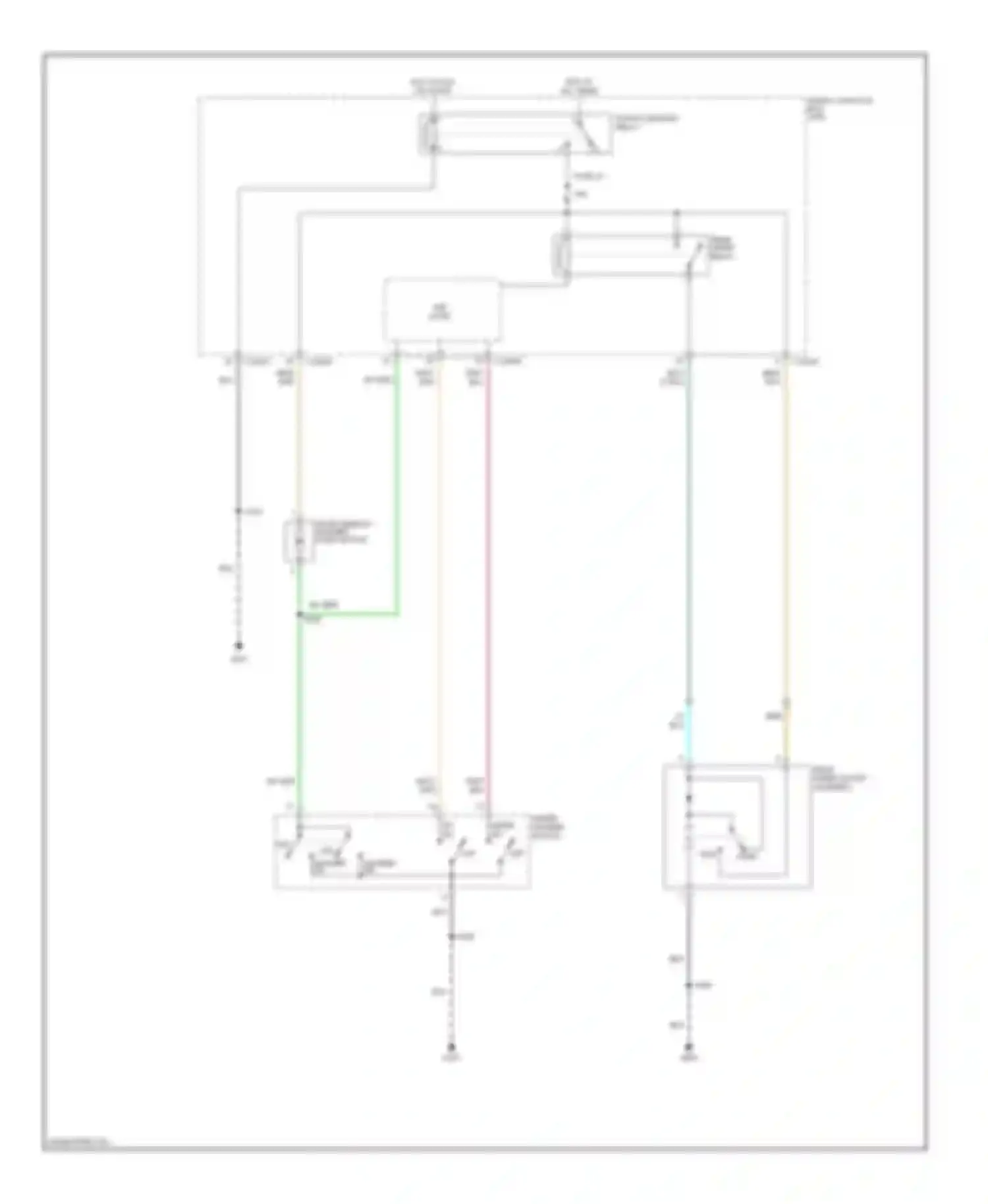

Wiring diagram wiper on (1 of 2)
BLK WIRE
BLU WIRE
BRN WIRE
DK GRN WIRE
FUSE 21
HOT AT ALL TIMES
HOT IN RUN OR START
INT ON
LT BLU WIRE
OFF
OFF OFF WASHER ON WASHER ON
ORG/ WIRE
PARK
PNK WIRE
REAR WINDOW WASHER PUMP MOTOR
REAR WIPER MOTOR ASSEMBLY
REAR WIPER RELAY
RUN WIRE
RUN/ACCESSORY RELAY
SJB LOGIC
SMART JUNCTION BOX (SJB)
WHT WIRE
WIPER ON
WIPER/ WASHER SWITCH
Go to component -> Rear wiper/washer circuit, except hybrid -> WIPER ON

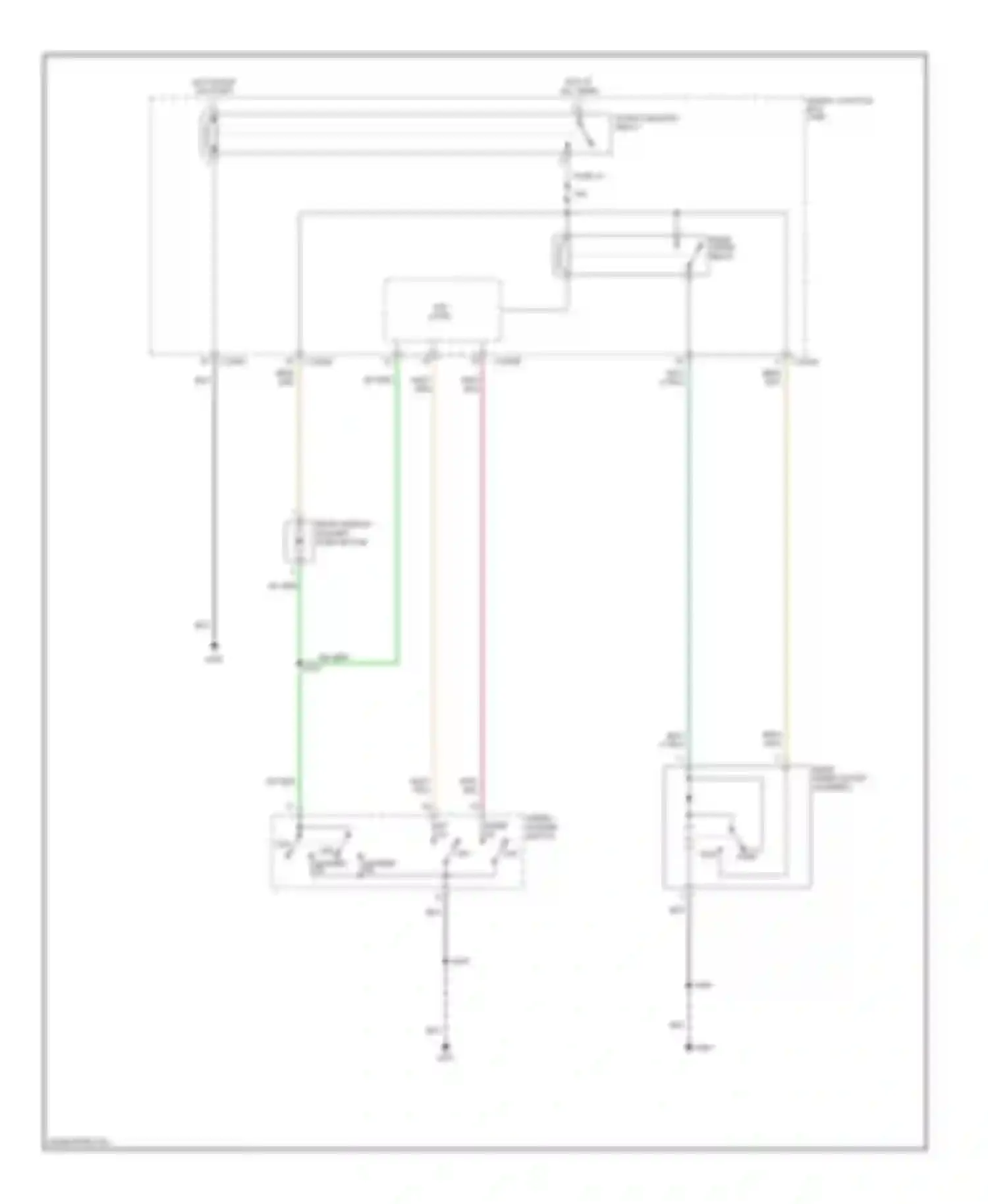

Wiring diagram wiper on (2 of 2)
BLK WIRE
BRN WIRE
DK GRN WIRE
FUSE 21
HOT AT ALL TIMES
HOT IN RUN OR START
INT ON
LT BLU WIRE
OFF
OFF OFF WASHER ON WASHER ON
ORG/ WIRE
PARK
PNK WIRE
REAR WINDOW WASHER PUMP MOTOR
REAR WIPER MOTOR ASSEMBLY
REAR WIPER RELAY
RUN WIRE
RUN/ACCESSORY RELAY
SJB LOGIC
SMART JUNCTION BOX (SJB)
WHT WIRE
WIPER ON
WIPER/ WASHER SWITCH
Go to component -> Rear wiper/washer circuit, hybrid -> WIPER ON
