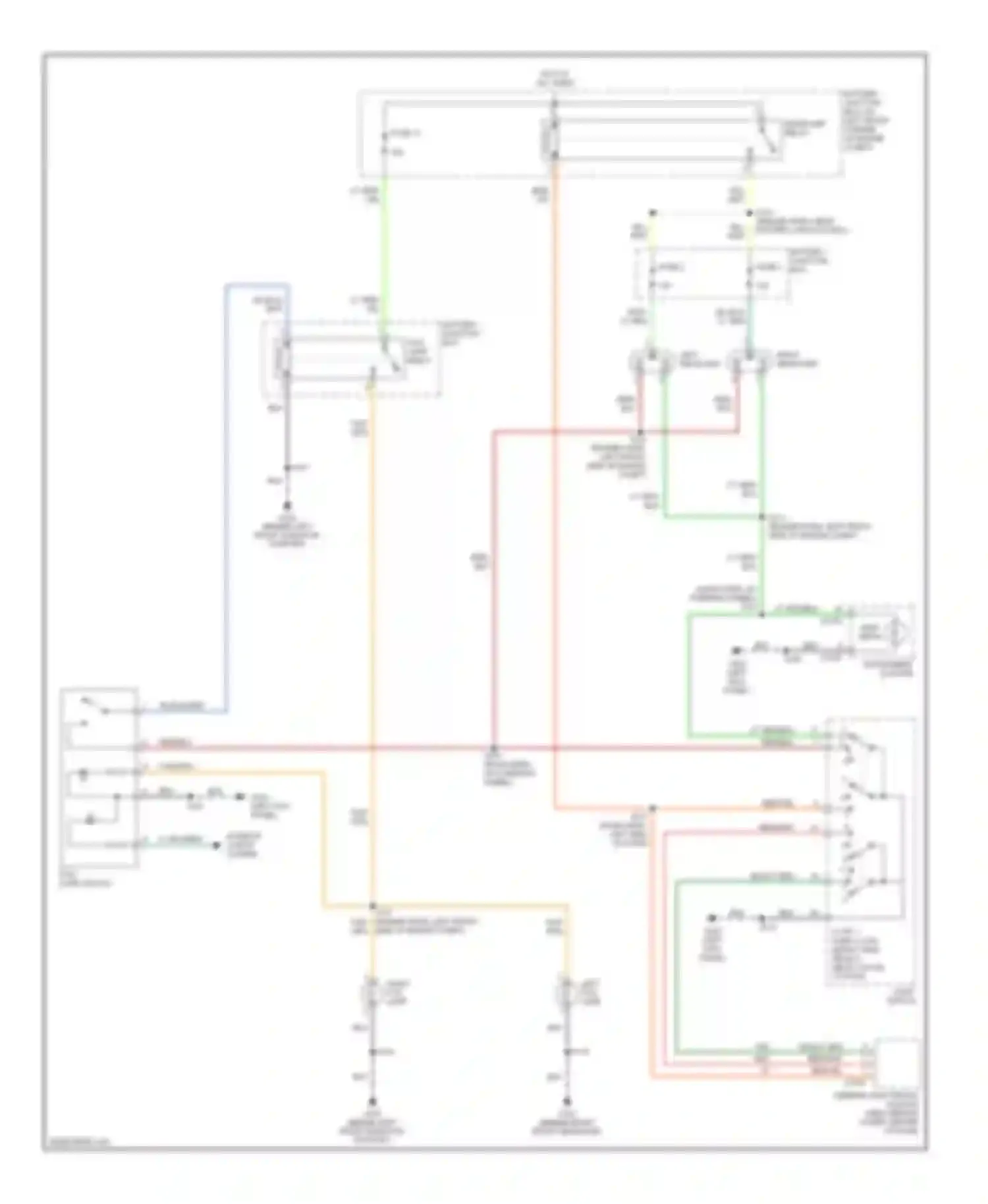

Headlight circuit, without drl for Ford Escape I (2000-2004)
Headlight circuit, without drl
0 OFF 1 PARK 2 LOW BEAM 3 HIGH BEAM 4 HEAD 5 FLASH TO PASS
BATTERY JUNCTION BOX
BATTERY JUNCTION BOX (ON LEFT FRONT CORNER OF ENGINE COMPT)
BLK WIRE
BLK/LT GRN WIRE
DK BLU WIRE
DK BLU/WHT WIRE
FOG LAMP RELAY
FOG LAMP SWITCH
FUSE 13
FUSE 2
FUSE 3
GENERAL ELECTRONIC MODULE (GEM) (BEHIND LOWER CENTER OF DASH)
HEADLAMP RELAY
HIGH BEAM
HOT AT ALL TIMES
INSTRUMENT CLUSTER
LEFT FOG LAMP
LEFT HEADLAMP
LIGHT SWITCH
LT BLU/RED WIRE
LT GRN WIRE
LT GRN/BLK WIRE
ORG/ WIRE
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FOG LAMP
RIGHT HEADLAMP
TAN WIRE
TAN/ORG WIRE
WHT WIRE
YEL WIRE
