Wiring Diagrams for Ford Edge II facelift (2018-2023)

Automatic a/c circuit

Anti-lock brakes circuit

Anti-theft circuit

Body control modules circuit

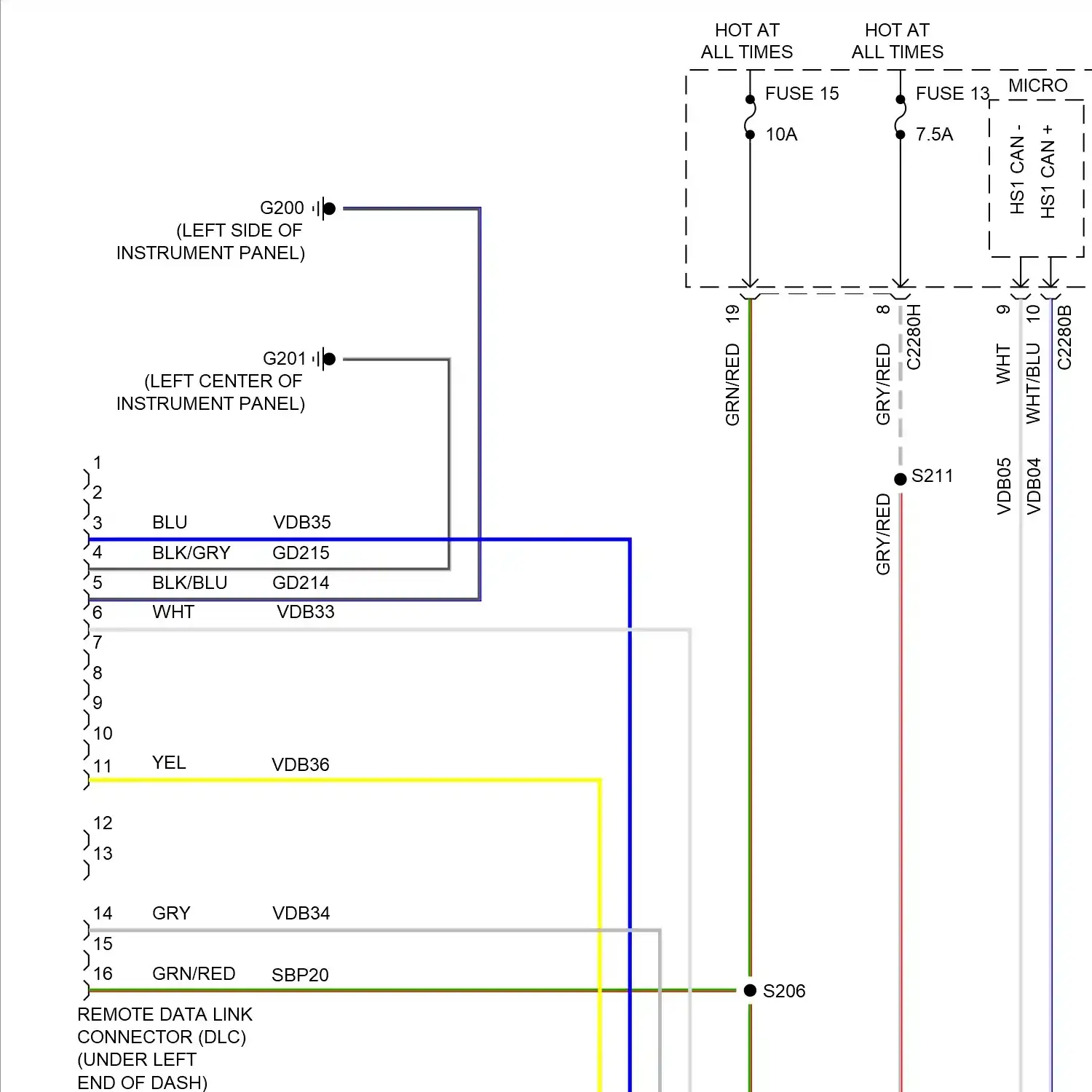

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.7l turbo

Backup lamps circuit Exterior lamps circuit Trailer adapter circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit Overhead console circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Steering column memory circuit

Blind spot information system circuit Navigation circuit, w/ bang & olufsen sound Navigation circuit, w/o touch screen Navigation circuit, w/ touch screen Parking assistant circuit Rear camera circuit, w/ front camera Rear camera circuit, w/o front camera Telematics circuit

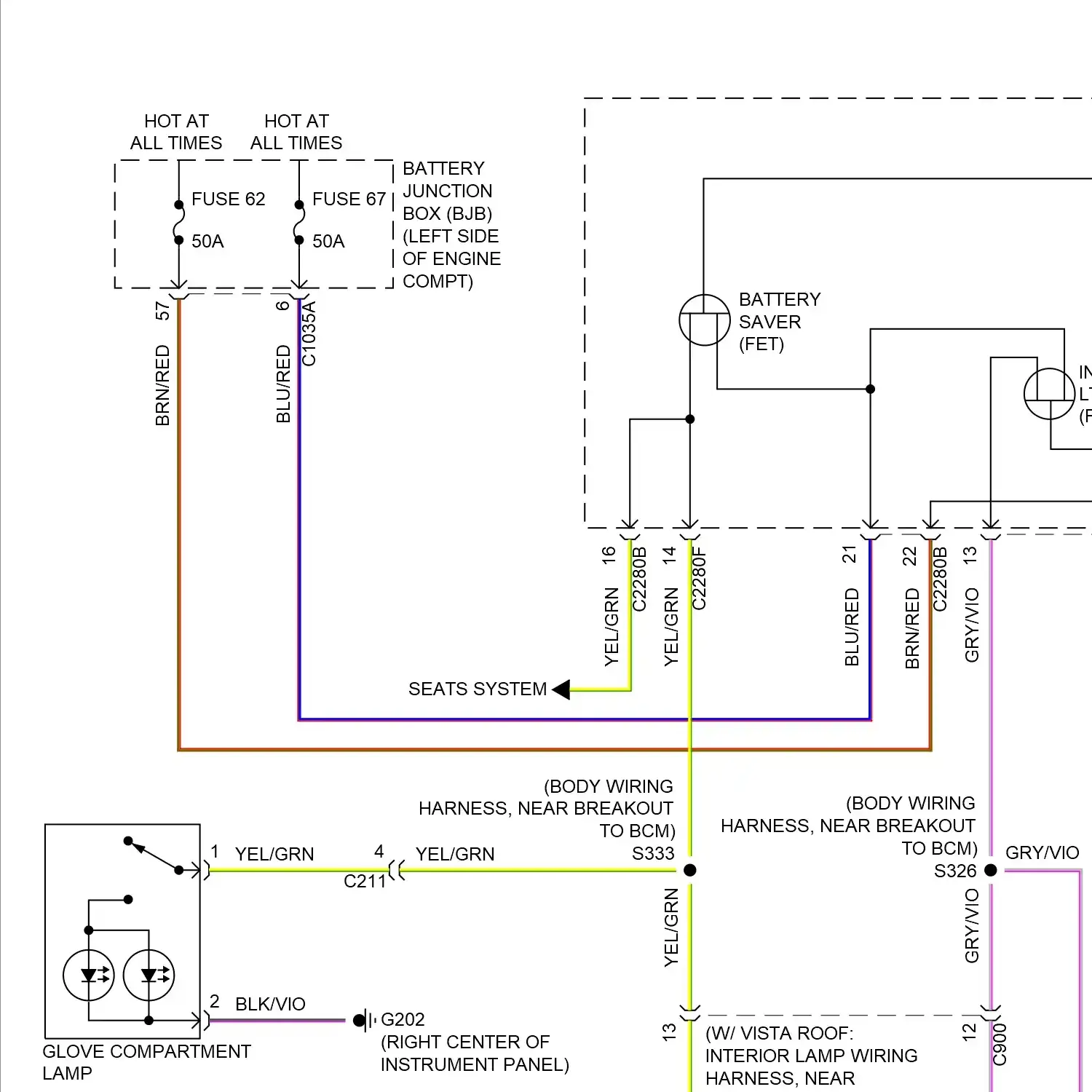

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Climate control seats circuit Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit, 10-way Passenger power seat circuit, 8-way Rear heated seats circuit Second row seat release circuit

Power top/sunroof circuit

Power windows circuit

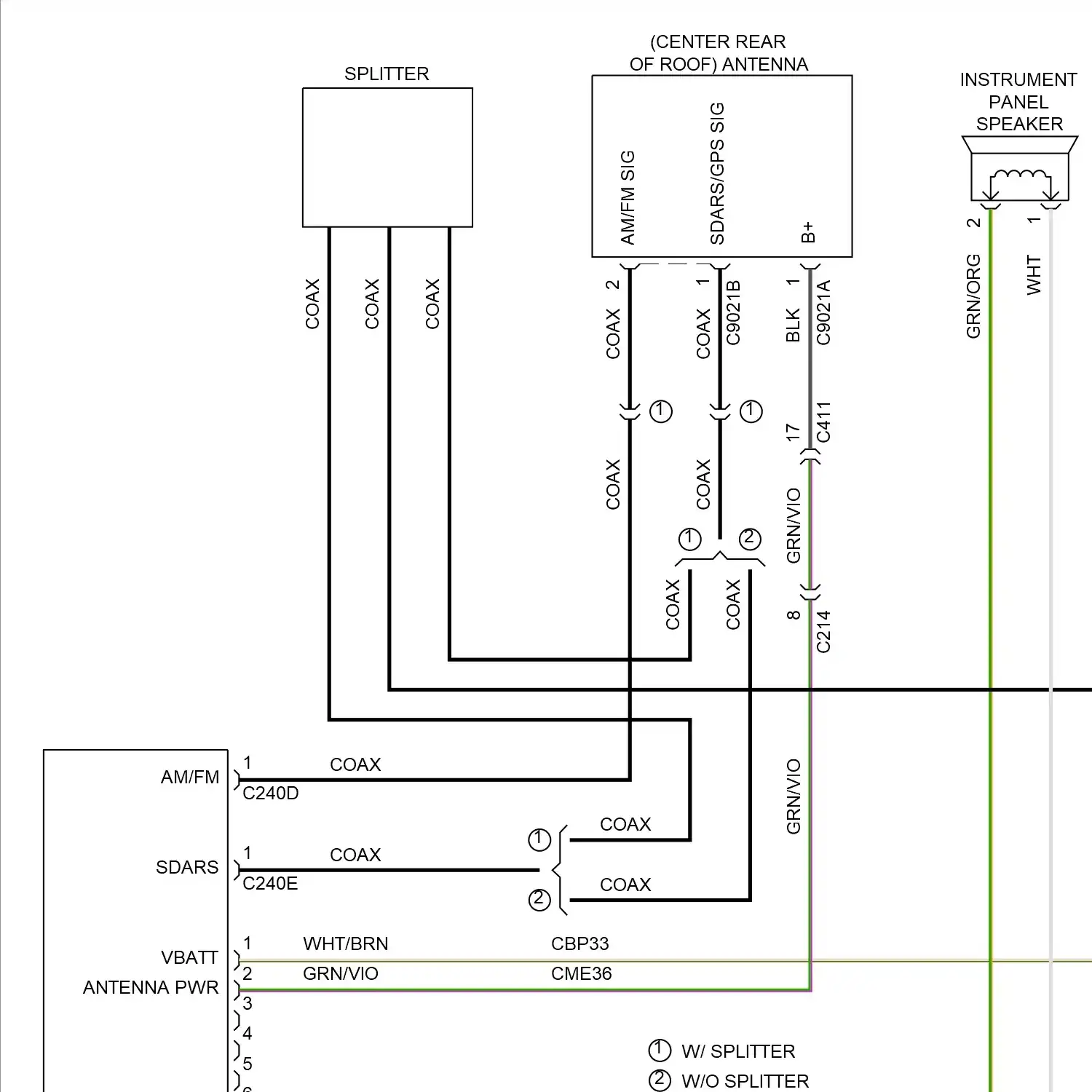

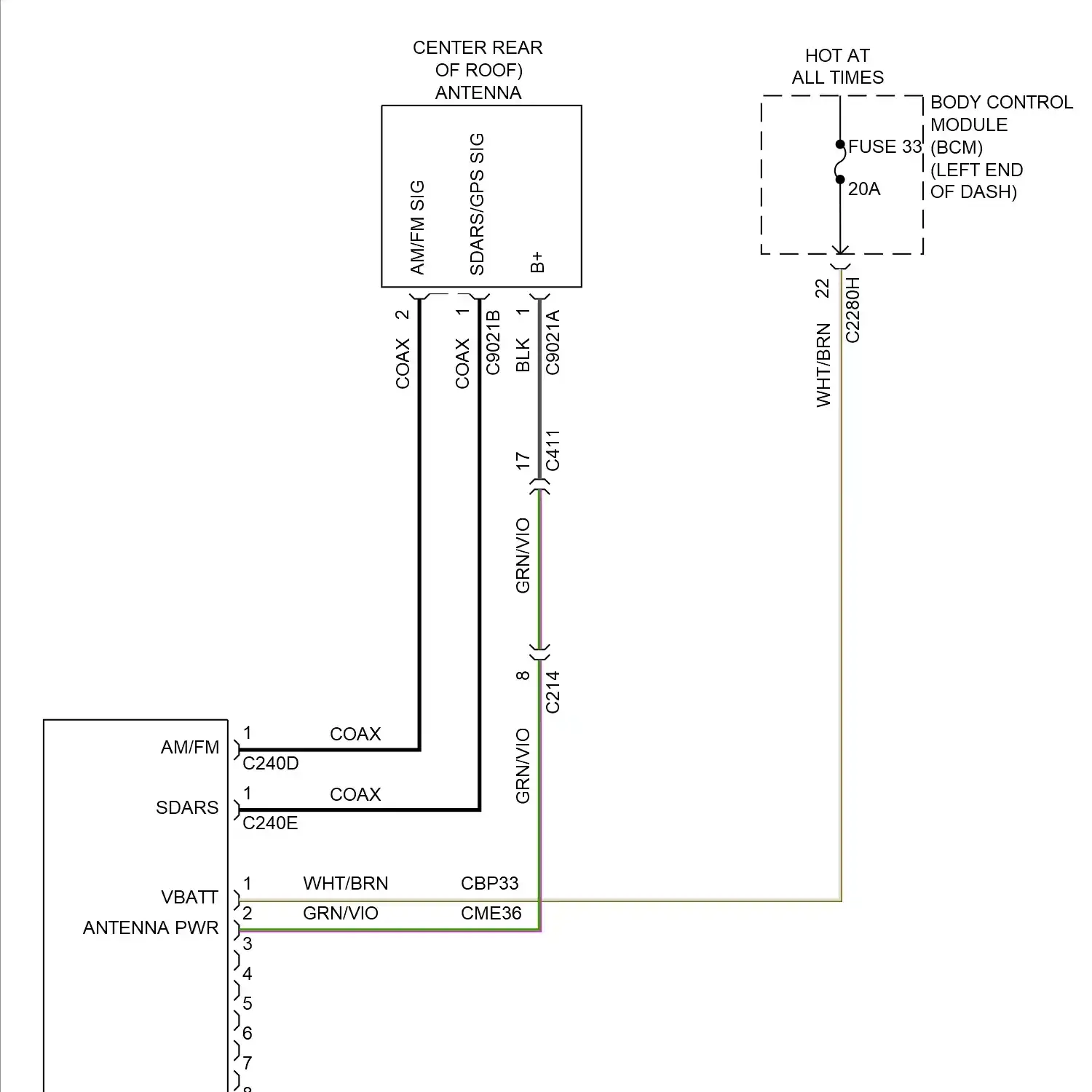

Radio circuit, w/ bang & olufsen sound Radio circuit, w/o touch screen Radio circuit, w/ touch screen

Shift interlock circuit Steering lock circuit

Charging circuit Starting circuit

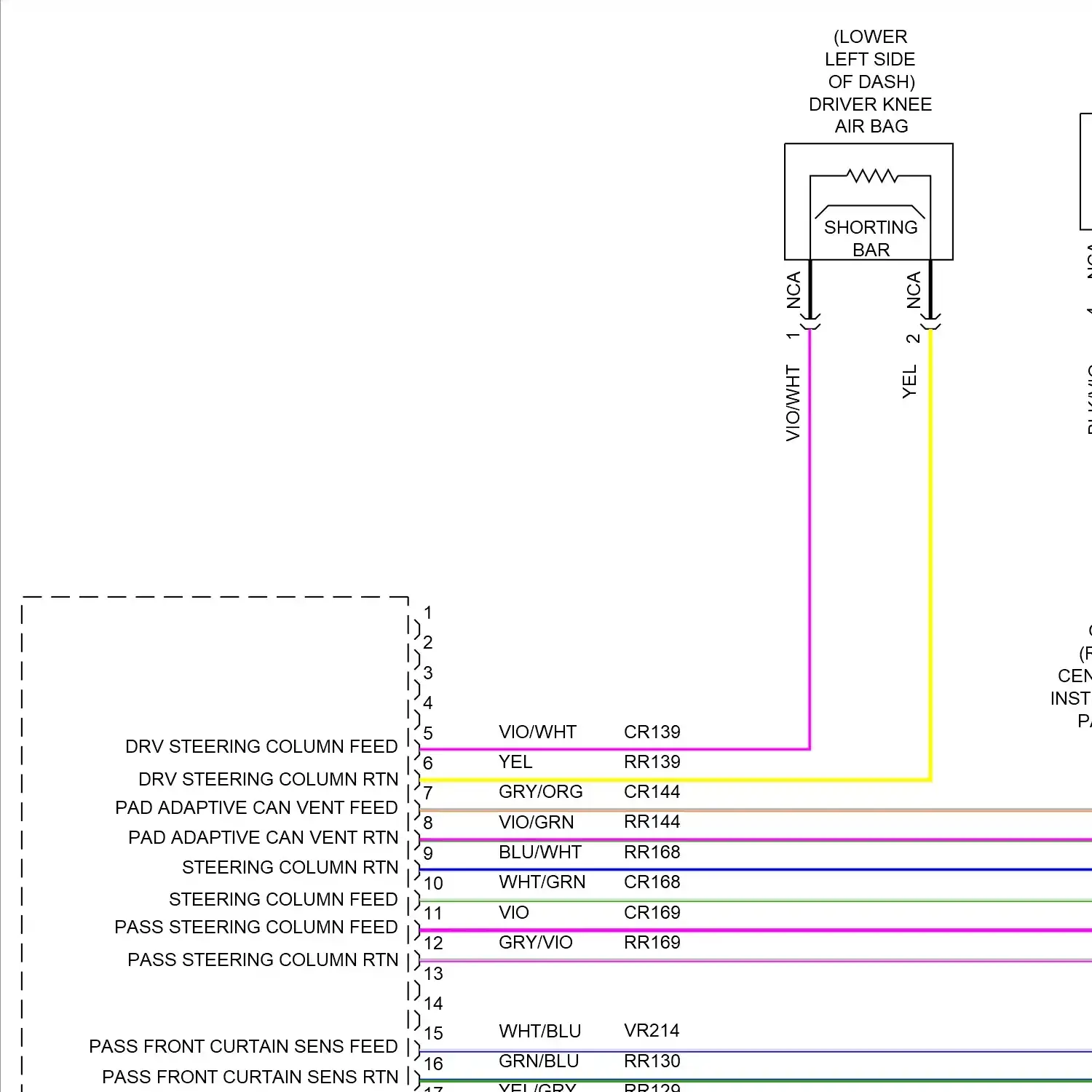

Supplemental restraints circuit

2.0l turbo, a/t circuit 2.0l turbo, awd circuit

2.7l turbo, a/t circuit 2.7l turbo, awd circuit

Liftgate release circuit Power liftgate circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS BATTERY SAVER HORN RLY INPUT IGNITION COIL ON PLUG 1 IGNITION COIL ON PLUG 2 IGNITION COIL ON PLUG 3 IGNITION COIL ON PLUG 4 IGNITION COIL ON PLUG 5 IGNITION COIL ON PLUG 6 LOCK OUT STEERING COLUMN LOCK MODULE

(RIGHT FRONT OF ENGINE AIR DISTRIBUTION DOOR ACTUATOR AIR INLET DOOR ACTUATOR BLOWER MOTOR COOLING FAN MOTOR 1 COOLING FAN MOTOR 2 ENGINE CONTROLS SYSTEM FEEDBACK VARIABLE BLOWER CONTROL MOTOR + LEFT FRONT SEAT BACKREST BLOWER MOTOR LEFT FRONT SEAT CUSHION BLOWER MOTOR LEFT FRONT SEAT HEIGHT ADJUSTMENT MOTOR LEFT FRONT SEAT RECLINER MOTOR LEFT FRONT SEAT TILT MOTOR LEFT FRONT SEAT TRACK MOTOR LEFT PARKING BRAKE ACTUATOR MOTOR LEFT SECOND ROW SEAT MOTOR LEFT TEMPERATURE DOOR ACTUATOR LEFT WINDSHIELD WIPER MOTOR LOWER RIGHT FRONT OF ENGINE) MOTOR CLOSE, MOTOR OPEN, REAR WINDOW WIPER MOTOR RIGHT FRONT SEAT BACKREST BLOWER MOTOR RIGHT FRONT SEAT CUSHION BLOWER MOTOR RIGHT FRONT SEAT HEIGHT ADJUSTMENT MOTOR RIGHT FRONT SEAT RECLINER MOTOR RIGHT FRONT SEAT TILT MOTOR RIGHT FRONT SEAT TRACK MOTOR RIGHT PARKING BRAKE ACTUATOR MOTOR RIGHT SECOND ROW SEAT MOTOR RIGHT TEMPERATURE DOOR ACTUATOR RIGHT WINDSHIELD WIPER MOTOR ROOF OPENING PANEL MOTOR ASSEMBLIES STARTER MOTOR STEERING COLUMN TELESCOPIC MOTOR STEERING COLUMN TILT MOTOR TRANSMISSION FLUID HEATER ENGINE COOLANT CONTROL VALVE

ANTENNA PWR INTERNAL ANTENNA RKE RECEIVER

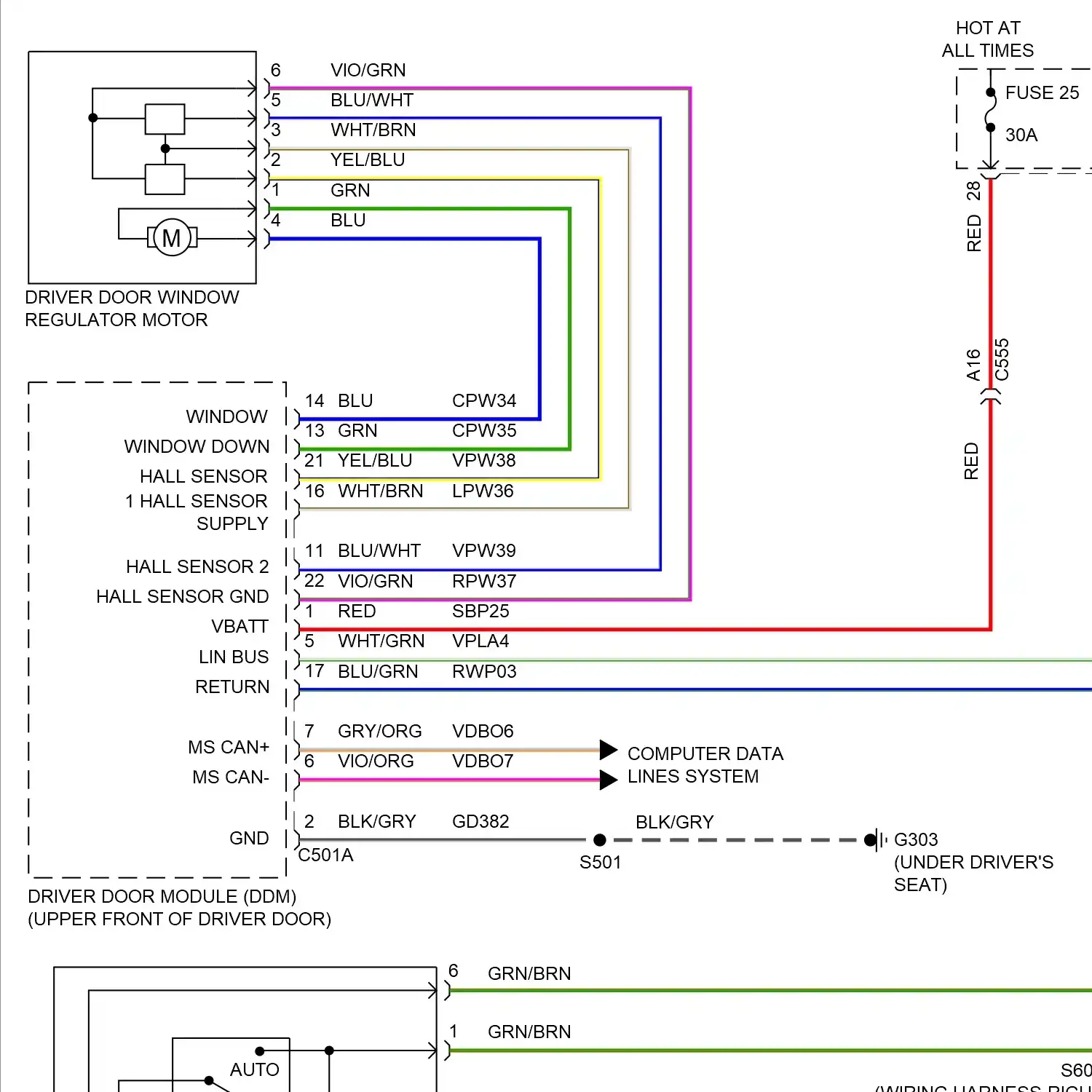

DRIVER DOOR WINDOW REGULATOR MOTOR LEFT REAR DOOR WINDOW REGULATOR MOTOR PASSENGER DOOR WINDOW REGULATOR MOTOR RIGHT REAR DOOR WINDOW REGULATOR MOTOR

FRONT PARKING AID CAMERA REAR CAMERA CIRCUIT REAR PARKING AID CAMERA W/ FRONT CAMERA W/O FRONT CAMERA

FRONT POWER OUTLET SOCKET FRONT POWER OUTLET SOCKET 2 LUGGAGE COMPARTMENT POWER OUTLET SOCKET REAR PASSENGER POWER OUTLET SOCKET TRAILER TOW CONNECTOR

BLOWER MOTOR CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE SHIELD

FUEL PUMP, SENDER UNIT FUEL PUMP, SENDER UNIT SHIELD START CONTROL UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 32 FUSE 33 FUSE 34 FUSE 36 FUSE 37 FUSE 43 FUSE 44 FUSE 48 FUSE 50 FUSE 54 FUSE 55 FUSE 58 FUSE 59 FUSE 60 FUSE 62 FUSE 63 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 76 FUSE 77 FUSE 78 FUSE 79 FUSE 80 FUSE 81 FUSE 84 FUSE 87

DRV HEATER FEED LEFT FRONT SEAT BACKREST HEATER MAT LEFT FRONT SEAT CUSHION HEATER MAT LEFT REAR SEAT BACKREST HEATER MAT LEFT REAR SEAT CUSHION HEATER MAT LR HEATER FD PASS HEATER FEED PIA HEATER RIGHT FRONT SEAT BACKREST HEATER MAT RIGHT FRONT SEAT CUSHION HEATER MAT RIGHT REAR SEAT BACKREST HEATER MAT RIGHT REAR SEAT CUSHION HEATER MAT RR HEATER FD

BLIS INDICATOR LEFT FRONT DOOR LOCK INDICATOR LEFT REAR DOOR LOCK INDICATOR LOW BRAKE FLUID WARNING INDICATOR SWITCH LOW WASHER FLUID WARNING INDICATOR SWITCH RIGHT FRONT DOOR LOCK INDICATOR RIGHT REAR DOOR LOCK INDICATOR

(INTERIOR LAMP WIRING HARNESS, NEAR BREAKOUT TO RAIN BREAKOUT TO RAIN FLOOR CONSOLE CUP HOLDER AMBIENT LIGHTING LAMP FLOOR CONSOLE STORAGE BIN AMBIENT LIGHTING LAMP GLOVE COMPARTMENT LAMP HIGH MOUNTED STOP LAMP LAMP DIMMING LEFT FOOTWELL LAMP LEFT FRONT FOG LAMP LEFT REAR INTERIOR LAMP LEFT REAR LAMP ASSEMBLY LEFT REAR PARK/ STOP/ TURN LAMP 1 LEFT REAR PARK/ STOP/ TURN LAMP 2 LEFT REAR PARK/STOP/TURN LAMP 1 LEFT REAR PARK/STOP/TURN LAMP 2 LEFT SCUFF PLATE LAMP LEFT VANITY MIRROR LAMP LUGGAGE COMPARTMENT LAMP PUDDLE LAMP RIGHT FOOTWELL LAMP RIGHT FRONT FOG LAMP RIGHT REAR INTERIOR LAMP RIGHT REAR LAMP ASSEMBLY RIGHT REAR PARK/ STOP/ TURN LAMP 1 RIGHT REAR PARK/ STOP/ TURN LAMP 2 RIGHT REAR PARK/STOP/TURN LAMP 1 RIGHT REAR PARK/STOP/TURN LAMP 2 RIGHT SCUFF PLATE LAMP RIGHT VANITY MIRROR LAMP SECOND ROW INTERIOR LAMP

CABIN HEATER COOLANT PUMP FUEL INJECTION PUMP TRANSMISSION FLUID AUXILIARY PUMP WINDSHIELD WASHER PUMP

ACCESSORY DELAY RELAY BLOWER MOTOR RELAY BLOWER RELAY CENTRAL LOCK RELAY CENTRAL UNLOCK RELAY CHILD LOCK RELAY DECKLID/ LIFTGATE RELAY DECKLID/LIFTGATE RELAY DOUBLE/ AUX LOCK RELAY DRIVER/ FUEL FLAP UNLOCK RELAY DRIVER/FUEL FLAP UNLOCK RELAY FUEL PUMP RELAY HEATED WIPER PARK RELAY HORN RELAY HORN RELAY INPUT HOT W/ ACCESSORY DELAY RELAY ENERGIZED HOT W/ RUN/ START RELAY ENERGIZED HOT W/ RUN/START RELAY ENERGIZED LATCHING POWER POINT RELAY 1 LATCHING POWER POINT RELAY 2 REAR WASHER RELAY REAR WINDOW DEFROST RELAY RUN/ START RELAY RUN/START RELAY SECOND ROW SEAT RELAY STARTER RELAY STEERING COLUMN LOCK RELAY WIPER RELAY

A CLUTCH/B CLUTCH FLUID PRESSURE SENSOR AUTOLAMP SENSOR INPUT AUTOLAMP SENSOR RETURN BATTERY MONITORING SENSOR BRAKE VACUUM SENSOR CRANKCASE PRESSURE SENSOR DRIVER SIDE DOOR IMPACT SENSOR EVAPORATOR TEMPERATURE SENSOR FUEL LEVEL SENSOR FUEL PRESSURE SENSOR GENERATOR CURRENT SENSOR HALL SENSOR 1 HALL SENSOR 1 HALL SENSOR SUPPLY HALL SENSOR 2 HALL SENSOR GND HALL SENSOR SUPPLY IN-VEHICLE TEMPERATURE/ HUMIDITY SENSOR LEFT FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR LEFT FRONT ACTIVE PARK ASSIST SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT IMPACT SEVERITY SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR ACTIVE PARK ASSIST SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT REGISTER AIR DISCHARGE TEMPERATURE SENSOR LEFT SEAT POSITION SENSOR LEFT SIDE "C" PILLAR IMPACT SENSOR LEFT/CENTER REAR INNER PARKING AID SENSOR LF SENSOR HI LF SENSOR LO LR SENSOR HI LR SENSOR LO PASSENGER SIDE DOOR IMPACT SENSOR POSITION SENSOR RAIN SENSOR MODULE RF SENSOR HI RF SENSOR LO RIGHT FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR RIGHT FRONT ACTIVE PARK ASSIST SENSOR RIGHT FRONT IMPACT SEVERITY SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR ACTIVE PARK ASSIST SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT REGISTER AIR DISCHARGE TEMPERATURE SENSOR RIGHT SEAT POSITION SENSOR RIGHT SIDE "C" PILLAR IMPACT SENSOR RR SENSOR HI RR SENSOR LO SENSOR PWR SENSOR RTN SENSOR SIG 1 SENSOR SIG 2 TRANSMISSION FLUID TEMPERATURE SENSOR WASTEGATE VACUUM SENSOR

INSTRUMENT PANEL SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT DOOR TWEETER SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR DOOR TWEETER SPEAKER LEFT REAR QUARTER PANEL SPEAKER REAR CENTER SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT DOOR TWEETER SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR DOOR TWEETER SPEAKER RIGHT REAR QUARTER PANEL SPEAKER

ACTIVE PARK ASSIST SWITCH AUTO START STOP DEACTIVATION SWITCH DOWNSHIFT PADDLE SWITCH DRIVER BUCKLE SWITCH DRIVER DOOR WINDOW CONTROL SWITCH EXTERIOR REAR VIEW MIRROR SWITCH FRONT POWER LIFTGATE SWITCH HEADLAMP SWITCH HEATED REAR SEAT SWITCH HOOD AJAR SWITCH HORN SWITCH LEFT FRONT DOOR LOCK SWITCH LEFT FRONT SEAT CONTROL SWITCH LEFT LIFTGATE ANTI-PINCH SWITCH LEFT REAR DOOR WINDOW CONTROL SWITCH LEFT SECOND ROW SEAT CONTROL SWITCH LEFT STEERING WHEEL SWITCH LEFT SWITCH LIFTGATE RELEASE SWITCH MEMORY SET SWITCH MULTI- FUNCTION SWITCH PARKING BRAKE SWITCH PASSENGER DOOR WINDOW CONTROL SWITCH REAR HEATED SEAT SWITCH REAR POWER LIFTGATE SWITCH RIGHT FRONT DOOR LOCK SWITCH RIGHT FRONT SEAT CONTROL SWITCH RIGHT LIFTGATE ANTI-PINCH SWITCH RIGHT REAR DOOR WINDOW CONTROL SWITCH RIGHT STEERING WHEEL SWITCH RIGHT SWITCH SHIFT INTERLOCK OVERRIDE SWITCH START/ STOP SWITCH UPSHIFT PADDLE SWITCH

AUTO-START-STOP ACCUMULATOR SOLENOID OIL PRESSURE CONTROL SOLENOID PARK LOCK PAWL SOLENOID SHIFT SOLENOID A SHIFT SOLENOID B SHIFT SOLENOID C SHIFT SOLENOID D SHIFT SOLENOID E SHIFT SOLENOID F TRANSMISSION FLUID HEATER COOLANT CONTROL VALVE WASTEGATE CONTROL VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE RED WIRE TAN WIRE VIO WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE YEL BRN/ WIRE YEL WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE

2.0L TURBO 2.0L TURBO 2.7L TURBO 2.7L TURBO 2.7L TURBO 2.0L TURBO 8 WAY POWER SEAT 10 WAY POWER SEAT 12 RADIO SPEAKERS 9 RADIO SPEAKERS (NOT (RIGHT CENTER OF INSTRUMENT A/D CHANNEL 1 A/D CHANNEL 2 A/D CHANNEL 3 A/D CHANNEL 4 A/D RETURN A/D RTN AC-A AC-B ACTIVE GRILLE SHUTTER ACTIVE PARK ASSIST SW AFT FORE/ AIR CONDITIONING SYSTEM AJAR SW AM/FM ANT AM/FM SIG AMBIENT NOISE 1 - AMBIENT NOISE 2 - AMBIENT NOISE 3 - ANTI-THEFT, WARNING SYSTEMS AUTO DIMMING INTERIOR MIRROR AUTO PARK AUTOLAMP SENS RETURN AVC- BACKUP LAMPS CIRCUIT BASE BACKWARD BASE FORWARD BATT MON BATT MONITOR BATT PWR BEHIND LEFT QUARTERPANEL) BLIS IND BOOST ENABLE BRAKE FLUID BRAKE FLUID SW BRK FLUID BRK FLUID SW BSW LED MIRR BSW LED MIRR L/DRV- BSW LED MIRR R/PASS- BTS SIG BTS VREF BUCKLE SW CANCEL GAP DOWN CASE GND CASE GROUND CHARGING CIRCUIT CHARGING SYSTEM CIRCUIT BREAKER 38 COAXIAL CABLE COLLAPSIBLE STEERING COLUMN MODULE COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONSOLE FRONT AMBIENT LED CONSOLE OPEN/CLOSE SW COOLING FANS SYSTEM CRUISE CONTROL SYSTEM CTRL SW DATA LINES DATA LINES SYSTEM DBKTED- DBLWR+ DCSHTED- DDRL TX + DEFOGGER SYSTEM DIM + DM GND DM PWR DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, WARNING SYSTEMS DR LATCH SW DR UNLOCK SW DRDL TX + DRIVER AIR BAG DRIVER DOOR LATCH DRIVER KNEE AIR BAG DRIVER SAFETY BELT BUCKLE DRIVER SAFETY BELT BUCKLE PRETENSIONER DRIVER SAFETY BELT RETRACTOR PRETENSIONER DRIVER SIDE AIR BAG DRIVER TRACK POS SENS DRIVER'S MEMORY SEAT CIRCUIT DRV AIR BAG 1 FEED DRV AIR BAG 1 RTN DRV AIR BAG 2 FEED DRV AIR BAG 2 RTN DRV BUCKLE SW DRV CURTAIN FEED DRV CURTAIN RTN DRV FRONT CURTAIN SENS FEED DRV FRONT CURTAIN SENS RTN DRV HEATED DRV HIGH SW DRV MIRR HORZ POT DRV MIRR MTR DOWN/RIGHT DRV MIRR VERT POT DRV MIRROR MTR LEFT DRV MIRROR MTR VERT UP DRV PRETENSIONER FEED DRV PRETENSIONER RTN DRV PUDDLE DRV RETRACTOR PRETENSIONER + DRV ROW 2 IMPACT SENS FEED DRV ROW 2 IMPACT SENS RTN DRV SEAT NTC SENSE DRV SIDE AIR FEED DRV SIDE AIR RTN DRV SIDE IMPACT SENS FEED DRV SIDE IMPACT SENS RTN DRV STEERING COLUMN FEED DRV STEERING COLUMN RTN DRV SUNLOAD DRV TRACK POSITION DRV TURN DRV VBATT ECBY TH EGR VP EGRV- ELECTRIC SELECTABLE ONE WAY CLUTCH ELECTROCHROMIC MIRROR CIRCUIT ENABLE/CLIP DETECT ENG SW EPS + ETC REF ETC RTN EXT MIRR POT FEED EXTERNAL CONTROL 1 FAPA SENS LF IN FAPA SENS LH IN FAPA SENS RH IN FC 2 FC SPKR + FIL SENS IN FIL SENS LH IN FIR SENS IN FIR SENS RH IN FOL SENS IN FOL SENS LH IN FOR SENS IN FOR SENS RH IN FP PWR FP RTN FRONT CONSOLE AMBIENT LED FRONT DOWN FRONT HEIGHT FRONT UP FRT WIPER HI FS ENS FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL SENDER 1 FUEL SENDER 1 RTN FUEL SENDER 2 FUEL SENDER 2 RTN GAP UP GATEWAY MODULE GND SENS FRT GND SENS REAR GROUND DISTRIBUTION SYSTEM HALF BRIDGE HALL EFFECT RETURN HALL EFFECT SNS HANDS FREE LIFTGATE ACTUATION MODULE HANDSFREE LIFTGATE ACTUATION MODULE HEADLAMP OFF HEADLAMP ON HEADLAMP PARK ON OFF HEADLIGHTS SYSTEM HEATED REAR WINDOW ELEMENT HEATED WIPER PARK HIGH BEAM HIGH SERIES HLL OUT HOMELINK MODULE HOOD AJAR HORNS SYSTEM HOT AT ALL TIMES HS CAN+ HTR GND HTR PWR HTR RTN HUMIDITY MTR HUMIDITY SIG I/P SENS FRT I/P SENS REAR ID-LO ILLUM GND ILLUMINATION GND IN VEHICLE SIG DRV ST NTC SENS ISP-R K LINE K- BUS KAYPAD B KEYLESS ENTRY KEYPAD KEYPAD A KEYPAD C L/DRV- LATCH GND LCK STATUS LDW HTR - LEFT EXTERIOR MIRROR LEFT FRONT EXTERIOR DOOR HANDLE LEFT FRONT SAFETY BELT ANCHOR, PRETENSIONER LEFT FRONT SEAT POWER LUMBAR ASSEMBLY LEFT HEADLAMP ASSEMBLY LEFT HIGH IND LEFT LOW IND LEFT REAR DOOR LATCH LEFT REAR DOWN LEFT REAR EXTERIOR DOOR HANDLE LEFT REAR HEATED SEAT MODULE LEFT REAR UP LEFT SECOND ROW SAFETY BELT BUCKLE LEFT SIDE AIR CURTAIN LEFT TURN LF AMBIENT NOISE 1 + LF DOOR LF DOOR AJAR LF DR AJAR LF SPKR LIFTGATE AJAR LIFTGATE RELEASE LIFTGATE/ LUGGAGE COMPARTMENT LID LATCH LIFTGATE/DECKLID RELEASE AJAR LIFTGATE/LUGGAGE COMPARTMENT LID LIFTGATE/LUGGAGE COMPARTMENT LID LATCH LIN 2 LIN 4 LIN BUS LOGIC GND LOW BEAM LOW WASHER LR DOOR LR DOOR AJAR LR DR AJAR LR SEAT NTC LR SPKR LT FRT SENS 1 LT FRT SENS 2 LT PINCH STRIP SIG LVL FRT SN HDLP LVL FRT - LVL REAR SN HDLP LVL REAR - MANUAL A/C AUTOMATIC A/C HIGH SERIES MDBL LT LIN + MDBL LT LIN D MDBL RT LIN + MDBL RT LIN D MEDIA GND MIC - MICRO - MIRRORS SYSTEM MS CAN + MTR A EPB LT MTR A EPB RT 3 4 MTR B EPB RT MTR AP FWD MTR AP RWD MTR B EPB LT NAVIGATION SYSTEM NAVIGATION, DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS NOISE CANCELLATION MICROPHONE 1 NOISE CANCELLATION MICROPHONE 2 NOISE CANCELLATION MICROPHONE 3 NOT USED NOT USED NOT USED OCS OUT OPEN SESAME INPUT OSS + OVERHEAD CONSOLE OVERRIDE SW 1 OVERRIDE SW 2 OWCC HS OWCC LS P-CAN PAD ADAPTIVE CAN VENT FEED PAD ADAPTIVE CAN VENT RTN PANEL) PARK AID PARK AID IND PARKING AID SW PASS ADAPTIVE LOAD LIMITER FEED PASS ADAPTIVE LOAD LIMITER RTN PASS AIR BAG 1 FEED PASS AIR BAG 1 RTN PASS AIR BAG 2 FEED PASS AIR BAG 2 RTN PASS BUCKLE SW PASS CURTAIN FEED PASS CURTAIN RTN PASS FRONT CURTAIN SENS FEED PASS FRONT CURTAIN SENS RTN PASS HEATED PASS HIGH IND PASS HIGH SW PASS LOW IND PASS MIRR HORZ POT PASS MIRR MTR DOWN/RIGHT PASS MIRR MTR VERT UP PASS MIRR VERT POT PASS MIRROR MTR LEFT PASS PRETENSIONER FEED PASS PRETENSIONER RTN PASS PUDDLE PASS RETRACTOR PRETENSIONER - PASS ROW 2 IMPACT SENS FEED PASS ROW 2 IMPACT SENS RTN PASS SEAT NTC SENSE PASS SIDE AIR FEED PASS SIDE AIR RTN PASS SIDE IMPACT SENS FEED PASS SIDE IMPACT SENS RTN PASS ST NTC SENS PASS STEERING COLUMN FEED PASS STEERING COLUMN RTN PASS SUNLOAD PASS TRACK POSITION PASS TURN PASS VBATT PASSENGER AIR BAG STAGE 1 PASSENGER DOOR LATCH PASSENGER KNEE AIR BAG PASSENGER SAFETY BELT BUCKLE PASSENGER SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER SAFETY BELT RETRACTOR PRETENSIONER PASSENGER SIDE AIR BAG PAWL SIG ZERO POSITION SIG PBKTED- PBLWR+ PCAN + PCSHTED- PINCH STRIP RTN POS LIGHT POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PRIMARY RATCHET SIG PRK 1 PTUMC + PTUPS - PTUTS - PWM IN PWR GND PWR LOGIC RLY PWR MTR- RADAR - RAPA SENS LH IN RAPA SENS RH IN RCM OUT RDMC A RDMC B RDMC C RDMP A RDMP B RDMP C RDSS + RDUPS + REAR DEFROST REQUEST REAR DOWN REAR HEIGHT REAR INTERIOR SW REAR UP REAR WIPER RELEASE AJAR RELEASE MTR RES+ RESET+ RF AMBIENT NOISE 2 - RF DOOR RF DOOR AJAR RF DR AJAR RF SPKR RIGHT EXTERIOR MIRROR RIGHT FRONT EXTERIOR DOOR HANDLE RIGHT FRONT SAFETY BELT ANCHOR, PRETENSIONER RIGHT FRONT SEAT POWER LUMBAR ASSEMBLY RIGHT HEADLAMP ASSEMBLY RIGHT HIGH IND RIGHT LOW IND RIGHT REAR DOOR LATCH RIGHT REAR DOWN RIGHT REAR EXTERIOR DOOR HANDLE RIGHT REAR UP RIGHT SECOND ROW SAFETY BELT RIGHT SECOND ROW SAFETY BELT BUCKLE RIGHT SIDE AIR CURTAIN RIGHT STEERING WHEEL RIGHT TURN RIL SENS IN RIL SENS LH IN RIR SENS IN RIR SENS RH IN ROL SENS IN ROL SENS LH IN ROR SENS IN ROR SENS RH IN RR AMBIENT NOISE 3 - RR DOOR RR DOOR AJAR RR DR AJAR RR HIGH/OFF RR LOW/OFF RR SEAT NTC RR SPKR RT FRT SENS 1 RT FRT SENS 2 RT PINCH STRIP SIG SDARS/GPS SIG SDL - SDL H SDL L SEATS SYSTEM SECONDARY RATCHET SIG SEEK LEFT/ SEEK RIGHT/ SENDER 1 SENS GND SET 1 SET 2 SET 3 SET- SHADE CLOSE SHADE OPEN SHIFT UP SHORTING BAR SHORTING BAR SHORTING BAR SIDE MARKER SIG GND SIG RTN SIG RTN B SIG RTN C SIGRTN B SIGRTN-C SN HDLP LVL FRT + SN HDLP LVL REAR + SOLID STATE SOUND SYSTEMS SPLY SENS FRT SPLY SENS REAR SRE 2 SST DN SST UP STAGE 1 STAGE 2 STAGE 3 START/STOP DISABLE SW START/STOP IND START/STOP) STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN FEED STEERING COLUMN MEMORY CIRCUIT STEERING COLUMN RTN STEERING WHEEL) STEREO L+ STEREO R+ SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SPKR + SW 2 SPKR + SYNC ALERT - TACM+ TCW RVS TEL MTR FWD TEL MTR RWD TEL SNS + THERM FD THERM RTN TILT MTR DOWN TILT MTR UP TILT SNS + TPA+ TPMS RECEIVER TR GND TRACTION CTRL SW TRANS CAN - TRANS CAN - HS CAN - TRANSMISSION ASSEMBLY TRANSMISSIONS SYSTEM TRP 1 TRP 2 TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN LP TURN LR TURN LR OUT TURN RR TURN RR OUT TURN RR OUT SIDE MARKER UP INCLINE USED) V BATT VAC GND VAC SENSE P VAC SIG VBATT INPUT VIDEO + VIDEO - VIDEO+ VOLT REF VOLUME- VREF 2 W/ ACTIVE PARKING ASSIST W/ ADAPTIVE CRUISE CONTROL W/ ADAPTIVE STEERING W/ ADAPTIVE STEERING W/O ADAPTIVE STEERING W/ AMBIENT LIGHTING W/ BLIND SPOT INFORMATION SYSTEM W/ BLIND SPOT MONITORING W/ HEATED SEATS W/ MANUAL LIFTGATE W/ MEMORY W/ PARKING AID W/ POWER LIFTGATE W/ POWER OUTLET W/ SPLITTER W/O SPLITTER W/ START/ STOP SYSTEM W/ TOUCH SCREEN W/ VISTA ROOF W/ VISTA ROOF W/O VISTA ROOF W/O ADAPTIVE CRUISE CONTROL W/ ADAPTIVE CRUISE CONTROL W/O ADAPTIVE STEERING W/O ADAPTIVE STEERING W/ SPEED CONTROL W/O HEATED SEATS W/O MEMORY W/O MEMORY W/ MEMORY W/O POWER LIFTGATE W/O TOUCH SCREEN WAKE-UP WASHER FLUID RESERVOIR) WAVE TRAPPER WGT CV- WGT POS WINDOW DOWN WINDOW UP WIPER/WASHER SYSTEM WIRELESS ACCESSORY CHARGING MODULE ZERO POSITION
