Ford Edge I (2006-2010) keyless entry keypad Wiring diagrams

This page contains all the electrical diagrams for the component. keyless entry keypad, in which he is found in the car Ford Edge I (2006-2010). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

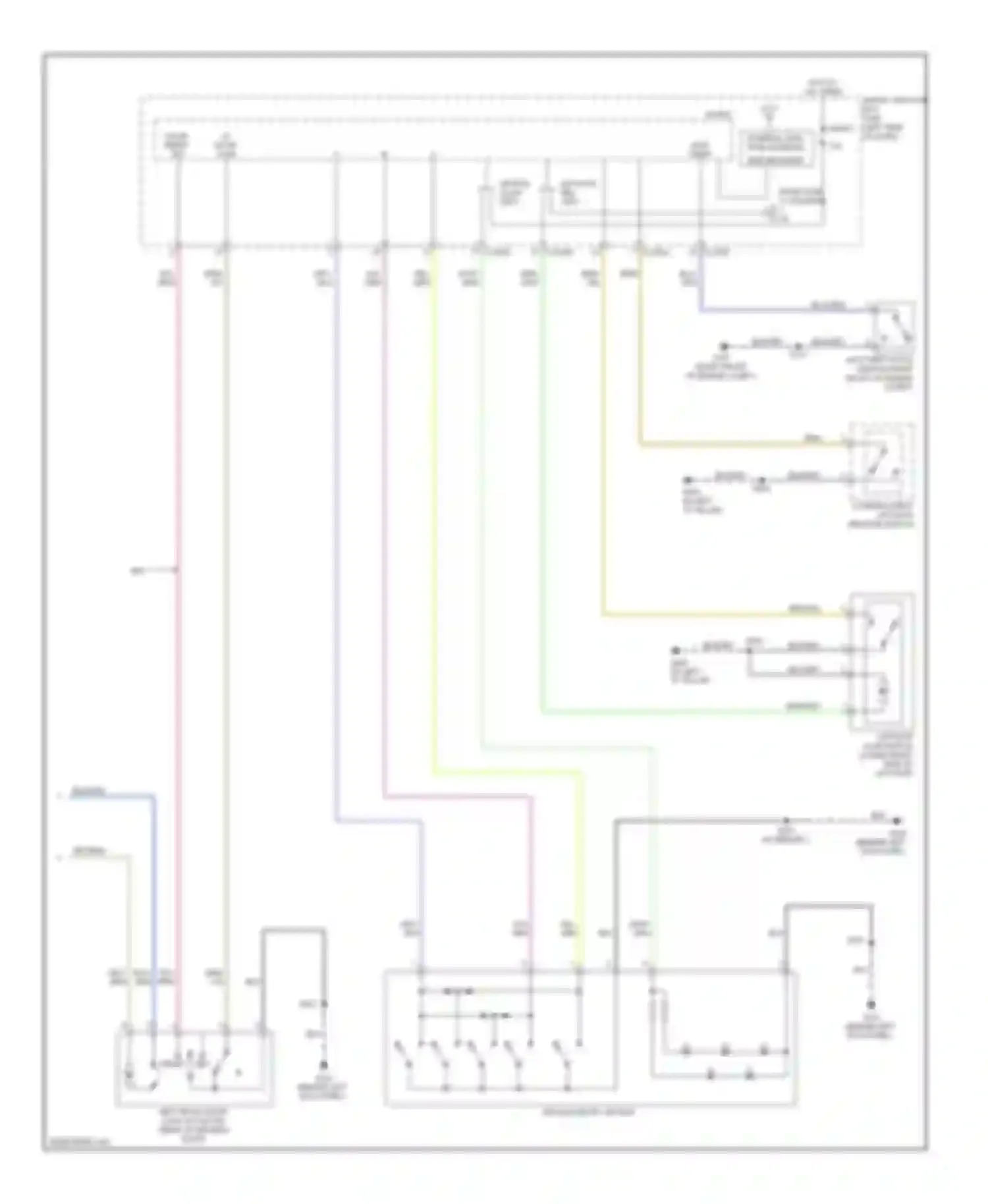

Wiring diagram keyless entry keypad (1 of 3)

Wiring diagram keyless entry keypad for Ford Edge I (2006-2010)

Get access

ANTI-THEFT ANTI-THEFT HOOD SWITCH (RIGHT FRONT OF ENGINE COMPT) BLK WIRE BLK/GRY WIRE BLU WIRE BLU/GRN WIRE BLU/ORG WIRE BRN WIRE BRN/YEL WIRE DOOR RESET SW FROM FUSE 17 (DIAGRAM 1 OF 2) FUSE 5 GRN WIRE GRN/WHT WIRE GRY WIRE GRY/BRN WIRE HOT AT ALL TIMES INTERNAL RKE/ TPMS ANTENNA RKE RECEIVER KEYLESS ENTRY KEYPAD KEYPAD ILLUM (FET) LEFT FRONT DOOR LOCK ACTUATOR (REAR OF DRIVER'S DOOR) LF DOOR AJAR LICENSE LAMPS/ LIFTGATE RELEASE SWITCH LIFTGATE AJAR SWITCH (LOWER RIGHT SIDE OF LIFTGATE) LIFTGATE REL (FET) MICRO - MKX ORG/ WIRE RESET+ SET- SMART JUNCTION BOX (SJB) (LEFT SIDE OF DASH) VIO WIRE W/ MEMORY WHT WIRE YEL WIRE

Go to component -> Forced entry circuit (2 of 2) -> KEYLESS ENTRY KEYPAD

Wiring diagram keyless entry keypad (2 of 3)

Get access

ALL WHEEL DRIVE (AWD) MODULE AUTO- DIMMING INTERIOR MIRROR UNIT BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLU WIRE CENTER INTERIORS LAMPS DRIVER EXTERIOR SIDE REAR VIEW DOOR LOCK MIRROR SWITCH SWITCH DRIVER SEAT MODULE (DSM) DRIVER SIDE FRONT POWER WINDOW MOTOR ENTRY KEYPAD) GRN WIRE KEYLESS ENTRY KEYPAD LEFT FRONT DOOR LOCK ACTUATOR LEFT POWER SEAT SWITCH LEFT REAR HEATED SEAT MODULE LEFT SIDE EXTERIOR REAR VIEW MIRROR LEFT VANITY MIRROR LAMP MASTER WINDOW ADJUST SWITCH MEMORY SET SWITCH MKX OVERHEAD CONSOLE PARKING AID MODULE (PAM) PASSENGER RIGHT SIDE SIDE EXTERIOR DOOR REAR VIEW LOCK MIRROR SWITCH PASSENGER SIDE FRONT HEATED SEAT MODULE PASSENGER SIDE FRONT POWER WINDOW MOTOR POWERTRAIN CONTROL MODULE RIGHT FRONT DOOR LOCK ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR SEAT HEATER SWITCH RIGHT SIDE FRONT POWER WINDOW FLOOR SHIFTER SWITCH RIGHT VANITY MIRROR LAMP ROOF OPENING PANEL MOTOR ASSEMBLY ROOF OPENING PANEL SWITCH VIO WIRE W/ 10-WAY POWER SEAT W/ HEATED MIRROR W/ HEATED MIRRORS W/ MEMORY

Go to component -> Ground distribution circuit (2 of 4) -> KEYLESS ENTRY KEYPAD
