Ford Edge I (2006-2010) emtc datc hvac hvac module module Wiring diagram

This page shows the only wiring diagram for the component.emtc datc hvac hvac module module, which is found in the car Ford Edge I (2006-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

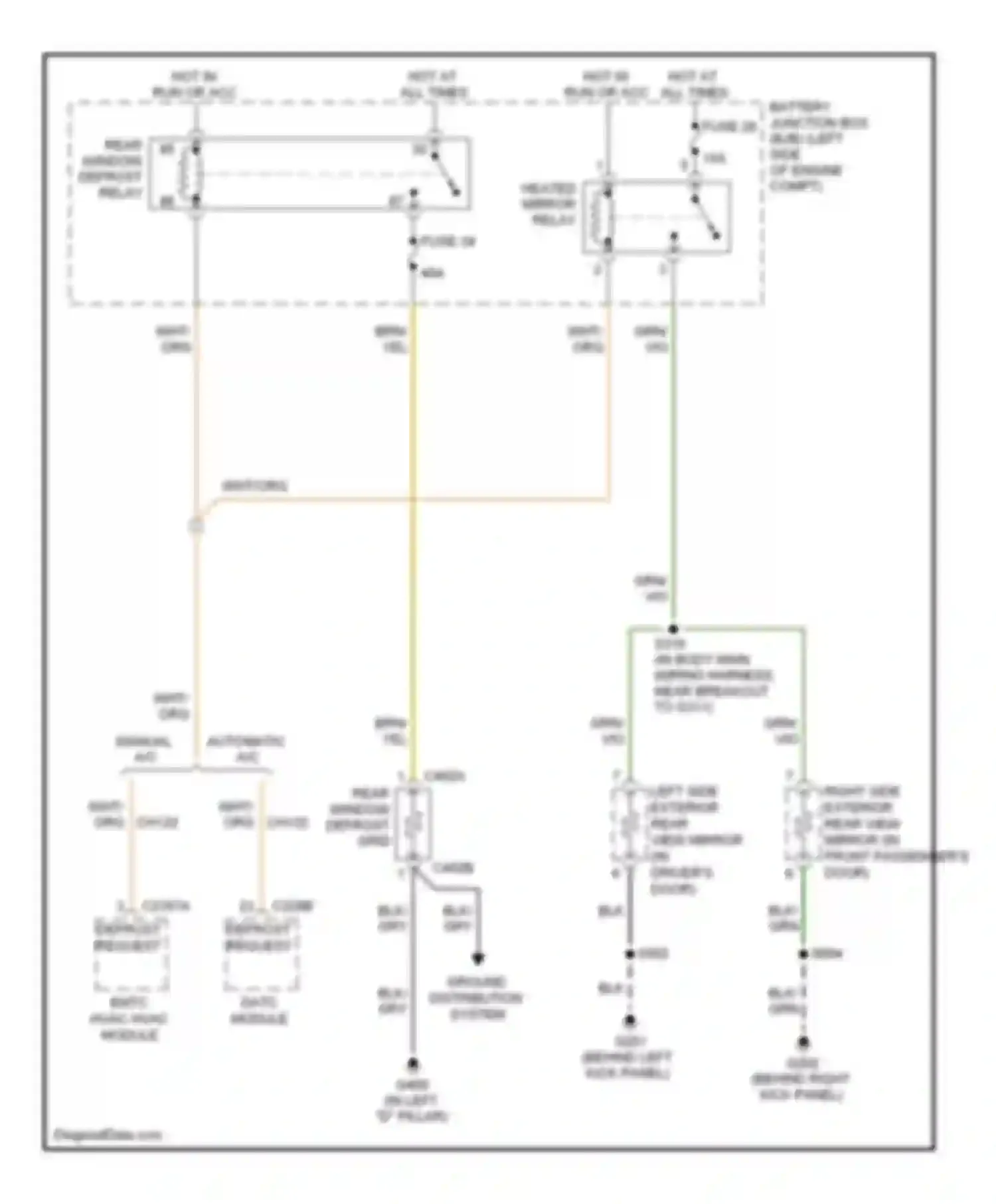

Wiring diagram emtc datc hvac hvac module module (1 of 1)

Wiring diagram emtc datc hvac hvac module module for Ford Edge I (2006-2010)

Get access

BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF ENGINE COMPT) BLK WIRE BRN WIRE DEFROST DEFROST REQUEST REQUEST EMTC DATC HVAC HVAC MODULE MODULE FUSE 28 FUSE 39 GRN WIRE GROUND DISTRIBUTION SYSTEM GRY WIRE HEATED MIRROR RELAY HOT AT ALL TIMES HOT IN RUN OR ACC LEFT SIDE EXTERIOR REAR VIEW MIRROR (IN DRIVER'S DOOR) MANUAL AUTOMATIC A/C A/C ORG/ WIRE REAR WINDOW DEFROST GRID REAR WINDOW DEFROST RELAY RIGHT SIDE EXTERIOR REAR VIEW MIRROR (IN FRONT PASSENGER'S DOOR) VIO WIRE WHT WIRE WHT/ORG WIRE YEL WIRE

Go to component: -> Defoggers circuit -> EMTC DATC HVAC HVAC MODULE MODULE
