Wiring Diagrams for Ford EcoSport II facelift (2017-2024)

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit

Forced entry circuit Passive anti-theft circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.0l turbo

Wiring diagram engine performance 2.0l

Backup lamps circuit Exterior lamps circuit Trailer/camper adapter circuit

Ground distribution circuit

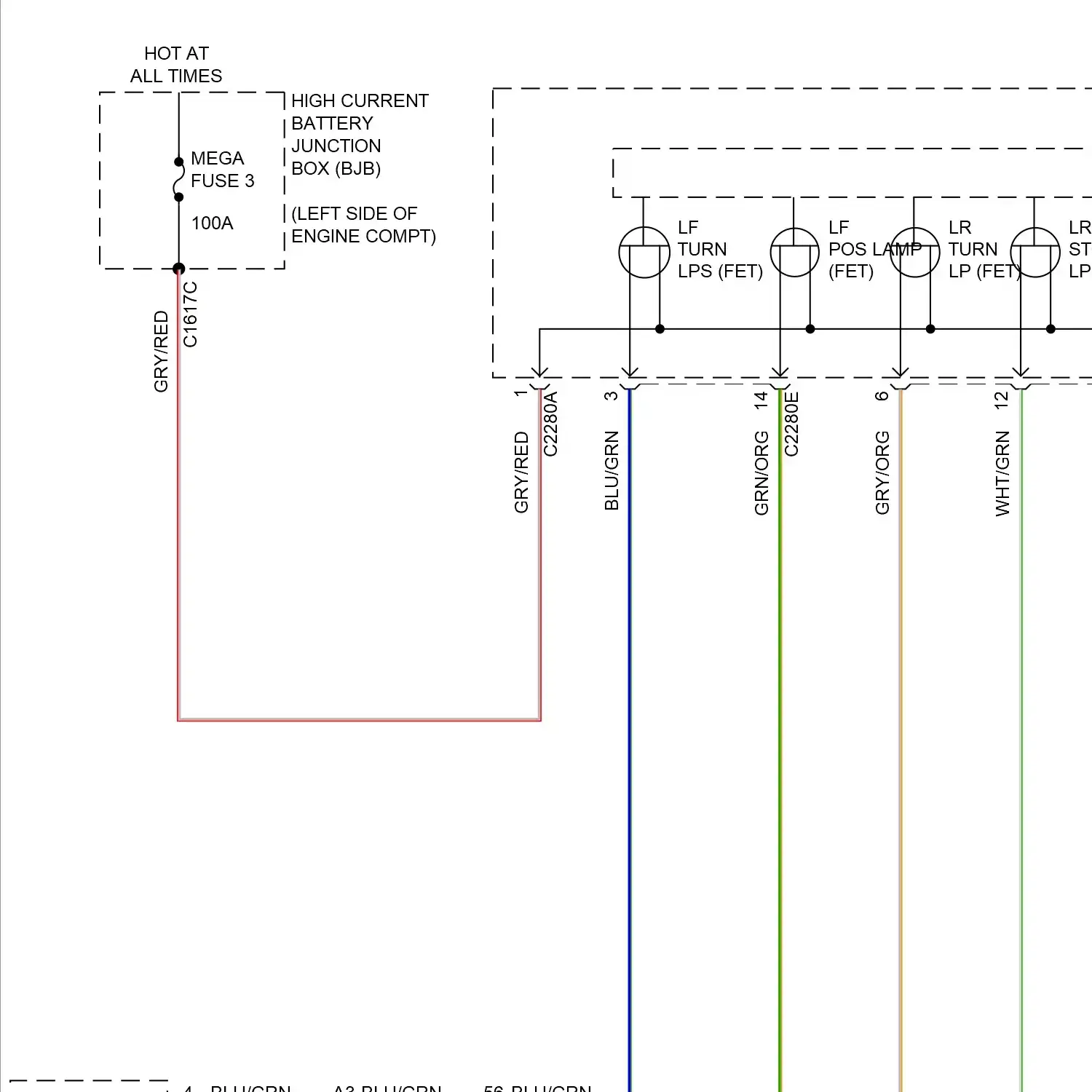

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Blind spot information system circuit Crew chief circuit Navigation circuit, w/o touch screen Navigation circuit, w/ touch screen Parking assistant circuit Rear camera circuit

Power distribution circuit

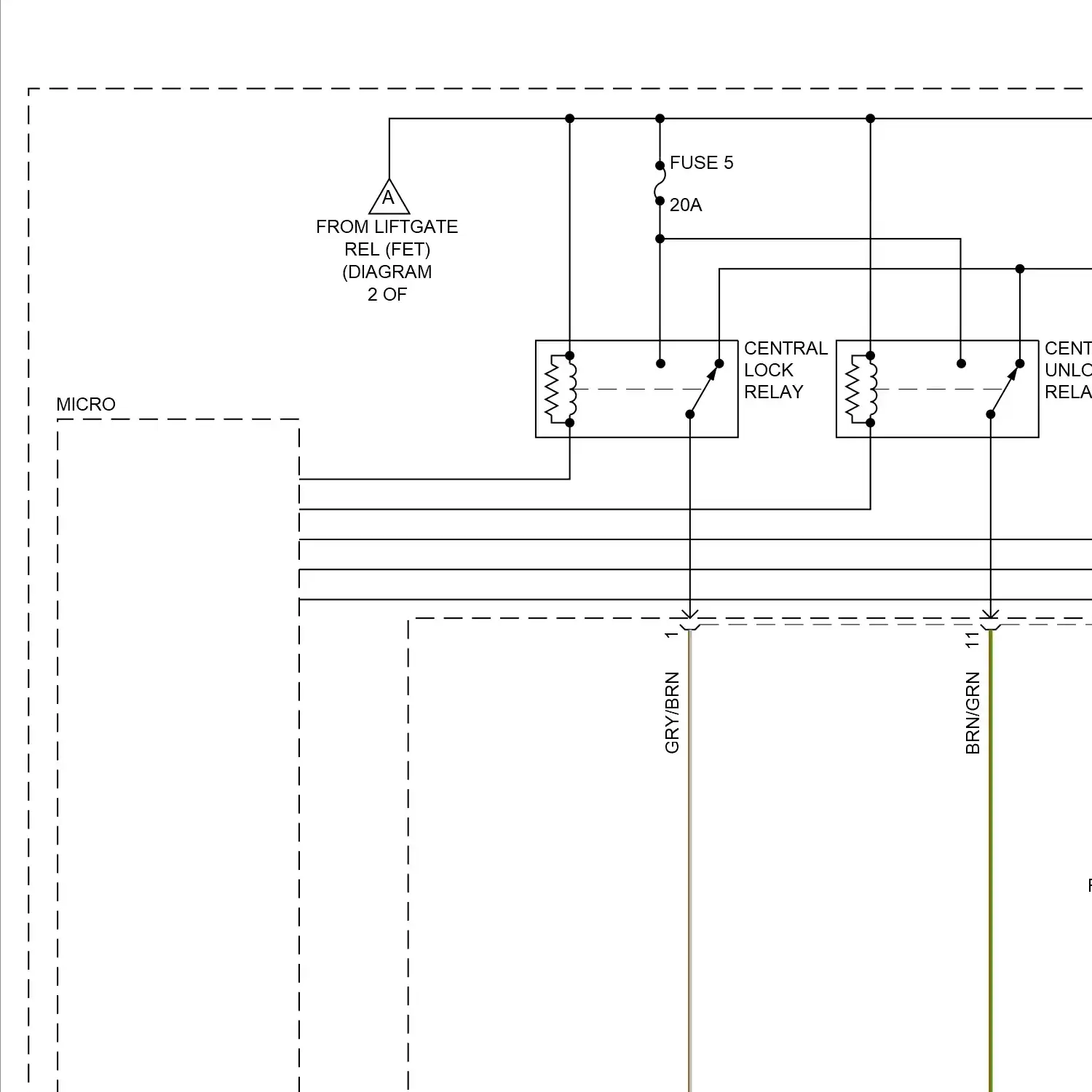

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit, base Power mirrors circuit, premium

Heated seats circuit Heated steering wheel circuit Power seats circuit

Power top/sunroof circuit

Power windows circuit

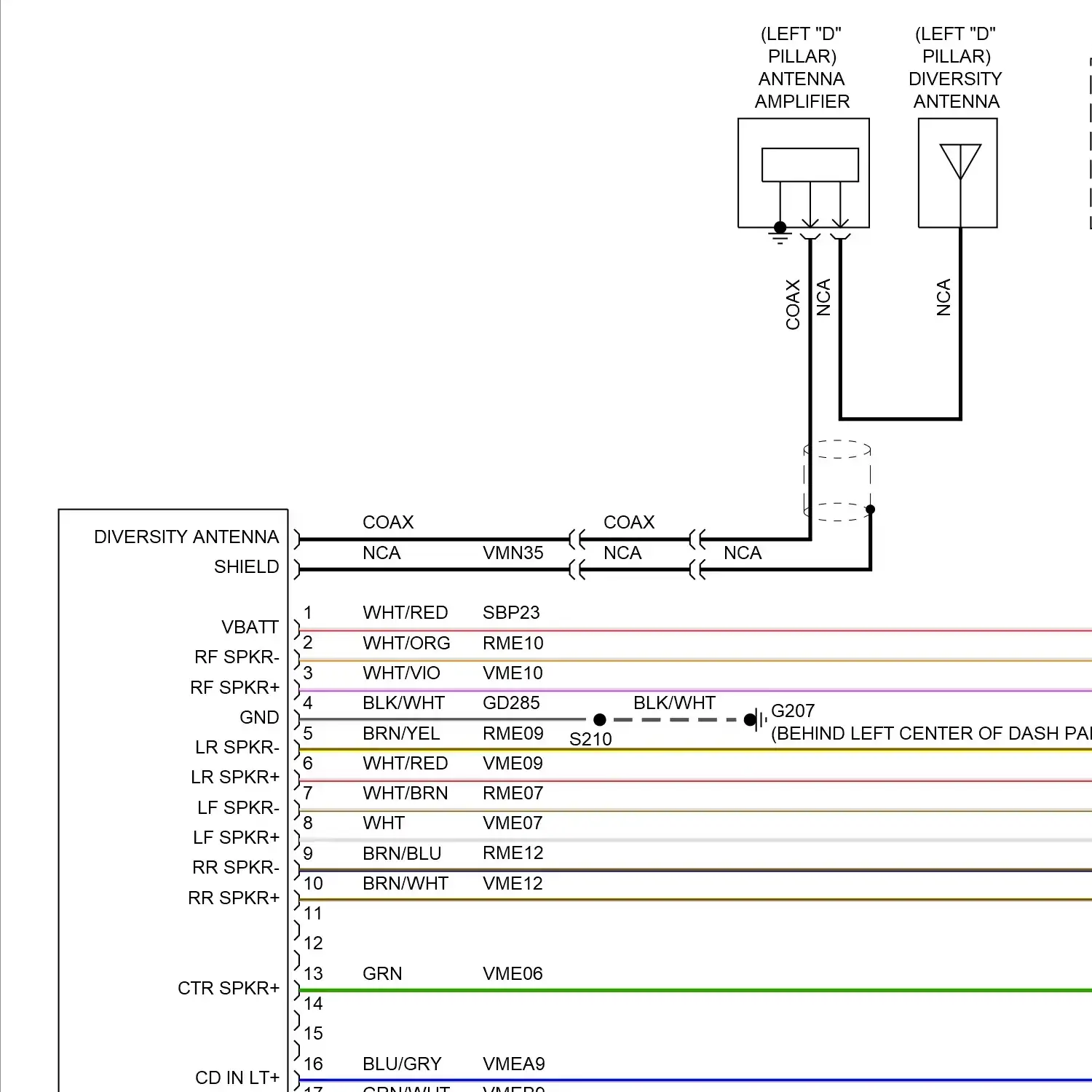

Radio circuit, w/o touch screen Radio circuit, w/ touch screen

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM DOOR LOCK DOUBLE AUXILIARY LOCK RLY DRV DOOR LOCK/ HORN RLY I/P IGNITION COIL ON PLUG 1 IGNITION COIL ON PLUG 2 IGNITION COIL ON PLUG 3 IGNITION COIL ON PLUG 4 LEFT HORN LEFT OF BATTERY) LR CHILD LOCK FEEDBACK ON BATTERY) RIGHT HORN RR CHILD LOCK FEEDBACK RR CHILD LOCK FEEDBACK LR CHILD LOCK FEEDBACK RR LOCK OUT SECURITY HORN RLY SHIFT LOCK

(RIGHT SIDE OF ENGINE BLOWER MOTOR COOLING FAN MOTOR DRIVER SIDE FRONT SEAT HEIGHT MOTOR DRIVER SIDE FRONT SEAT HORIZONTAL MOTOR DRIVER SIDE FRONT SEAT RECLINER MOTOR ENGINE CONTROLS SYSTEM FRESH/RECIRCULATION DOOR ACTUATOR LEFT FRONT DOOR WINDOW MOTOR LEFT REAR DOOR WINDOW MOTOR LOWER RIGHT FRONT OF ENGINE) PANEL/FLOOR MODE DOOR ACTUATOR REAR WINDOW WIPER MOTOR RIGHT FRONT DOOR WINDOW MOTOR RIGHT REAR DOOR WINDOW MOTOR STARTER MOTOR TAILGATE RELEASE ACTUATOR TEMPERATURE BLEND DOOR ACTUATOR TOP OF ENGINE) WASHER PUMP MOTOR WINDSHIELD WIPER MOTOR

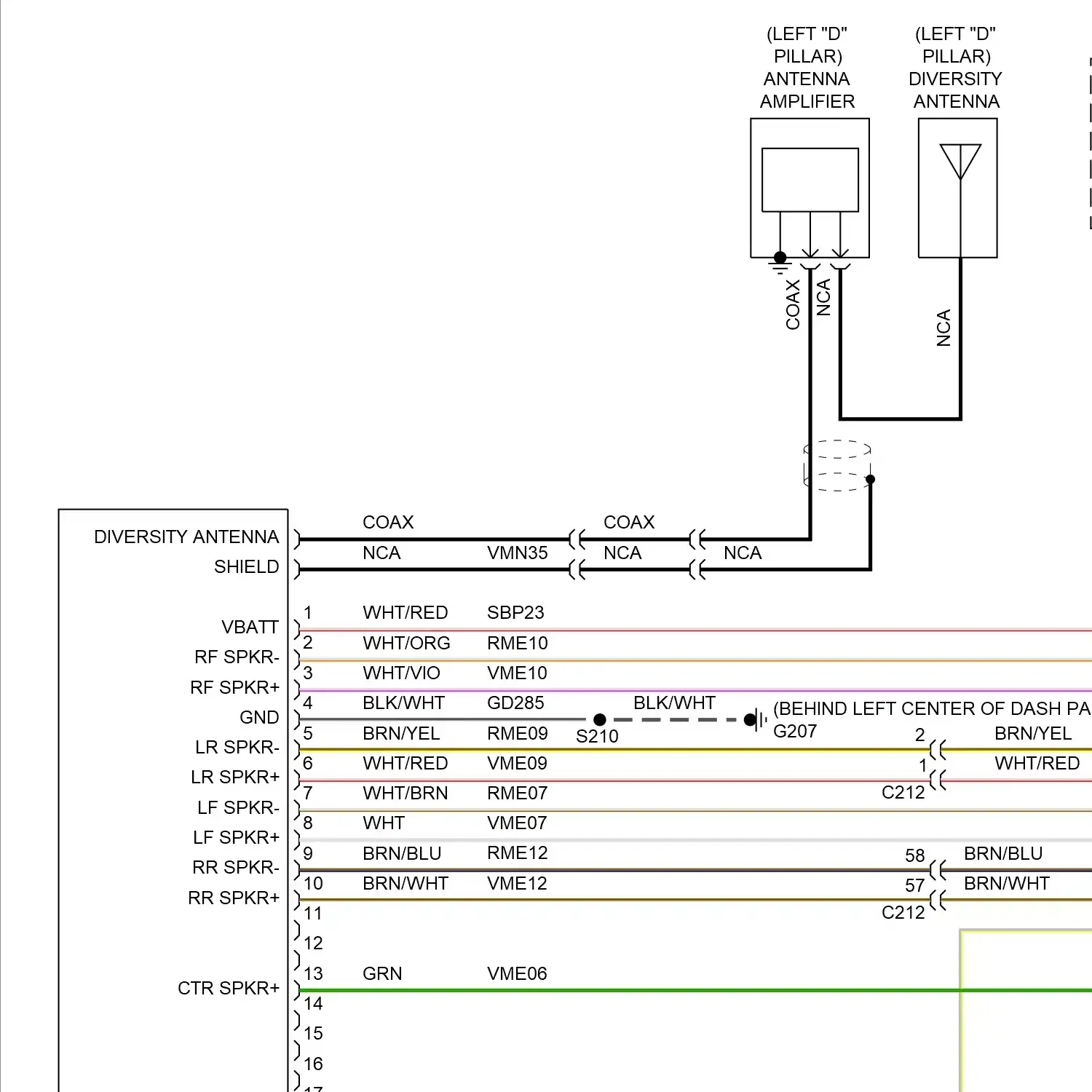

AM/FM ANTENNA AM/FM/GPS ANTENNA ANTENNA AMPLIFIER DIVERSITY ANTENNA GPS ANTENNA GPS ANTENNA 1 GPS ANTENNA 2

PUSH BUTTON START IGNITION SWITCH

REAR CAMERA CIRCUIT REAR VIEW CAMERA

FRONT POWER OUTLET SOCKET TRAILER TOW CONNECTOR

BLOWER MOTOR CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE SHIELD HVAC CONTROL MODULE

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 55 FUSE 56 FUSE 57 FUSE 58 FUSE 59 FUSE 60 FUSE 63 FUSE 64 FUSE 74 MEGA FUSE 1 MEGA FUSE 2 MEGA FUSE 3 MEGA FUSE 4 MEGA FUSE 5

DRIVER SIDE FRONT SEAT BACK HEATER DRIVER SIDE FRONT SEAT CUSHION HEATER PASSENGER SIDE FRONT SEAT BACK HEATER PASSENGER SIDE FRONT SEAT CUSHION HEATER PTC HEATER STEERING WHEEL HEATER

START STOP INDICATOR START/STOP INDICATOR

CARGO LAMP FLOOR CONSOLE CUPHOLDER AMBIENT LIGHTING LAMP FRONT INTERIOR LAMP GLOVE COMPARTMENT LAMP HIGH MOUNTED STOP LAMP INSTRUMENT CLUSTER, HEADLIGHTS, EXTERIOR LIGHTS, COMPUTER DATA LINES SYSTEMS LEFT FOOTWELL LAMP LEFT FRONT DOOR HANDLE AMBIENT LIGHTING LAMP LEFT FRONT DOOR MAP POCKET AMBIENT LIGHTING LAMP LEFT FRONT FOG LAMP LEFT FRONT TURN LAMP LEFT LICENSE PLATE LAMP LEFT REAR LAMP ASSEMBLY LEFT REVERSING LAMP LEFT VANITY MIRROR LAMP REAR INTERIOR LAMP RIGHT FOOTWELL LAMP RIGHT FRONT DOOR HANDLE AMBIENT LIGHTING LAMP RIGHT FRONT DOOR MAP POCKET AMBIENT LIGHTING LAMP RIGHT FRONT FOG LAMP RIGHT FRONT TURN LAMP RIGHT LICENSE PLATE LAMP RIGHT REAR LAMP ASSEMBLY RIGHT REVERSING LAMP RIGHT VANITY MIRROR LAMP

AUXILIARY COOLANT PUMP CABIN HEATER COOLANT PUMP FUEL INJECTION PUMP FUEL PUMP ASSEMBLY TRANSMISSION FLUID PUMP TRANSMISSION FLUID PUMP TRANSMISSION ASSEMBLY VARIABLE OIL PUMP

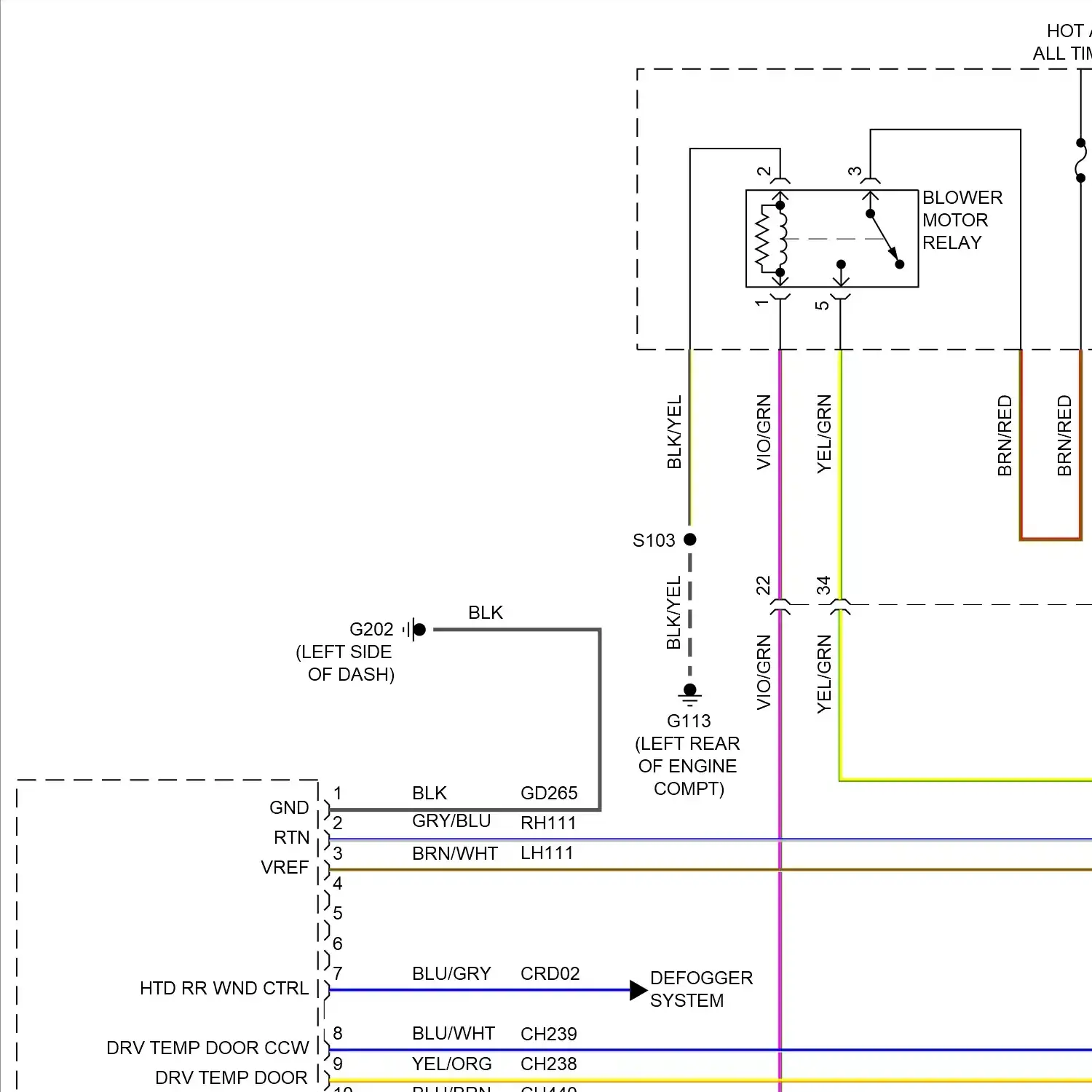

A/C CLUTCH RELAY ACCESSORY DELAY RELAY BLOWER MOTOR RELAY CENTRAL LOCK RELAY CENTRAL UNLOCK RELAY CHARGE AIR COOLING FAN RELAY CHILD LOCK RELAY COOLING FAN RELAY 1 COOLING FAN RELAY 2 DEMAND LP/ BATT SAVE RELAY DOUBLE/ AUXILIARY LOCK RELAY DRIVER UNLOCK RELAY FUEL PUMP RELAY HEATED REAR WINDOW RELAY HEATED WINDSHIELD RELAY HORN RELAY HORN RELAY I/P HOT W/ ACCESSORY DELAY RELAY ENERGIZED HOT W/ PCM RELAY ENERGIZED HOT W/ RUN/ START RELAY ENERGIZED HOT W/ RUN/START RELAY ENERGIZED PCM RELAY POWER POINT RELAY 1 PTC HEATER RELAY 1 PTC HEATER RELAY 2 REAR WASHER RELAY RUN/ START RELAY STARTER RELAY WIPER RELAY

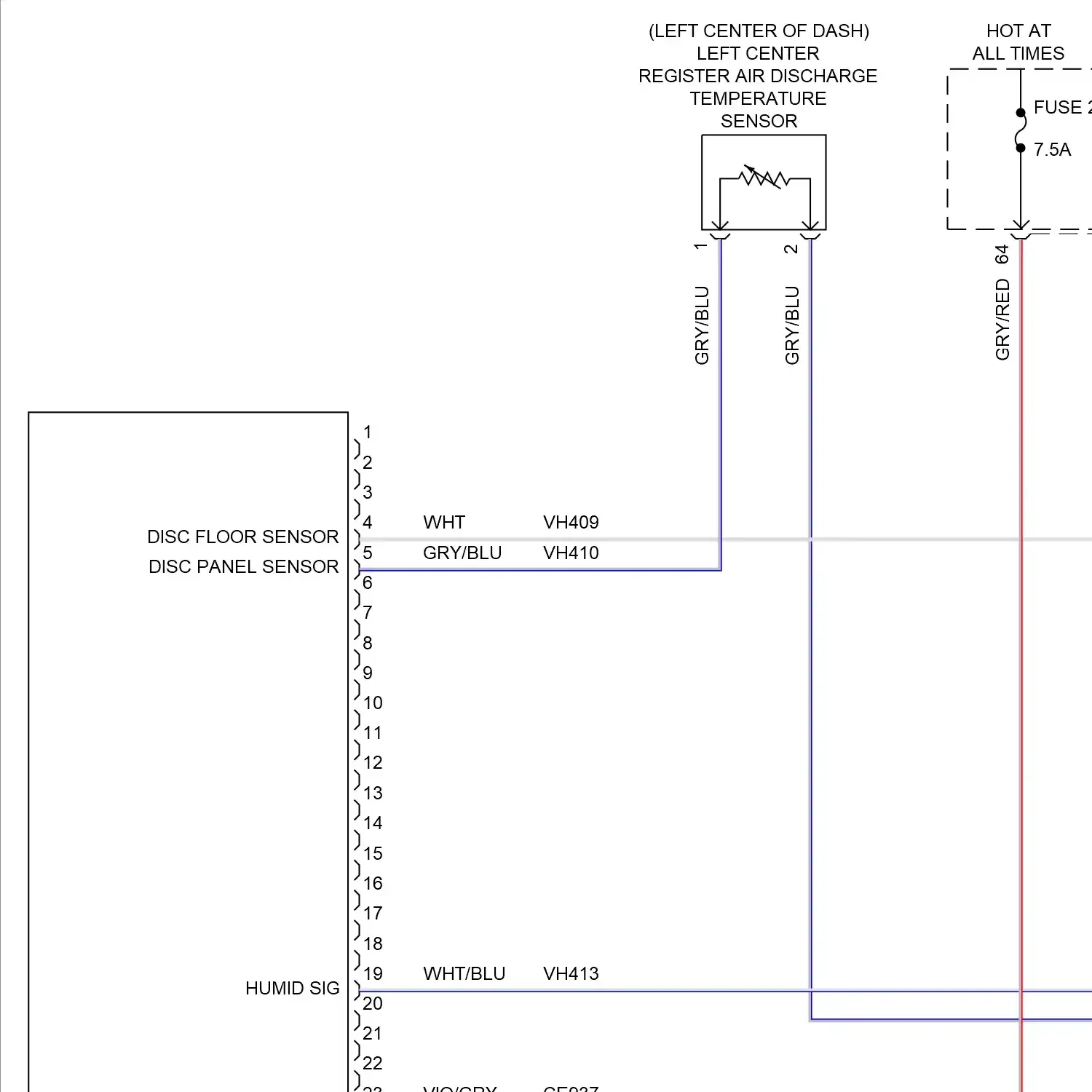

AUTOLAMP SENSOR AUTOLAMP/ SUNLOAD SENSOR BATTERY MONITORING SENSOR BRAKE BOOSTER VACUUM SENSOR DISC FLOOR SENSOR DISC PANEL R SENSOR DISC PANEL SENSOR DRIVER SIDE FRONT SEAT TRACK POSITION SENSOR EVAPORATOR TEMPERATURE SENSOR IN-VEHICLE TEMPERATURE/ HUMIDITY SENSOR INTRUSION SENSOR MODULE LEFT CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR LEFT FRONT DOOR IMPACT SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE SECOND ROW IMPACT SENSOR PASSENGER SIDE FRONT SEAT TRACK POSITION SENSOR RAIN SENSOR MODULE REAR SENSOR GND REAR SENSOR PWR RIGHT CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR RIGHT FRONT DOOR IMPACT SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE SECOND ROW IMPACT SENSOR RIL SENSOR RIR SENSOR ROL SENSOR ROR SENSOR

INSTRUMENT PANEL CENTER SPEAKER LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER

BRAKE FLUID LEVEL SWITCH DOWNSHIFT PADDLE SWITCH DRIVER DOOR WINDOW SWITCH DRIVER SIDE FRONT SAFETY BELT BUCKLE SWITCH DRIVER SIDE FRONT SEAT CONTROL SWITCH HAZARD FLASHER SWITCH HEADLAMP SWITCH HEATED STEERING WHEEL SWITCH HOOD AJAR SWITCH HORN SWITCH IGNITION SWITCH KEY-IN IGNITION SWITCH LEFT FRONT DOOR LOCK SWITCH LEFT REAR DOOR WINDOW SWITCH LEFT STEERING WHEEL SWITCH MULTI- FUNCTION SWITCH PARK DETECT SWITCH PARKING BRAKE SWITCH PASSENGER DOOR WINDOW SWITCH PASSENGER SIDE FRONT SAFETY BELT BUCKLE SWITCH RIGHT FRONT DOOR LOCK SWITCH RIGHT REAR DOOR WINDOW SWITCH RIGHT STEERING WHEEL SWITCH ROOF OPENING PANEL SWITCH START STOP DISABLE SWITCH START/STOP DISABLE SWITCH STOP LAMP SWITCH TAILGATE SWITCH UPSHIFT PADDLE SWITCH

TRANSMISSION FLUID HEATER COOLANT CONTROL VALVE TURBOCHARGER BYPASS VALVE) VALVE B+

BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/WHT WIRE RED WIRE RUN WIRE TAN WIRE VIO WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE

1.0L TURBO 2.0L 2.0L 49 50 PASS PRETENSIONER FEED 68 69 HS CAN - (NOT A/D CHANNEL 1 A/D CHANNEL 2 AC OUTLET AC-A AC-B ACTIVE GRILLE SHUTTER AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM AUDIO ENABLE AUTO DIMMING INTERIOR MIRROR AUTOLAMP ON AUTOLAMP SENS CAN SIG AUTOLAMP SENS RTN AUTOLAMP SENS SIG AUTOMATIC A/C AUXILIARY POWER OUTLET AWDC INPUT AWDM OUTPUT AWDR PWR AWDR RTN BLIS IND BLOWER MTR RLY BRAKE LVL SW BRK LEVEL BRK LEVEL SW BUCKLE SIG CANISTER VENT CASE GROUND CC OFF CC ON CC ON/OFF CD IN LT- CD IN RT- CD OUT LT+ CD OUT RT+ CHAS GND CIRCUIT BREAKER 1 COMPACT DISC PLAYER COMPUTER DATA COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM CTR SPKR+ DC/AC INVERTER MODULE DEFOGGER SYSTEM DEMAND LP/BATT SAVE RLY DIAG RPT DIM + DISABLE SW DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, POWER DISTRIBUTION, POWER TOPS SYSTEMS DRIVER AIR BAG DRIVER KNEE AIR BAG DRIVER SIDE AIR BAG DRIVER SIDE AIR CURTAIN MODULE DRIVER SIDE SECOND ROW AIR BAG DRL GND DRV AIR BAG 1 FEED DRV AIR BAG 1 RTN DRV AIR BAG 2 FEED DRV AIR BAG 2 RTN DRV ANC PRETENSIONER FEED DRV ANC PRETENSIONER RTN DRV BUCKLE SIG DRV CURTAIN AIR FEED DRV CURTAIN AIR RTN DRV DOOR SIDE IMPACT SENS 1 FEED DRV DOOR SIDE IMPACT SENS 1 RTN DRV DOOR SIDE IMPACT SENS 2 FEED DRV DOOR SIDE IMPACT SENS 2 RTN DRV DOOR UNLOCK DRV HEAT DRV HEAT SEAT NTC + DRV HEAT SEAT PWR DRV KNEE AIR FEED DRV KNEE AIR RTN DRV PRETENSIONER FEED 53 54 RTN DRV PRETENSIONER RTN DRV SIDE AIR 2 FEED DRV SIDE AIR 2 RTN DRV SIDE AIR FEED DRV SIDE AIR RTN DRV TEMP DOOR CCW DRV TEMP DOOR CW DRV TEMP DOOR FEEDBACK DRV TRACK POSITION SIG EATC EMTC ETCRTN TSS/OSS /TR GND EVAP TEMP INPUT EXTENDED POWER MODULE FC HIGH FC LOW FORWARD /BACK FP PWR FP RTN FRONT FOG FRONT POWER OUTLET FRT WASH FRT WIPER HI FRT WIPER LIN FUEL FILLER DOOR RELEASE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL LEVEL FVRC- GATEWAY MODULE GEAR SHIFT LEVER GNSS ANT SIG GPS 1 GPS 2 GSM ANT RTN GSM ANT SIG H/L ON HALF BRIDGE HALL GND HALL PWR HALL SENS 1 - HALL SENS 2 HB GND HEAD/PARK LAMPS OFF HEADLIGHTS SYSTEM HEATED REAR WINDOW ELEMENT HEATED WINDSHIELD HEATED WIPER PARK HI BEAM HOOD AJAR HORNS SYSTEM HOT AT ALL TIMES HS 1 CAN + HS CAN+ HTD RR WINDOW CTRL HTD RR WND CTRL HTD WHL FD HTD WHL RTN HTD WINDSHIELD CTRL HUMID SIG HVAC MODULE IN CAR TEMP SIG IND OFF IND ON INJ 1 INJ 1 RTN INJ 2 INJ 2 RTN INJ 3 INJ 3 RTN INJ 4 INJ 4 RTN INTERCOOLER FAN KEY IN LAMPS OFF LAMPS ON LB/PL GND LEFT "C" PILLAR) LEFT A/D CHANNEL LEFT EXTERIOR MIRROR LEFT FRONT DOOR LATCH LEFT FRONT DOOR TWEETER LEFT FRONT EXTERIOR DOOR HANDLE LEFT FRONT IMPACT SENS FEED LEFT FRONT IMPACT SENS RTN LEFT FRONT SAFETY BELT ANCHOR, PRETENSIONER LEFT FRONT TWEETER LEFT HEADLAMP ASSEMBLY LEFT QUARTERPANEL) LEFT REAR DOOR LATCH LEFT SAFETY BELT RETRACTOR PRETENSIONER LEFT SW GND LEFT TURN/STOP LF DOOR AJAR LF SENS HI LF SENS LO LF SPKR LH MIRR LH/RH LH MIRR UP/DOWN LH SUNLOAD SIG LIN 1 LIN 2 LIN 04 LIN 6 LINES SYSTEM LMPS OFF LO BEAM LOW BEAM LOW BEAM REQ LR DOOR AJAR LR DOWN LR SENS HI LR SENS LO LR SPKR LR UP MA CAN- MANUAL A/C MANUAL A/C AUTOMATIC A/C MEDIA HUB MIC - MICRO - MIRRORS SYSTEM MODE DOOR 1 CCW MODE DOOR 1 CW MODE DOOR 1 FEEDBACK MS CAN + MS CAN + VBATT MTR B MTR CTRL MULTI- FUNCTION NAVIGATION SYSTEM NOT USED NOT USED OCS OUT OPEN CLOSE OSS + OSS/TR GND OSS/TR PWR OSS/TR VPWR PARK BRAKE SW PARK BRK PARK DETECT PARK LAMPS PARK LAMPS ON PARK LMPS ON PASS AIR BAG 1 FEED PASS AIR BAG 1 RTN PASS ANC PRETENSIONER FEED PASS ANC PRETENSIONER RTN PASS BUCKLE SIG PASS CURTAIN AIR FEED PASS CURTAIN AIR RTN PASS DOOR SIDE IMPACT SENS 1 FEED PASS DOOR SIDE IMPACT SENS 1 RTN PASS DOOR SIDE IMPACT SENS 2 FEED PASS DOOR SIDE IMPACT SENS 2 RTN PASS FRONT STG 2 FEED PASS FRONT STG 2 RTN PASS HEAT SEAT NTC + PASS HEAT SEAT PWR PASS KNEE AIR FEED PASS KNEE AIR RTN PASS PRETENSIONER FEED PASS PRETENSIONER RTN PASS ROW 1 CAN VENT 1 FEED PASS SIDE AIR 2 FEED PASS SIDE AIR 2 RTN PASS SIDE AIR FEED PASS SIDE AIR RTN PASS TRACK POSITION SIG PASSENGER ADAPTIVE AIR BAG PASSENGER KNEE AIR BAG PASSENGER SIDE AIR BAG PASSENGER SIDE AIR CURTAIN MODULE PASSENGER SIDE SECOND ROW AIR BAG PCM WAKE POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PTC 1 CTRL PTC 2 CTRL PWR GND RCM OUT REAR VIDEO - RECIRC DOOR CCW RECIRC DOOR CW RECIRC DOOR FDBK REQ+ RES+ RF DOOR AJAR RF DOWN RF SENS HI RF SENS LO RF SPKR RF UP RH MIRR LH/RH RH MIRR UP/DOWN RH SUNLOAD SIG RIGHT EXTERIOR MIRROR RIGHT FRONT DOOR LATCH RIGHT FRONT DOOR TWEETER RIGHT FRONT EXTERIOR DOOR HANDLE RIGHT FRONT IMPACT SENS FEED RIGHT FRONT IMPACT SENS RTN RIGHT FRONT SAFETY BELT ANCHOR, PRETENSIONER RIGHT FRONT TWEETER RIGHT HEADLAMP ASSEMBLY RIGHT REAR DOOR LATCH RIGHT SAFETY BELT PRETENSIONER RIGHT SAFETY BELT RETRACTOR PRETENSIONER RIGHT TURN/STOP ROOF OPENING PANEL MODULE RR DOOR AJAR RR DOWN RR SENS HI RR SENS LO RR SPKR RR UP RR WASH RR WIPER RTN SST+ SDL H SDL L SEAT NTC + SEATS SYSTEM SET- SHIFT INTERLOCK SYSTEM SHORTING BAR SHORTING BAR SHORTING BAR SIG GND SIG RTN SOLID STATE SOUND SYSTEMS SPD COM SS DIS SW SS IND SSI+ SST DOWN SST RTN SST UP SST+ STAGE 1 STAGE 2 START STOP START STOP IND START/ STOP 1 START/ STOP 2 START/STOP 1 START/STOP 2 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STARTING/CHARGING SYSTEM SHIFT INTERLOCK SYSTEM STEREO L+ STEREO R+ STOP 1 STOP 2 SUPPLEMENTAL RESTRAINTS SYSTEM SW AUDIO+ SW GND RT SW RTN SYNC ALERT - TACM+ TAILGATE AJAR TAILGATE LATCH TAILGATE RELEASE HANDLE TCS SW TFT SIG RTN TMAP + TP NS TP PS TR GND TR-P TR-P TSS/OSS/ TR VPWR TRAILER TOW MODULE TRANSMISSION ASSEMBLY TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TSS GND TSS VPWR TSS/OSS TR VPWR TSS/OSS/ TR GND TSS/OSS/TR GND TSS/OSS/TR VPWR USED) V BATT VACUUM PWR VACUUM RETURN VACUUM SIGNAL VEH SPD VIDEO+ W/ ADJUSTABLE SPEED LIMITER W/O ADJUSTABLE SPEED LIMITER W/ CHILD LOCKOUT W/ CRUISE CONTROL W/ HARMAN W/ HEATED MIRRORS W/ HEATED STEERING WHEEL W/ HEATED WINDSHIELD W/O HEATED WINDSHIELD W/ ONE TOUCH W/ OVERHEAD CONSOLE W/ POWER SEAT W/ ROOF OPENING W/ START/ STOP W/ START/STOP W/ SUBMARINE LIGHTING W/ TIRE CARRIER W/ TIRE CARRIER W/O TIRE CARRIER W/ TOUCH SCREEN W/O BLIS W/O BLIS W/ BLIS W/O CHILD LOCKOUT W/O CRUISE CONTROL W/O ELECTROCHROMATIC MIRROR W/ ELECTROCHROMATIC MIRROR W/O FOG LAMPS W/ FOG LAMPS W/O HARMAN W/O HEATED MIRRORS W/O ONE TOUCH W/O OVERHEAD CONSOLE W/O ROOF OPENING W/O TIRE CARRIER W/O TOUCH SCREEN WIPER REDUN WIPER/WASHER SYSTEM
