Ford Econoline E150 (1997-2012) instrument cluster left headlamp Wiring diagram
This page shows the only wiring diagram for the component.instrument cluster left headlamp, which is found in the car Ford Econoline E150 (1997-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

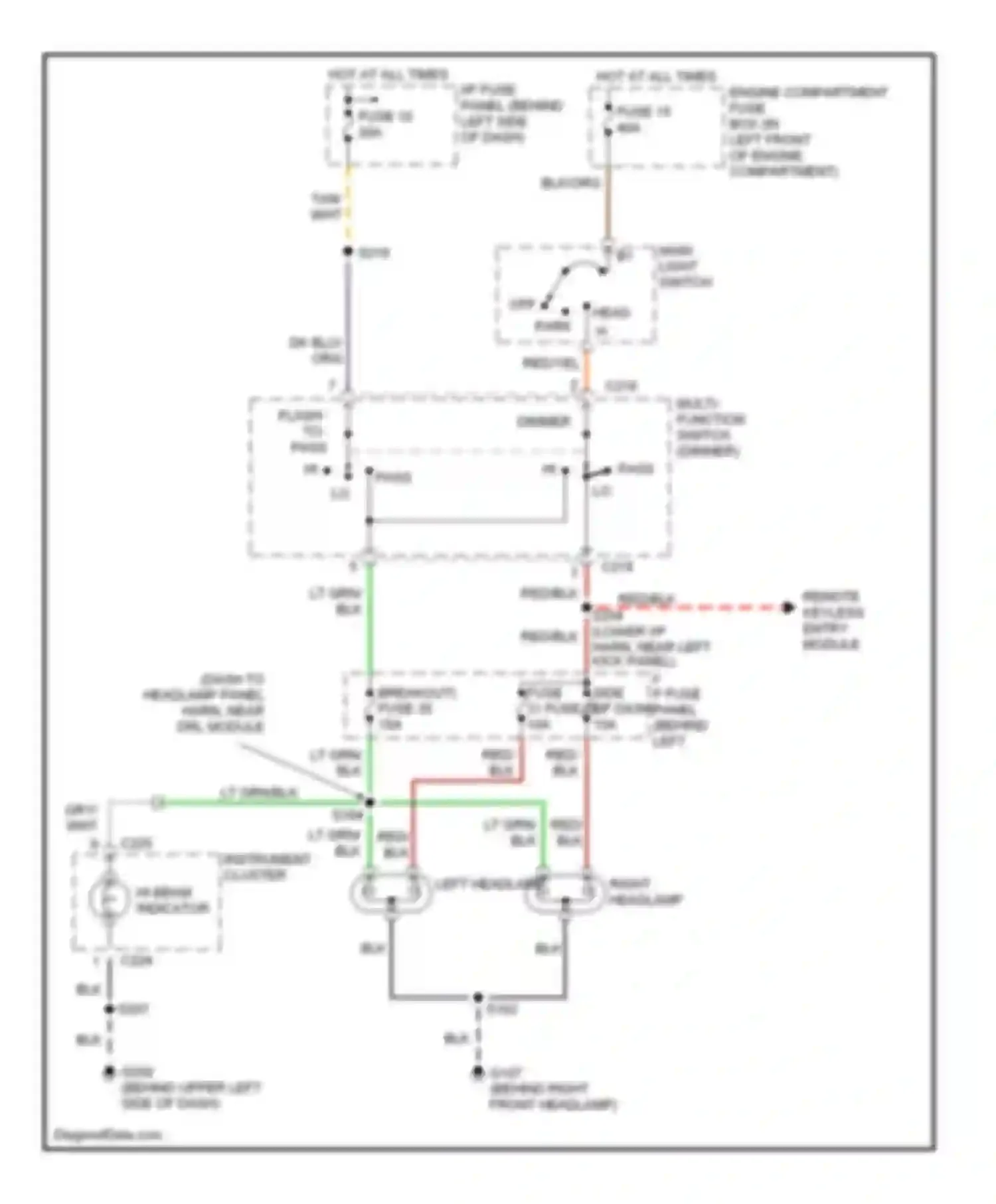

Wiring diagram instrument cluster left headlamp (1 of 1)
BLK WIRE
BLK/ORG WIRE
DK BLU WIRE
ENGINE COMPARTMENT FUSE BOX (IN LEFT FRONT OF ENGINE COMPARTMENT)
FLASH TO PASS
FUSE 10
FUSE 15
GRY WIRE
HEAD PARK
HI BEAM INDICATOR
HI PASS LO
HOT AT ALL TIMES
I/P FUSE PANEL (BEHIND LEFT SIDE OF DASH)
I/P FUSE PANEL (BEHIND LEFT SIDE OF DASH) FUSE 31 FUSE 25
INSTRUMENT CLUSTER LEFT HEADLAMP
LT GRN WIRE
LT GRN/BLK WIRE
MAIN LIGHT SWITCH
MULTI- FUNCTION SWITCH (DIMMER) DIMMER
OFF
ORG/ WIRE
RED WIRE
RED/BLK WIRE
RED/YEL WIRE
REMOTE KEYLESS ENTRY MODULE
RIGHT HEADLAMP
TAN WIRE
WHT WIRE
Go to component -> Headlight circuit, without drl -> INSTRUMENT CLUSTER LEFT HEADLAMP
