Ford Econoline E150 (1997-2012) high mounted stop/ cargo lamp Wiring diagrams

ALL VEHICLES EXCEPT CUTAWAY, CHATEAU WAGON ANTI-THEFT SYSTEM BLK WIRE BLK/LT BLU WIRE CARGO LAMP CHATEAU WAGON DK BLU WIRE HIGH MOUNTED STOP/ CARGO LAMP INTERIOR LAMP INTERIOR SWITCH/ LAMP INTERIOR/MAP SWITCH AND LAMP LEFT LEFT VISOR LAMP LT BLU WIRE LT GRN WIRE LT GRN/YEL WIRE NCA WIRE OFF OFF ON ORG/ WIRE REAR COURTESY LAMP SWITCH REAR INTERIOR MAP SWITCH AND LAMP RIGHT RIGHT VISOR LAMP VANS VANS/ WAGONS ONLY WAGONS YEL WIRE

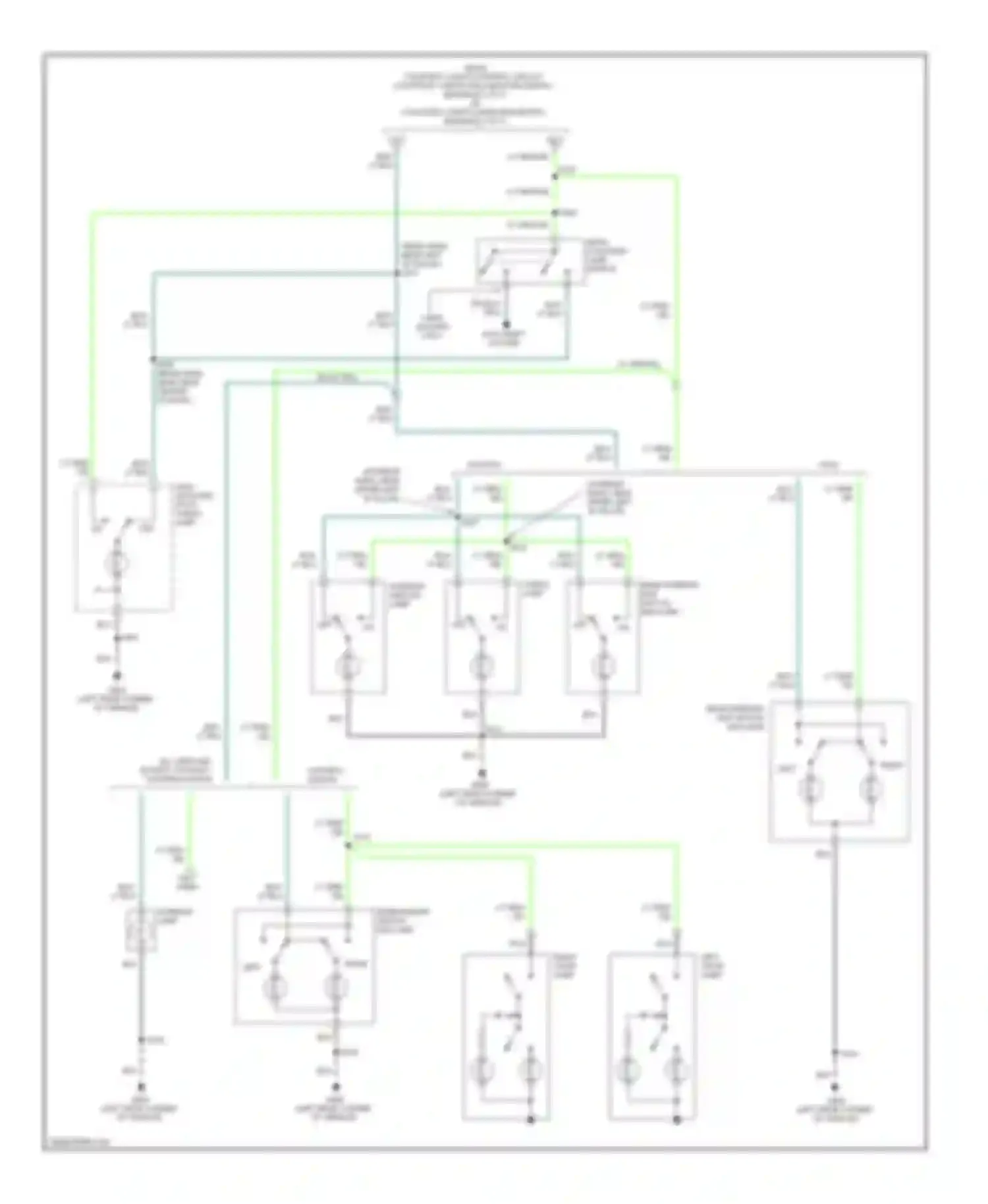

BLK WIRE BLK/LT BLU WIRE CARGO LAMP FROM COURTESY LIGHTS CONTROL CIRCUIT (DIAGRAM 1 OF 2) HIGH MOUNTED STOP/ CARGO LAMP INTERIOR SWITCH/ LAMP (W/ AUX A/C) INTERIOR/MAP SWITCH, LAMP LEFT LEFT VISOR LAMP LT BLU WIRE LT GRN WIRE LT GRN/YEL WIRE NCA WIRE OFF OFF ON REAR COURTESY LAMP SWITCH REAR INTERIOR/ MAP SWITCH, LAMP RIGHT RIGHT VISOR LAMP VANS WAGONS YEL WIRE

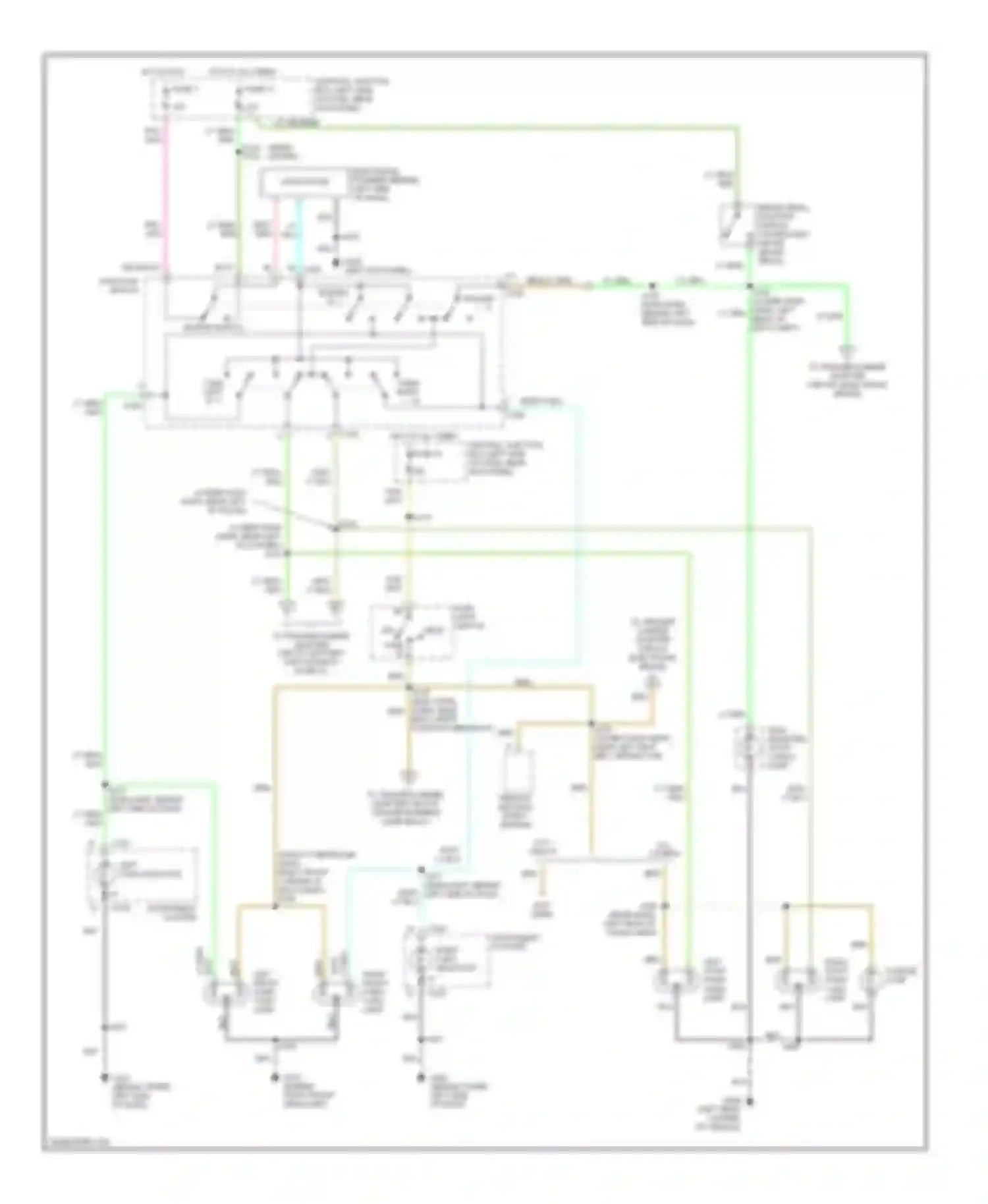

ALL OTHERS BLK WIRE BLU WIRE BRAKE PEDAL POSITION SWITCH (ON BRACKET ABOVE BRAKE PEDAL) BRN WIRE CENTRAL JUNCTION BOX LEFT SIDE OF DASH, NEAR KICK PANEL) CUT- AWAYS ELECTRONIC FLASHER (BEHIND LEFT SIDE OF DASH) FUSE 10 FUSE 11 FUSE 7 HAZARD HAZARD SWITCH HEAD OFF HIGH MOUNTED STOP/ CARGO LAMP HOT AT ALL TIMES HOT IN RUN IGN MULTI- FUNCTION SWITCH INSTRUMENT CLUSTER INSTRUMENT CLUSTER RIGHT TURN INDICATOR LEFT FRONT PARK/ TURN LAMP LEFT STOP/ PARK/ TURN LAMP LEFT TURN INDICATOR LICENSE LAMP LT BLU WIRE LT BLU/ WHT WIRE LT GRN WIRE LT GRN/RED WIRE MAIN LIGHT SWITCH NORMAL ORG/ WIRE PARK PPL RED WIRE RED/LT GRN WIRE RIGHT FRONT PARK/ TURN LAMP RIGHT STOP/ PARK/ TURN LAMP SOLID STATE TAN WIRE TO TRAILER/ CAMPER ADAPTER CIRCUIT (ELECTRONIC BRAKE) TO TRAILER/CAMPER ADAPTER CIRCUIT (BATTERY JUNCTION BOX) (FUSES 5, 6) TO TRAILER/CAMPER ADAPTER CIRCUIT (ELECTRONIC BRAKE) TURN LEFT TURN RIGHT WHT LT GRN/ WIRE WHT WIRE WHT/LT BLU WIRE
