Ford Econoline E150 (1997-2012) fasten safety belt ind Wiring diagram
This page shows the only wiring diagram for the component.fasten safety belt ind, which is found in the car Ford Econoline E150 (1997-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

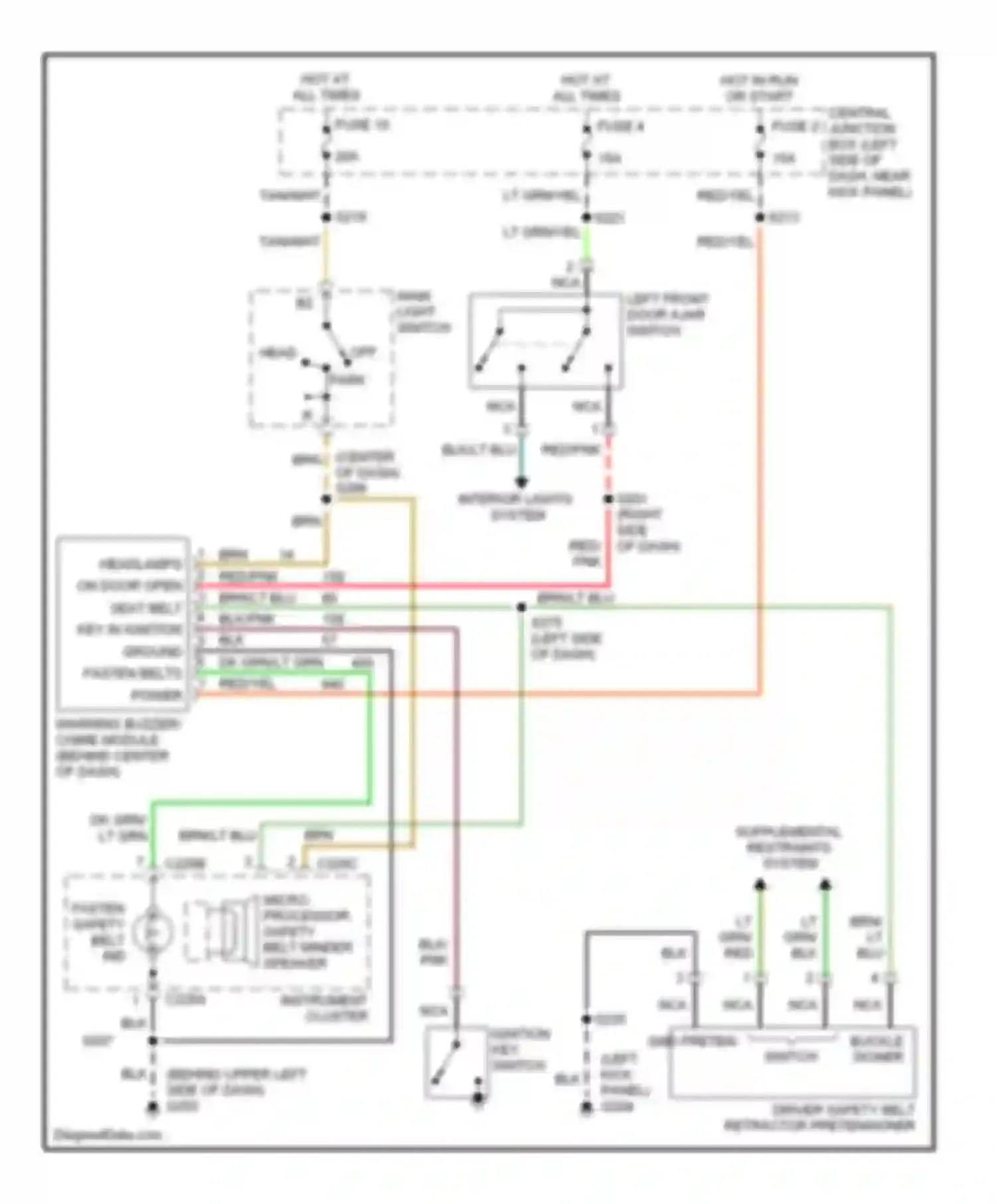

Wiring diagram fasten safety belt ind (1 of 1)
BLK WIRE
BLK/LT BLU WIRE
BLK/PNK WIRE
BLU WIRE
BRN WIRE
BRN/LT BLU WIRE
BUCKLE GND PRETEN- SWITCH SIONER
CENTRAL JUNCTION BOX LEFT SIDE OF DASH, NEAR KICK PANEL)
DK GRN WIRE
DK GRN/LT GRN WIRE
DRIVER SAFETY BELT RETRACTOR PRETENSIONER
FASTEN SAFETY BELT IND
FUSE 10
FUSE 2
FUSE 4
GRN WIRE
HEAD
HEADLAMPS ON DOOR OPEN SEAT BELT KEY IN IGNITION GROUND FASTEN BELTS POWER
HOT AT ALL TIMES
HOT IN RUN OR START
IGNITION KEY SWITCH
INSTRUMENT CLUSTER
LEFT FRONT DOOR AJAR SWITCH
LT GRN WIRE
LT GRN/YEL WIRE
LT LT LT
MAIN LIGHT SWITCH
MICRO- PROCESSOR, SAFETY BELT MINDER SPEAKER
NCA WIRE
OFF
PARK
PNK WIRE
RED WIRE
RED/PNK WIRE
RED/YEL WIRE
SUPPLEMENTAL RESTRAINTS SYSTEM
TAN/WHT WIRE
WARNING BUZZER/ CHIME MODULE (BEHIND CENTER OF DASH)
Go to component -> Warning system circuits -> FASTEN SAFETY BELT IND
