Ford Club Wagon E350 (1996-1998) charge indicator Wiring diagrams
This page contains all the electrical diagrams for the component. charge indicator, in which he is found in the car Ford Club Wagon E350 (1996-1998). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

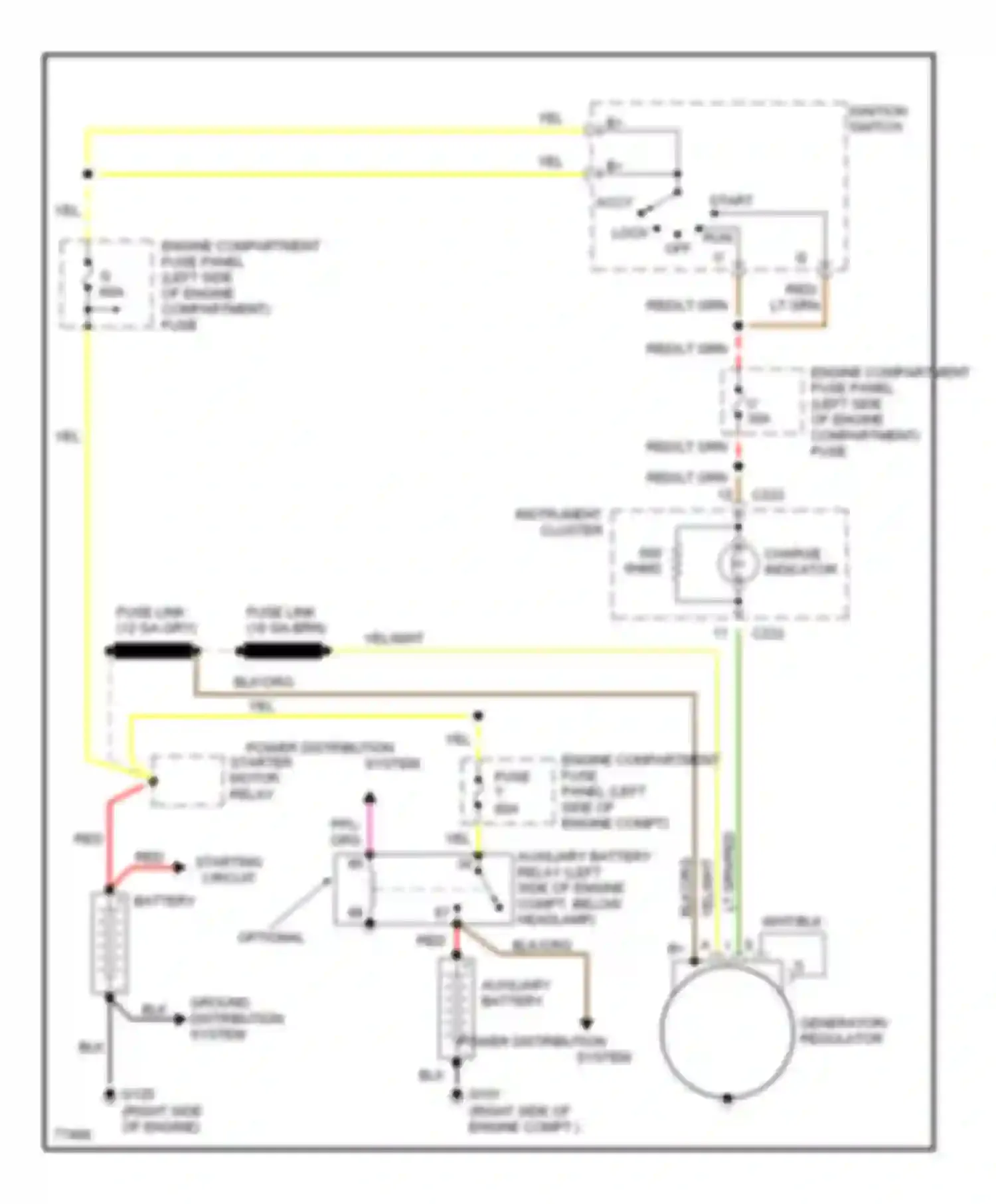

Wiring diagram charge indicator (1 of 11)
ACCY
AUXILIARY BATTERY
AUXILIARY BATTERY RELAY (LEFT SIDE OF ENGINE COMPT, BELOW HEADLAMP)
BATTERY
BLK WIRE
BLK/ORG WIRE
CHARGE INDICATOR
CLUSTER
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPARTMENT) FUSE
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPT) FUSE
FUSE LINK A
FUSE LINK B
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
IGNITION SWITCH
INSTRUMENT
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
OPTIONAL
ORG/ WIRE
POWER DISTRIBUTION SYSTEM
PPL
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTER MOTOR RELAY
STARTING CIRCUIT
WHT/BLK WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> 4.9l, charging circuit -> CHARGE INDICATOR
Wiring diagram charge indicator (2 of 11)
ACCY
B+ B-
BLK WIRE
BLK/ORG WIRE
BRN WIRE
CHARGE INDICATOR
ENGINE COMPART- MENT FUSE BOX
ENGINE COMPARTMENT BATTERY
FUSE 23
FUSE LINK A (12 GA-
FUSE LINK B (12 GA-
FUSE LINK C 18 GA-
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
GRY WIRE
I/P FUSE PANEL FUSE 14
IGNITION SWITCH
INSTRUMENT CLUSTER
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
ORG/ WIRE
ORG/LT BLU WIRE
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTING CIRCUIT
WHT/BLK WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> 5.4l, charging circuit -> CHARGE INDICATOR
Wiring diagram charge indicator (3 of 11)
ACCY
B+ B-
BLK WIRE
BLK/ORG WIRE
BRN WIRE
CHARGE INDICATOR
ENGINE COMPART- MENT FUSE BOX
ENGINE COMPARTMENT BATTERY
FUSE 23
FUSE LINK A (12 GA-
FUSE LINK B (12 GA-
FUSE LINK C 18 GA-
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
GRY WIRE
I/P FUSE PANEL FUSE 14
IGNITION SWITCH
INSTRUMENT CLUSTER
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
ORG/ WIRE
ORG/LT BLU WIRE
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTING CIRCUIT
WHT/BLK WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> 5.4l cng, charging circuit -> CHARGE INDICATOR
Wiring diagram charge indicator (4 of 11)
ACCY
AUXILIARY BATTERY
AUXILIARY BATTERY RELAY (LEFT SIDE OF ENGINE COMPT, BELOW HEADLAMP)
BATTERY
BLK WIRE
BLK/ORG WIRE
CHARGE INDICATOR
CLUSTER
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPARTMENT) FUSE
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPT) FUSE
FUSE LINK A
FUSE LINK B
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
IGNITION SWITCH
INSTRUMENT
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
OPTIONAL
ORG/ WIRE
POWER DISTRIBUTION SYSTEM
PPL
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTER MOTOR RELAY
STARTING CIRCUIT
WHT/BLK WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> 5.8l, charging circuit -> CHARGE INDICATOR
Wiring diagram charge indicator (5 of 11)
ACCY
B+ B-
BLK WIRE
BLK/ORG WIRE
BRN WIRE
CHARGE INDICATOR
ENGINE COMPART- MENT FUSE BOX
ENGINE COMPARTMENT BATTERY
FUSE 23
FUSE LINK A (12 GA-
FUSE LINK B (12 GA-
FUSE LINK C 18 GA-
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
GRY WIRE
I/P FUSE PANEL FUSE 14
IGNITION SWITCH
INSTRUMENT CLUSTER
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
ORG/ WIRE
ORG/LT BLU WIRE
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTING CIRCUIT
WHT/BLK WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> 6.8l, charging circuit -> CHARGE INDICATOR
Wiring diagram charge indicator (6 of 11)
ACCY
B+ B-
BLK WIRE
BLK/ORG WIRE
CHARGE INDICATOR
ENGINE COMPART- MENT FUSE PANEL FUSE 26
ENGINE COMPARTMENT BATTERY
FRAME BATTERY
FUSE 23
FUSE LINK A (12 GA-
FUSE LINK B (12 GA-
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
GRY WIRE
HOT AT ALL TIMES
I/P FUSE PANEL FUSE 14
IGNITION SWITCH
INSTRUMENT CLUSTER
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
ORG/ WIRE
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTING CIRCUIT
WHT WIRE
WHT/BLK WIRE
WHT/YEL WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> 7.3l di turbo diesel, charging circuit -> CHARGE INDICATOR
Wiring diagram charge indicator (7 of 11)
ACCY
B+ B-
BLK WIRE
CHARGE INDICATOR
ENGINE COMPART- MENT FUSE BOX FUSE 26
ENGINE COMPARTMENT BATTERY
FRAME BATTERY
FUSE 23
FUSE LINK A (12 GA-
FUSE LINK B (12 GA-
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
GRY WIRE
HOT AT ALL TIMES
I/P FUSE PANEL FUSE 14
IGNITION SWITCH
INSTRUMENT CLUSTER
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
ORG/LT BLU WIRE
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTING CIRCUIT
WHT/YEL WIRE
YEL WIRE
Go to component -> 7.3l di turbo diesel, charging circuit, 215 amp -> CHARGE INDICATOR

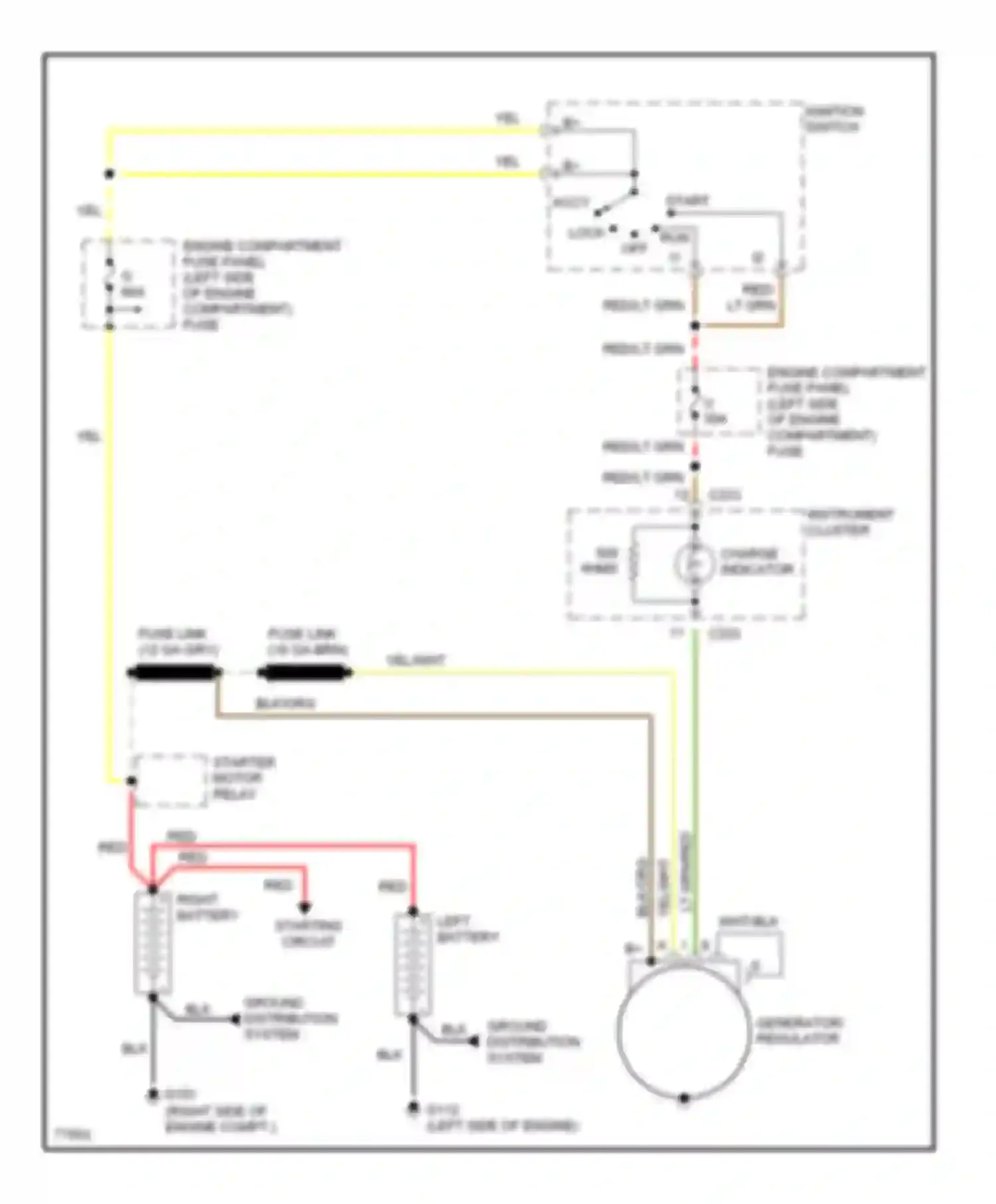

Wiring diagram charge indicator (8 of 11)
ACCY
BLK WIRE
BLK/ORG WIRE
CHARGE INDICATOR
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPARTMENT) FUSE
FUSE LINK A
FUSE LINK B
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
IGNITION SWITCH
INSTRUMENT CLUSTER
LEFT BATTERY
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
RED WIRE
RED/LT GRN WIRE
RIGHT BATTERY
RUN WIRE
STARTER MOTOR RELAY
STARTING CIRCUIT
WHT/BLK WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> 7.3l di turbo diesel, charging circuit, with 3 g generator -> CHARGE INDICATOR
Wiring diagram charge indicator (9 of 11)
ACCY
B+ B-
BLK WIRE
BLK/ORG WIRE
BRN WIRE
CHARGE INDICATOR
ENGINE COMPART- MENT FUSE BOX
ENGINE COMPARTMENT BATTERY
FRAME BATTERY
FUSE 23
FUSE LINK A (12 GA-
FUSE LINK B (12 GA-
FUSE LINK C (12 GA
FUSE LINK G (12 GA- FUSE LINK F (12 GA-
GROUND DISTRIBUTION SYSTEM
GRY WIRE
GRY/LT BLU WIRE
I/P FUSE PANEL FUSE 14
IGNITION SWITCH
INSTRUMENT CLUSTER
LOCK OFF
LT BLU WIRE
LT GRN WIRE
LT GRN/RED WIRE
ORG/ WIRE
ORG/LT BLU WIRE
POWERTRAIN CONTROL MODULE (LEFT REAR OF ENGINE COMPT)
PRIMARY GENERATOR/ REGULATOR
RED WIRE
RED/LT GRN WIRE
RUN WIRE
SECONDARY GENERATOR/ REGULATOR
STARTING CIRCUIT
WHT/YEL WIRE
YEL WIRE
Go to component -> 7.3l di turbo diesel, charging circuit, with electric fuel pump and dual generators -> CHARGE INDICATOR
Wiring diagram charge indicator (10 of 11)
ACCY
AUXILIARY BATTERY
AUXILIARY BATTERY RELAY (LEFT SIDE OF ENGINE COMPT, BELOW HEADLAMP)
BATTERY
BLK WIRE
BLK/ORG WIRE
CHARGE INDICATOR
CLUSTER
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPARTMENT) FUSE
ENGINE COMPARTMENT FUSE PANEL (LEFT SIDE OF ENGINE COMPT) FUSE
FUSE LINK A
FUSE LINK B
GENERATOR/ REGULATOR
GROUND DISTRIBUTION SYSTEM
IGNITION SWITCH
INSTRUMENT
LOCK OFF
LT GRN WIRE
LT GRN/RED WIRE
OPTIONAL
ORG/ WIRE
POWER DISTRIBUTION SYSTEM
PPL
RED WIRE
RED/LT GRN WIRE
RUN WIRE
STARTER MOTOR RELAY
STARTING CIRCUIT
WHT/BLK WIRE
YEL WIRE
YEL/WHT WIRE
Go to component -> 7.5l, charging circuit -> CHARGE INDICATOR
