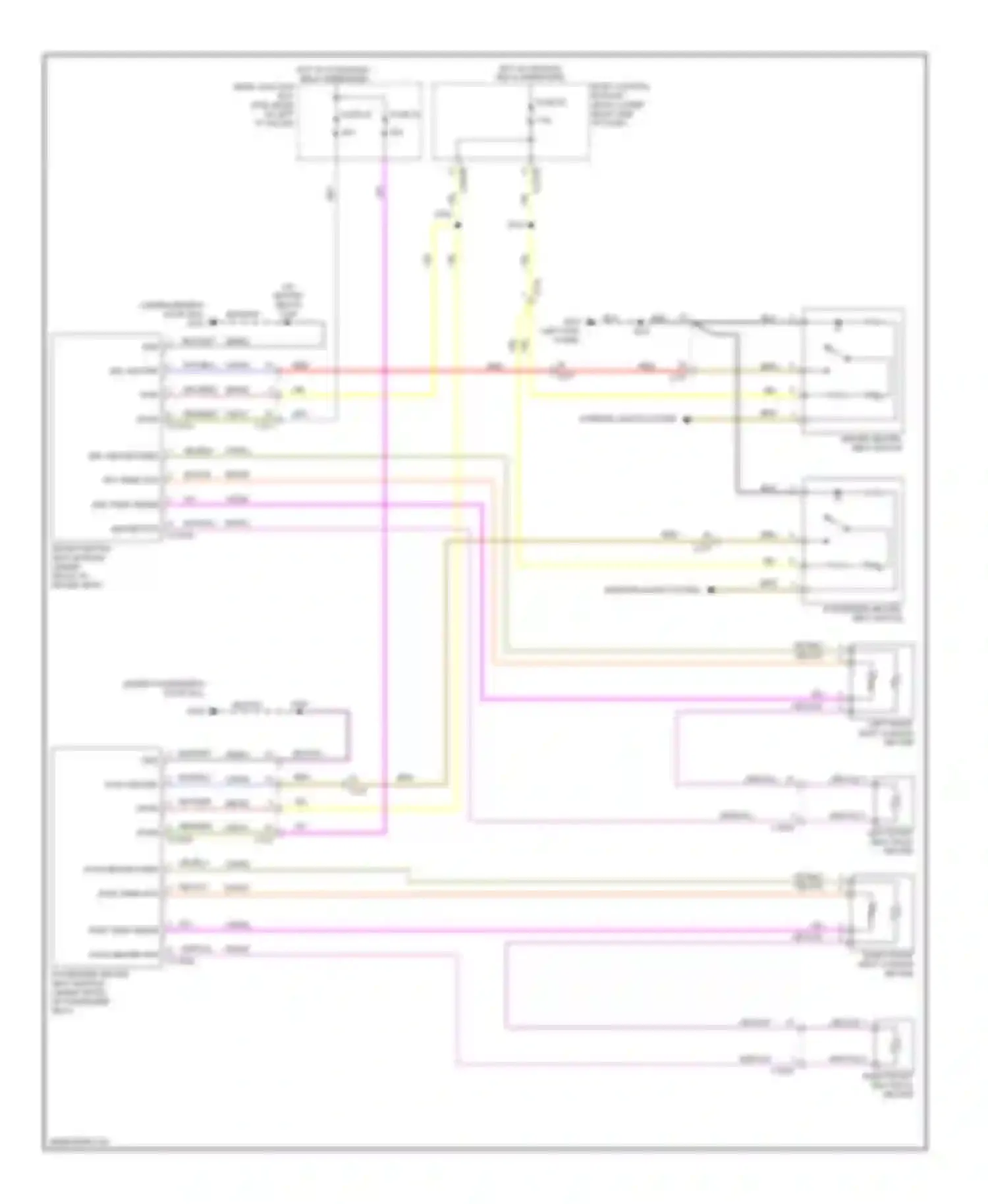

Heated seats circuit for Ford C-MAX II (2010-2015)

BLK WIRE BLK/VIO WIRE BLK/WHT WIRE BODY CONTROL MODULE (BCM) (LOWER RIGHT SIDE OF DASH) BRN WIRE DRIVER HEATED SEAT MODULE (UNDER FRONT OF DRIVER SEAT) DRIVER HEATED SEAT SWITCH DRV HEATER FEED DRV HEATER SW DRV TEMP RTN DRV TEMP SENSE FUSE 34 FUSE 35 FUSE 85 GRN/RED WIRE GRY WIRE GRY/RED WIRE GRY/VIO WIRE HEATER RTN HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY ENERGIZED LEFT FRONT SEAT BACK HEATER LEFT FRONT SEAT CUSHION HEATER PASS HEATER FEED PASS HEATER RTN PASS HEATER SW PASS TEMP RTN PASS TEMP SENSE PASSENGER HEATED SEAT MODULE (UNDER FRONT OF PASSENGER SEAT) PASSENGER HEATED SEAT SWITCH PWR REAR JUNCTION BOX (RJB) (BASE OF LEFT "D" PILLAR) RED WIRE RIGHT FRONT SEAT BACK HEATER RIGHT FRONT SEAT CUSHION HEATER VIO WIRE VPWR W/ HEATED SEATS WHT/BLU WIRE WHT/VIO WIRE YEL WIRE YEL/BLU WIRE YEL/VIO WIRE
