Ford Bronco VI (2020-2024) lower active grille shutter actuator Wiring diagrams
This page contains all the electrical diagrams for the component. lower active grille shutter actuator, in which he is found in the car Ford Bronco VI (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

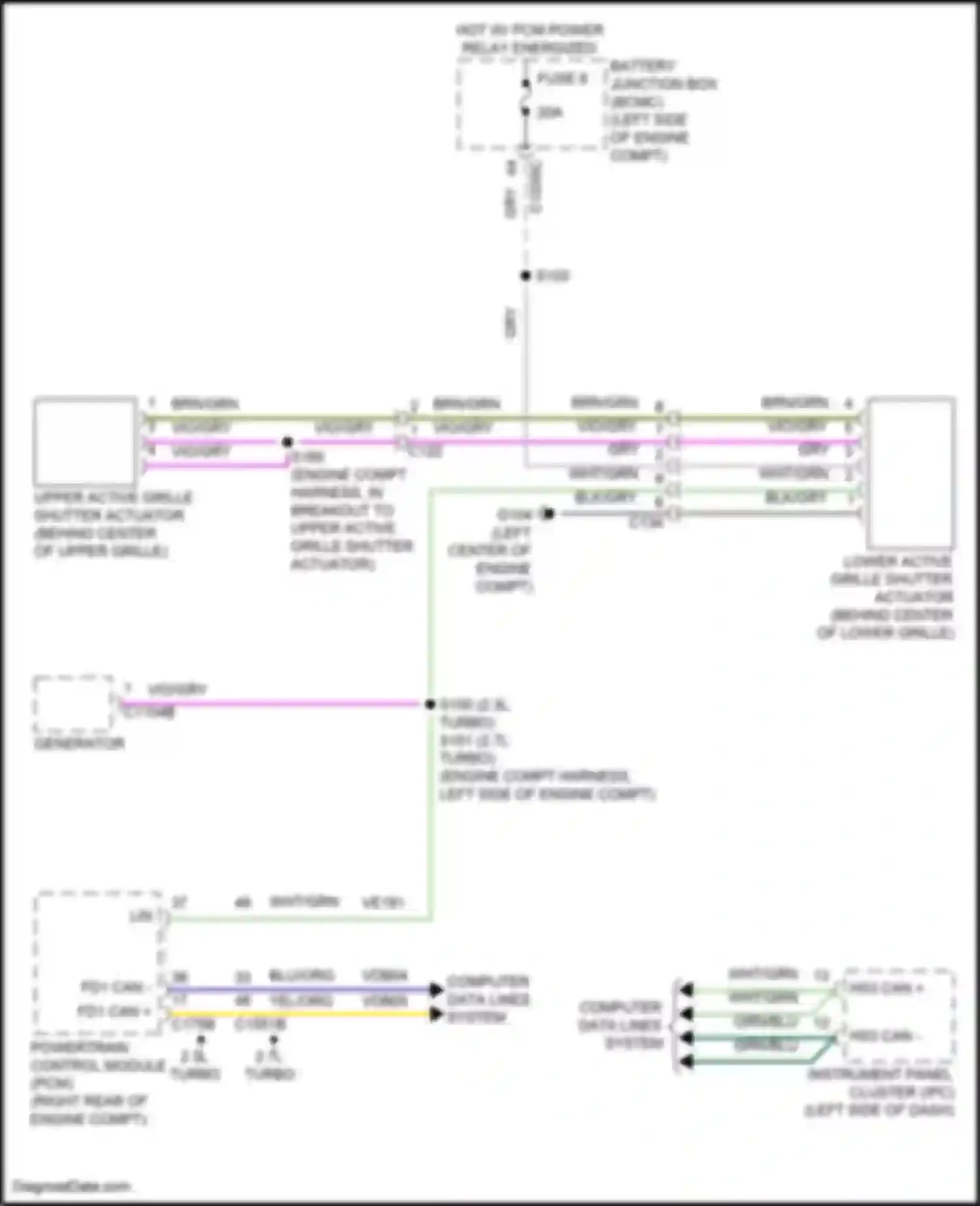

lower active grille shutter actuator wiring diagram (1 of 7)
2.7L TURBO
BATTERY JUNCTION BOX (BCMC)
BLK/GRY WIRE
BLU/ORG WIRE
BRN/GRN WIRE
COMPUTER DATA LINES SYSTEM
FUSE 8
GENERATOR
GRN/BLU WIRE
GRY WIRE
HOT W/ PCM POWER RELAY ENERGIZED
INSTRUMENT PANEL CLUSTER (IPC)
LIN
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
POWERTRAIN CONTROL MODULE (PCM)
S100 (2.3L TURBO) S101 (2.7L TURBO)
UPPER ACTIVE GRILLE SHUTTER ACTUATOR
VIO/GRY WIRE
WHT/GRN WIRE
YEL/ORG WIRE
Go to component -> Active bodyworks circuit -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
lower active grille shutter actuator wiring diagram (2 of 7)
BLK WIRE
COOLING FAN RELAY 1
COOLING FAN RELAY 2
ENGINE COOLING FAN MOTOR 1
ENGINE COOLING FAN MOTOR 2
FUSE 2
FUSE 9
GENERATOR
GRN/BLU WIRE
GRY WIRE
GRY/BLU WIRE
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
HOT AT ALL TIMES
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
RIGHT CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR
S101 (2.7L TURBO) S100 (2.3L TURBO)
VIO/GRN WIRE
VIO/GRY WIRE
WHT/GRN WIRE
YEL/GRY WIRE
YEL/ORG WIRE
YEL/RED WIRE
Go to component -> Automatic a/c circuit (3 of 4) -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
lower active grille shutter actuator wiring diagram (3 of 7)
2.7L TURBO
BATTERY
BATTERY MONITORING SENSOR
BLK WIRE
BLK/VIO WIRE
BLU WIRE
BLU/ORG WIRE
BODY CONTROL MODULE (BCM)
COMPUTER DATA LINES SYSTEM
ENDS IN HARNESS (2.7L)
GENERATOR B+
GRN WIRE
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
INSTRUMENT PANEL CLUSTER (IPC)
LIN
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
MEGA FUSE
MICRO -
NCA WIRE
POWERTRAIN CONTROL MODULE (PCM)
RED WIRE
TURBO
VIO/GRY WIRE
WHT WIRE
WHT/GRN WIRE
YEL/ORG WIRE
Go to component -> Charging circuit -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
lower active grille shutter actuator wiring diagram (4 of 7)
BLK WIRE
COOLING FAN RELAY 1
COOLING FAN RELAY 2
ENGINE COOLING FAN MOTOR 1
ENGINE COOLING FAN MOTOR 2
FUSE 2
FUSE 9
GENERATOR
GRN/BLU WIRE
GRY WIRE
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
HOT AT ALL TIMES
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
S101 (2.7L TURBO) S100 (2.3L TURBO)
VIO/GRY WIRE
WHT/GRN WIRE
YEL/GRY WIRE
YEL/ORG WIRE
YEL/RED WIRE
Go to component -> Cooling fan circuit (1 of 2) -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
lower active grille shutter actuator wiring diagram (5 of 7)
2.7L TURBO
AIR CONDITIONING (A/C) COMPRESSOR
ALL WHEEL DRIVE (AWD) MODULE
ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
BLK WIRE
BLOWER MOTOR CONTROL MODULE
BLOWER MOTOR RELAY
COOLING FAN MOTOR 1
COOLING FAN MOTOR 2
COOLING FAN RELAY 1
COOLING FAN RELAY 2
CRUISE CONTROL MODULE (CCM)
ELECTRIC COOLANT SWITCH
EVAC, FILL
GRN WIRE
GRY WIRE
HEADLAMP RELAY
HOOD AJAR SWITCH
LEFT FRONT FOG LAMP
LEFT HEADLAMP ASSEMBLY
LEFT HORN
LOW BRAKE FLUID WARNING INDICATOR SWITCH
LOW WASHER FLUID WARNING INDICATOR SWITCH
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
POWERTRAIN CONTROL MODULE (PCM)
RIGHT FRONT FOG LAMP
RIGHT HEADLAMP ASSEMBLY
RIGHT HORN
SWAY BAR DISCONNECT RELAY
TT BACKUP RELAY
UPFITTER RELAY 1
UPFITTER RELAY 2
UPFITTER RELAY 3
UPFITTER RELAY 4
UPFITTER RELAY 5
UPFITTER RELAY 6
VIO WIRE
W/ EVAC/ FILL
W/O ESP
WASHER RELAY
WINDSHIELD WIPER MOTOR
YEL WIRE
Go to component -> Ground distribution circuit (1 of 5) -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
lower active grille shutter actuator wiring diagram (6 of 7)
BLK WIRE
COOLING FAN RELAY 1
COOLING FAN RELAY 2
ENGINE COOLING FAN MOTOR 1
ENGINE COOLING FAN MOTOR 2
FUSE 2
FUSE 9
GENERATOR
GRN/BLU WIRE
GRY WIRE
GRY/BLU WIRE
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
HOT AT ALL TIMES
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
RIGHT CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR
S101 (2.7L TURBO) S100 (2.3L TURBO)
VIO/GRY WIRE
WHT WIRE
WHT/GRN WIRE
YEL/GRY WIRE
YEL/ORG WIRE
YEL/RED WIRE
Go to component -> Manual a/c circuit (3 of 4) -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
lower active grille shutter actuator wiring diagram (7 of 7)
2.7L TURBO
ACCESSORY DELAY RELAY
AIR CONDITIONING (A/C) COMPRESSOR
ALL DOOR LOCK (FET)
ALL DOOR UNLOCK (FET)
ALL WHEEL DRIVE (AWD) MODULE
ANTI-THEFT ALARM HORN RELAY
AUTO DIMMING INTERIOR MIRROR
BACK LTG (FET)
BATTERY JUNCTION BOX (BJB)
BLU WIRE
BLU/BRN WIRE
BLU/GRY WIRE
BLU/RED WIRE
BSI (FET)
CABIN HEATER COOLANT PUMP
COOLING FAN RELAY 1
COOLING FAN RELAY 2
DRIVER DOOR UNLOCK (FET)
ELECTRIC COOLANT PUMP
EXTERIOR MIRROR CONTROL SWITCH
FROM BODY CONTROL MODULE (BCM) (DIAGRAM 2 OF 6)
FROM FUSE 7 (DIAGRAM 1 OF 6)
FUSE 19
FUSE 2
FUSE 20
FUSE 21
FUSE 3
FUSE 34
FUSE 36
FUSE 37
FUSE 54
FUSE 6
FUSE 8
GRN WIRE
GRN/RED WIRE
GRY WIRE
HEADLAMP SWITCH
IN-VEHICLE TEMPERATURE/ HUMIDITY SENSOR
LANE DEPARTURE WARNING (LDW) MODULE
LOWER ACTIVE GRILLE SHUTTER ACTUATOR
MICRO -
OIL PRESSURE CONTROL SOLENOID
OVERHEAD CONSOLE
PARKING AID MODULE (PAM)
PCM WAKE UP (FET)
RCM PWR (FET)
RED WIRE
RUN/ START RELAY
TAILGATE LOCK (FET)
TAILGATE UNLOCK (FET)
TELEMATICS CONTROL UNIT (TCU) MODULE
TO DIRECT CURRENT/ ALTERNATING CURRENT (DC/AC) INVERTER (DIAGRAM 3 OF 6)
TO PUSH BUTTON START IGNITION SWITCH (DIAGRAM 4 OF 6)
TO WIRELESS ACCESSORY CHARGING MODULE (WACM) (DIAGRAM 4 OF 6)
TO WIRELESS CHARGE SIGNAL OUTPUT (FET) (DIAGRAM 4 OF 6)
TRANSMISSION FLUID HEATER COOLANT CONTROL VALVE
TURBOCHARGER BYPASS (TCBY) VALVE
VACUUM SOLENOID VALVE (VSV)
VARIABLE OIL PUMP
VIO/ORG WIRE
WHT WIRE
Go to component -> Power distribution circuit (5 of 6) -> LOWER ACTIVE GRILLE SHUTTER ACTUATOR
