Ford Bronco V (1992-1996) rear defrost indicator Wiring diagram

This page shows the only wiring diagram for the component.rear defrost indicator, which is found in the car Ford Bronco V (1992-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

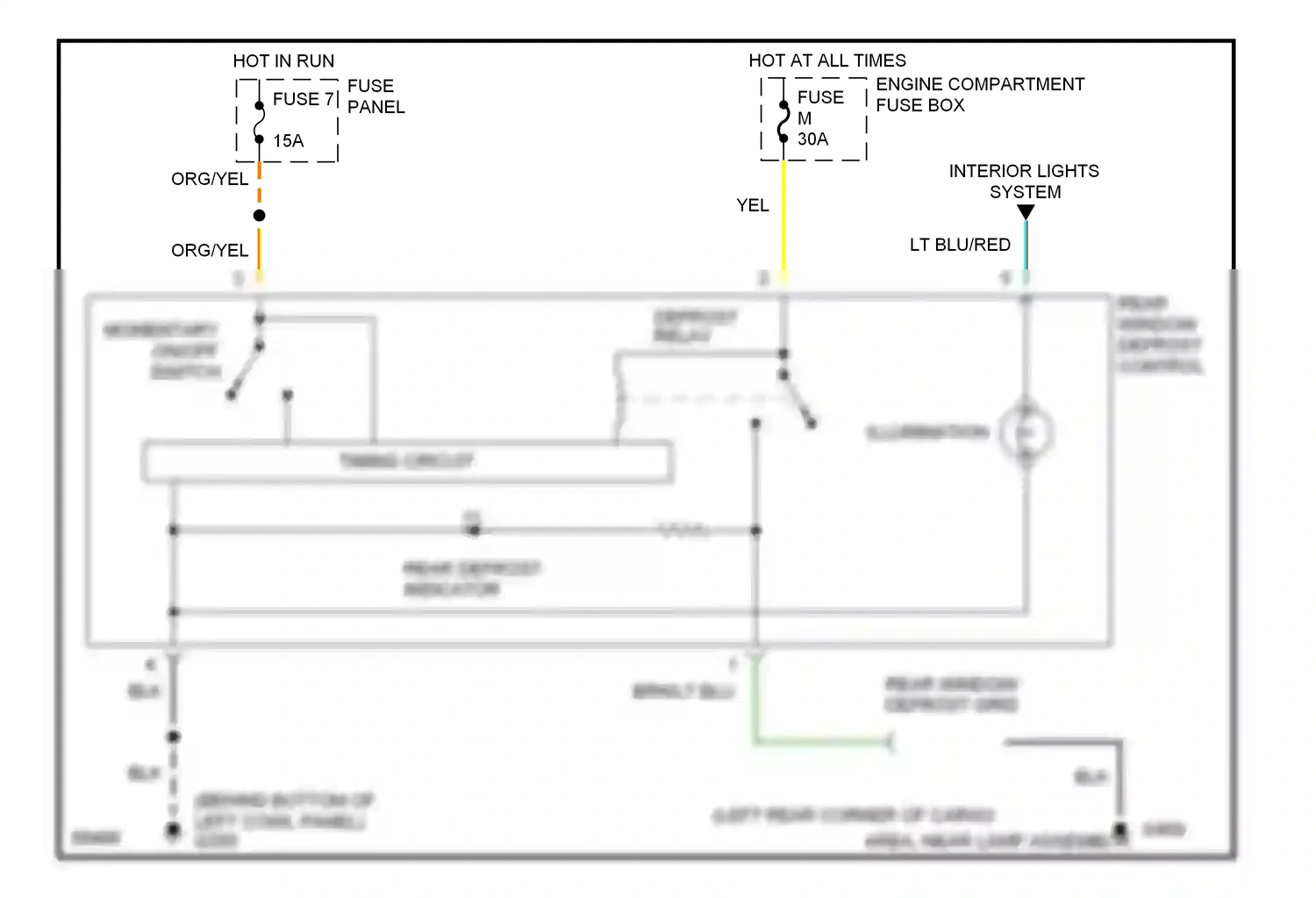

Wiring diagram rear defrost indicator (1 of 1)

Wiring diagram rear defrost indicator for Ford Bronco V (1992-1996)

Get access

BLK WIRE BRN/LT BLU WIRE DEFROST RELAY ENGINE COMPARTMENT FUSE BOX FUSE FUSE 7 FUSE PANEL HOT AT ALL TIMES HOT IN RUN ILLUMINATION LT BLU/RED WIRE MOMENTARY ON/OFF SWITCH ORG/YEL WIRE REAR DEFROST INDICATOR REAR WINDOW DEFROST CONTROL REAR WINDOW DEFROST GRID TIMING CIRCUIT YEL WIRE

Go to component: -> Defogger circuit -> REAR DEFROST INDICATOR
