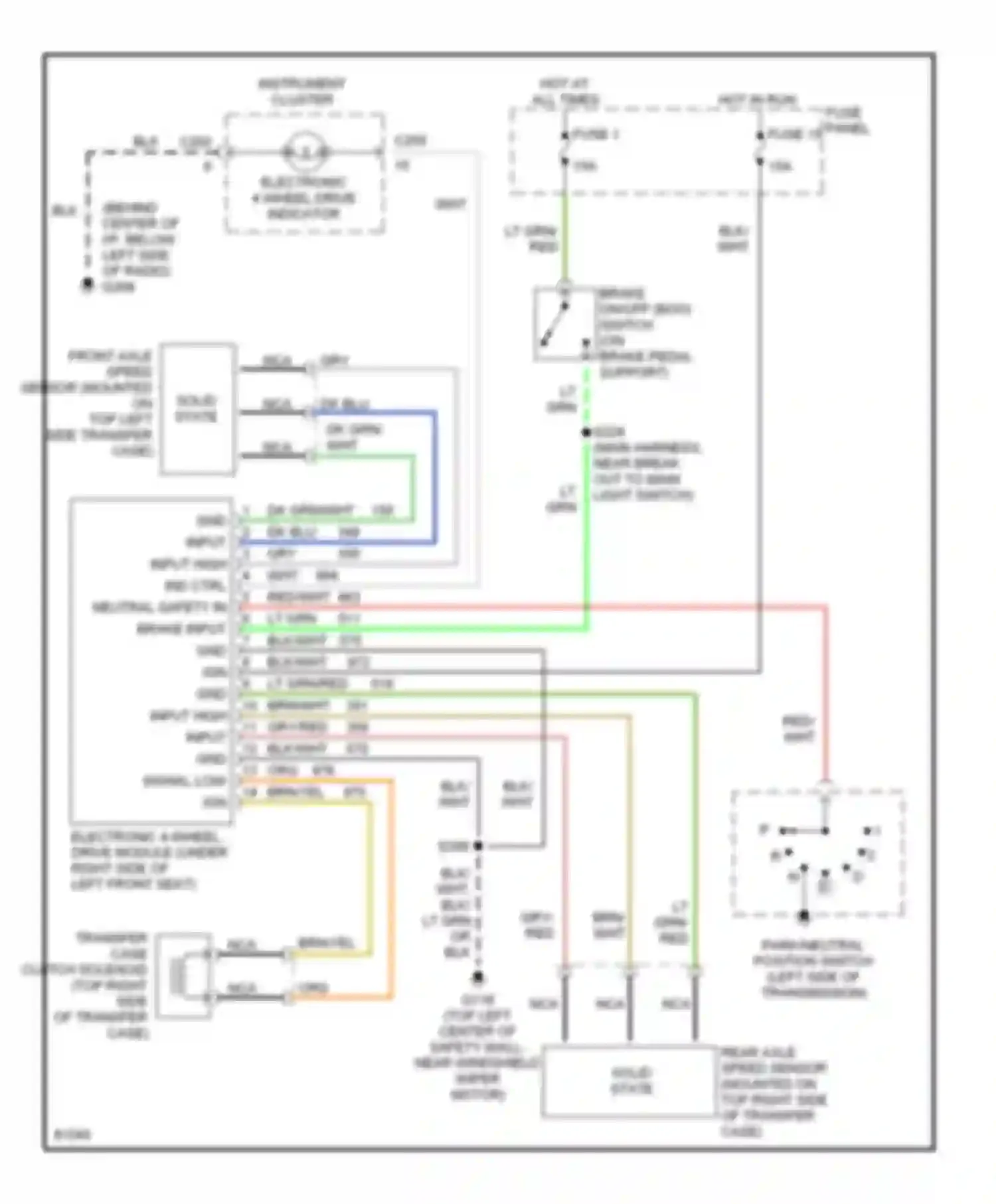

4.0l, transfer case circuit for Ford Aerostar I (1986-1997)
4.0l, transfer case circuit
BLK WIRE
BLK/WHT WIRE
BRAKE ON/OFF (BOO) SWITCH (ON BRAKE PEDAL SUPPORT)
BRN WIRE
BRN/WHT WIRE
BRN/YEL WIRE
DK BLU WIRE
DK GRN WIRE
DK GRN/WHT WIRE
ELECTRONIC 4 WHEEL DRIVE INDICATOR
ELECTRONIC 4-WHEEL DRIVE MODULE (UNDER RIGHT SIDE OF LEFT FRONT SEAT)
FRONT AXLE SPEED SENSOR (MOUNTED ON TOP LEFT SIDE TRANSFER CASE)
FUSE 1
FUSE 15
FUSE PANEL
GRN WIRE
GRY WIRE
GRY/RED WIRE
HOT AT ALL TIMES
HOT IN RUN
INSTRUMENT CLUSTER
LT GRN WIRE
LT GRN/RED WIRE
NCA WIRE
ORG/ WIRE
PARK/NEUTRAL POSITION SWITCH (LEFT SIDE OF TRANSMISSION)
REAR AXLE SPEED SENSOR (MOUNTED ON TOP RIGHT SIDE OF TRANSFER CASE)
RED WIRE
RED/WHT WIRE
SOLID STATE
TRANSFER CASE CLUTCH SOLENOID (TOP RIGHT SIDE OF TRANSFER CASE)
WHT WIRE
