Dodge Stratus I (1995-2000) rear window defogger switch Wiring diagram
This page shows the only wiring diagram for the component.rear window defogger switch, which is found in the car Dodge Stratus I (1995-2000). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

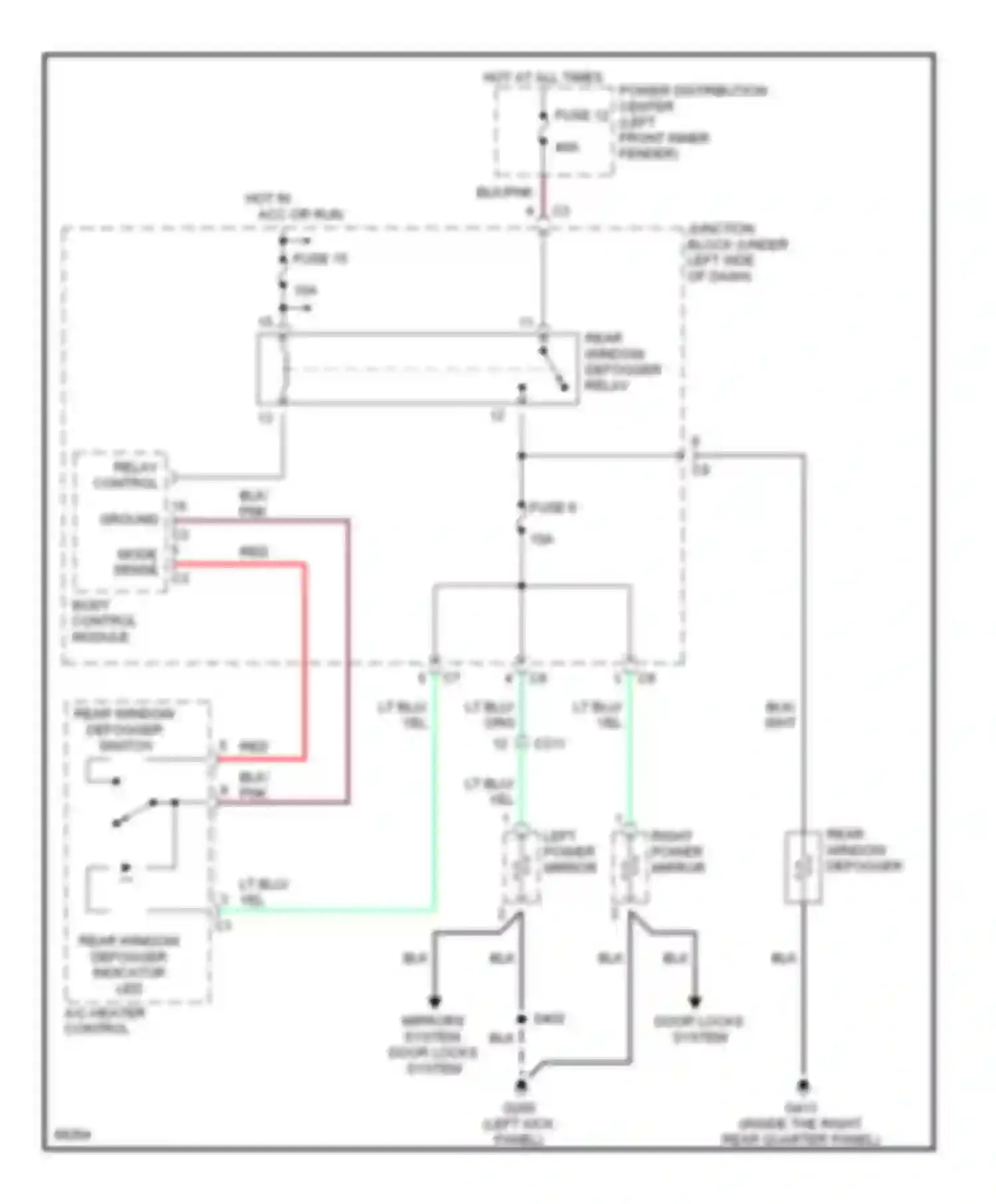

Wiring diagram rear window defogger switch (1 of 1)
A/C HEATER CONTROL
BLK WIRE
BLK/PNK WIRE
BODY CONTROL MODULE
DOOR LOCKS SYSTEM
FUSE 12
FUSE 15
FUSE 6
GROUND
HOT AT ALL TIMES
HOT IN ACC OR RUN
JUNCTION BLOCK (UNDER LEFT SIDE OF DASH)
LEFT POWER MIRROR
LT BLU WIRE
MIRRORS SYSTEM DOOR LOCKS SYSTEM
MODE SENSE
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION CENTER (LEFT FRONT INNER FENDER)
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER INDICATOR LED
REAR WINDOW DEFOGGER RELAY
REAR WINDOW DEFOGGER SWITCH
RED WIRE
RELAY CONTROL
RIGHT POWER MIRROR
WHT WIRE
YEL WIRE
Go to component -> Defogger circuit -> REAR WINDOW DEFOGGER SWITCH
