Dodge Stratus I (1995-2000) cirrus/stratus/breeze sebring convertible ** Wiring diagram
This page shows the only wiring diagram for the component.cirrus/stratus/breeze sebring convertible **, which is found in the car Dodge Stratus I (1995-2000). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

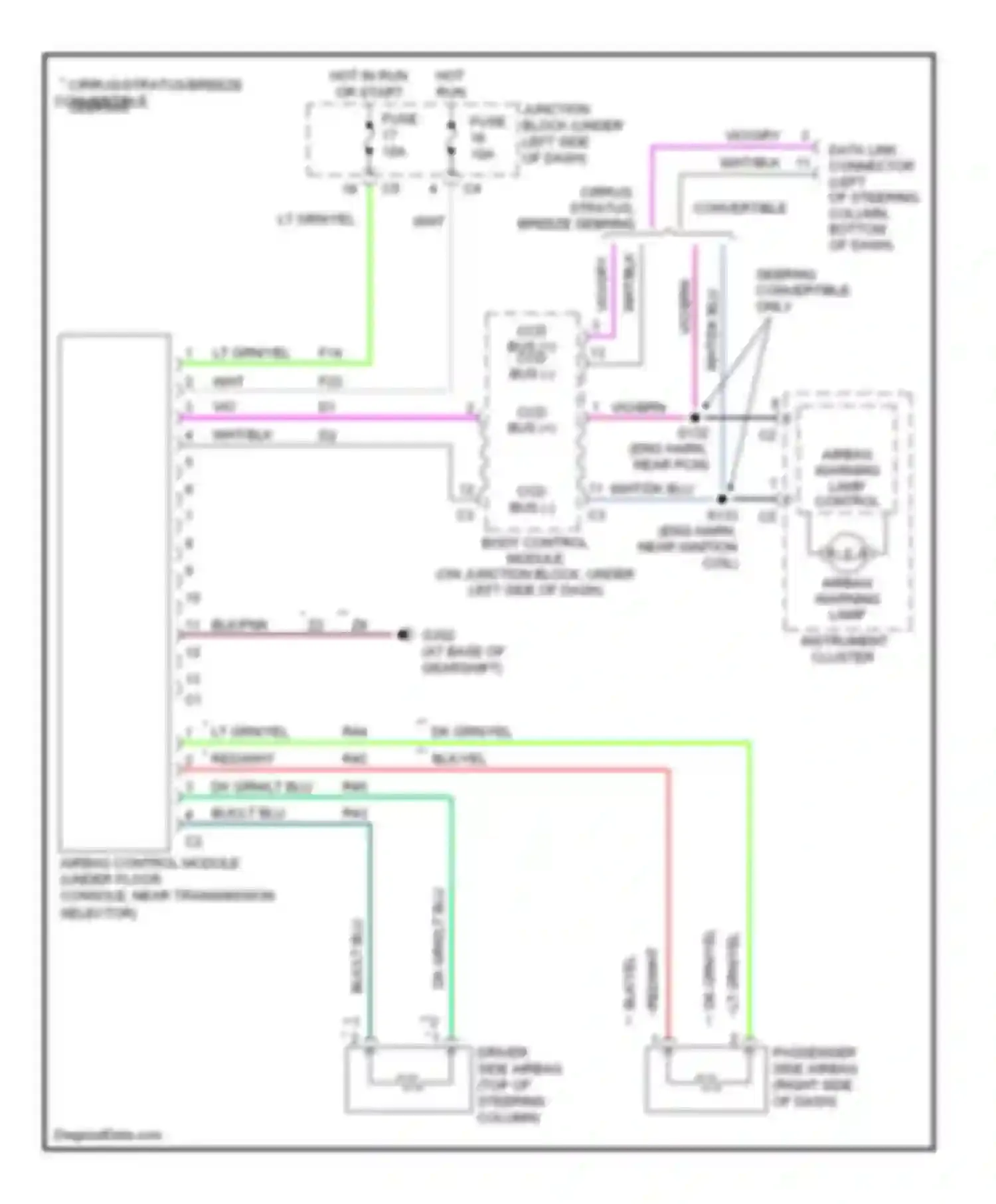

Wiring diagram cirrus/stratus/breeze sebring convertible ** (1 of 1)
AIRBAG CONTROL MODULE (UNDER FLOOR CONSOLE, NEAR TRANSMISSION SELECTOR)
AIRBAG WARNING LAMP
AIRBAG WARNING LAMP CONTROL
BLK/LT BLU WIRE
BLK/PNK WIRE
BLK/YEL WIRE
BODY CONTROL MODULE
CCD BUS (-)
CCD BUS (-) CCD BUS (+)
CIRRUS, STRATUS, BREEZE SEBRING CONVERTIBLE
CIRRUS/STRATUS/BREEZE SEBRING CONVERTIBLE **
DATA LINK CONNECTOR (LEFT OF STEERING COLUMN, BOTTOM OF DASH)
DK GRN/LT BLU WIRE
DK GRN/YEL WIRE
DRIVER SIDE AIRBAG (TOP OF STEERING COLUMN)
FUSE
HOT IN
HOT IN RUN OR START
INSTRUMENT CLUSTER
JUNCTION BLOCK (UNDER LEFT SIDE OF DASH)
LT GRN/YEL WIRE
PASSENGER SIDE AIRBAG (RIGHT SIDE OF DASH)
RED/WHT WIRE
RUN WIRE
SEBRING CONVERTIBLE ONLY
VIO WIRE
VIO/BRN WIRE
VIO/GRY WIRE
WHT WIRE
WHT/BLK WIRE
WHT/DK BLU WIRE
Go to component -> Supplemental restraint circuit -> CIRRUS/STRATUS/BREEZE SEBRING CONVERTIBLE **
