Dodge Ram Wagon B2500 (1996-2002) central timer module horn relay control Wiring diagram
This page shows the only wiring diagram for the component.central timer module horn relay control, which is found in the car Dodge Ram Wagon B2500 (1996-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

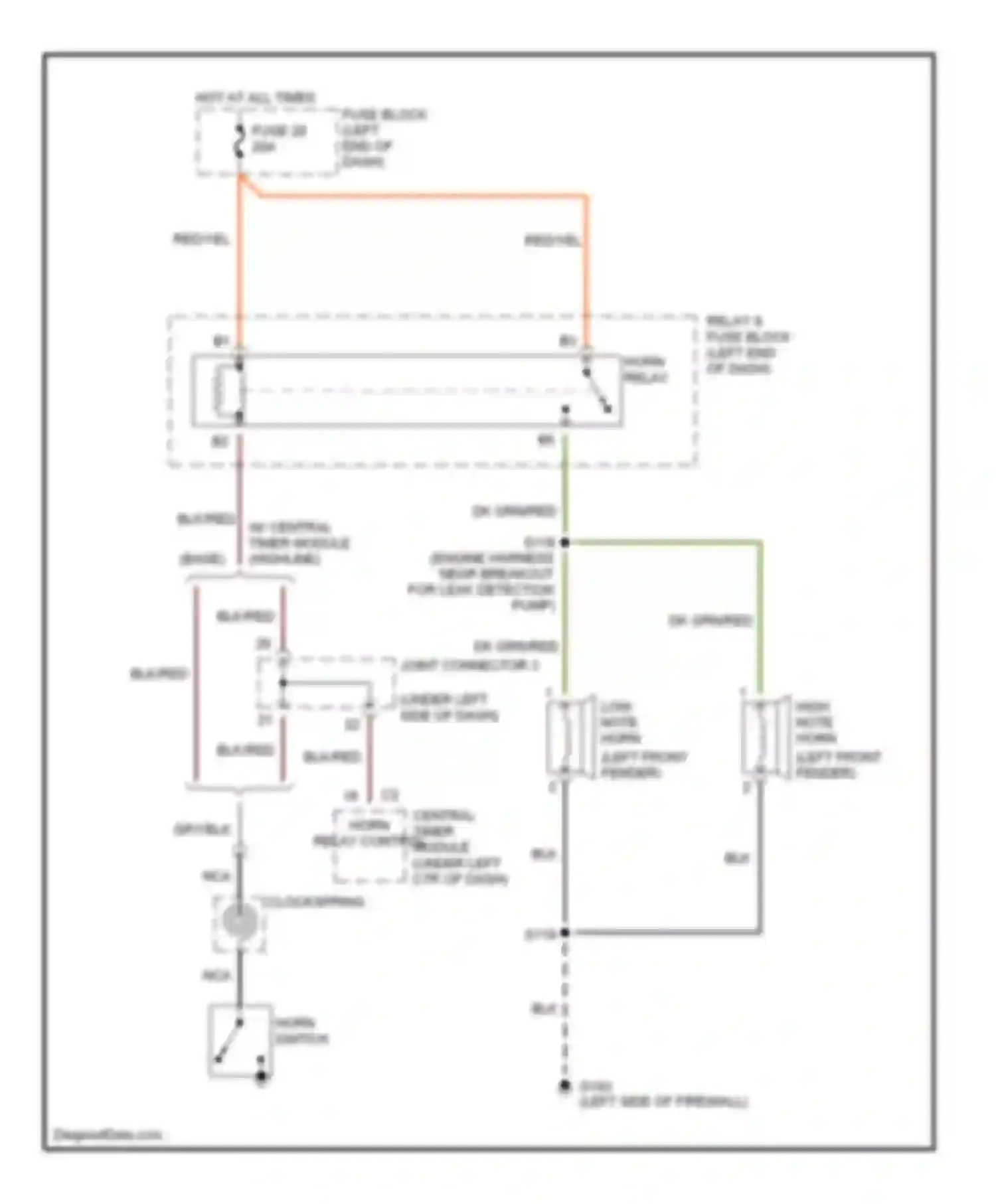

Wiring diagram central timer module horn relay control (1 of 1)
BASE
BLK WIRE
BLK/RED WIRE
CENTRAL TIMER MODULE HORN RELAY CONTROL
CLOCKSPRING
DK GRN/RED WIRE
FUSE 20
FUSE BLOCK (LEFT END OF DASH)
GRY/BLK WIRE
HIGH NOTE HORN
HORN RELAY
HORN SWITCH
HOT AT ALL TIMES
JOINT CONNECTOR 3
LEFT FRONT FENDER)
LOW NOTE HORN
NCA WIRE
RED/YEL WIRE
RELAY & FUSE BLOCK (LEFT END OF DASH)
W/ CENTRAL TIMER MODULE (HIGHLINE)
Go to component -> Horn circuit -> CENTRAL TIMER MODULE HORN RELAY CONTROL
