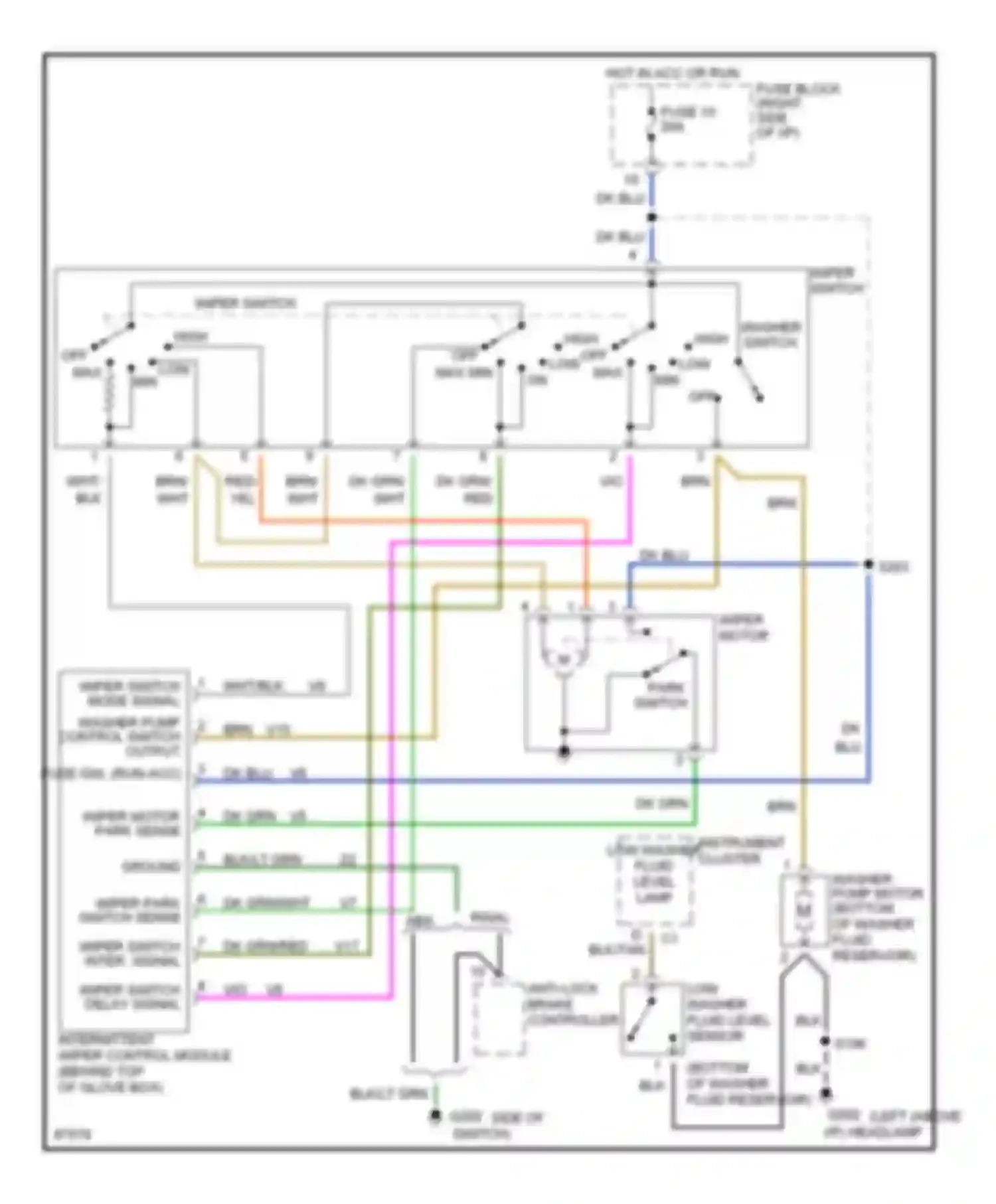

Dodge Ram Wagon B2500 (1996-2002) anti-lock brake controller low washer fluid level sensor Wiring diagram

ANTI-LOCK BRAKE CONTROLLER LOW WASHER FLUID LEVEL SENSOR BLK WIRE BLK/LT GRN WIRE BLK/TAN WIRE BLU WIRE BRN WIRE DK BLU WIRE DK GRN WIRE DK GRN/RED WIRE DK GRN/WHT WIRE FUSE 10 FUSE BLOCK (RIGHT SIDE OF I/P) GROUND HIGH HIGH SWITCH OFF LOW LOW MAX MAX MIN MIN ON OFF HOT IN ACC OR RUN INSTRUMENT CLUSTER LOW WASHER FLUID LEVEL LAMP INTERMITTENT WIPER CONTROL MODULE (BEHIND TOP OF GLOVE BOX) LOW MAX MIN OFF PARK SWITCH RED WIRE RWAL ABS VIO WIRE WASHER WASHER PUMP MOTOR (BOTTOM OF WASHER FLUID RESERVOIR) WHT WIRE WHT/BLK WIRE WIPER MOTOR WIPER MOTOR PARK SENSE WIPER PARK SWITCH SENSE WIPER SWITCH WIPER SWITCH DELAY SIGNAL WIPER SWITCH INTER. SIGNAL WIPER SWITCH MODE SIGNAL WASHER PUMP CONTROL SWITCH OUTPUT FUSE IGN. (RUN-ACC) YEL WIRE
