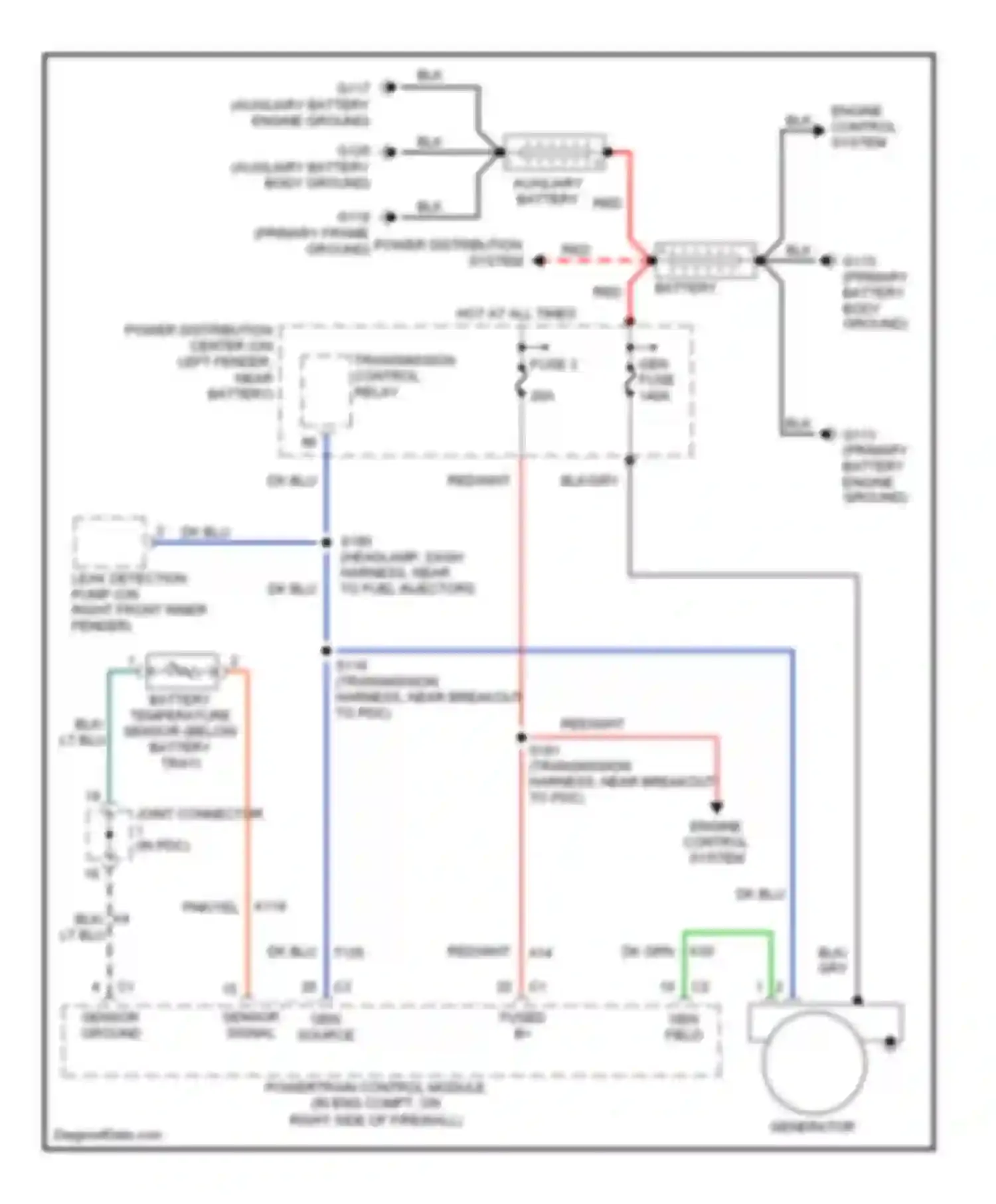

Dodge Pickup R3500 (1996-2010) 5.9l 24-valve diesel, charging circuit
5.9l 24-valve diesel, charging circuit
AUXILIARY BATTERY
BATTERY
BATTERY TEMPERATURE SENSOR (BELOW BATTERY TRAY)
BLK WIRE
BLK/GRY WIRE
DK BLU WIRE
DK GRN WIRE
ENGINE CONTROL SYSTEM
FUSE 3
FUSED B (+)
GEN FIELD
GEN FUSE
GEN SOURCE
GENERATOR
GROUND
GRY WIRE
HOT AT ALL TIMES
JOINT CONNECTOR 1 (IN PDC)
LEAK DETECTION PUMP (ON RIGHT FRONT INNER FENDER)
LT BLU WIRE
PNK/YEL WIRE
POWER DISTRIBUTION CENTER (ON LEFT FENDER, NEAR BATTERY)
POWER DISTRIBUTION SYSTEM
POWERTRAIN CONTROL MODULE (IN ENG COMPT, ON RIGHT SIDE OF FIREWALL)
RED WIRE
RED/WHT WIRE
SENSOR GROUND
SENSOR SIGNAL
TRANSMISSION CONTROL RELAY
