Dodge Neon II (1999-2005) controller anti-lock wiring diagram
This page shows the only wiring diagram for the component.controller anti-lock, which is found in the car Dodge Neon II (1999-2005). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

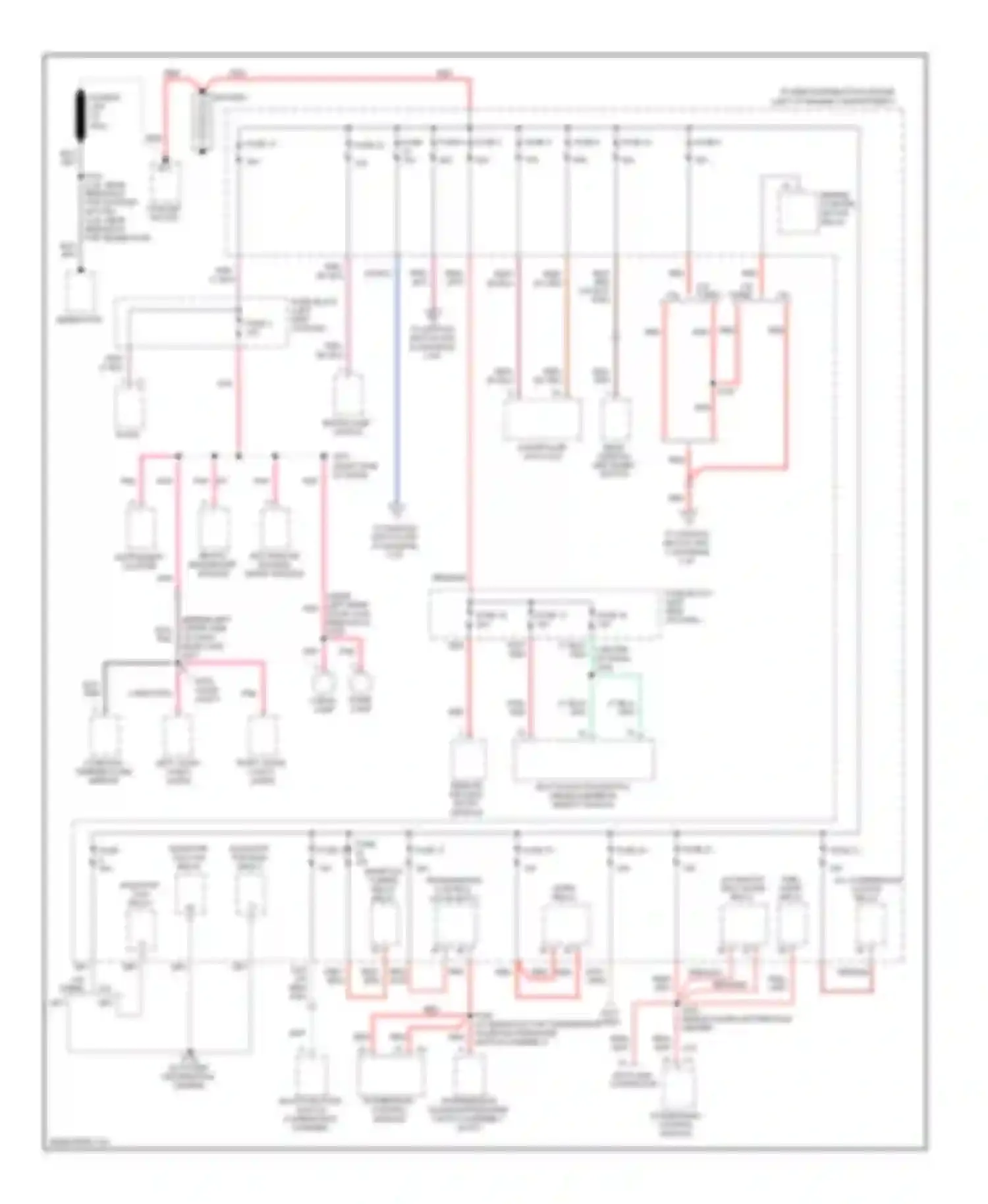

controller anti-lock wiring diagram (1 of 1)
A/C COMPRESSOR CLUTCH RELAY
AUTOMATIC SHUT DOWN RELAY
B(+)
BATTERY
BLK WIRE
BRAKE LAMP SWITCH
BRN WIRE
CARGO LAMP
CONTROLLER ANTI-LOCK
DATA LINK CONNECTOR
DK BLU WIRE
DK GRN WIRE
DOME LAMP
ENGINE STARTER MOTOR RELAY
FUEL PUMP RELAY
FUSE 10
FUSE 13
FUSE 14
FUSE 14 FUSE 4
FUSE 15
FUSE 16
FUSE 16 FUSE 17
FUSE 18
FUSE 20
FUSE 21
FUSE 22
FUSE 23
FUSE 3
FUSE 4
FUSE 5
FUSE 8
FUSE 9
FUSE BLOCK (LEFT SIDE OF DASH)
FUSIBLE LINK (12 GA-
GENERATOR
GRY WIRE
HORN RELAY
INSTRUMENT CLUSTER PNK WIRE
LEFT VISOR/ COMPASS/ VANITY TEMPERATURE LAMPS MIRROR
LT BLU WIRE
MANIFOLD TRANSMISSION TUNING CONTROL RELAY VALVE (EATX) RELAY
MULTI-FUNCTION SWITCH (COMBINATION FLASHER)
MULTI-FUNCTION SWITCH (HEADLAMP/BEAM SELECT SWITCH)
ORG/ WIRE
PNK PNK WIRE
PNK WIRE
POWER DISTRIBUTION CENTER (LEFT OF ENGINE COMPARTMENT)
POWERTRAIN CONTROL MODULE
RADIATOR FAN HIGH RELAY
RADIATOR FAN RELAY
RADIATOR FUSE 6 FAN LOW RELAY
RADIO
REAR WINDOW DEFOGGER SWITCH
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
REMOTE KEYLESS ENTRY MODULE
RIGHT VISOR/ VANITY LAMPS
SENTRY KEY REMOTE IMMOBILIZER KEYLESS MODULE ENTRY MODULE
STARTER MOTOR
TO IGNITION SWITCH (PIN 4) (DIAGRAM 2 OF 2)
TO IGNITION SWITCH (PIN 9) (DIAGRAM 2 OF 2)
TO IGNITION SWITCH PIN #1 (DIAGRAM 2 OF 2)
TRANSMISSION POWERTRAIN SOLENOID/PRESSURE CONTROL SWITCH ASSEMBLY MODULE (EATX)
WHT WIRE
WITH VISOR/ VANITY LAMPS PNK PNK WIRE
Go to component -> Power distribution circuit (1 of 2) -> CONTROLLER ANTI-LOCK
