Dodge Neon I (1994-1999) blower switch illum Wiring diagrams
This page contains all the electrical diagrams for the component. blower switch illum, in which he is found in the car Dodge Neon I (1994-1999). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

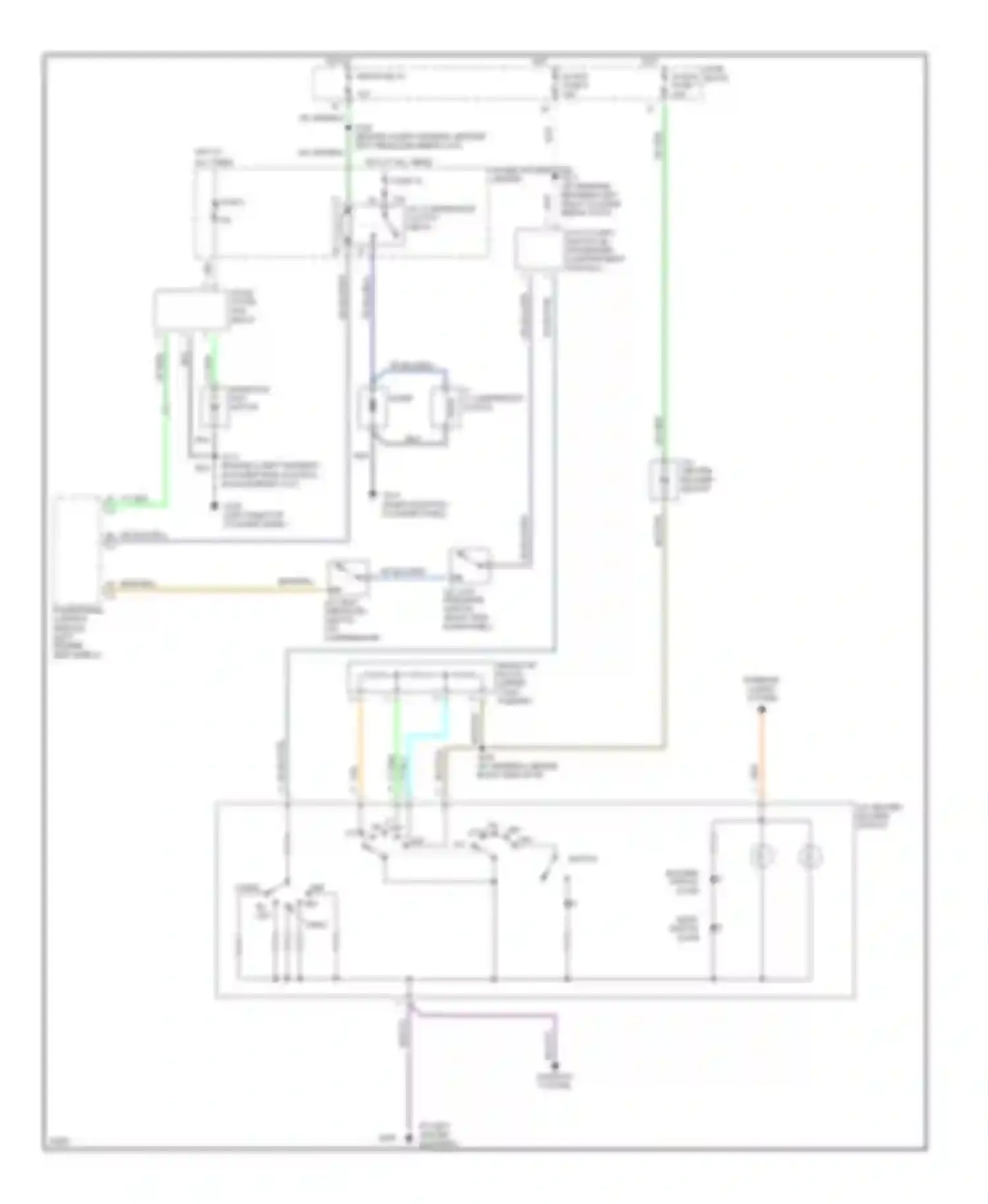

Wiring diagram blower switch illum (1 of 2)
A/C COMPRESSOR CLUTCH
A/C COMPRESSOR CLUTCH RELAY
A/C CYCLING SWITCH (IN PASSENGER COMPARTMENT ON HVAC)
A/C HEATER BLOWER MOTOR
A/C HEATER BLOWER SWITCH
BI LEV
BLK WIRE
BLK/TAN WIRE
BLK/VIO WIRE
BLOWER SWITCH ILLUM
BRN/ORG WIRE
DEF
DIODE
DK BLU/BLK WIRE
DK BLU/ORG WIRE
DK BLU/WHT WIRE
DK BLU/YEL WIRE
DK GRN WIRE
DK GRN/BLK WIRE
FUSE 18
FUSE 5
FUSE BLOCK
GRY WIRE
HEAT (+)
HOT AT ALL TIMES
HOT IN RUN FUSE 10
HOT IN RUN FUSE 7
HOT IN RUN FUSE 8
LT BLU WIRE
LT GRN WIRE
MIX
ML MH LO HI OFF
ML MH LO HI OFF A/C SWITCH
MODE SWITCH ILLUM
ORG/ WIRE
PANEL)
POWER DISTRIBUTION CENTER
POWERTRAIN CONTROL MODULE (LEFT FENDER SIDE SHIELD)
RADIATOR FAN MOTOR
RESISTOR BLOCK (UPPER COWL PLENUM)
SOLID STATE FAN RELAY
SUNROOF SYSTEM
TAN WIRE
WHT WIRE
Go to component -> A/c circuit -> BLOWER SWITCH ILLUM

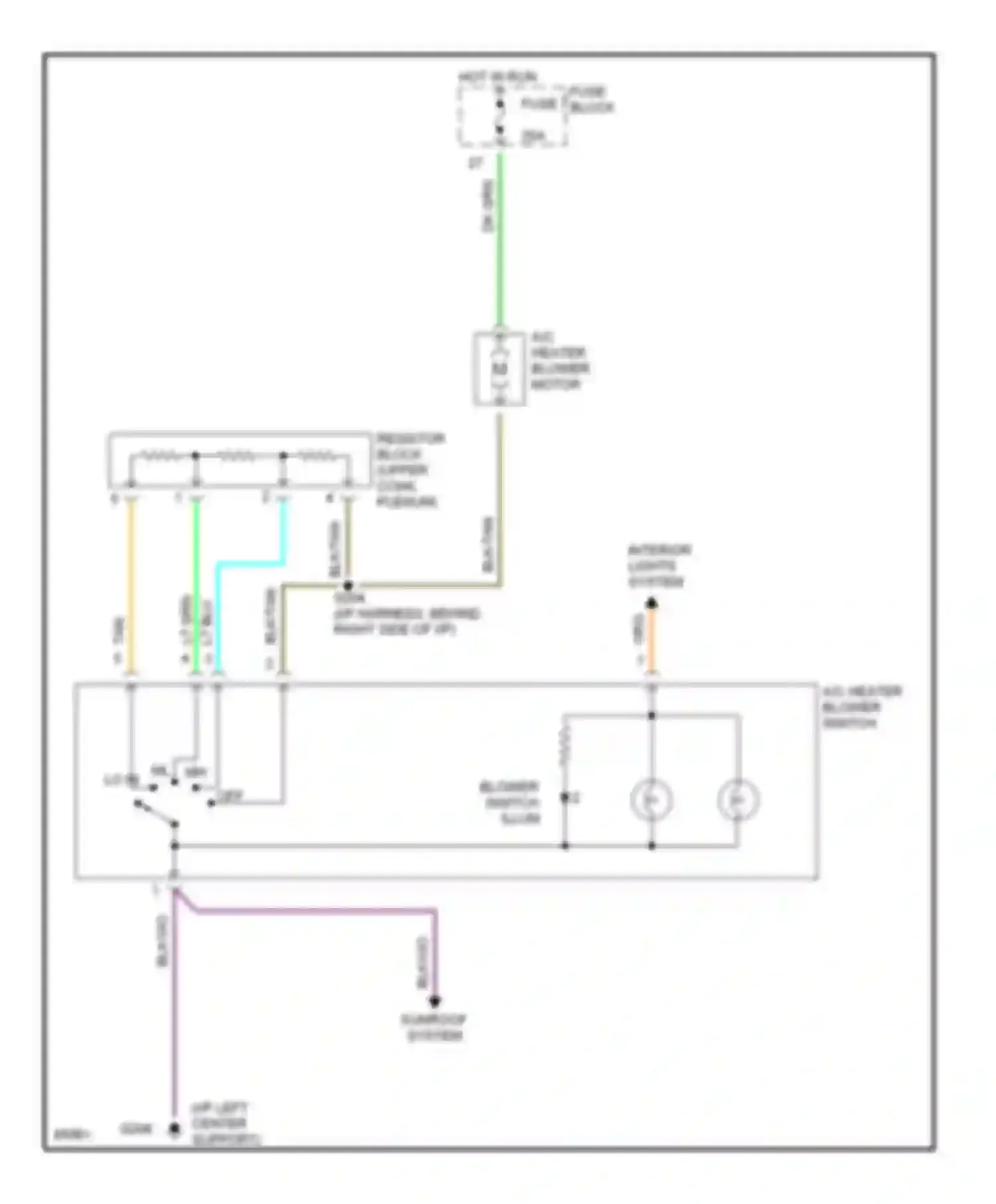

Wiring diagram blower switch illum (2 of 2)
Go to component -> Heater circuit -> BLOWER SWITCH ILLUM
