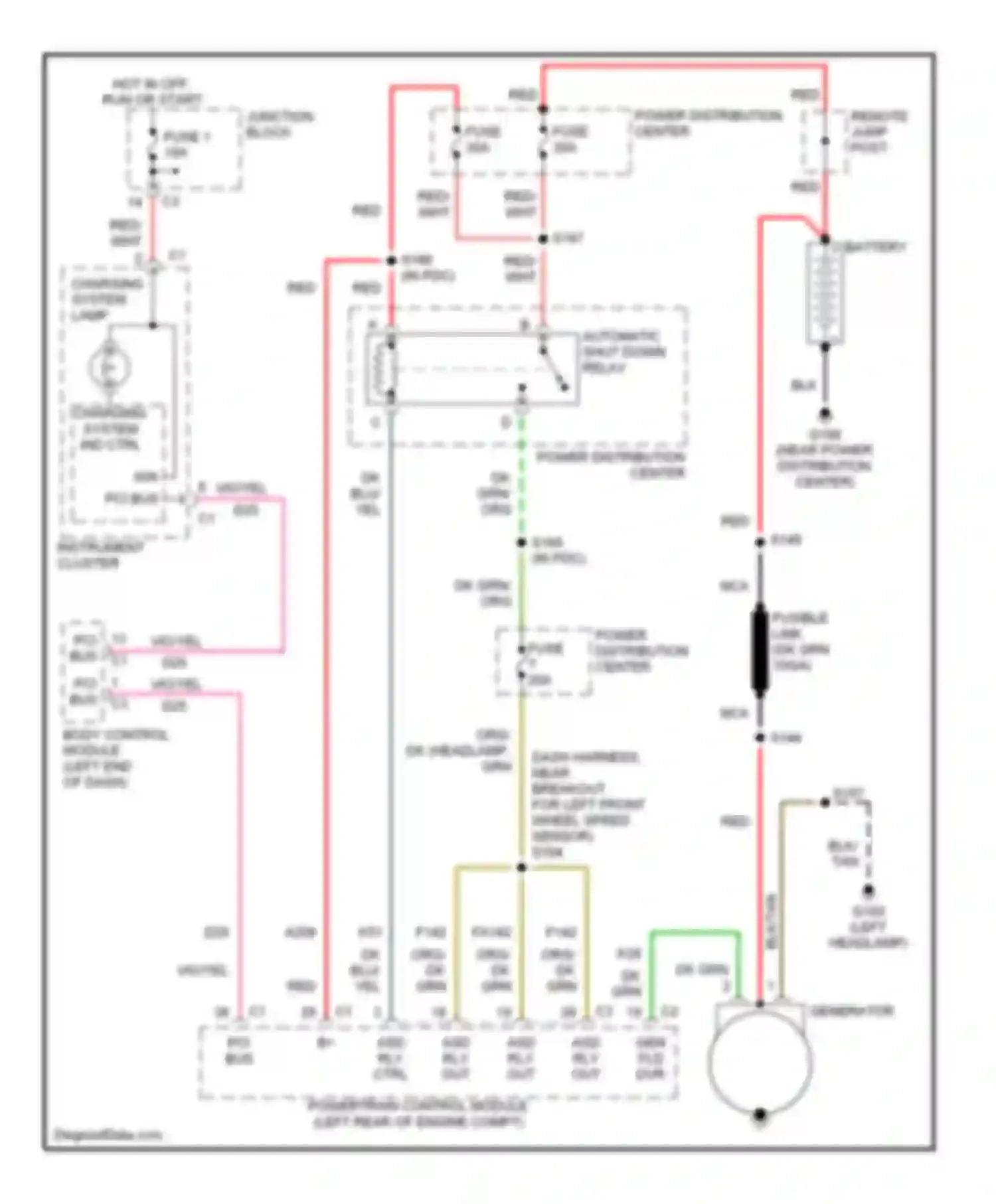

Car Wiring Diagrams for Charging circuit for Dodge Intrepid II (1997-2004)

ASD RLY OUT GEN FLD DVR ASD RLY CTRL ASD RLY OUT ASD RLY OUT B+ AUTOMATIC SHUT DOWN RELAY BATTERY BLK WIRE BLK/TAN WIRE BLU WIRE BODY CONTROL MODULE (LEFT END OF DASH) CHARGING SYSTEM IND CTRL CHARGING SYSTEM LAMP DK (HEADLAMP, DASH HARNESS, NEAR BREAKOUT FOR LEFT FRONT WHEEL SPEED SENSOR) DK DK DK DK DK GRN WIRE FUSE 1 FUSE N FUSIBLE LINK GENERATOR GRN WIRE HOT IN OFF, RUN OR START IGN PCI BUS INSTRUMENT CLUSTER JUNCTION BLOCK LEFT HEADLAMP NCA WIRE ORG/ WIRE PCI BUS POWER DISTRIBUTION CENTER POWER DISTRIBUTION CENTER FUSE POWERTRAIN CONTROL MODULE (LEFT REAR OF ENGINE COMPT) RED WIRE REMOTE JUMP POST TAN WIRE VIO/YEL WIRE WHT WIRE YEL WIRE
