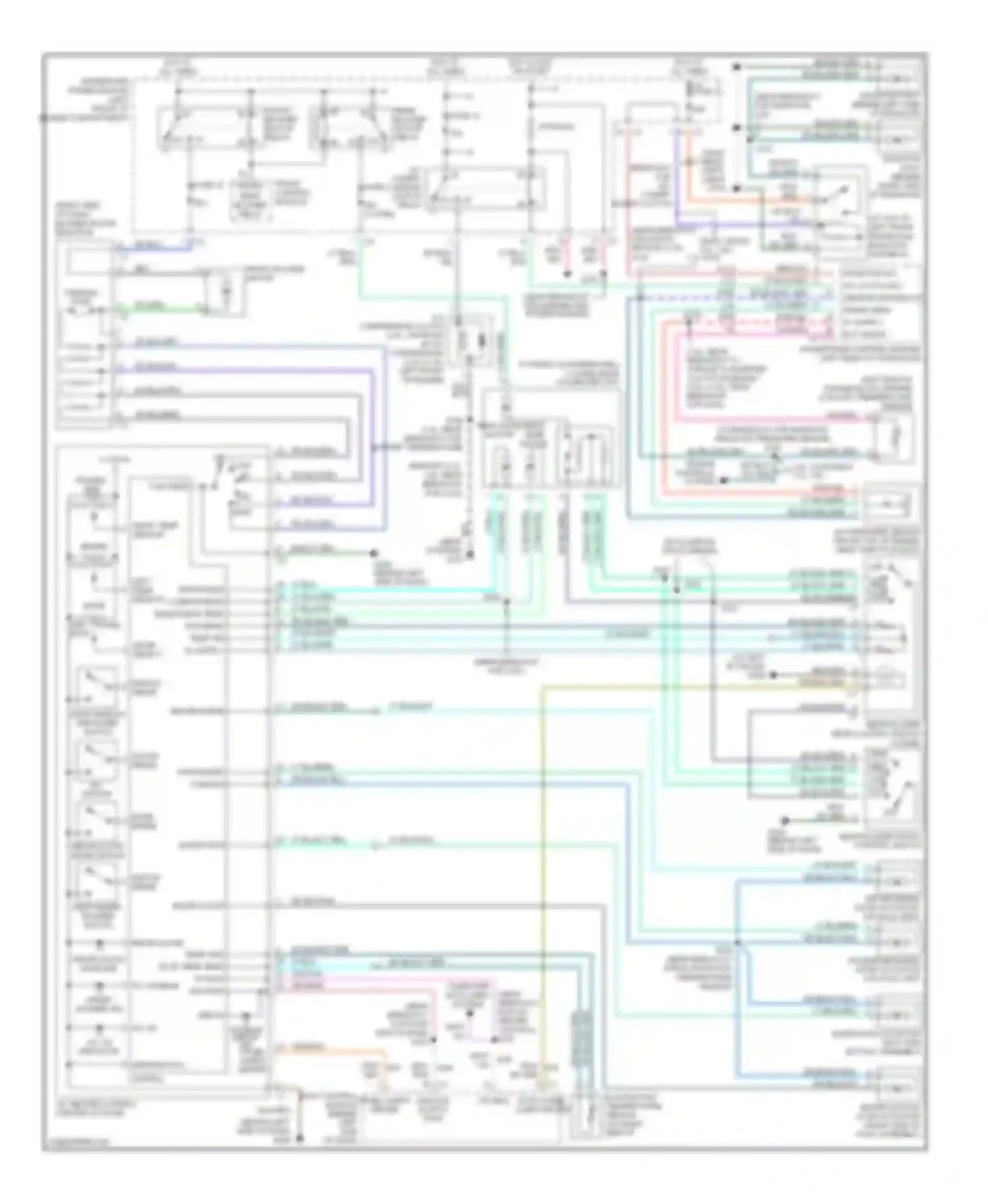

Dodge Caravan IV (2000-2007) rear temp motor rear mode motor Wiring diagram

2.4L, LATE BUILD: 3.3L, 3.8L 5 VOLTS A/C COMPR- ESSOR CLUTCH RELAY A/C HEATER CONTROL (CENTER OF DASH) A/C ON A/C ON INDICATOR A/C ON REAR WIPER/ WASHER IND A/C PRESSURE SENSOR (FRONT TOP OF ENGINE, NEAR THROTTLE BODY) A/C SWITCH BLK WIRE BLK/ GRY WIRE BLK/DK GRN WIRE BLK/LT GRN WIRE BLK/ORG WIRE BODY CONTROL MODULE (BEHIND LEFT SIDE OF DASH) PANEL LAMPS DRIVER BRN WIRE BRN/VIO WIRE DEF- ROST PANEL DEFOG ON REAR DEFOG IND DK BLU WIRE DK BLU/BRN WIRE DK BLU/DK GRN WIRE DK BLU/GRY WIRE DK BLU/LT BLU WIRE DK BLU/LT GRN WIRE DK BLU/ORG WIRE DK BLU/TAN WIRE DK BLU/VIO WIRE DK GRN WIRE DRIVER BLEND DRIVER BLEND DOOR ACTUATOR (ON HVAC UNIT) ECT SIGNAL ENGINE CONTROLS SYSTEM EVAPORATOR TEMPERATURE SENSOR (ON RIGHT SIDE OF HVAC) PANEL LAMPS DRIVER F BLOWER FRONT BLOWER MOTOR FRONT BLOWER MOTOR RELAY FRONT CONTROL MODULE FRONT/ REAR BLOWER RELAY FUSE 10 FUSE 12 FUSE 18 FUSE 27 GROUND HVAC CONTROL GRY WIRE GRY/PNK WIRE HIGH MED LOW ON 4 6 7 8 HOT AT ALL TIMES HOT IN RUN OR START IGNITION OUTPUT (RUN) PCI BUS INTEGRATED POWER MODULE (LEFT FRONT OF ENGINE COMPARTMENT) LEFT TEMP SENSOR LT BLU WIRE LT BLU/BRN WIRE LT BLU/DK BLU WIRE LT BLU/DK GRN WIRE LT BLU/LT GRN WIRE LT BLU/ORG WIRE LT BLU/PNK WIRE LT BLU/WHT WIRE LT BLU/YEL WIRE MODE MODE DOOR MODE DOOR ACTUATOR (LEFT SIDE OF HVAC ASSEMBLY) MODE SELECT MODE SENSE OFF OFF 3 2 1 LOW MED HIGH OFF LOW ON/OFF SENSE OPTIONAL ORG/ WIRE ORG/DK GRN WIRE ORG/GRY WIRE PANEL LAMPS DRIVER PASS BLEND COMMON PASSEN- GER PASSENGER BLEND DOOR ACTUATOR (ON HVAC UNIT) PNK PNK WIRE PNK WIRE PNK/YEL WIRE POWERTRAIN CONTROL MODULE (LEFT REAR OF TRANSAXLE) RADIATOR FAN 1 (BEHIND LEFT SIDE OF RADIATOR) RADIATOR FAN 2 (BEHIND RIGHT SIDE OF RADIATOR) RADIATOR RLY A/C CLUTCH RLY SENSOR GROUND A/C PRESS SENS REAR BLOWER FRONT CONTROL SWITCH REAR BLOWER MOTOR RELAY REAR BLOWER REAR CONTROL SWITCH (3 ZONE) REAR MODE COMMON REAR BLEND REAR TEMP RTN REAR TEMP SIG REAR TEMP MOTOR REAR MODE MOTOR REAR WINDOW DEFOGGER SWITCH REAR WIPER/ WASHER SWITCH RECIRC DOOR RECIRCULATE RECIRCULATE MODE IND RECIRCULATE MODE SWITCH RECIRCULATION DOOR ACTUATOR (RIGHT SIDE OF HVAC ASSEMBLY) RED WIRE RIGHT TEMP SENSOR SENS GND EVAP TEMP SENS PCI BUS IGN (RUN) SENSOR) (3.3L, 3.8L: NEAR BREAKOUT SWITCH SENSE THERMAL FUSE VIO WIRE VIO/ORG WIRE WHT WIRE WHT/VIO WIRE YEL WIRE
